6SL3201-0BE14-3AA0 SIEMENS Exclusive Braking Resistor Original Brand New

6SL3201-0BE14-3AA0 - SIEMENS Exclusive Braking Resistor Original Brand New

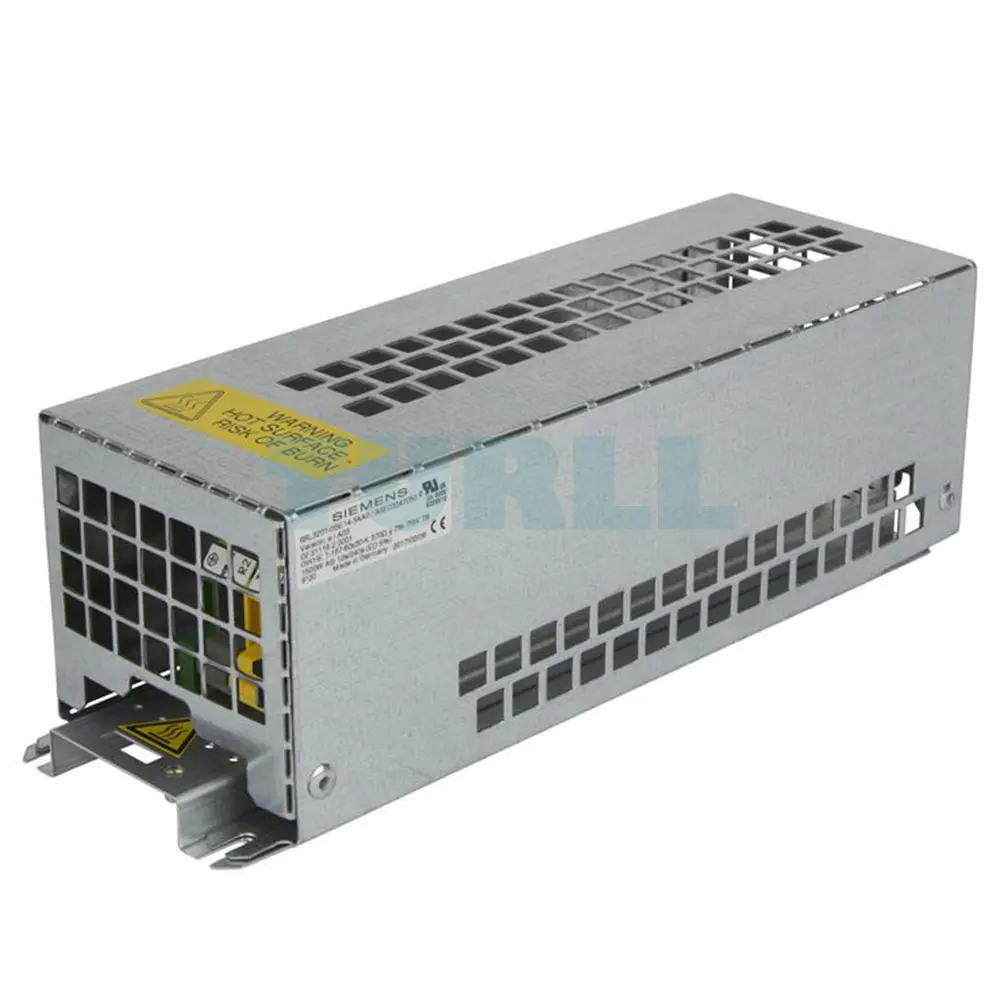

The 6SL3201-0BE14-3AA0 SIEMENS braking resistor is a reliable standalone component engineered to handle excess energy produced during deceleration processes in modern automation systems. Designed for integration with PM240-2 Power Modules, this braking resistor supports applications where kinetic energy must be converted into heat in a controlled and efficient manner. With a resistance rating of 370 Ohm and a continuous power capacity of 75 W, it delivers stable performance across varied operating cycles. Its ability to handle peak loads up to 1500 W for short periods ensures adaptability when dealing with demanding braking tasks.

This braking resistor provides an essential protective function for systems that generate regenerative energy but cannot return it to the electrical supply. When combined with the integrated braking chopper within the PM240-2 Power Module, the resistor ensures safe energy dissipation, extending the lifetime and reliability of the entire drive system. The unit is suitable for environments requiring consistent thermal stability and dependable overload handling.

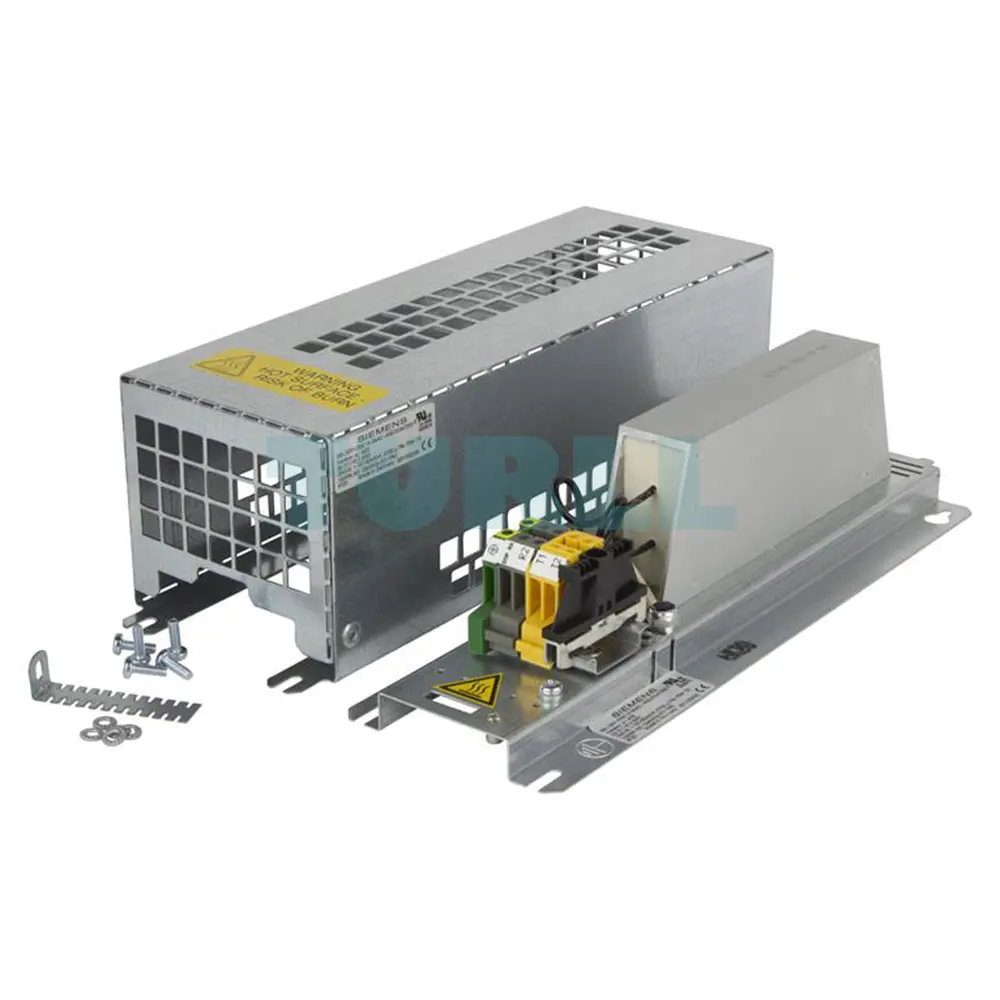

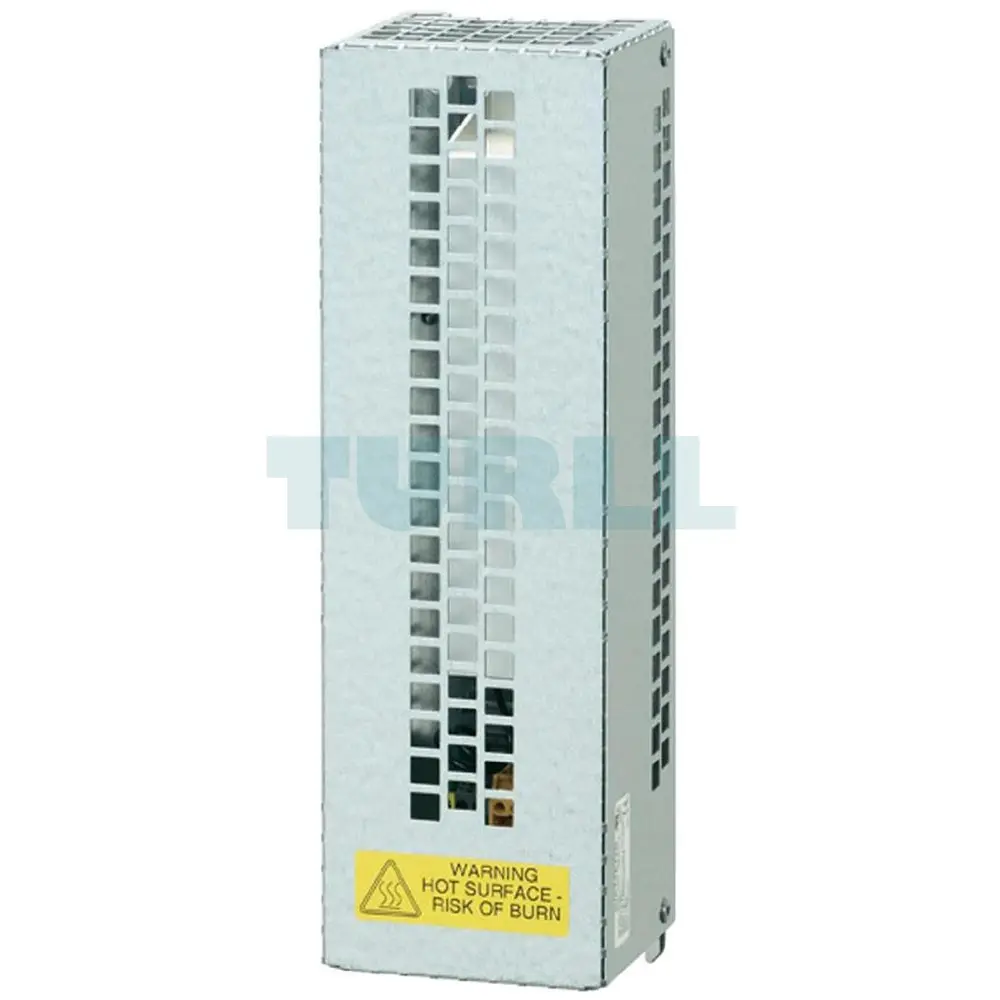

Installation flexibility is another highlight. The resistor can be mounted laterally next to PM240-2 modules, especially within frame size FSG configurations. For improved thermal management, SIEMENS recommends installing these braking resistors outside control cabinets or switchgear rooms. Proper placement promotes efficient heat removal, lowers air-conditioning demands, and protects nearby equipment from unnecessary thermal exposure.

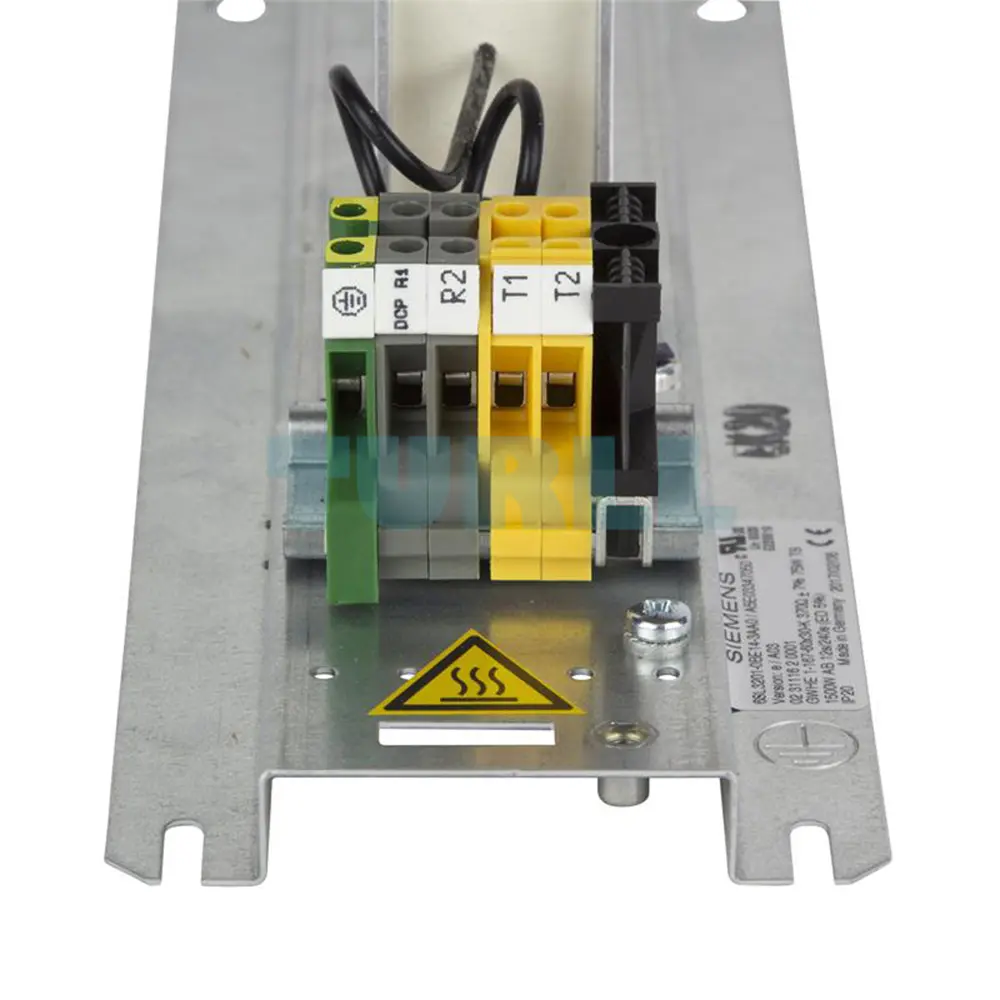

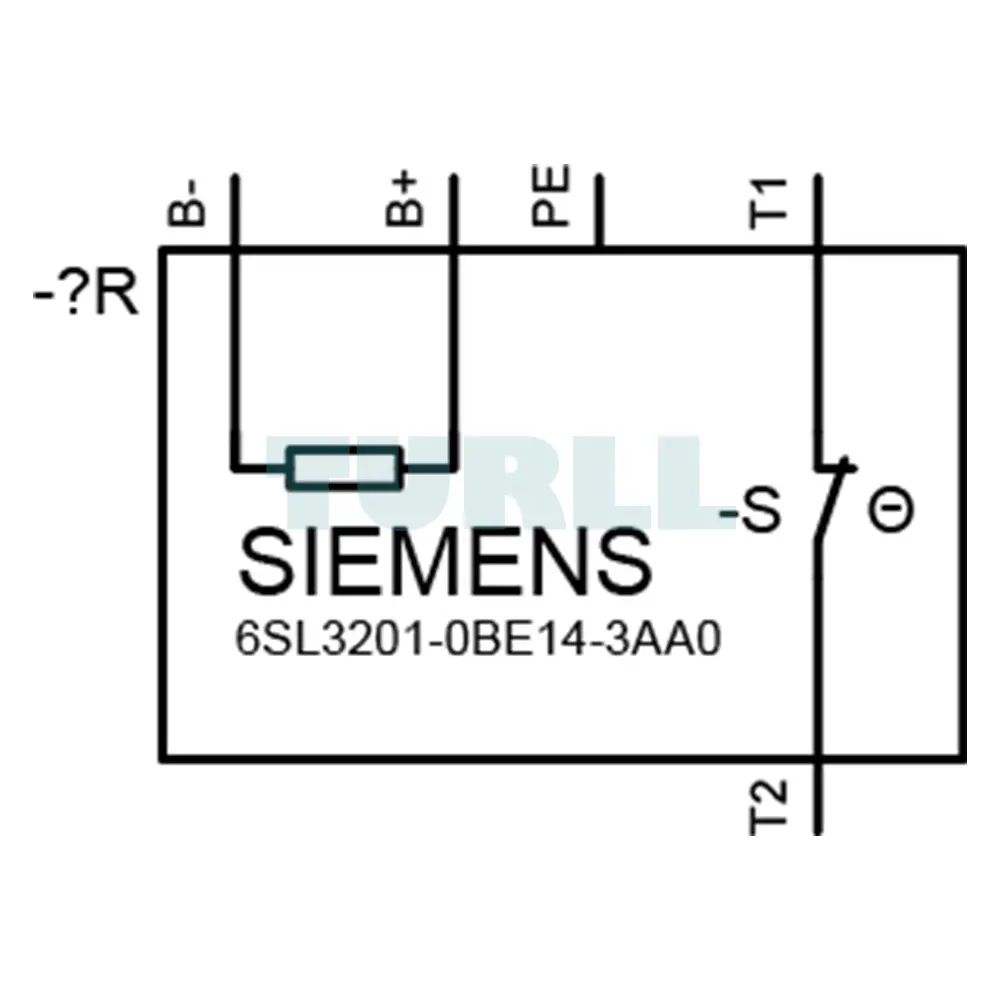

Each unit includes a UL-listed temperature switch designed to prevent damage caused by overheating. This switching function offers an additional layer of system protection, making the resistor manageable even in high-demand applications. For frame sizes FSD to FSG, SIEMENS provides compatible shield connection kits to ensure stable, electromagnetically compatible installation. These accessories improve shielding integrity and help maintain system compliance with industry standards.

Overview

This braking resistor is optimized for PM240-2 Power Modules in frame size FSG and ensures excess DC-link energy is safely converted into heat. It provides reliable braking performance for systems handling high inertial loads and cannot feed energy back to the supply. Its temperature protection and installation flexibility support long-term, stable operation.

Product Code: 6SL3201-0BE14-3AA0
