6SL3202-0AE23-8CA0 SIEMENS Exclusive Output Reactor Original Brand New

6SL3202-0AE23-8CA0 SIEMENS Exclusive Output Reactor Original Brand New

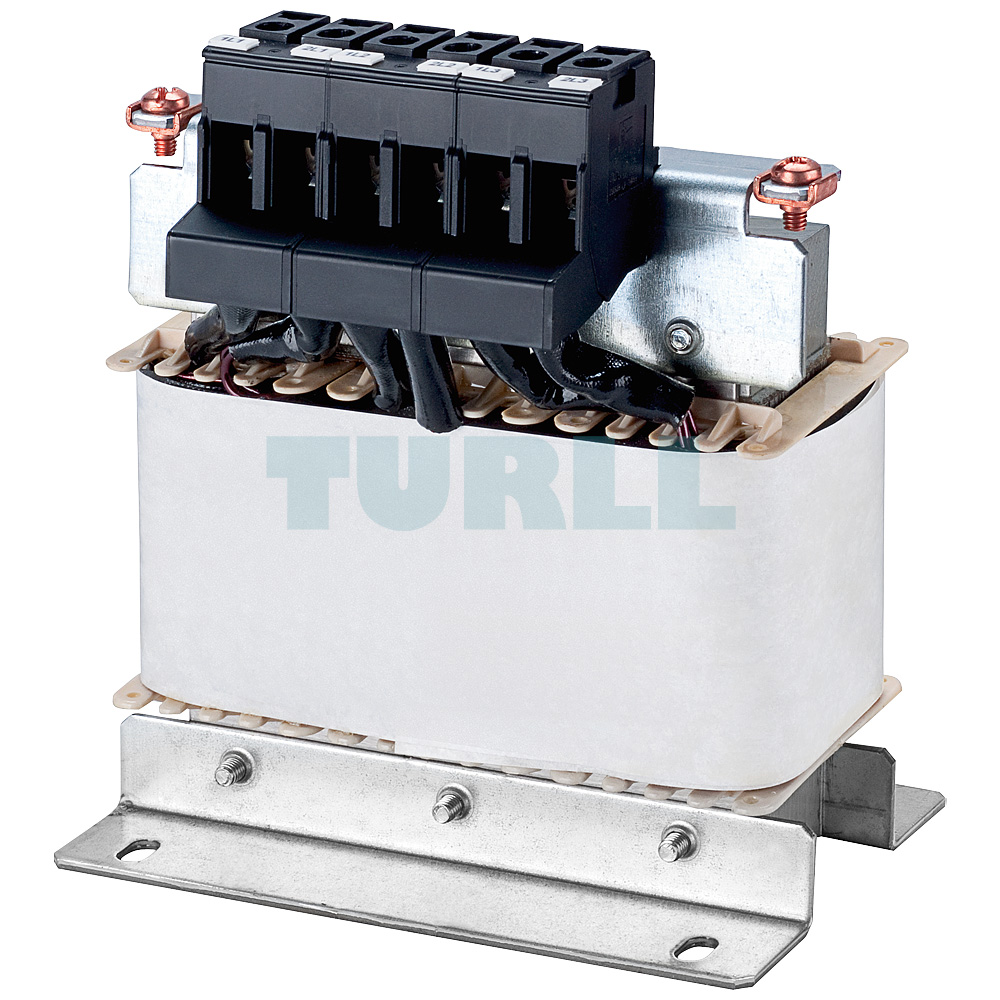

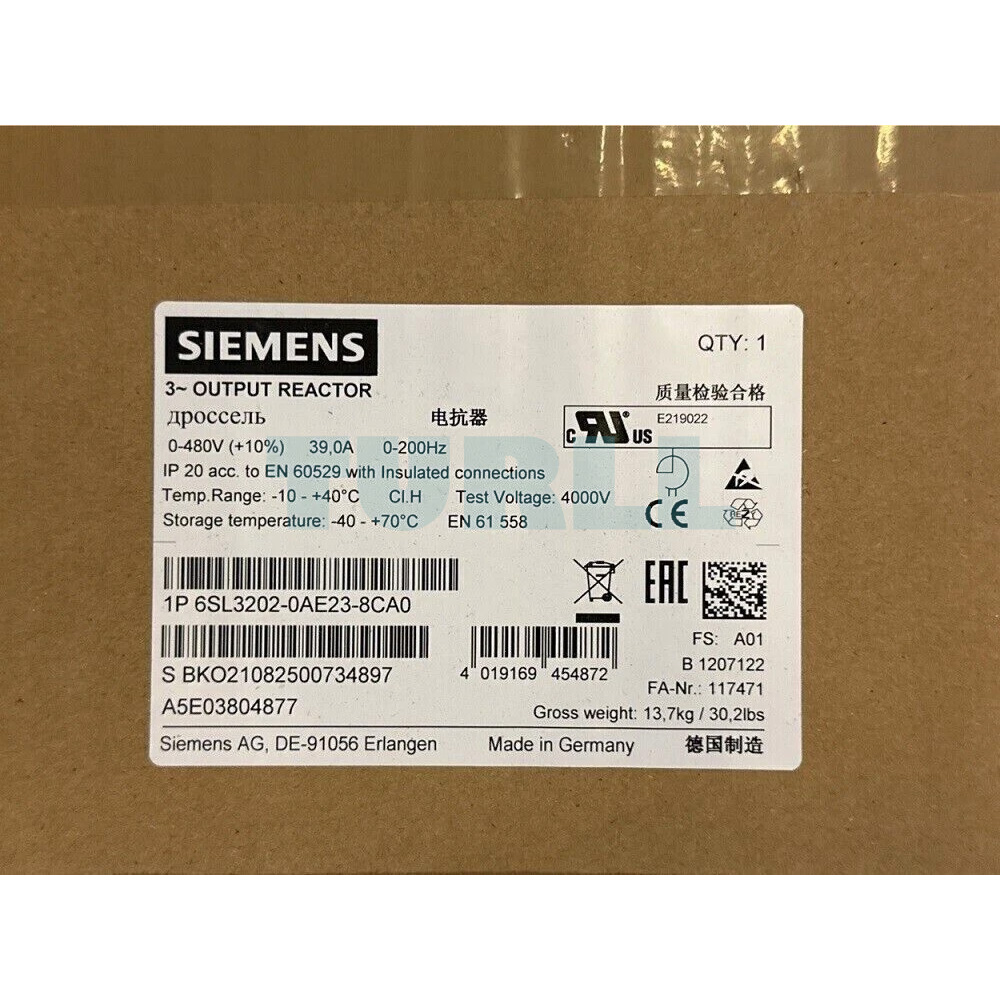

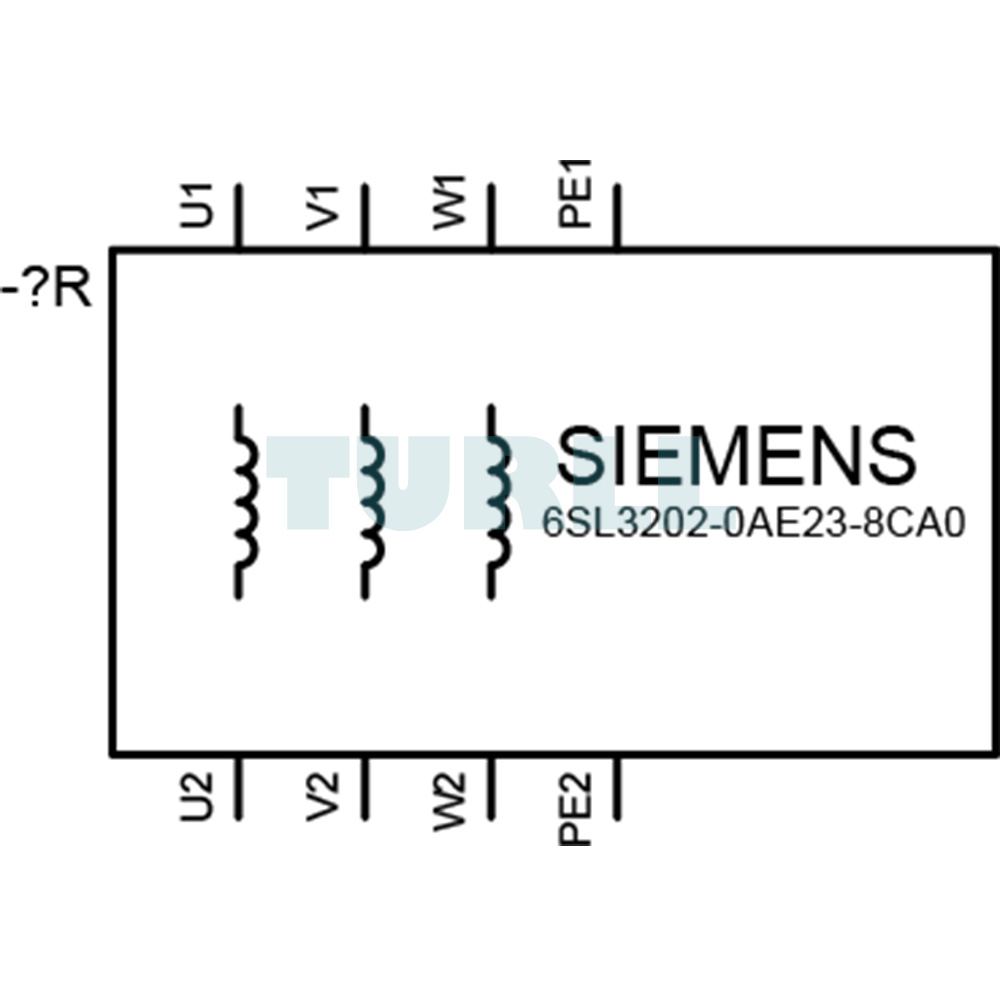

The 6SL3202-0AE23-8CA0 SIEMENS output reactor is a highly dependable component engineered for use with SINAMICS Power Module systems. Designed specifically for applications involving the PM240-2 Power Modules in frame size FSG, this reactor serves as a protective and performance-enhancing element within advanced drive setups. Its primary function is to optimize electrical characteristics at the inverter output, ensuring stable operation when long motor cables are required and helping maintain the reliability expected in modern automation systems.

In fast-switching inverter applications, rapid voltage transitions can cause the capacitance of extended motor cables to reverse polarity extremely quickly. This phenomenon introduces significant current peaks that place additional electrical stress on the inverter. The 6SL3202-0AE23-8CA0 reactor helps stabilize these transitions by slowing the reversal rate at the cable capacitance. This effect reduces the magnitude of the unwanted current peaks, contributing to smoother system behavior and longer equipment life.

By lowering voltage rise rates and dampening current peak amplitude, the reactor supports improved compatibility with demanding motor installations. It also helps maintain operational consistency when using long cable runs, allowing users to expand their system design flexibility without compromising efficiency. When installed correctly, the reactor assists in sustaining stable conditions for the Power Module, especially in applications where cable length or switching frequency might otherwise cause electrical disturbances.

For optimal performance, the reactor should be positioned as close as possible to the Power Module. During configuration, users must consider the recommended limits, including a maximum permissible output frequency of 150 Hz and a maximum permissible pulse frequency of 4 kHz. These installation guidelines ensure that the reactor performs as intended within the drive environment and supports dependable operation over extended periods.

Overview

The reactor is designed for PM240-2 Power Modules, offering reduced dv/dt at the inverter output and lowering the impact of switching-induced current peaks. It ensures smoother electrical behavior and enables longer motor cable connections without excessive inverter loading.

Key Features

• Optimized for SINAMICS PM240-2 Power Modules
• Reduces voltage rise rates (dv/dt)
• Dampens current peaks generated by fast-switching IGBTs
• Supports longer motor cable installations
• Improves inverter reliability by reducing electrical stress
• Designed for stable performance in demanding environments

Product Code: 6SL3202-0AE23-8CA0
