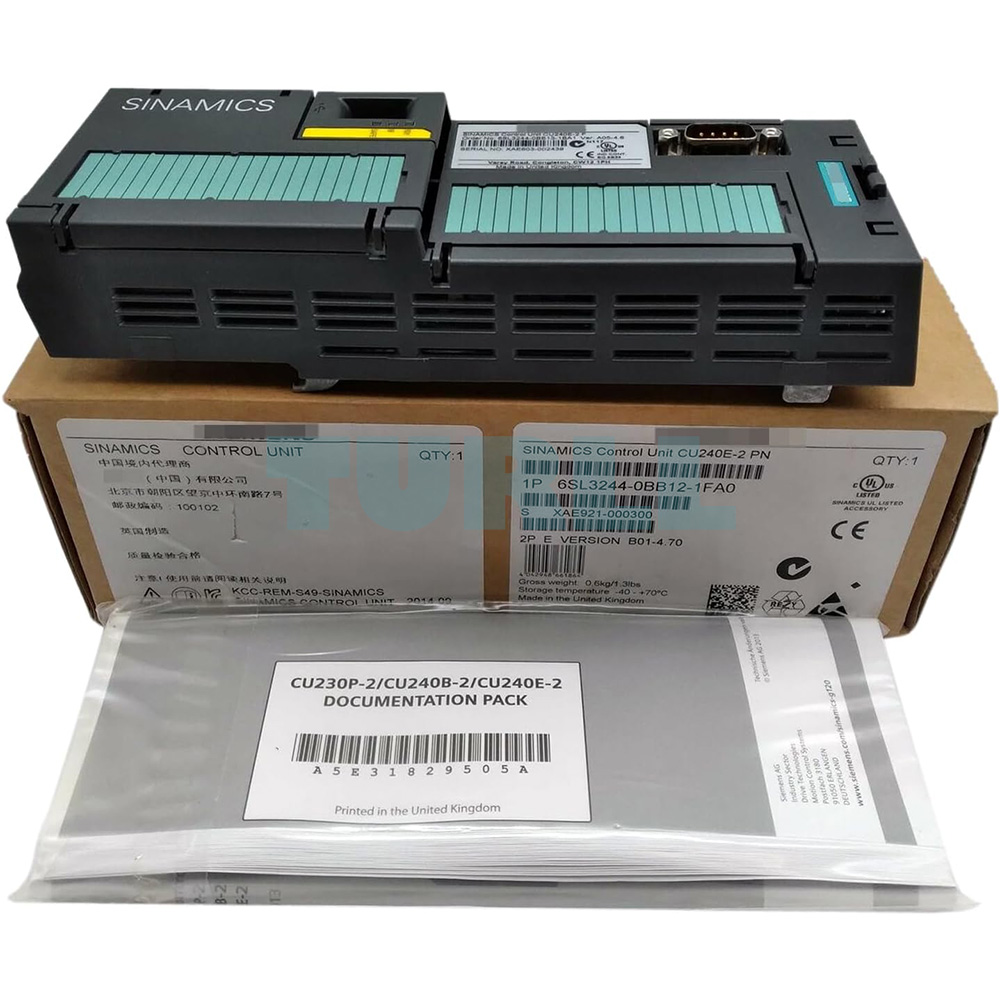

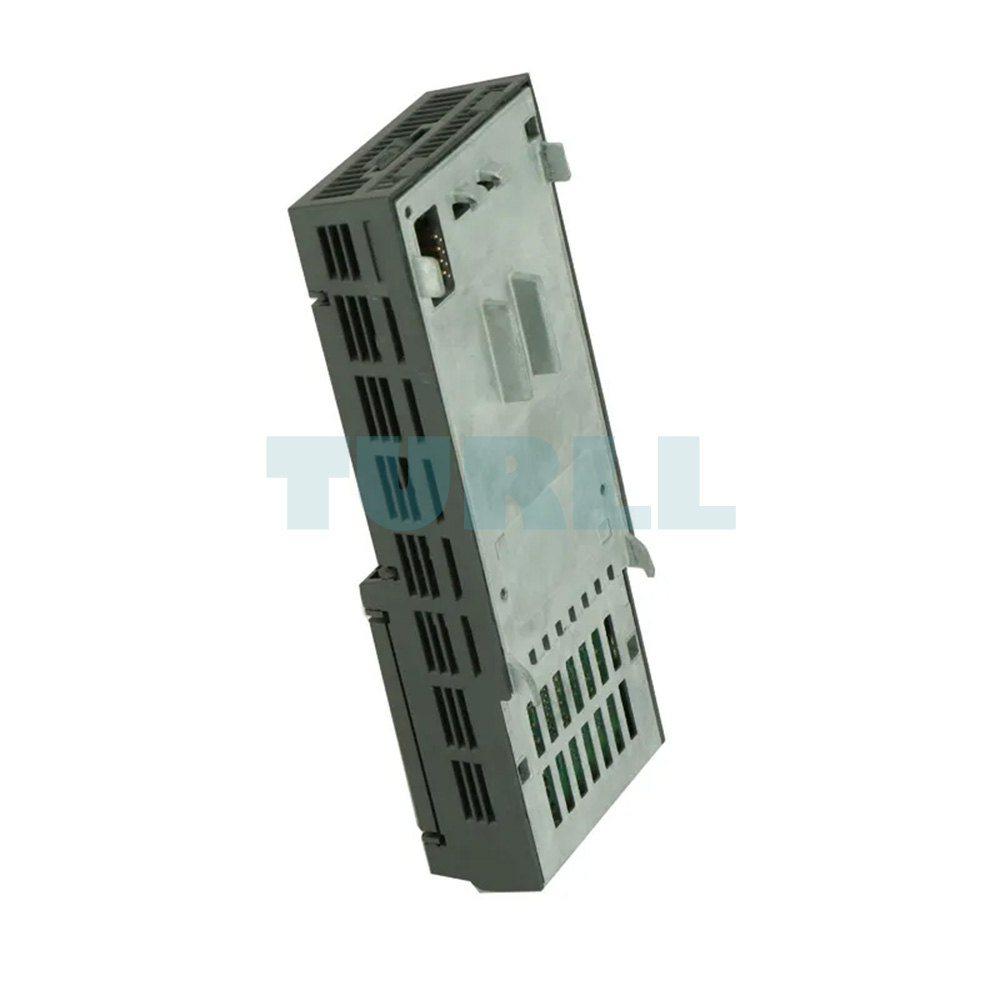

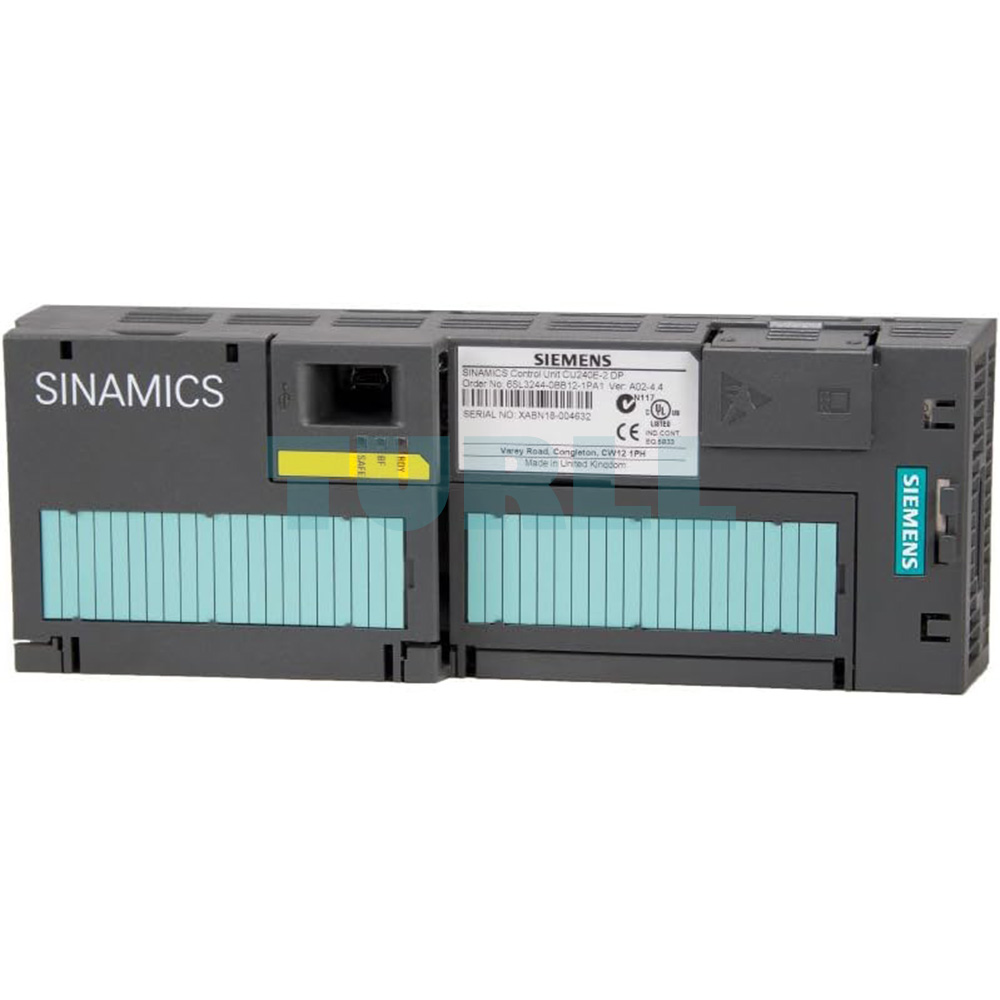

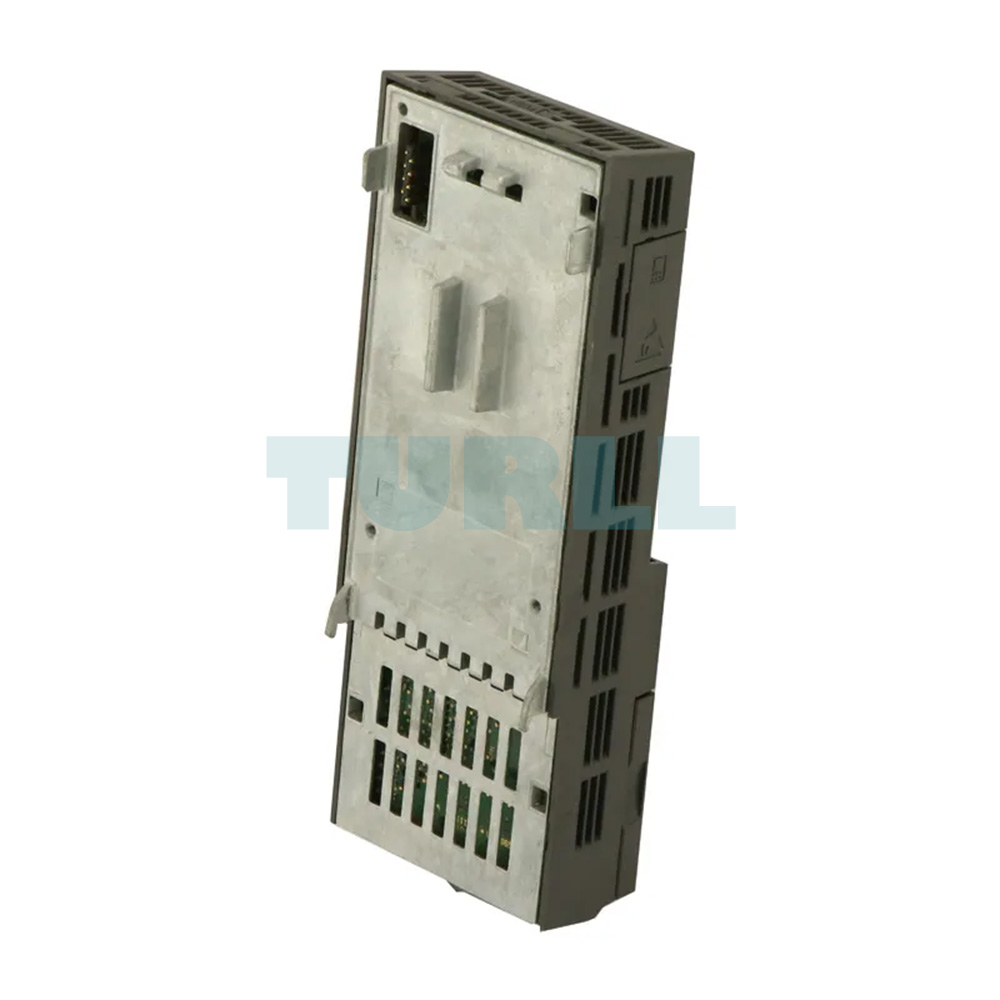

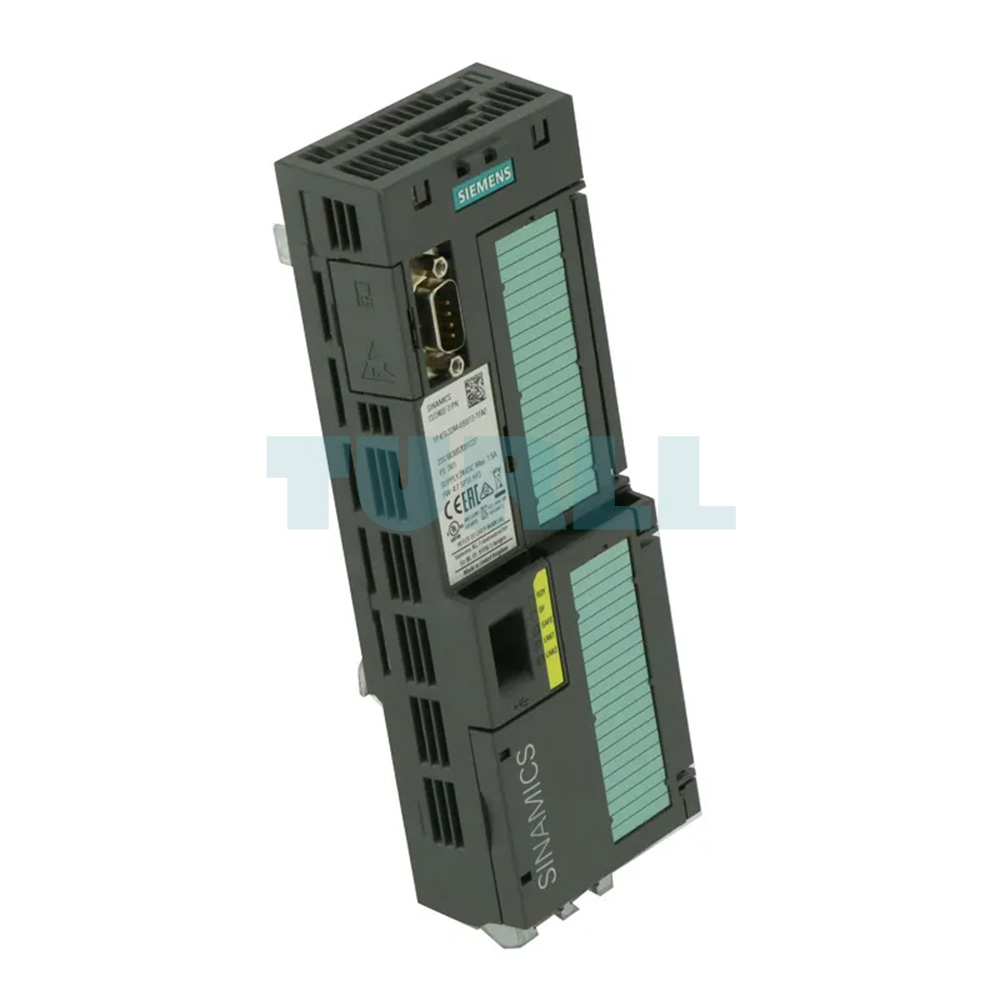

6SL3244-0BB13-1BA1 SIEMENS Exclusive SINAMICS G120 Control Unit Original Brand New

6SL3244-0BB13-1BA1 SIEMENS Exclusive SINAMICS G120 Control Unit Original Brand New

The SIEMENS 6SL3244-0BB13-1BA1 is a high-performance control unit engineered for the SINAMICS G120 drive system, offering a versatile platform for modern industrial automation. This unit belongs to the CU240E-2 F family, designed to support a wide range of applications requiring reliable motor control, advanced safety functions, and flexible communication capabilities. Built to operate efficiently in demanding production environments, it provides dependable closed-loop control functions and a broad selection of configurable I/O options.

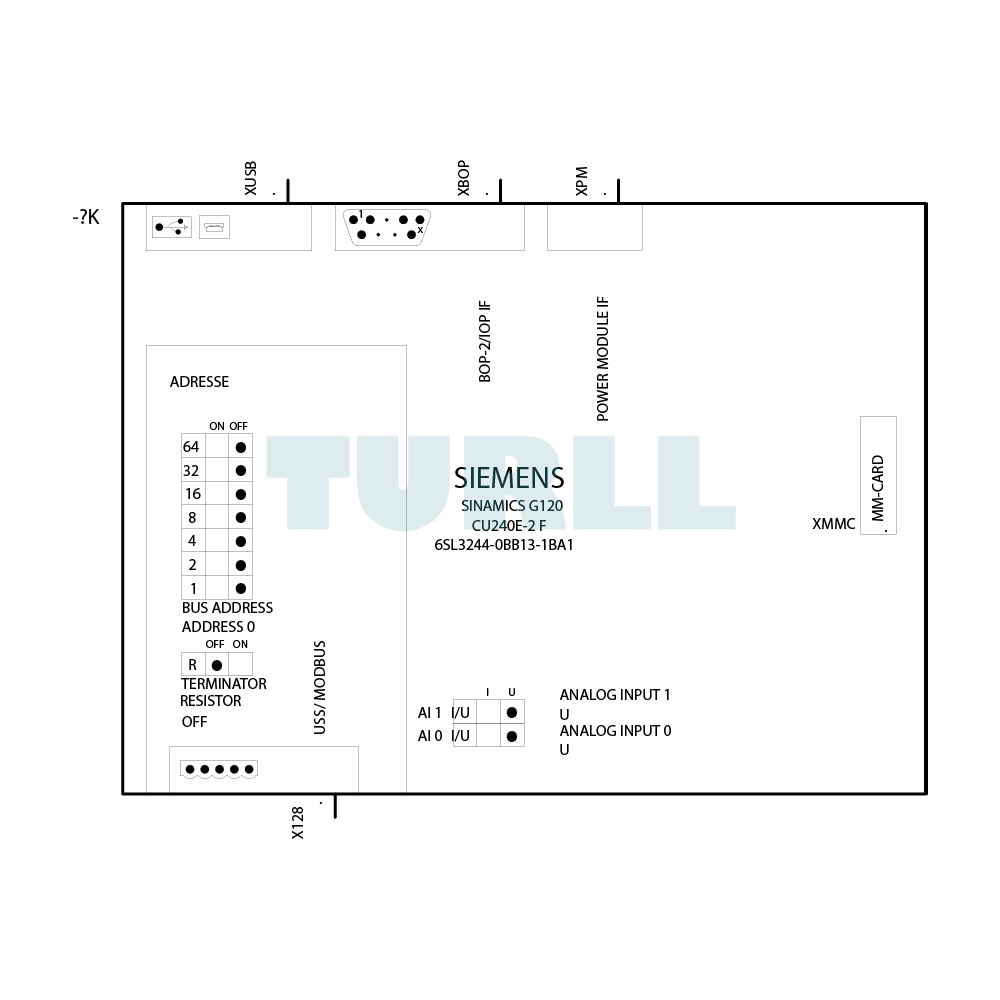

With RS-485 communication, 6 digital inputs, 3 digital outputs, 2 analog inputs, and 2 analog outputs, this unit allows seamless integration into existing automation systems. The USB and SD/MMC interfaces enable simplified commissioning, diagnostics, and firmware handling. Its natural convection cooling design supports operation in ambient temperatures up to 50°C when used without a power module, making it suitable for installation in compact equipment layouts. The IP20 protection class ensures safe operation within control cabinets and protected environments.

Being part of the CU240E-2 series, this control unit seamlessly pairs with Power Modules such as PM240-2 and PM250, providing a scalable system architecture that can adapt to multiple motor control strategies including V/f and vector control. It supports stable, precise motor operation across numerous industrial processes.

Overview

The CU240E-2 DP-F control concept focuses on providing advanced flexibility, compatibility, and user-oriented configuration options. These units are widely used in applications that require dependable closed-loop control without the complexity of encoder feedback systems. Designed as standard controllers for general-purpose motor control, they accommodate both basic and demanding automation needs.

Design

Safety is an essential part of the CU240E-2 F units. Integrated features include Safe Torque Off (STO), Safe Stop 1 (SS1), Safely-Limited Speed (SLS), Safe Direction (SDI), and Safe Speed Monitor (SSM). These functions are certified to international standards and can be activated via safety terminals or PROFIsafe. Their encoder-less implementation reduces installation complexity while increasing overall system flexibility.

Shield plates and shield connection kits are available to maintain EMC compliance during installation, ensuring stable performance in noisy industrial environments.

Download

Data Sheet (PDF)

Product Code: 6SL3244-0BB13-1BA1
