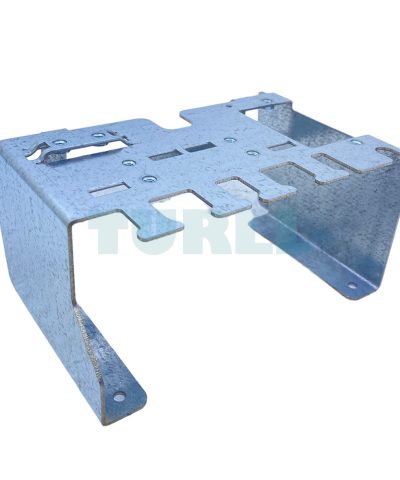

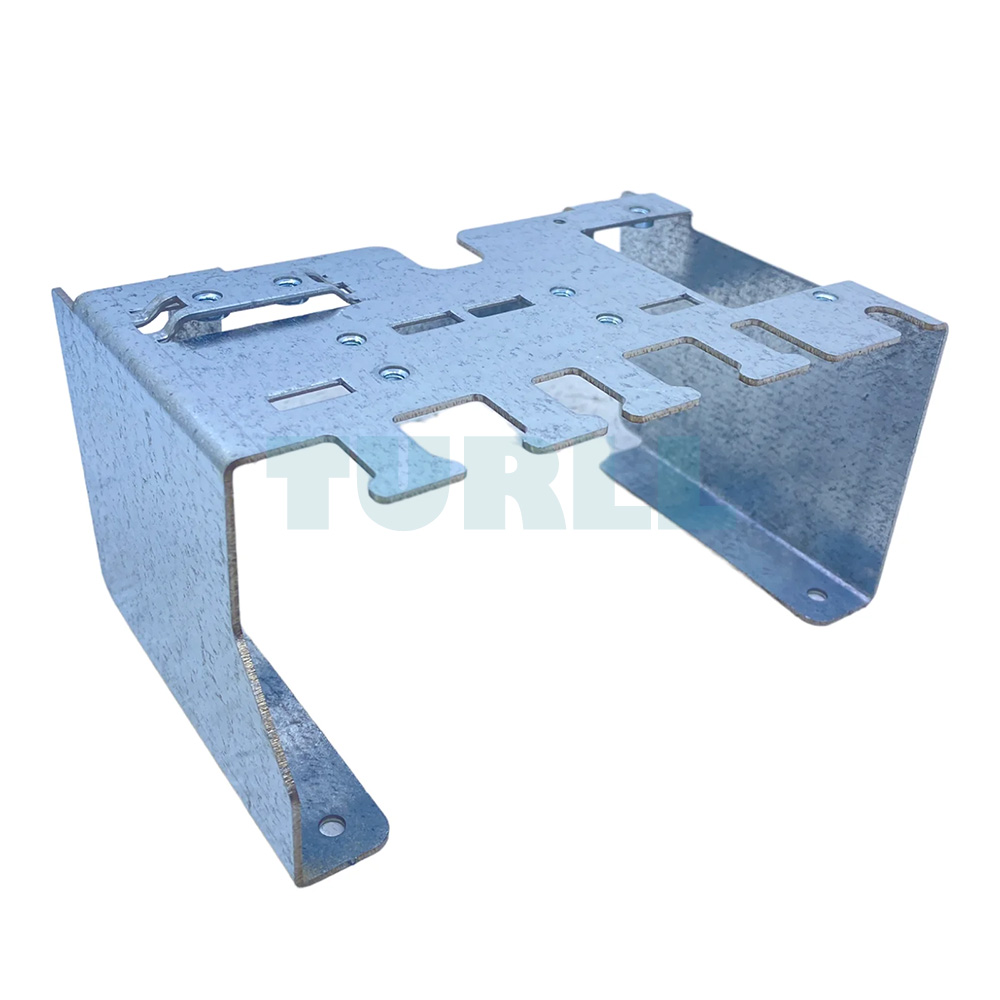

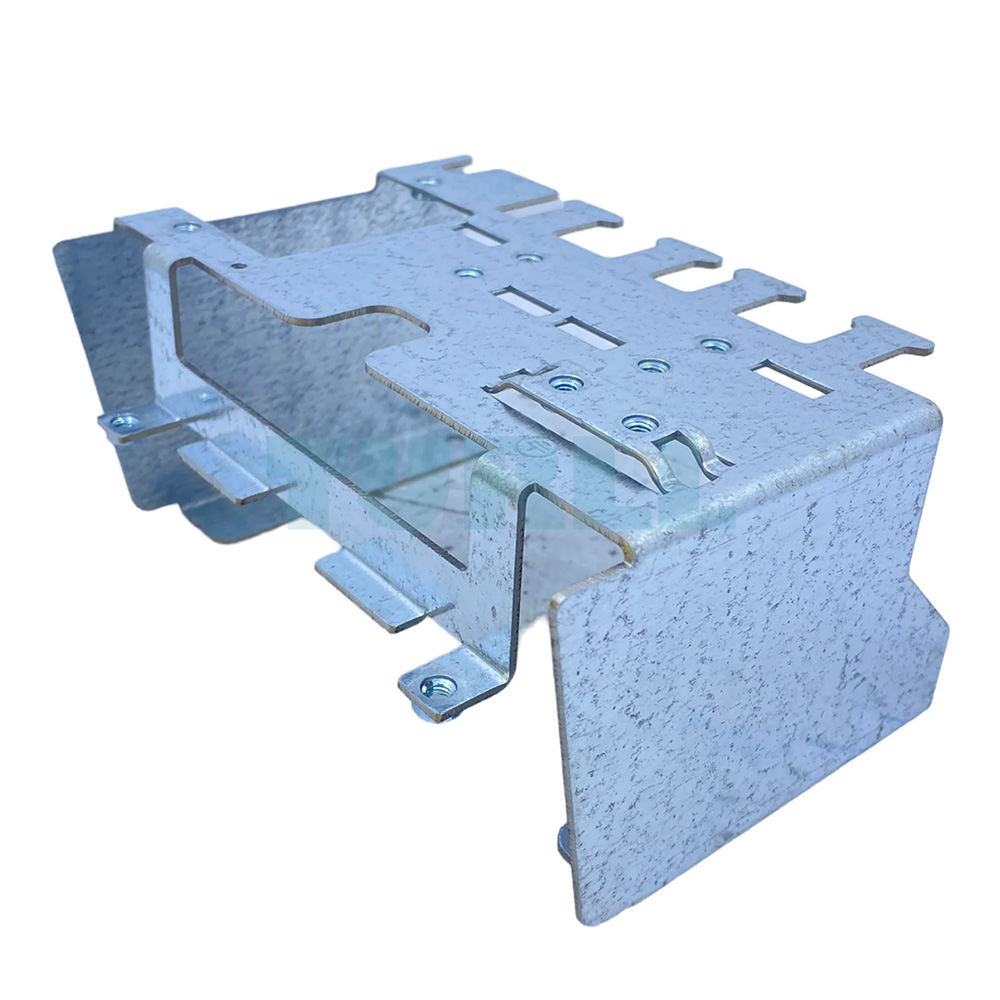

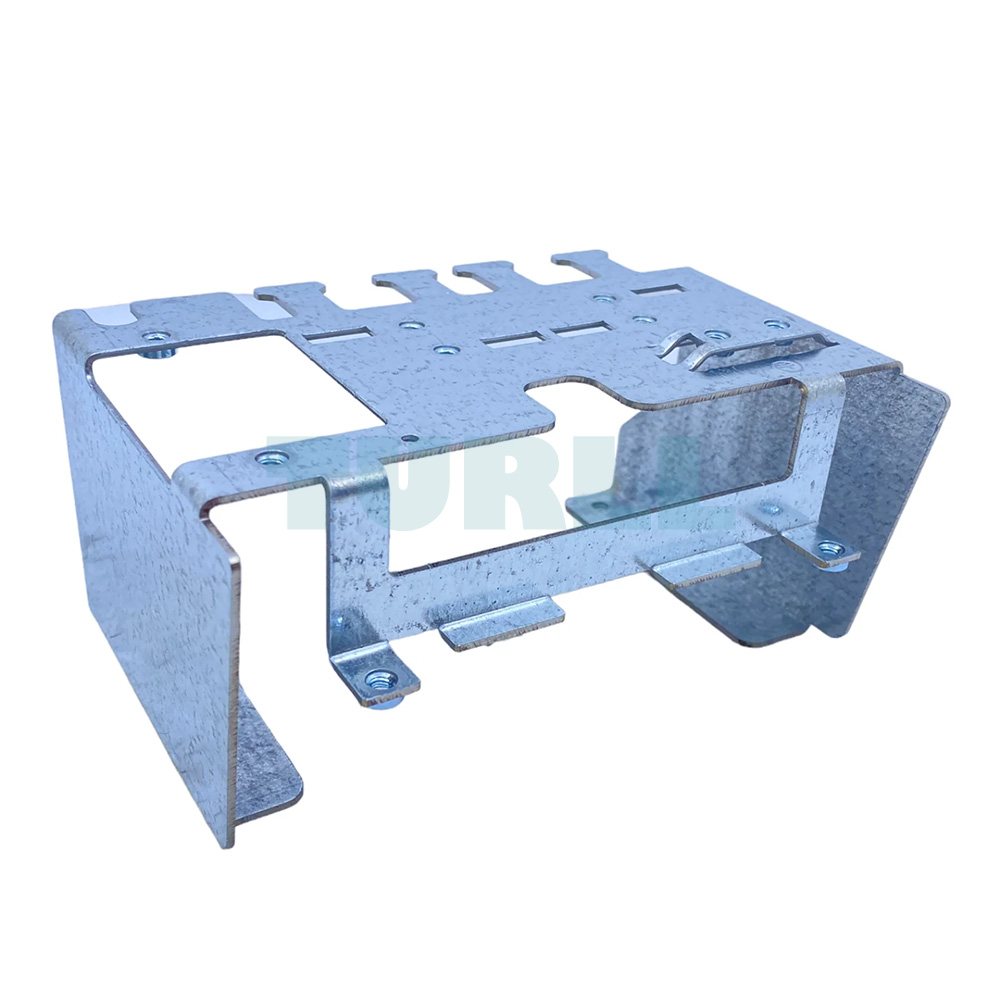

6SL3262-1AC00-0DA0 SIEMENS Exclusive Shield Connection Kit Original Brand New

6SL3262-1AC00-0DA0 SIEMENS Exclusive Shield Connection Kit Original Brand New

The 6SL3262-1AC00-0DA0 SIEMENS shield connection kit is designed to support reliable installation and stable signal performance for SINAMICS Power Modules. Developed for compatibility with PM240 and PM250 units in frame size FSC, this accessory helps create an optimized physical and electrical environment for both supply cables and control wiring. Its primary purpose is to provide a clean, secure interface that enhances electromagnetic performance while simplifying assembly work during installation and maintenance operations. The design allows technicians to establish proper shielding practices without additional hardware, helping maintain system integrity over long operating cycles.

This shield connection kit offers a combination of mechanical strain relief and well-structured cable management. By allowing supply and control cable shields to terminate correctly, the accessory supports consistent system behavior even in environments with high electrical noise. The included components are built to withstand industrial conditions and to ensure that connections remain secure under frequent mechanical interaction. The integrated mounting feature for the brake relay helps reduce component clutter, resulting in a more organized system layout. This contributes to improved service access and faster replacement procedures when required.

Installation is straightforward due to the dedicated shield connection plate and the clamps included in the standard set. The accessory aligns with the electromagnetic compatibility requirements of SINAMICS systems, helping to achieve reliable signal transmission and reducing the likelihood of interference. For larger frame sizes from FSD to FSG, additional shield plates are included to support motor and signal cables as needed. When a braking resistor is connected in these larger configurations, the corresponding shield kit ensures proper shielding continuity to maintain EMC stability.

Overview

The shield connection kit simplifies the process of attaching cable shields, ensures mechanical strain relief, enhances EMC performance, and provides mounting capability for brake relay units. It includes a shield connection plate tailored to the specific Power Module type, along with clamps and mounting elements that support secure installation across various frame sizes.

Key Features

• Supports secure cable shielding for stable operation
• Enhances EMC performance for SINAMICS Power Modules
• Includes dedicated mounting for brake relay assemblies
• Provides mechanical strain relief for supply and control cables
• Supplied as standard with PM240-2 modules in select frame sizes

Product Code: 6SL3262-1AC00-0DA0
