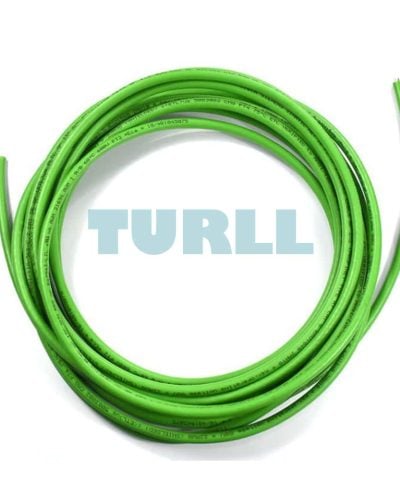

6XV1840-2AU10 Siemens Industrial Ethernet Standard Cable Original Brand New

For the construction of Industrial Ethernet networks (4-core), different cable types are offered to suit the different types of application.

In general, the listed Industrial Ethernet FC cables IE FC cable 2 x 2 must be used.

UL approvals

Different cable variants are offered with appropriate UL/ETL approvals for laying in cable bundles and cable racks according to NEC (National Electrical Code) regulations Article 800/725. These are identified as GP (general purpose).

Design

The FastConnect (FC) Industrial Ethernet cables IE FC cable 2 x 2 are designed with radial symmetry and therefore allow the use of the IE FC stripping tool. The IE FC RJ45 outlet and the IE FC plugs can therefore be attached quickly and easily.

• The double shield makes it especially suitable for routing through industrial areas with strong electromagnetic fields
• Easy connection to the insulation displacement contacts of the IE FC plugs without the need for special tools
• System-wide grounding concept can be implemented through the outer shield of the bus cable as well as through the grounding concept of the IE FC RJ45 outlet and the IE FC plugs
• Printed meter marks

Cable types

• IE FC TP standard cable GP 2 x 2:
  Standard bus cable with rigid cores specially designed for fast installation;
  four rigid cores stranded in a four branch star
• IE FC TP robust standard cable GP 2 x 2:
  Standard bus cable with rigid cores specially designed for fast installation;
  four rigid cores stranded in a four branch star with a rugged TPE protective jacket (thermoplastic elastomer)
• IE FC TP flexible cable GP 2 x 2:
  Flexible bus cable for the special application of occasional motion control;
  four stranded cores connected in a four branch star
• IE FC TP robust flexible cable GP 2 x 2:
  Flexible bus cable for the special application of occasional motion control;
  four stranded cores connected in a four branch star with a rugged TPE protective jacket (thermoplastic elastomer)
• IE FC TP FRNC cable GP 2 x 2:
  Flexible, halogen-free cable for use in buildings (FRNC= Flame Retardant Non Corrosive);
  four stranded cores connected in a four branch star for occasional movement
• IE FC TP trailing cable GP / IE FC TP trailing cable 2 x 2 :
  Highly flexible bus cable for the special application of constant motion control in a cable carrier, e.g. for continuously moving machine parts;
  four stranded cores connected in a four branch star
• IE FC festoon cable GP 2 x 2:
  Flexible cable for special use in constant movement in a cable trail/festoon arrangement, e.g. on crane systems;
  four stranded cores connected in a four branch star
• IE TP torsion cable 2 x 2:
  Highly flexible bus cable for the special application of continuous torsional stress
• IE TP robot cable GP 2 x 2:
  Highly flexible bus cable for the special application of continuous motion control (cable carrier and torsional stress),
  e.g. for use with robots; stranded cores
• IE FC TP food cable 2 x 2:
  Flexible cable for special use in the food and beverages industry;
  four stranded cores connected in a four branch star
• IE FC TP robust food cable 2 x 2:
  Trailable cable for special use in the food and beverages industry (IP69);
  four stranded cores connected in a four branch star
• IE FC TP marine cable 2 x 2:
  Bus cable for marine applications;
  four stranded cores connected in a four branch star, halogen-free, certified for marine applications
• IE TP ground cable 2 x 2:
  Bus cable for fixed routing in soil;
  four rigid cores stranded in a four branch star, additional PE protective jacket (internal FC cable design)
• IE TP robust ground cable 2 x 2:
  Bus cable for fixed routing in soil;
  four rigid cores stranded in a four branch star, additional PE protective jacket and metallic protection against rodents (internal FC cable design)
• IE TP train cable 2 x 2:
  Bus cable for special applications in trains;
  2x four cores (tin-coated stranded wires) connected in a four branch star, certified for railway applications

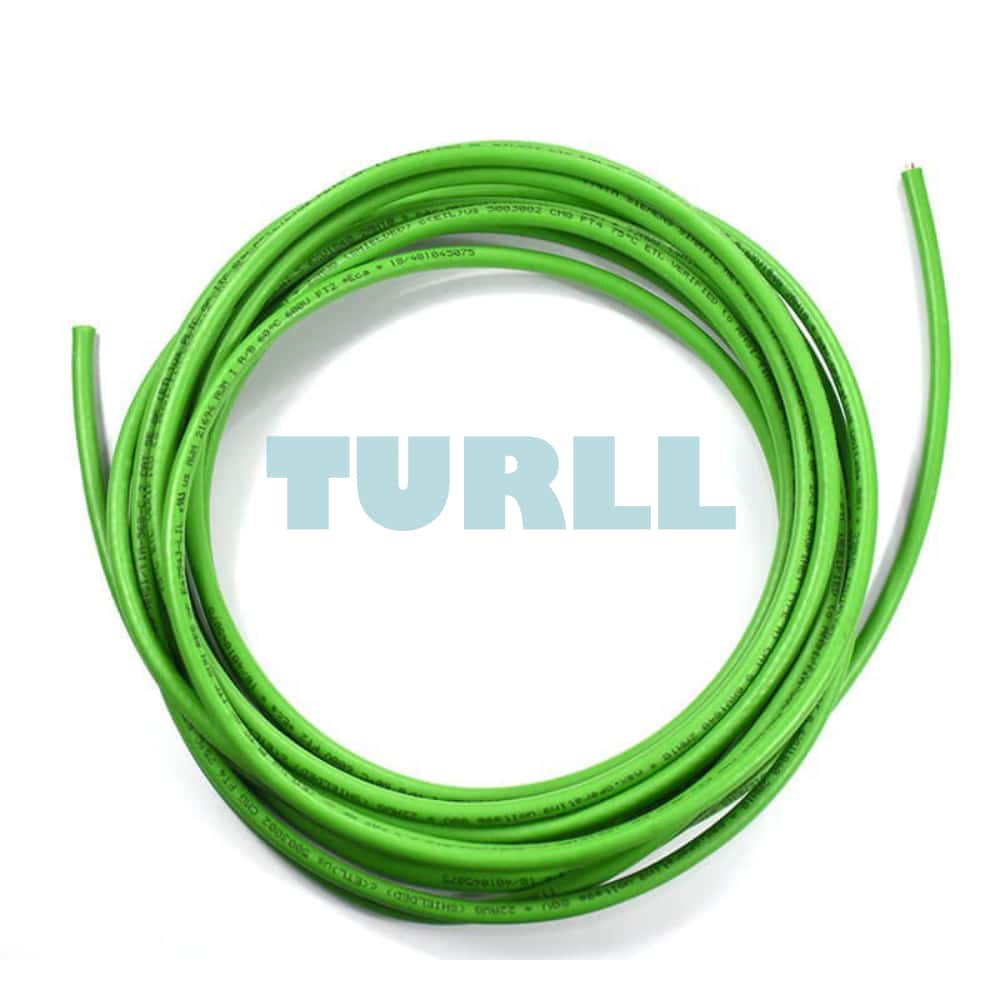

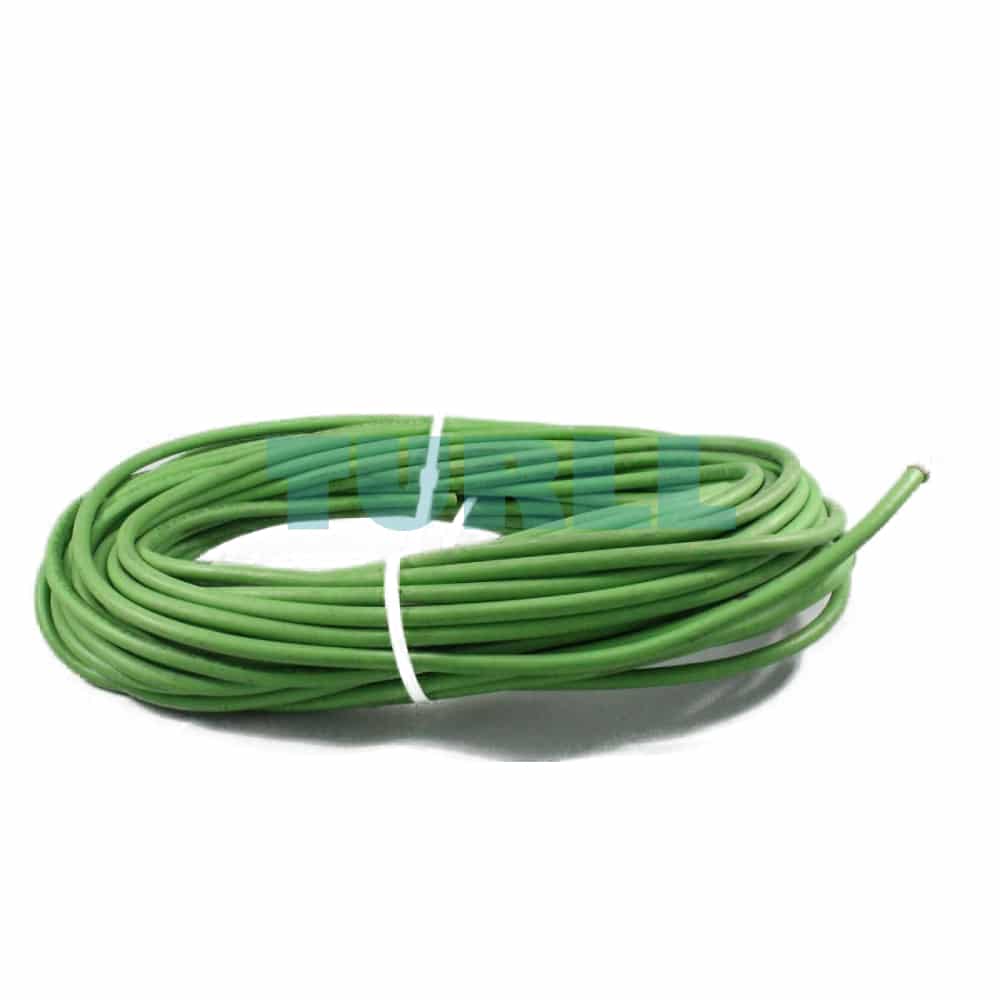

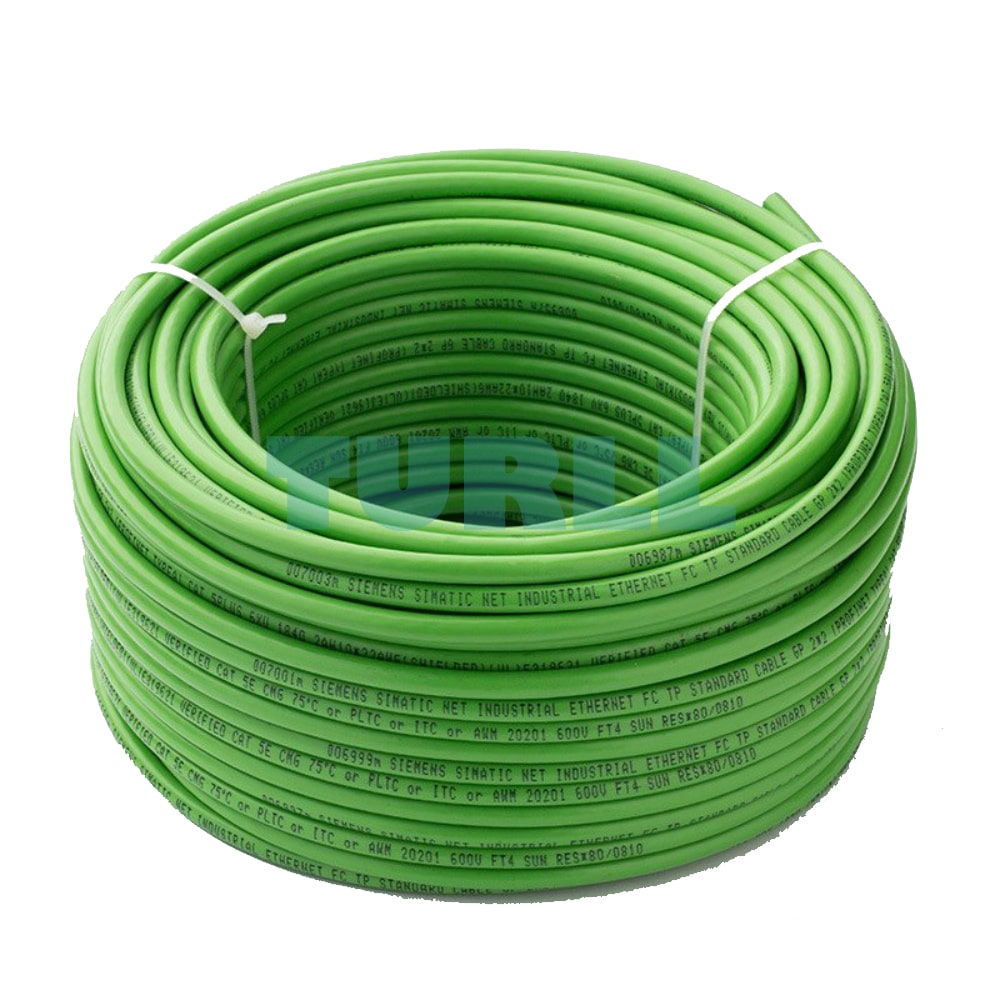

6XV1840-2AU10 Siemens

Industrial Ethernet FC TP standard cable GP, TP installation cable for connection to IE FC RJ45 2×2, for universal use, shielded Cat5e, 1000 m.
