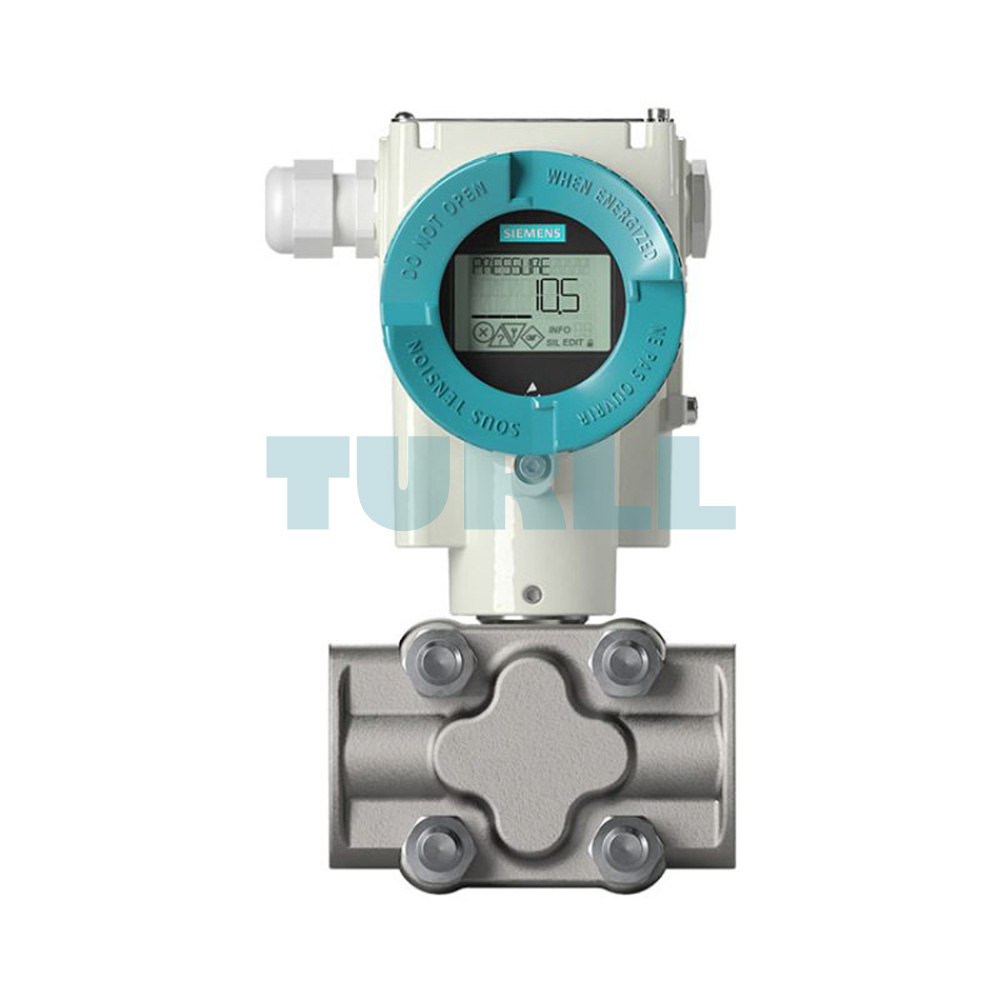

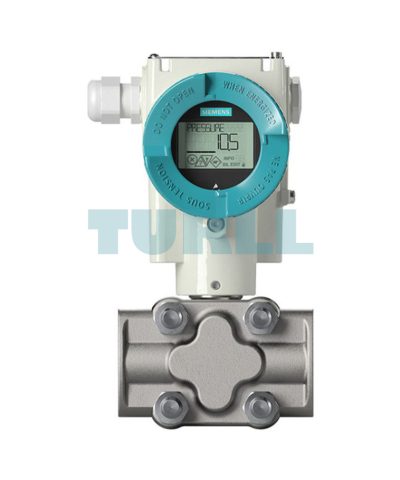

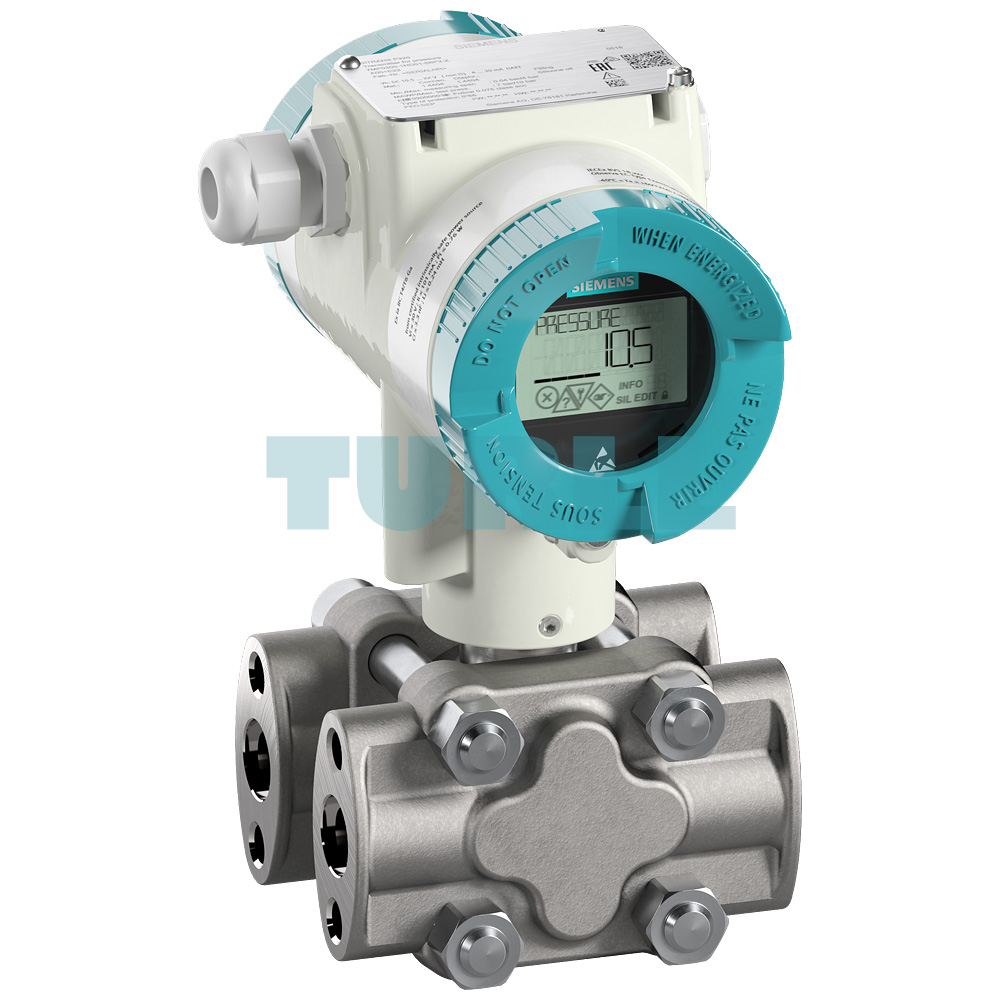

7MF0350-1MM01-5AF2-ZA00B35E12H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
$2,325.26
Durable differential pressure and flow transmitter with HART protocol, stainless steel construction, dual-chamber housing, and wide measuring span for industrial applications.
7MF0350-1MM01-5AF2-ZA00B35E12H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
The SIEMENS SITRANS P320 is a differential pressure and flow transmitter engineered to provide high accuracy, stability, and reliability in demanding industrial environments. This model is part of the proven SITRANS P series, recognized worldwide for durability and advanced measurement technology. Equipped with HART communication protocol (4…20 mA), the transmitter allows seamless integration into modern process automation systems, ensuring both precise monitoring and easy parameter configuration.
With a maximum measuring span of 1600 mbar (equivalent to 643 inH²O), the device is suitable for a wide range of process applications. Its measuring cell is filled with silicone oil for superior sensitivity and dependable results. The process connection is manufactured from stainless steel 316L/1.4404, ensuring robust performance against corrosive media. The die-cast aluminum dual-chamber housing enhances protection, while the integrated display with a glass window lid provides clear visualization of process values on-site. Delivered with a cable gland, sealing plug, and labeling plate, this transmitter is ready for immediate installation and configuration.
Overview
The SITRANS P320 is designed for operational efficiency and long-term stability. It offers easy setup, simple calibration, and reduced maintenance requirements, all of which help minimize lifecycle costs. By using standardized flanges and fastening threads (M10 for PN160, M12 for PN420), the transmitter ensures compatibility with existing systems. The included electro-galvanized steel mounting bracket simplifies secure installation in diverse process environments. Its flexibility in defining measurement ranges, including both lower and upper values with user-defined units such as mbar, bar, kPa, MPa, or psi, makes it highly adaptable to various industrial sectors.
Design
The rugged design incorporates stainless steel diaphragms, precision-manufactured process flanges, and a protective housing that resists mechanical stress and harsh operating conditions. The modular concept allows the use of TAG plates with customizable identification, ensuring precise alignment with project-specific requirements. With advanced diagnostics and digital communication, the SITRANS P320 not only improves measurement reliability but also contributes to predictive maintenance strategies, thereby increasing plant efficiency and operational safety.
Product Code: 7MF0350-1MM01-5AF2-ZA00B35E12H01Y01Y15
More Siemens products at Turll.com
| Weight | 2.775 kg |
|---|
