7MF0350-1PM01-5AF2-ZA00B35E00H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

7MF0350-1PM01-5AF2-ZA00B35E00H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

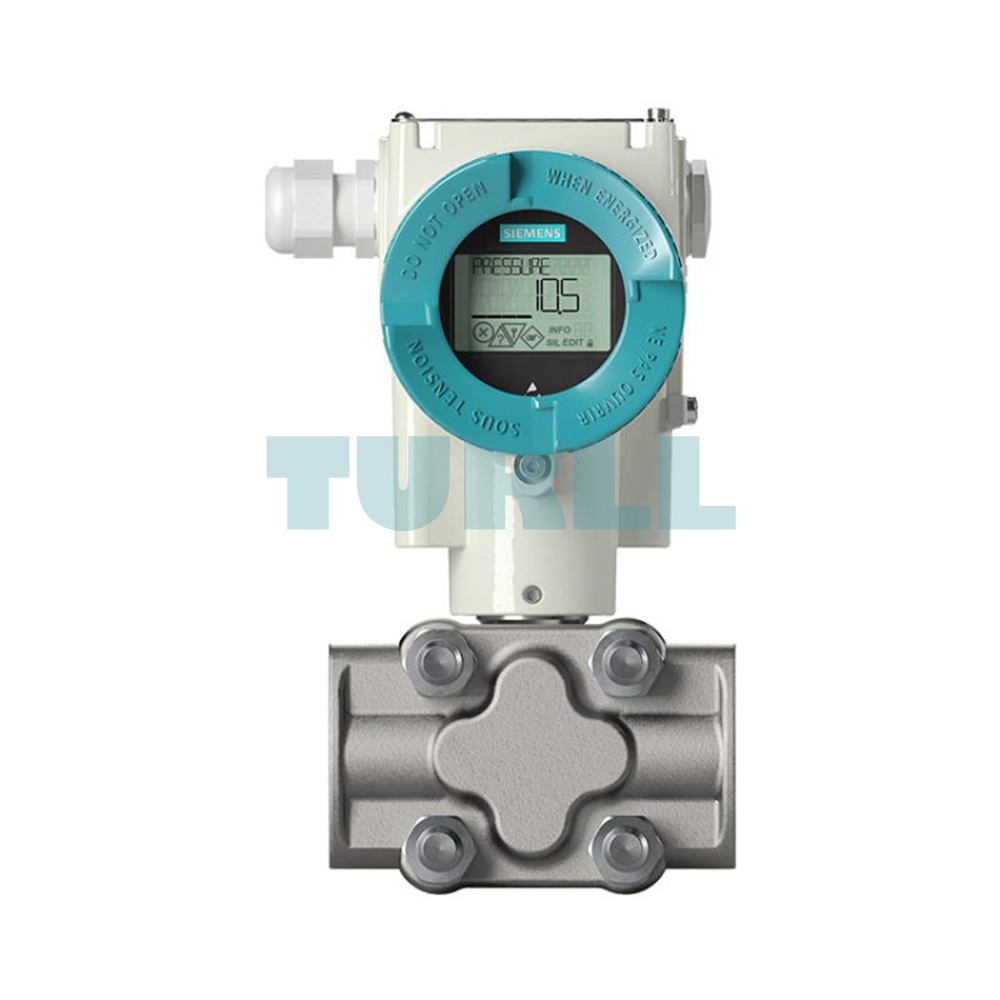

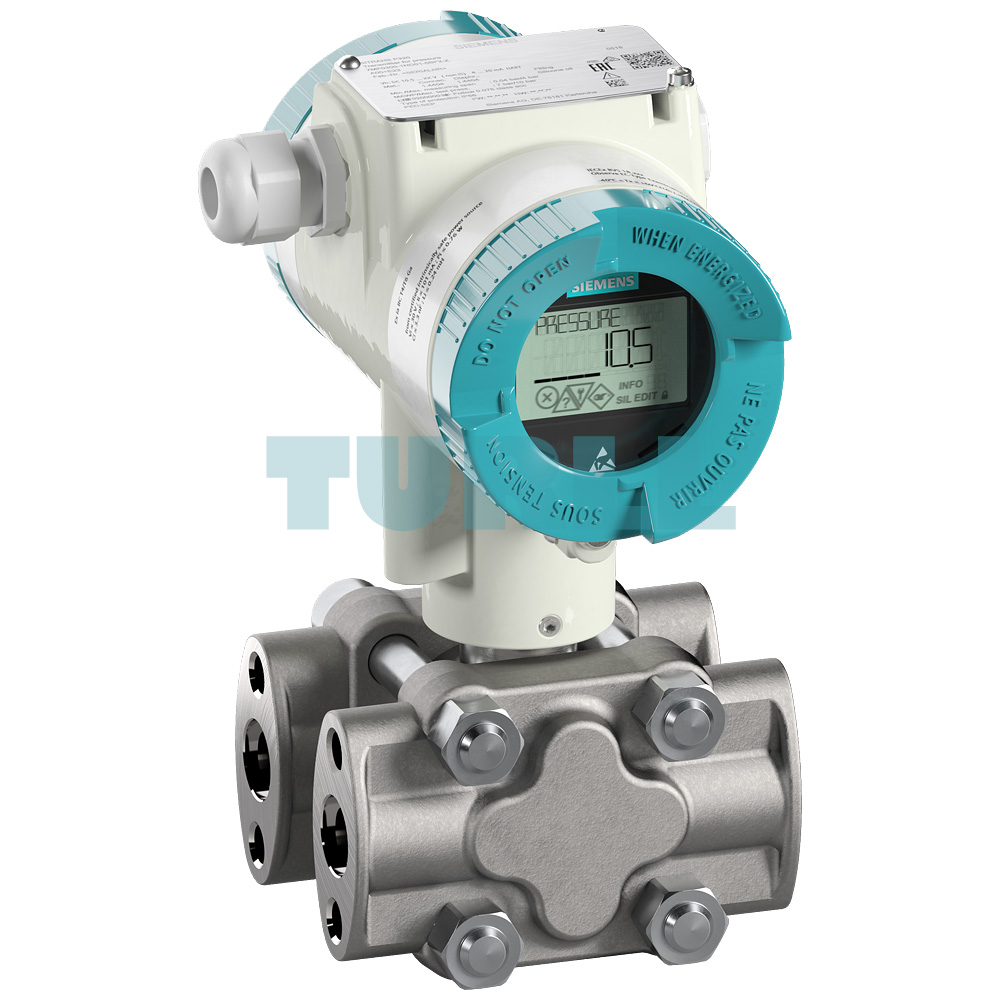

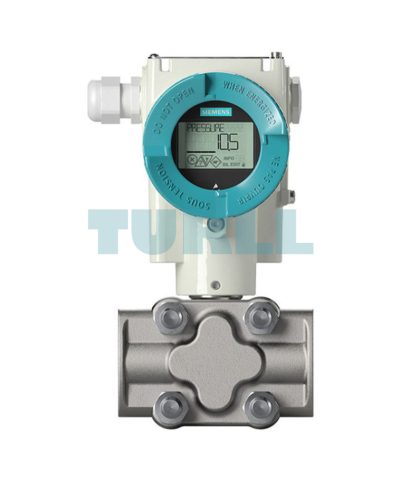

The SIEMENS SITRANS P320 pressure transmitter with product code 7MF0350-1PM01-5AF2-ZA00B35E00H01Y01Y15 is a highly reliable instrument designed for precise differential pressure and flow measurement in demanding industrial environments. Built with advanced technology and robust materials, it ensures long-term stability, easy handling, and superior accuracy. This model belongs to the proven SITRANS P series, known for its durability and dependable performance across a wide variety of process applications.

This transmitter operates with HART (4…20 mA) communication, providing seamless integration into existing automation systems. The measuring cell is filled with silicone oil, offering enhanced performance even under harsh operating conditions. With a maximum measuring span of 5000 mbar (2009 inH²O), it is suitable for multiple industrial applications that require precise monitoring of differential pressure and flow. The transmitter is equipped with an oval flange and fastening threads of M10 (PN160) and M12 (PN420) for secure and flexible installation.

Key construction materials include stainless steel 316L/1.4404 for the process connection and seal diaphragms, and stainless steel 316/1.4408 for the process flange, ensuring resistance against corrosion and aggressive media. Its rugged die-cast aluminum dual chamber housing, combined with a display and glass window lid, adds extra protection and usability. Cable glands and sealing plugs are pre-installed, simplifying commissioning.

Overview

The SITRANS P320 pressure transmitter stands out with its worldwide approvals (CE, UKCA, RCM) and is suitable for various industries except for markets requiring CSA, EAC, FM, or KC certifications. With its intuitive display, electro-galvanized steel mounting bracket, and flexible range setting, it supports convenient configuration. Users can define the lower and upper range values, choose measurement units such as mbar, bar, kPa, MPa, or psi, and even assign specific location tags with up to 32 characters.

This versatile transmitter ensures reliable process monitoring, reduces downtime, and provides a long service life. The SITRANS P320 from SIEMENS is designed for industrial professionals who require both precision and ease of operation in pressure and flow applications.

Product Code: 7MF0350-1PM01-5AF2-ZA00B35E00H01Y01Y15
