7MF1565-3BA00-1AA1 SIEMENS Exclusive SITRANS P200 Pressure Transmitter Original Brand New

7MF1565-3BA00-1AA1 SIEMENS Exclusive SITRANS P200 Pressure Transmitter Original Brand New

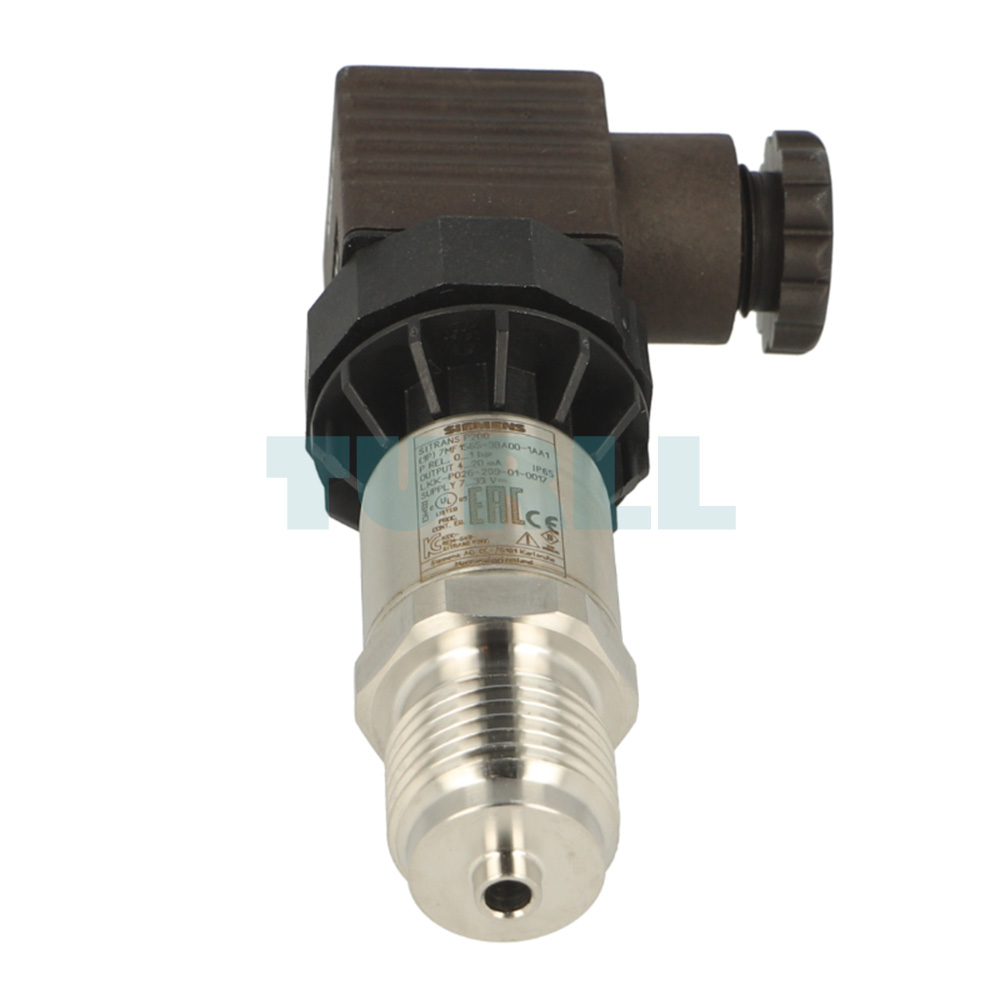

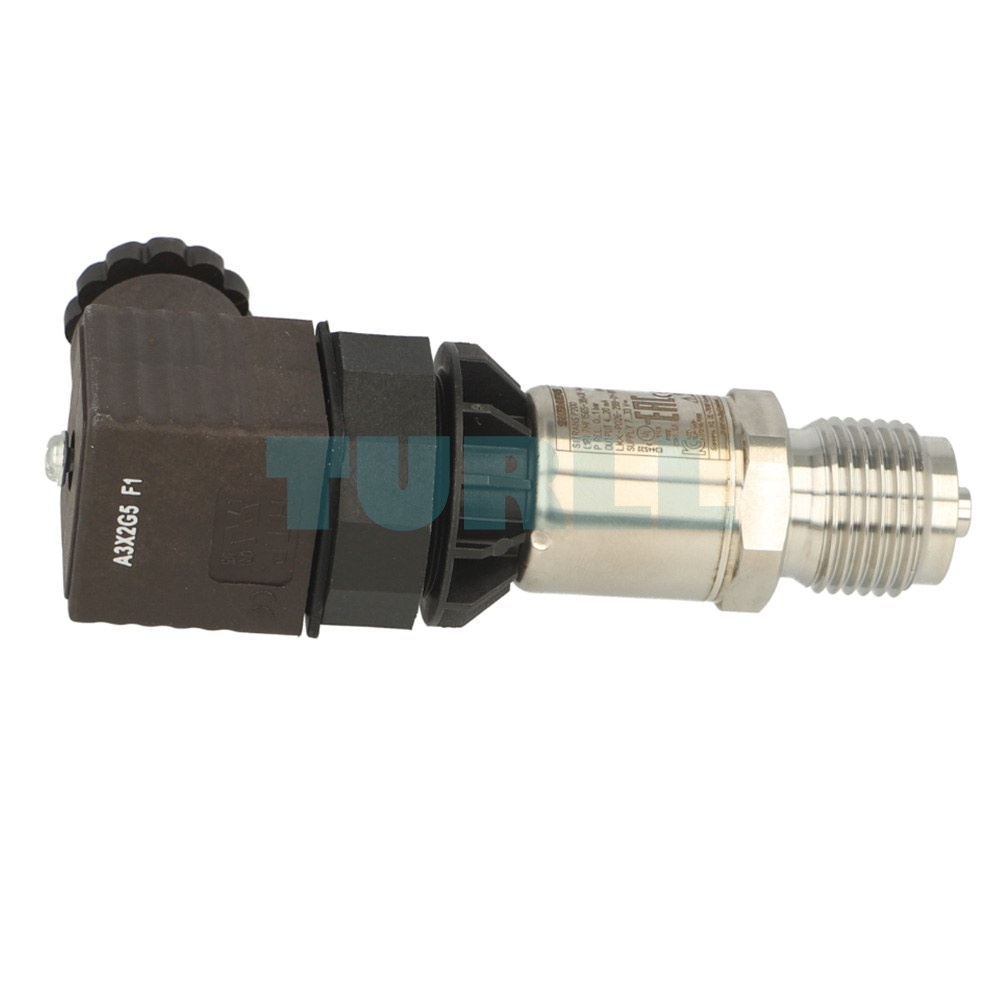

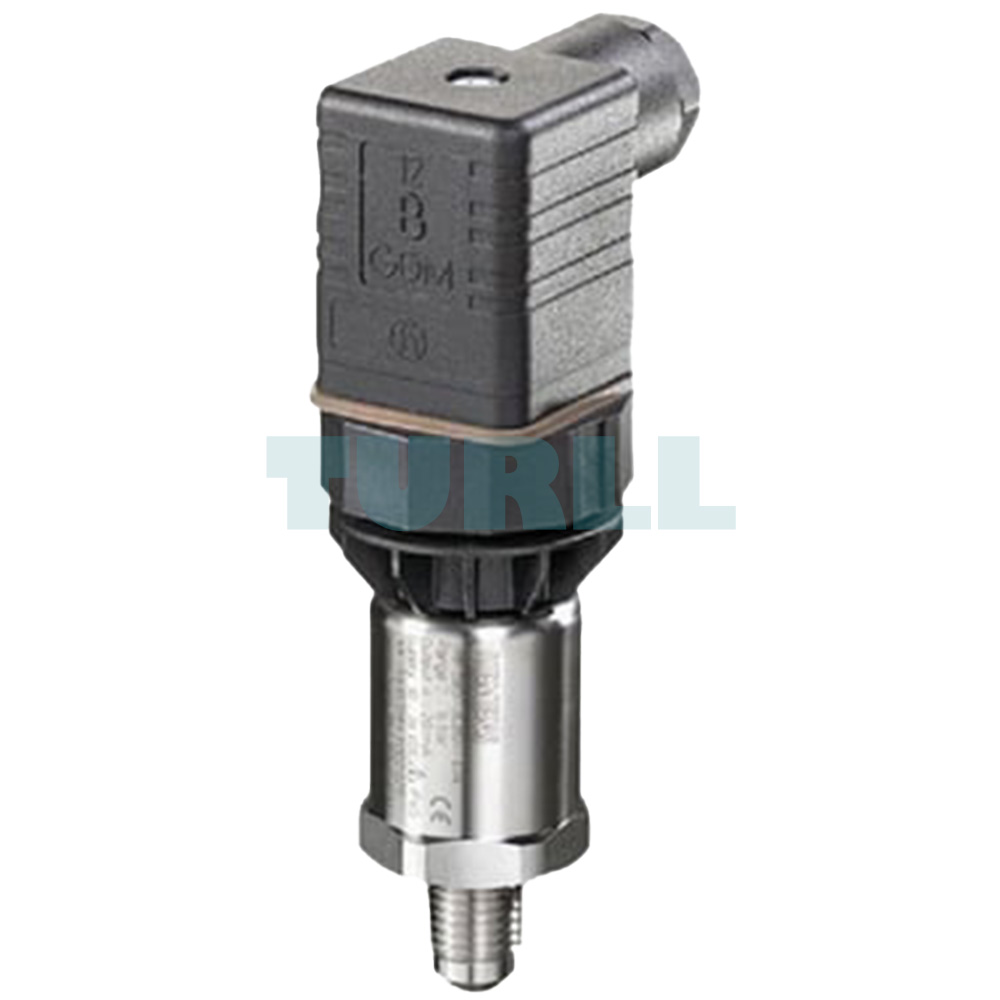

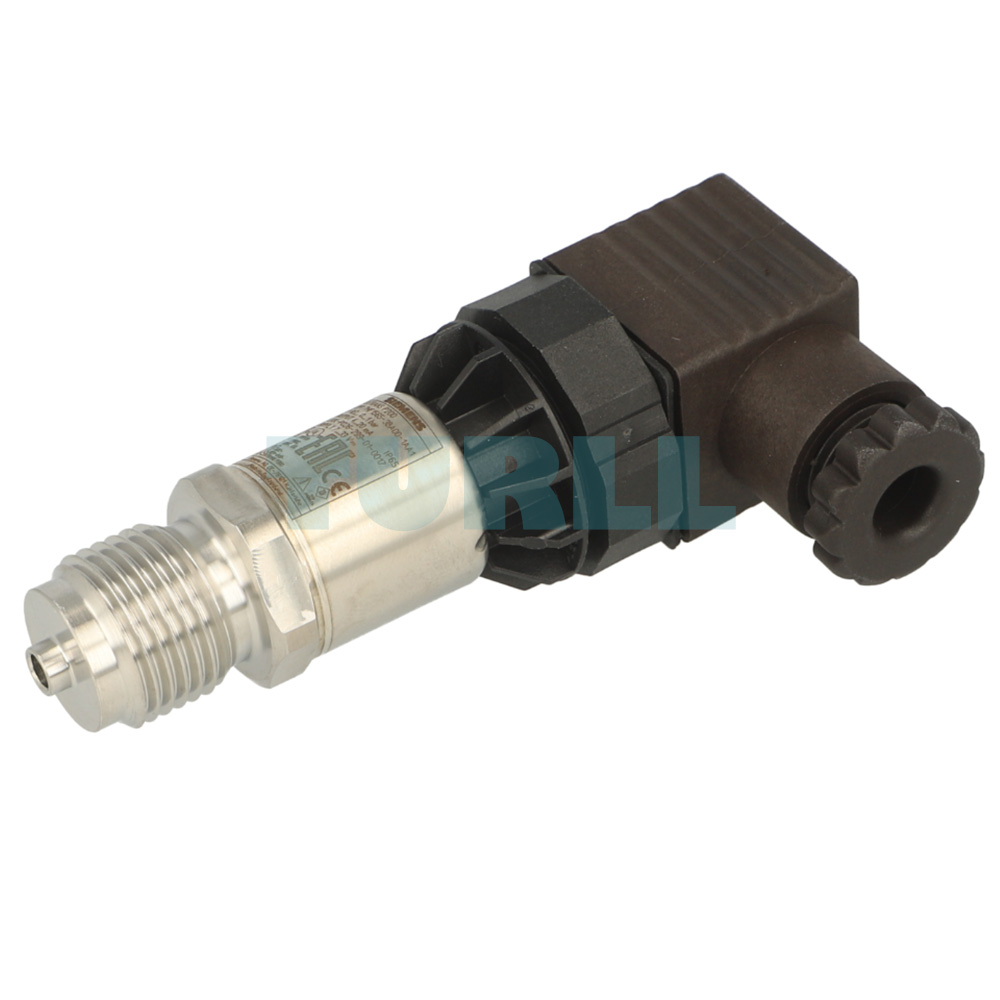

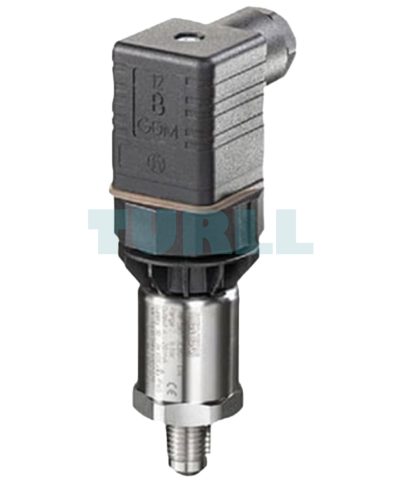

The SIEMENS 7MF1565-3BA00-1AA1 SITRANS P200 is a reliable and versatile pressure transmitter designed for general industrial applications. It is built for both gauge and absolute pressure measurement of liquids, gases, and vapors, making it highly adaptable across a wide range of environments. With a typical non-linearity of just 0.25%, this device ensures accurate and consistent performance. The wetted parts are manufactured from ceramics and stainless steel with a durable sealing material, while the non-wetted housing is made from stainless steel, ensuring excellent resistance to wear and corrosion.

This model features a measuring range from 0 to 1 bar with an overload capacity of up to 2.5 bar. It provides a dependable 4 to 20 mA two-wire output signal and operates on a DC power supply between 7 and 33 V. For process integration, it comes with a G1/2″ male connection to EN 837-1, with Viton (FPM) sealing for secure installation. Electrical connection options include a plug to DIN EN 175301-803-A, ensuring compatibility with standard industrial systems. Its compact structure and dependable design make it suitable for a wide spectrum of industrial tasks where accuracy and resilience are essential.

Overview

The SITRANS P200 family of transmitters is designed to measure both gauge and absolute pressures with measuring ranges from 1 to 60 bar (15 to 1000 psi). The ceramic measuring cell technology provides long-term stability and ensures reliable operation in demanding industrial conditions. These transmitters are a cost-effective solution for general pressure monitoring needs in process automation.

Design

The device is constructed with a piezoresistive measuring cell housed in a stainless steel enclosure, offering robust protection and durability. Without explosion protection, electrical connections can be achieved through device plugs (EN 175301-803-A, IP65), M12 connectors (IP67), cables (IP67), or Quickon quick screw connections (IP67). Output signals include 4 to 20 mA or 0 to 10 V, with IO-Link compatibility for advanced communication options. Versions with explosion protection are also available, offering reliable operation in hazardous areas with the same proven accuracy and build quality.

Product Code: 7MF1565-3BA00-1AA1
