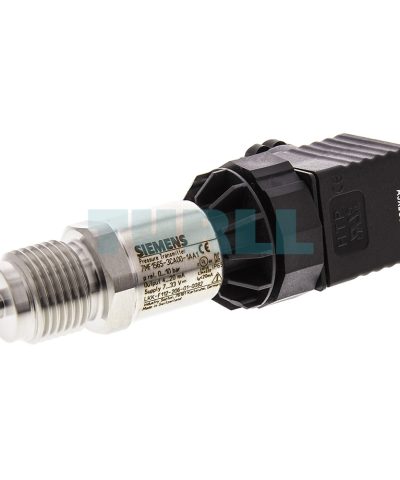

7MF1565-3CA00-1AA1 SIEMENS Exclusive SITRANS P200 Pressure Transmitter Original Brand New

7MF1565-3CA00-1AA1 SIEMENS Exclusive SITRANS P200 Pressure Transmitter Original Brand New

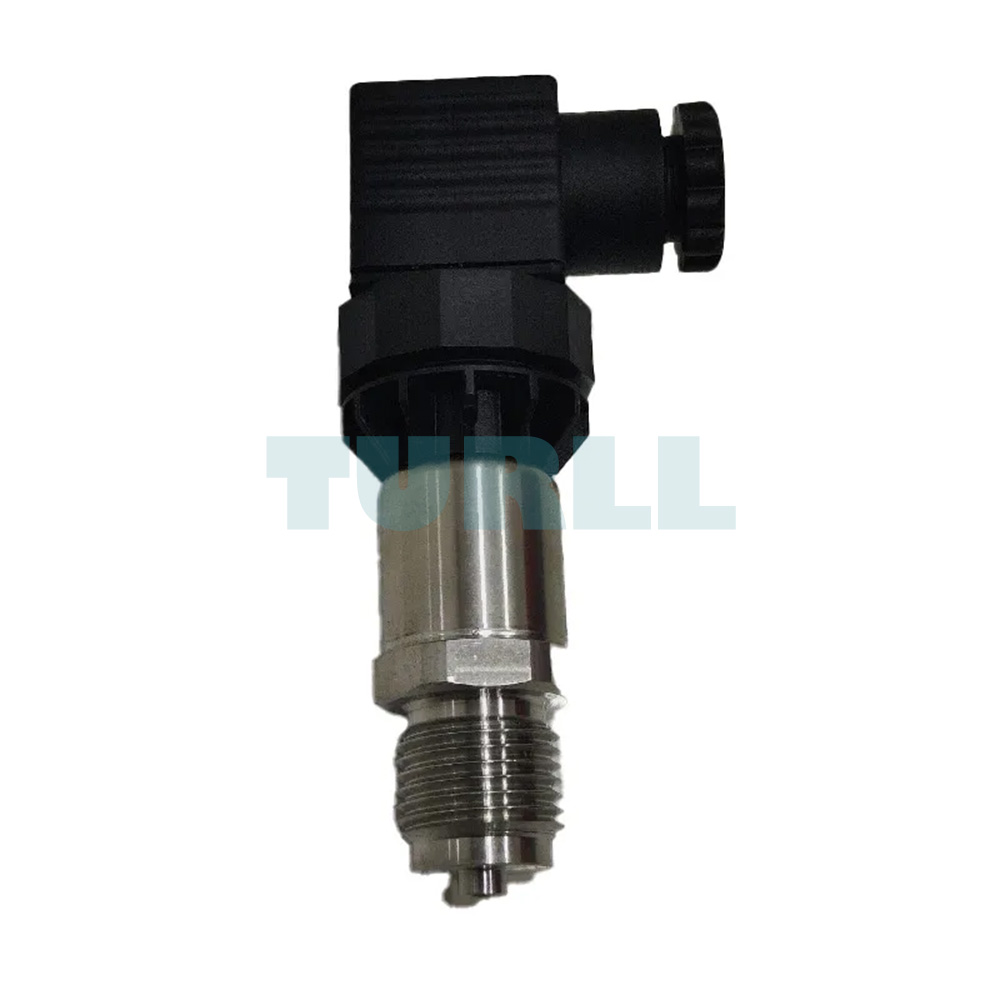

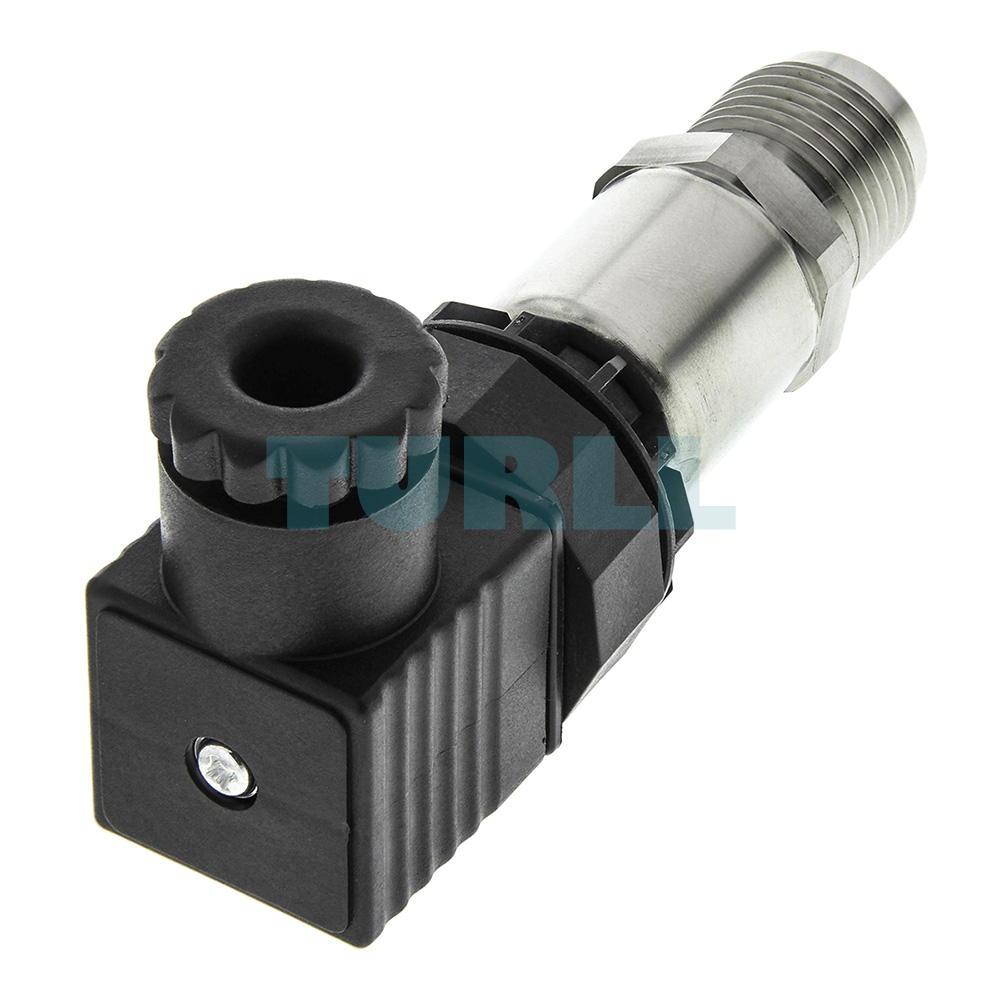

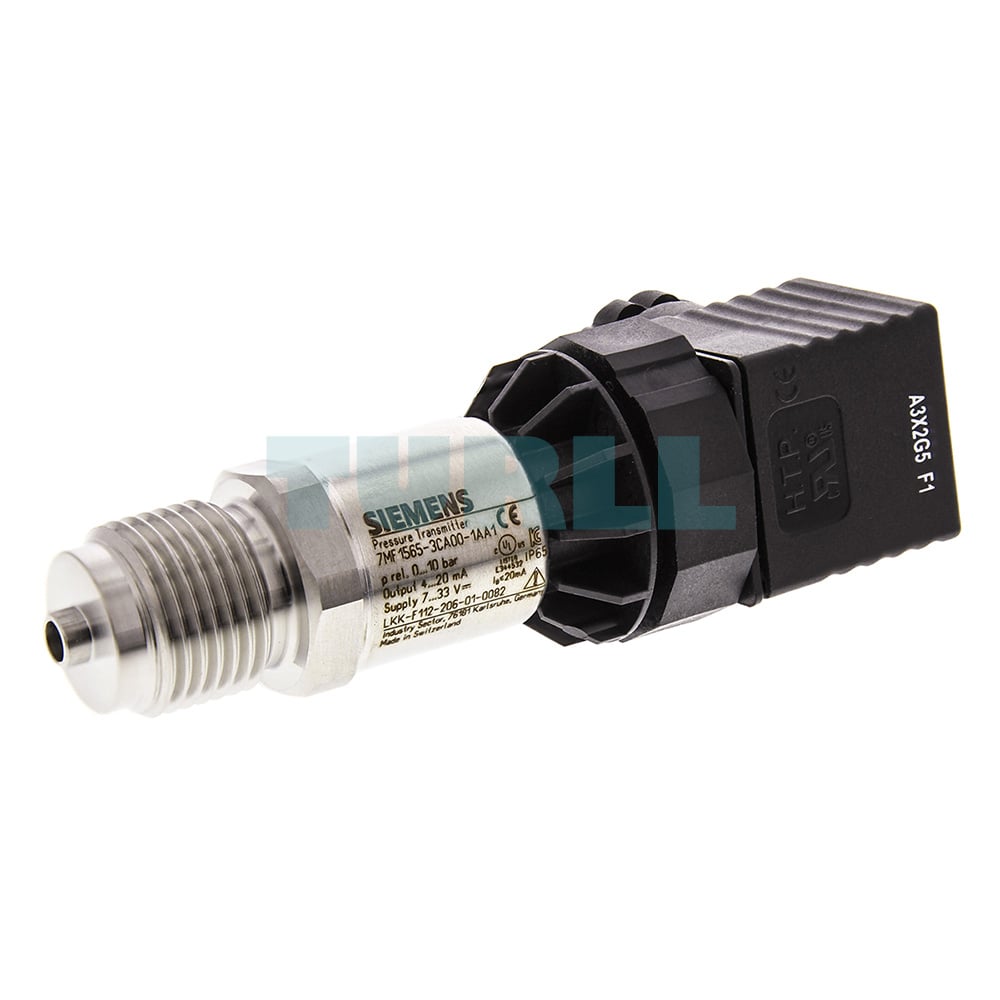

The SIEMENS 7MF1565-3CA00-1AA1 SITRANS P200 is a highly reliable pressure transmitter engineered for precise measurement of both gauge and absolute pressure in a wide variety of industrial applications. Built with ceramic measuring cells and high-quality stainless steel materials, this transmitter ensures durability, resistance to harsh conditions, and long-term stability in continuous operation. Its compact structure, strong mechanical design, and wide measuring ranges make it a dependable solution for industries requiring accuracy and consistent performance.

This transmitter provides a measuring range of 0 to 10 bar with an overload capability up to 25 bar, ensuring safe operation under varying pressure conditions. The output signal of 4 to 20 mA with a two-wire connection allows seamless integration into existing process automation systems. Electrical connection is supported by plug type DIN EN 175301-803-A, with additional flexibility through M16 thread for cable glands. Designed for process connections according to EN 837-1 standards (G1/2″ male thread), it is compatible with a wide range of industrial installations. The sealing material used is Viton (FPM), offering robust resistance to chemicals and long-lasting performance.

Overview

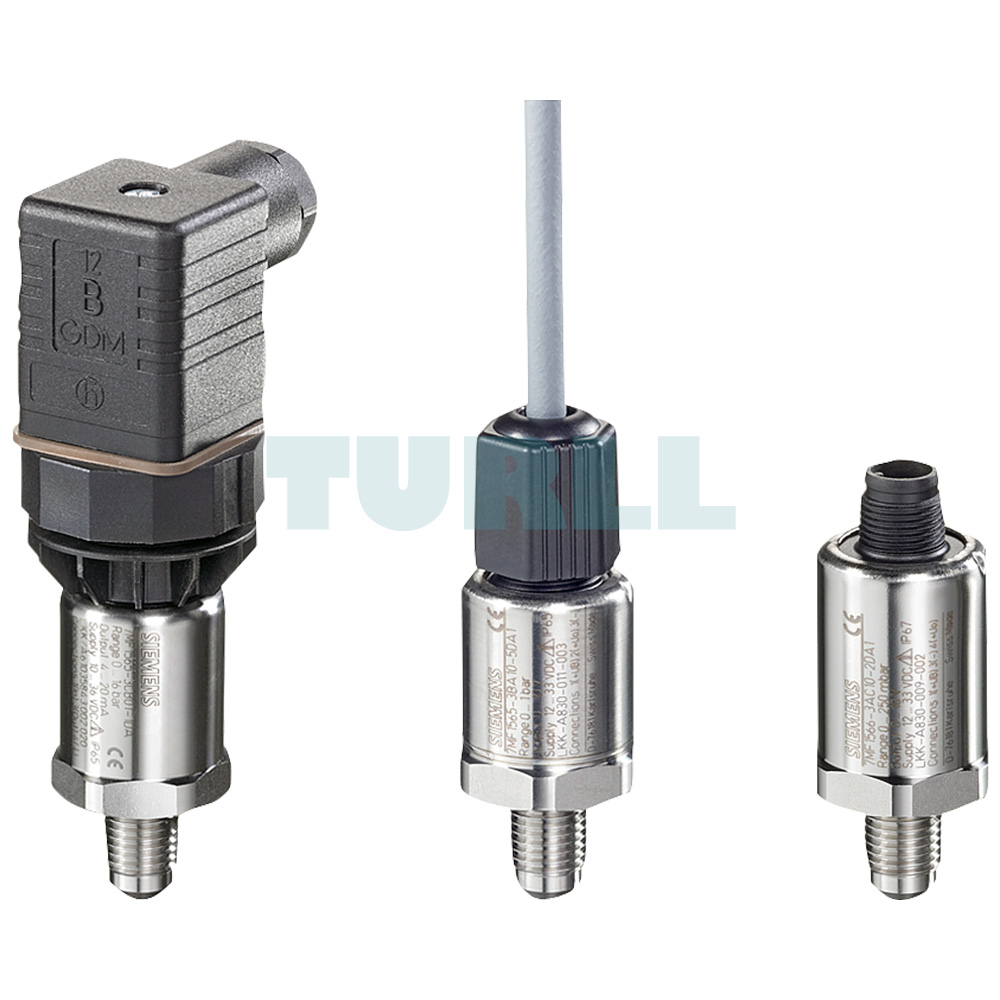

The SITRANS P200 transmitter family is designed for measuring pressure in liquids, gases, and vapors. With gauge and absolute ranges spanning from 1 to 60 bar (15 to 1000 psi), the device is suitable for general-purpose applications in process automation, machinery, and utilities. It employs a ceramic sensor technology that delivers excellent resistance to wear, ensuring reliable performance in demanding environments.

Design

The transmitter consists of a piezoresistive measuring cell with diaphragm protection housed in a stainless steel enclosure. The compact build allows simple installation in tight spaces, while the versatile electrical connection options (DIN EN 175301-803-A, M12, cable, or Quickon connector) meet diverse industrial requirements. Depending on the version, output signals can be configured as 4 to 20 mA, 0 to 10 V, or IO-Link. For explosion-protected environments, models are available with specialized housings and connections, providing maximum safety in hazardous locations.

Product Code: 7MF1565-3CA00-1AA1
