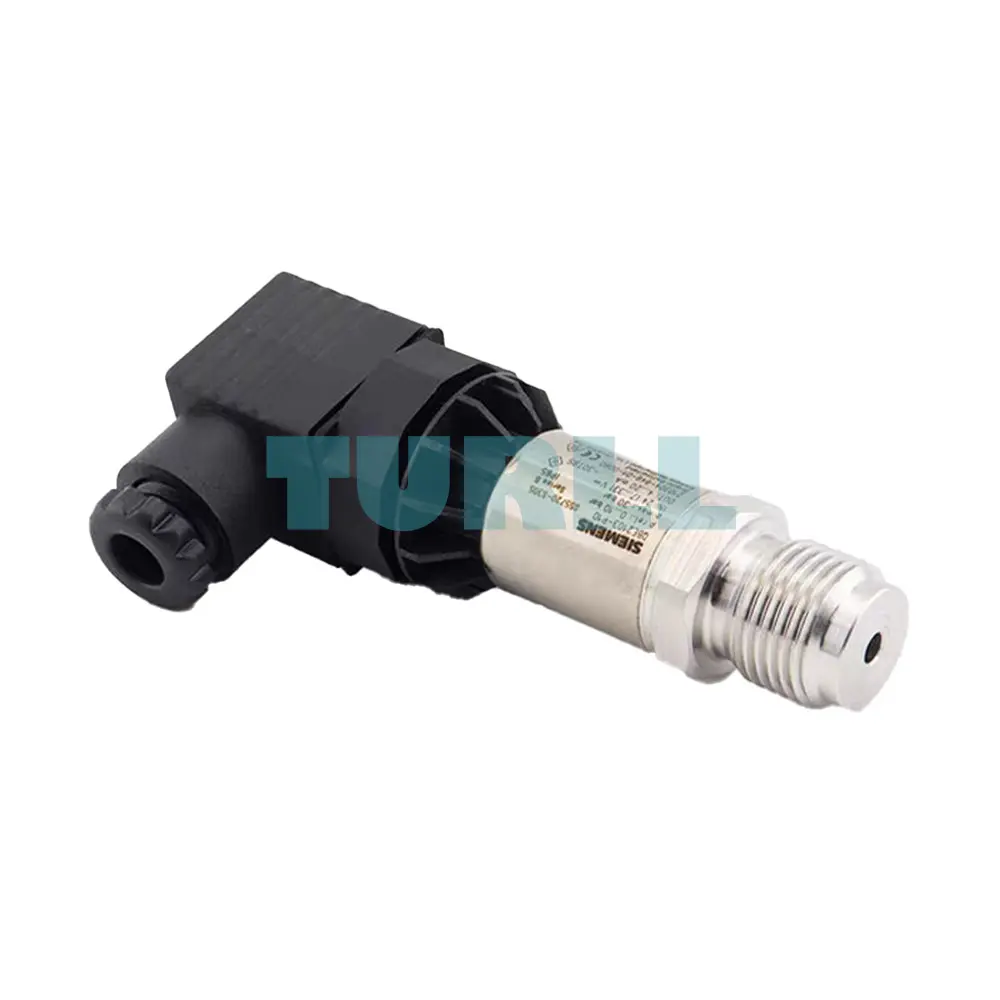

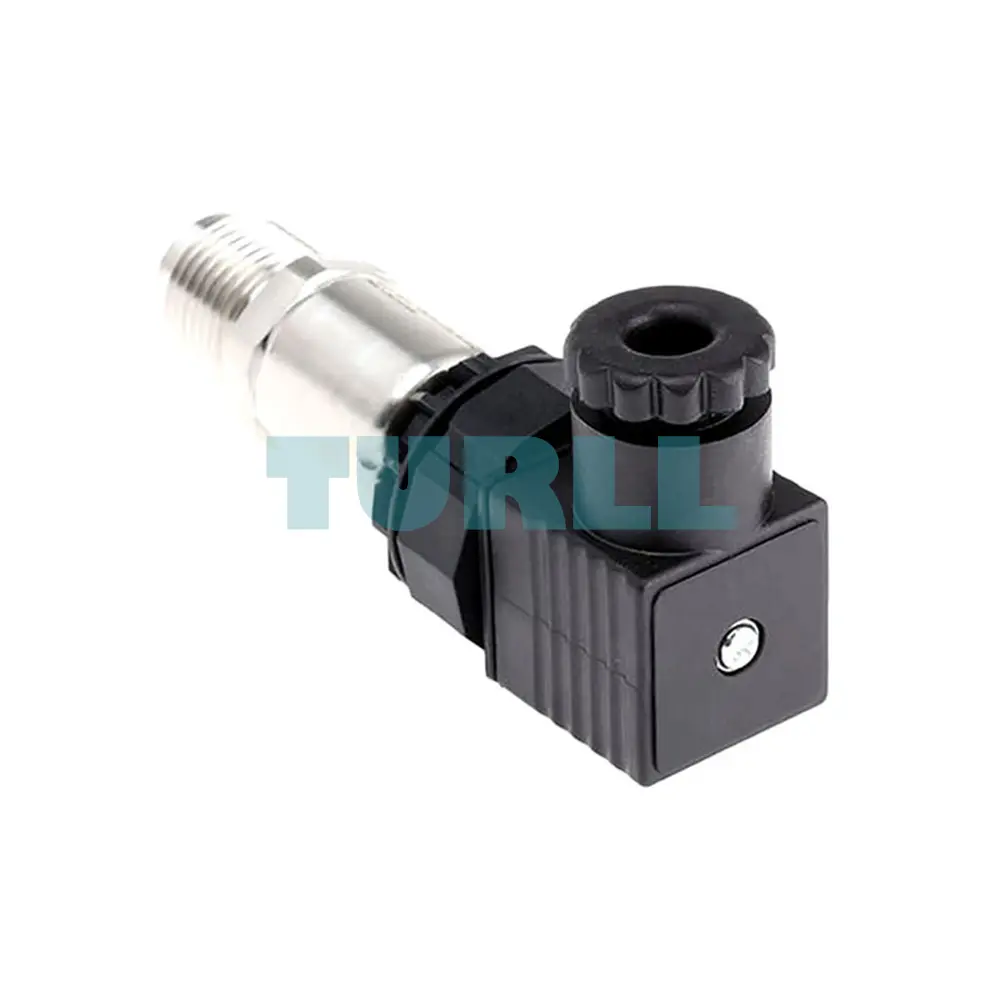

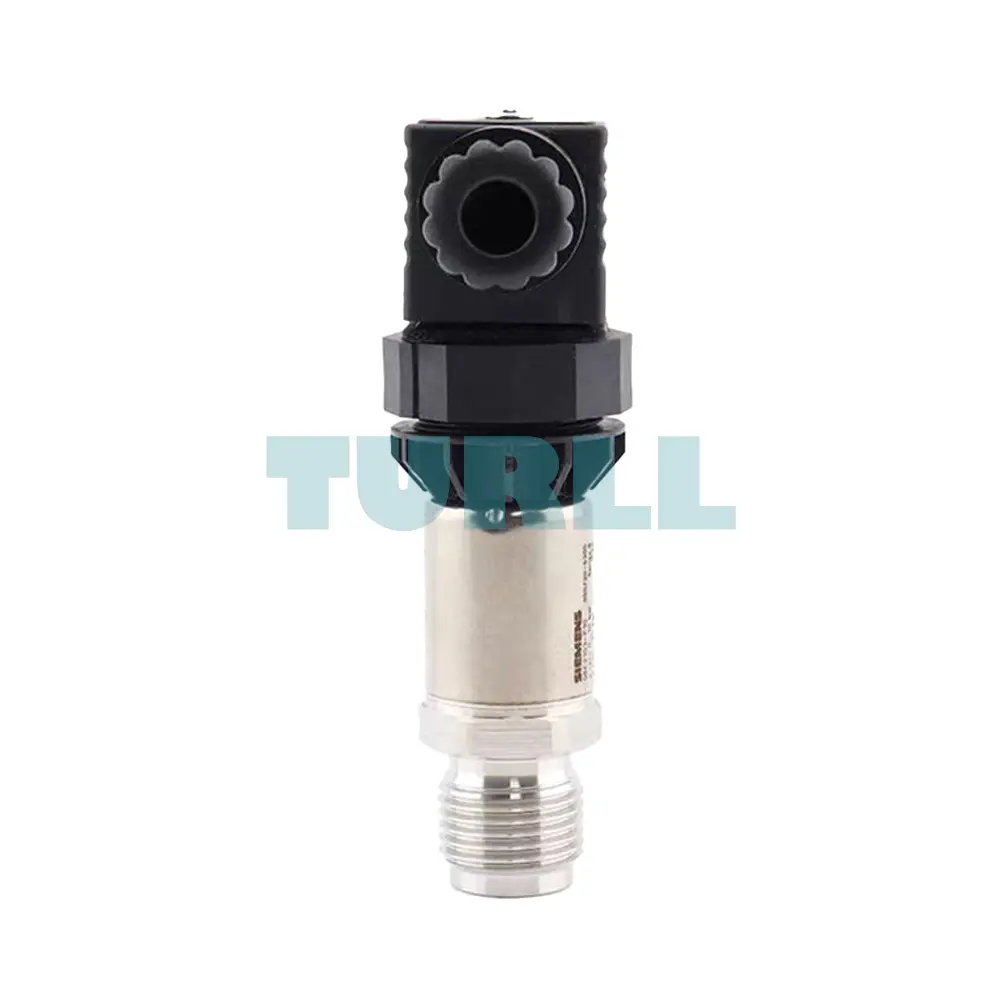

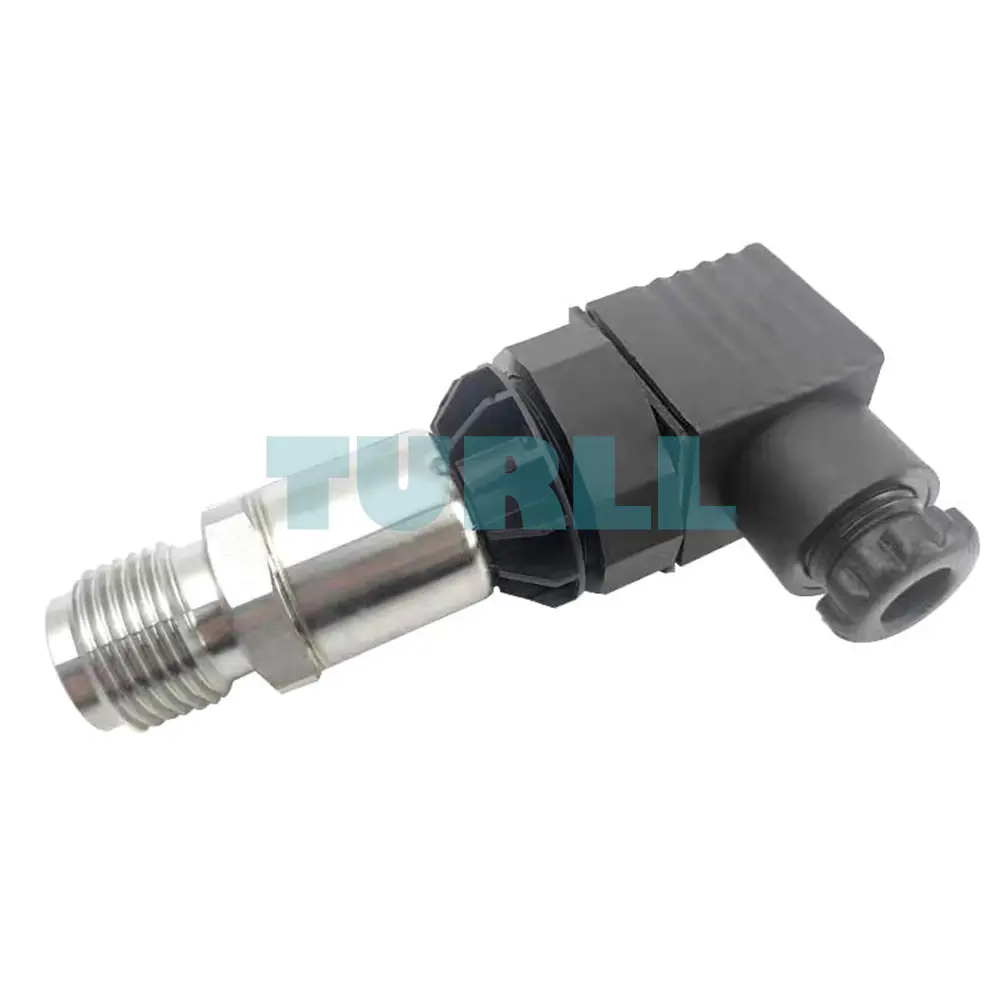

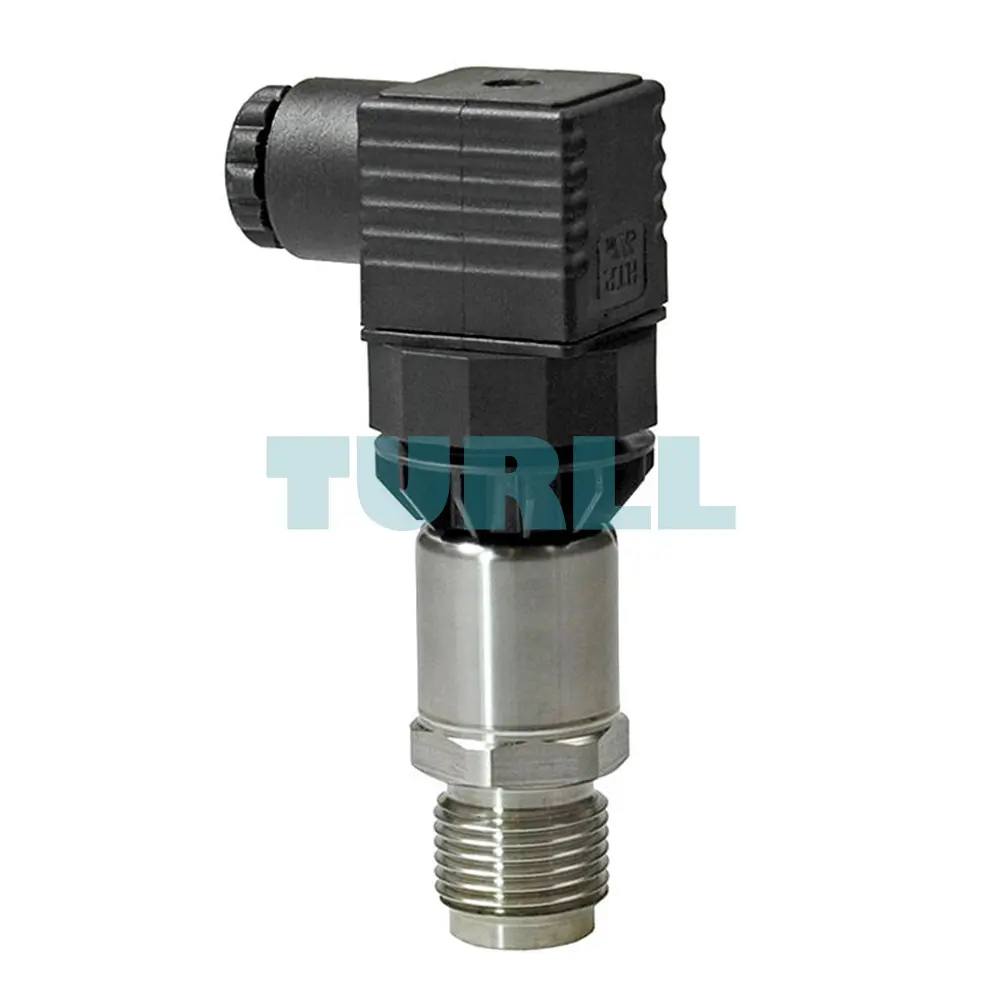

7MF1567-3CA00-1AA1 SIEMENS Exclusive SITRANS P220 Pressure Transmitter Original Brand New

7MF1567-3CA00-1AA1 SIEMENS Exclusive SITRANS P220 Pressure Transmitter Original Brand New

The SIEMENS 7MF1567-3CA00-1AA1 SITRANS P220 pressure transmitter is a reliable solution designed for precise measurement of pressure and absolute pressure in demanding industrial applications. With its fully welded stainless-steel design, this transmitter is ideally suited for high-pressure systems and refrigeration environments where durability and accuracy are essential. The device is engineered to handle gauge measuring ranges from 0 to 10 bar, with an overload capability of up to 25 bar, ensuring reliable performance even under challenging operating conditions.

The output signal is a standardized 4 to 20 mA two-wire configuration, powered by a DC supply of 7 to 33 V, allowing seamless integration into existing control systems. Its electrical connection is made via a DIN EN 175301-803-A plug with a gland thread M16, ensuring a secure and robust connection. For process integration, the transmitter uses a G1/2" male connection according to EN 837-1, providing compatibility with standard pressure range requirements.

Overview

The SITRANS P220 pressure transmitter is specifically designed to measure the pressure of liquids, gases, and vapors. Its stainless-steel measuring cell, combined with a fully welded housing, makes it particularly reliable for industrial environments requiring long-term stability. Measuring ranges cover from 2.5 bar up to 1,000 bar, providing flexibility for both low and high-pressure applications. This versatility makes it an ideal choice for refrigeration technology, energy systems, and industrial process control where accuracy and resilience are critical.

Design

The device is available in both standard and explosion-proof configurations. The structure consists of a piezoresistive measuring cell with a diaphragm, enclosed in a rugged stainless-steel housing. Depending on requirements, electrical connections can be made using a DIN plug (IP65), M12 plug (IP67), fixed cable (IP67), or Quickon fast-connection cable (IP67). Output options include 4 to 20 mA, 0 to 10 V, or IO-Link, allowing the transmitter to adapt to different automation platforms. In the explosion-proof version, the transmitter maintains the same robust stainless-steel housing with electrical connections optimized for high safety standards.

Product Code: 7MF1567-3CA00-1AA1
