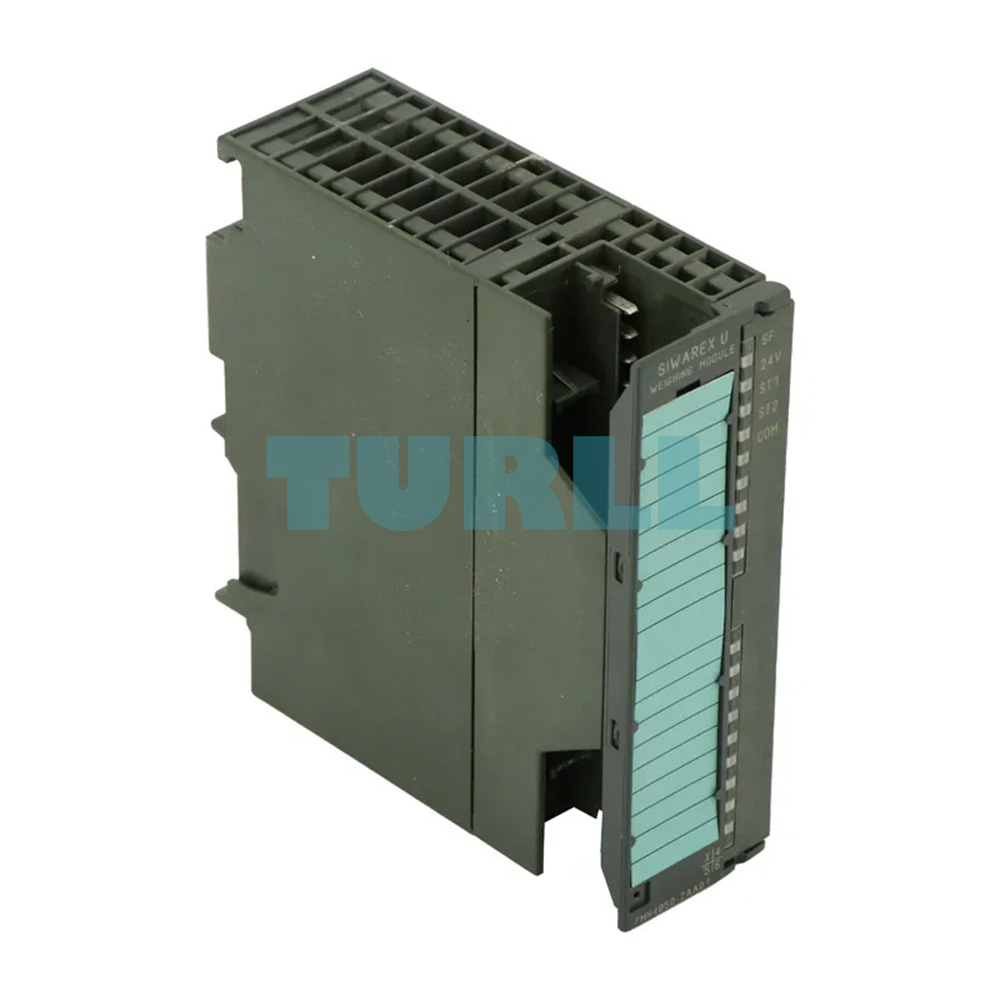

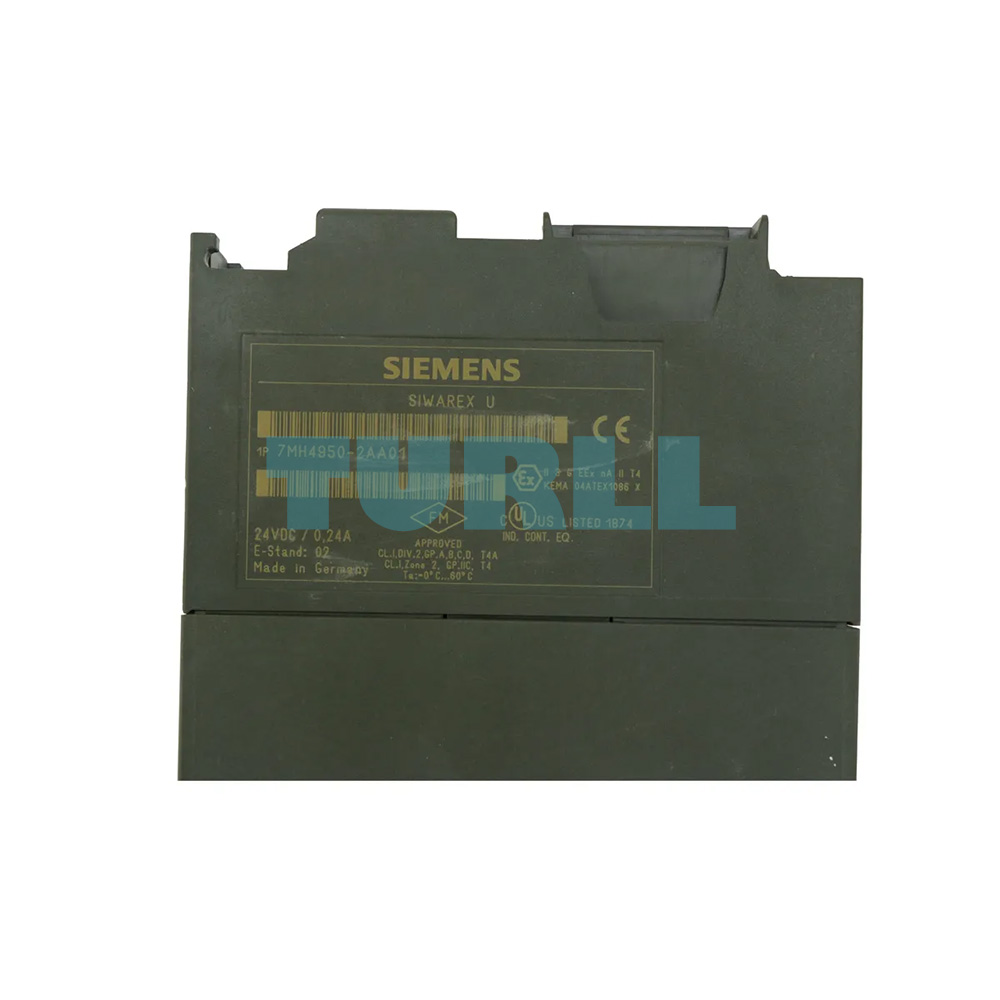

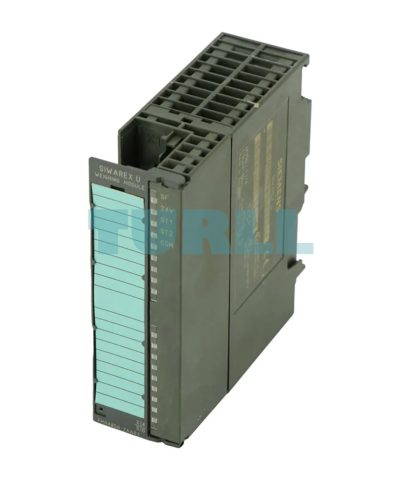

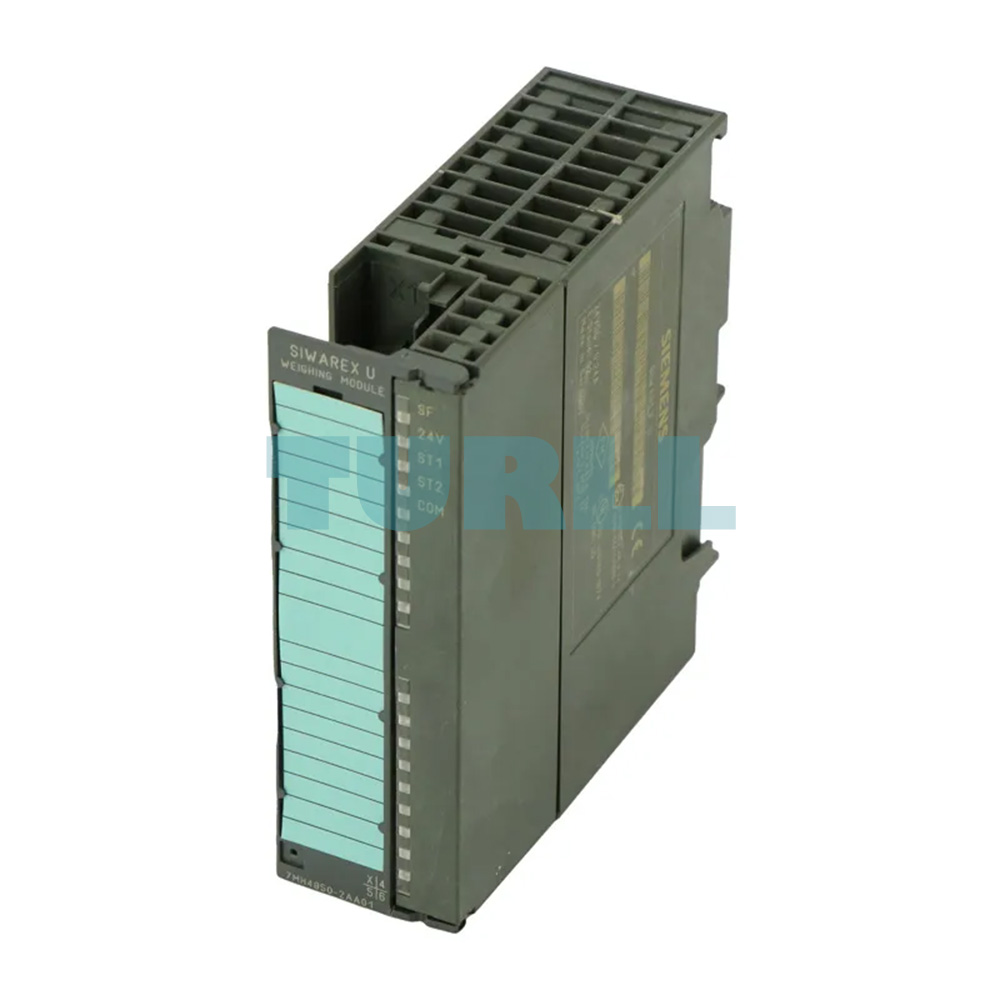

7MH4950-2AA01 SIEMENS Exclusive SIWAREX U2 Weighing Module Original Brand New

7MH4950-2AA01 SIEMENS Exclusive SIWAREX U2 Weighing Module Original Brand New

The SIEMENS 7MH4950-2AA01 is a versatile and compact SIWAREX U2 weighing module designed for high-precision weight and force measurement in industrial automation systems. As a two-channel module, it allows direct integration with two platform or hopper scales using analog load cells or strain gauges (full bridges), providing accurate and stable measurement in demanding applications.

With 1x RS232 and 2x LC load cell interfaces (1–4 mV/V), the module is optimized for process reliability. It seamlessly connects to SIMATIC S7-300 and ET 200M automation systems, offering complete access to all weighing data via SIMATIC – ensuring a unified platform for control and measurement.

Overview

The SIWAREX U module simplifies weighing and force measurement tasks across industrial environments. It integrates directly into SIMATIC automation systems, enabling real-time data access and process control without the need for external systems or complex programming. Its compact design and compatibility make it a cost-efficient and scalable solution for weighing applications.

Design

The 7MH4950-2AA01 is a function module (FM) that snaps directly onto the SIMATIC S7-300 or ET 200M backplane bus. This snap-on mounting system supports quick and clean DIN rail installations, significantly reducing setup and cabling time.

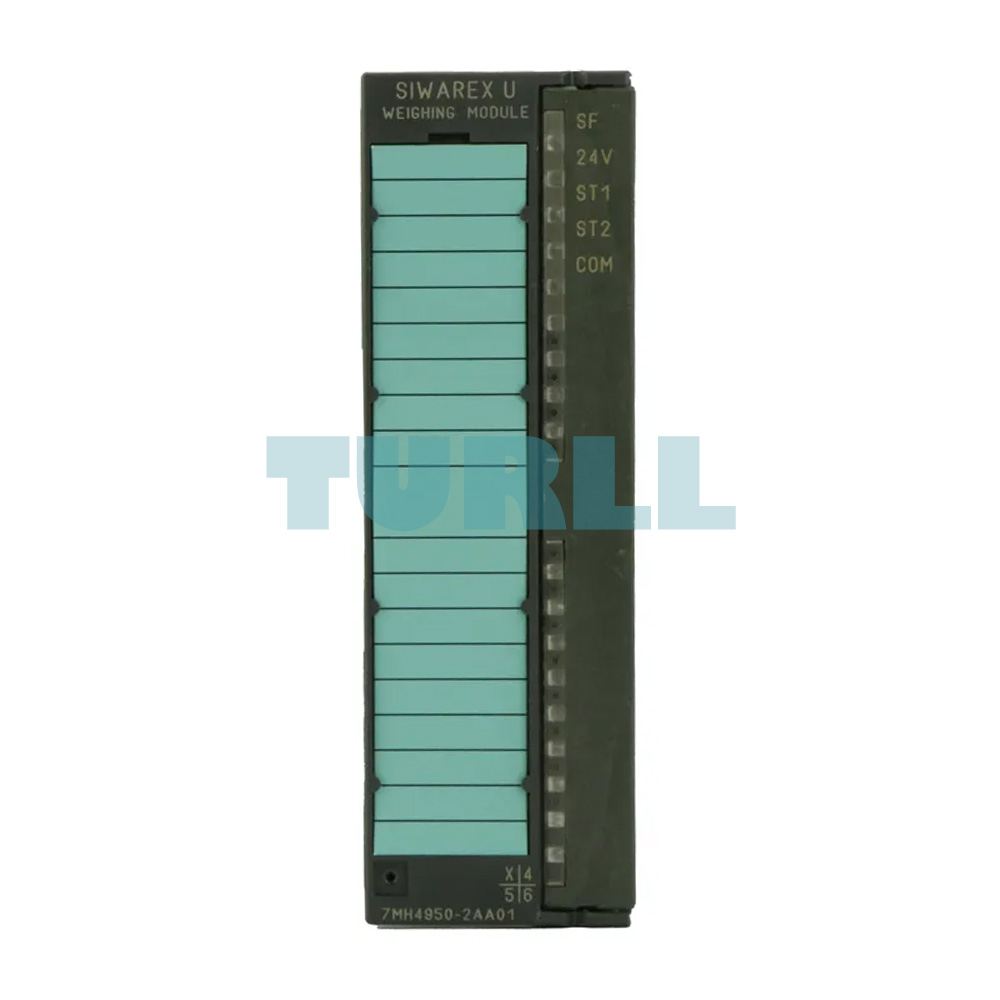

All essential connections, including power supply, load cells, and communication interfaces, are available through a standard 20-pin front connector. When used within the SIMATIC environment, the module becomes a fully integrated part of the automation system—streamlining data flow and control logic.

Product Code: 7MH4950-2AA01
