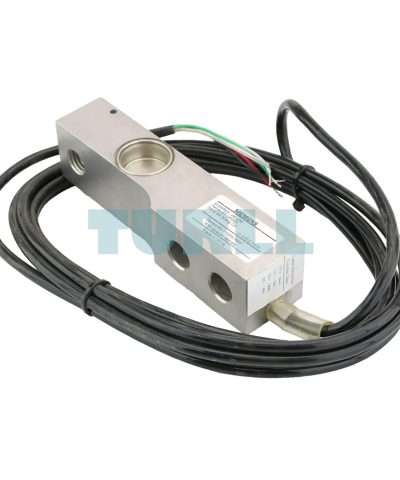

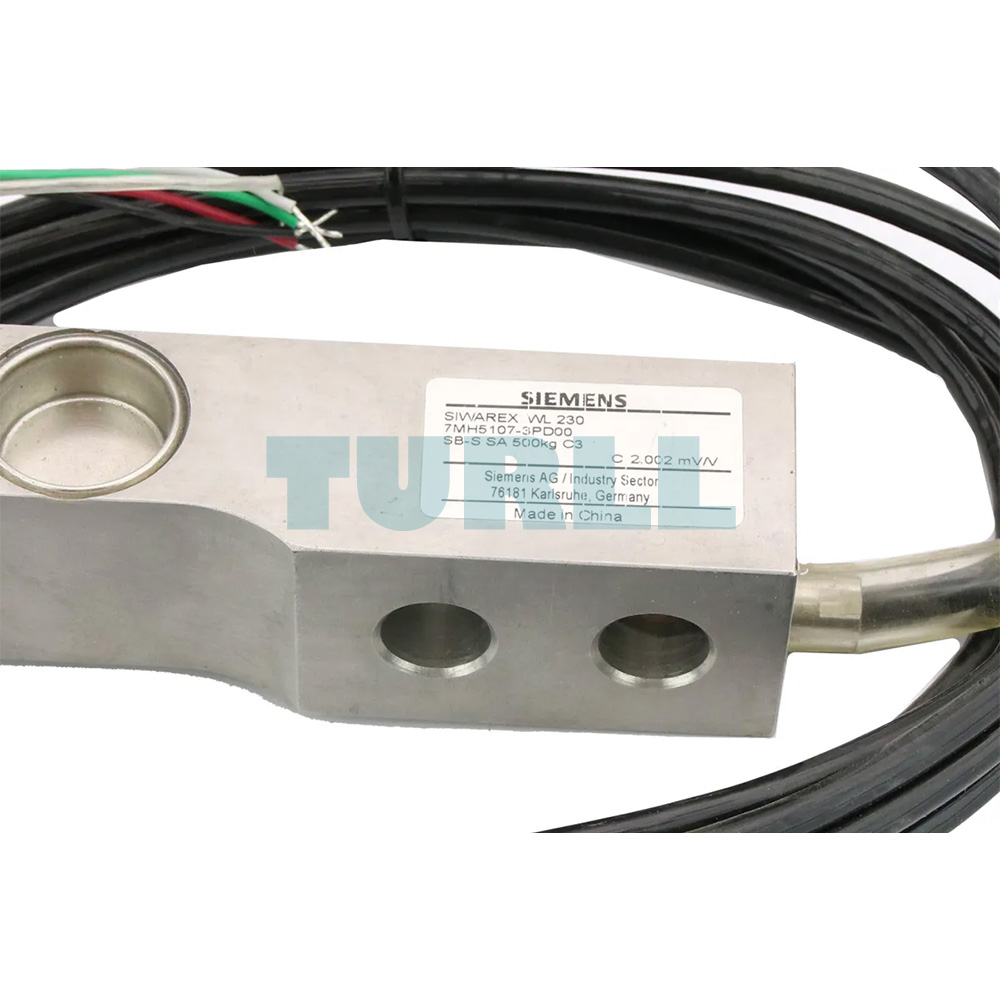

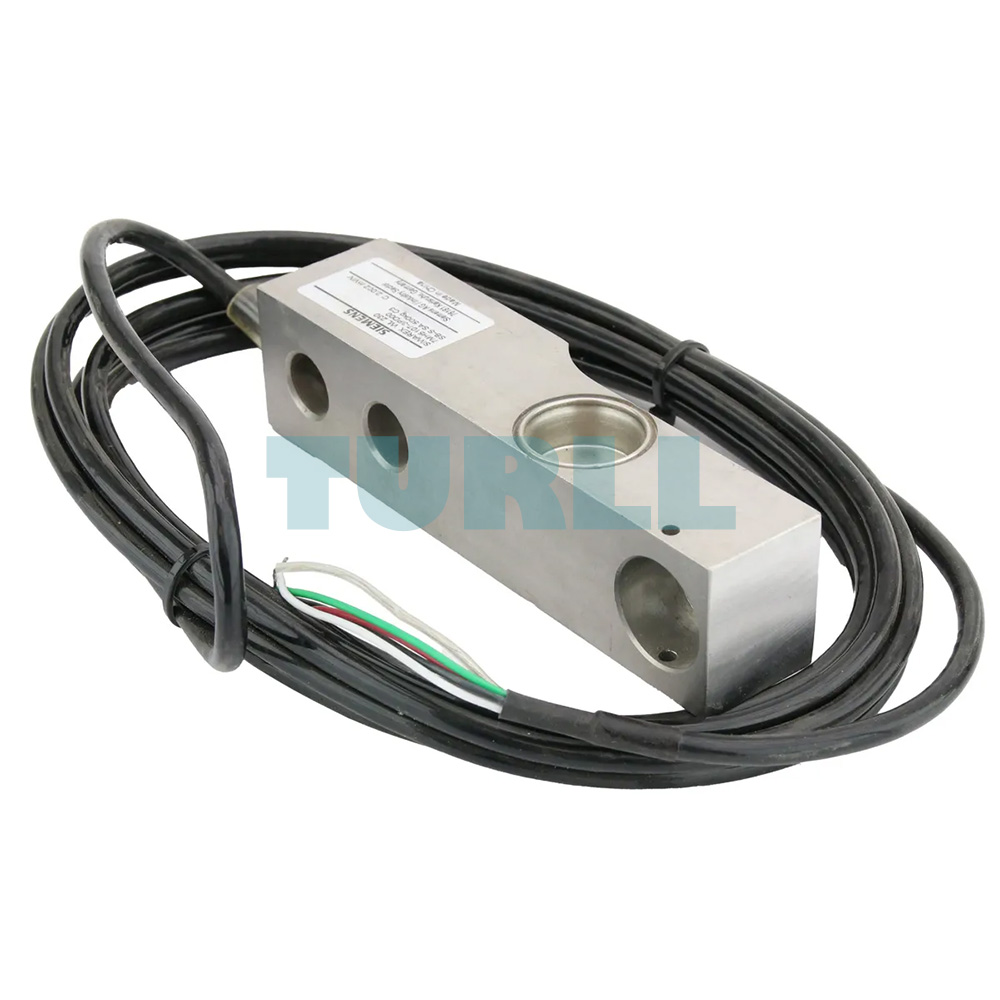

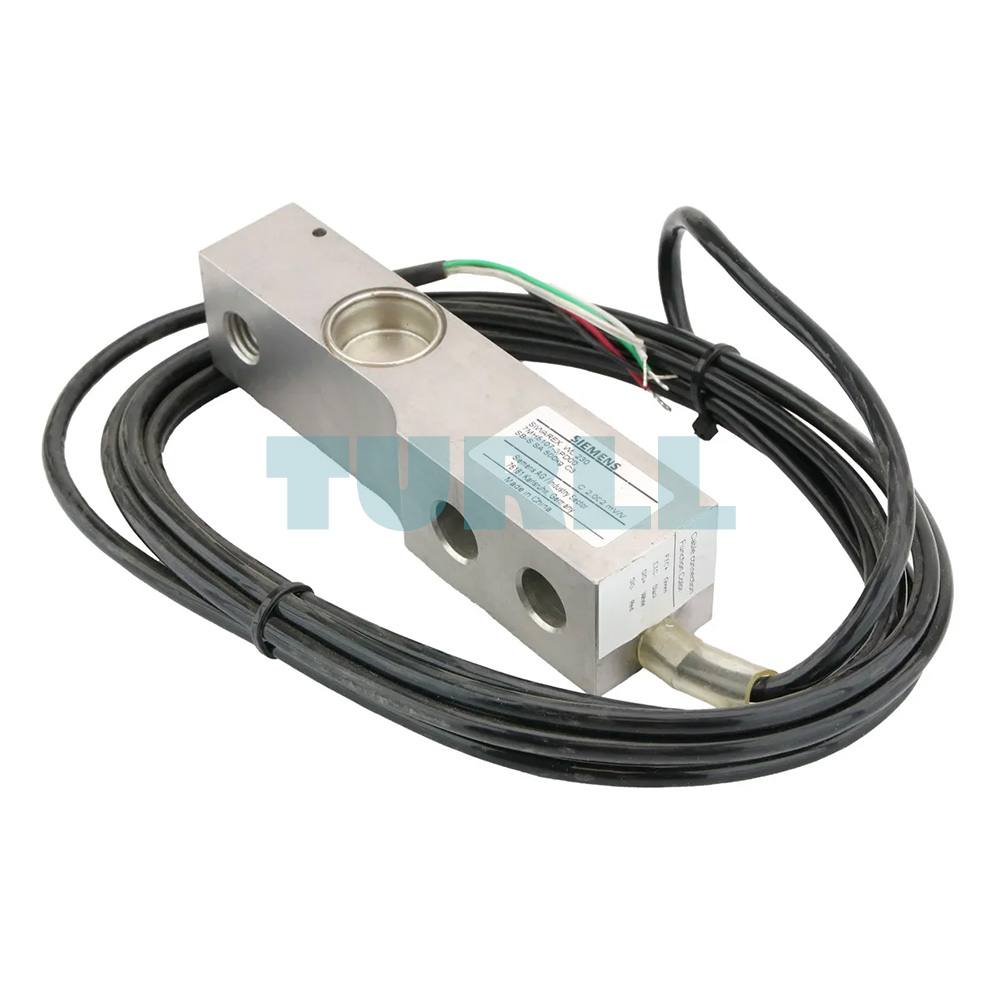

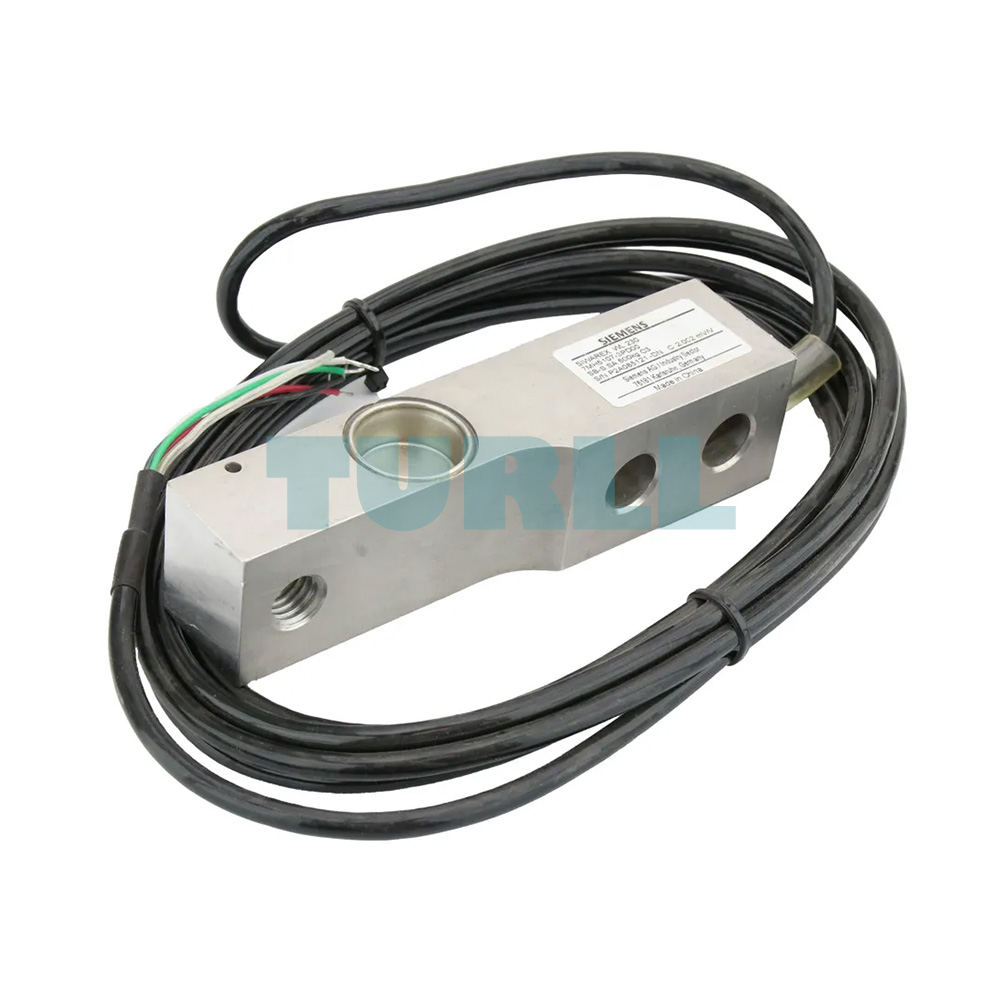

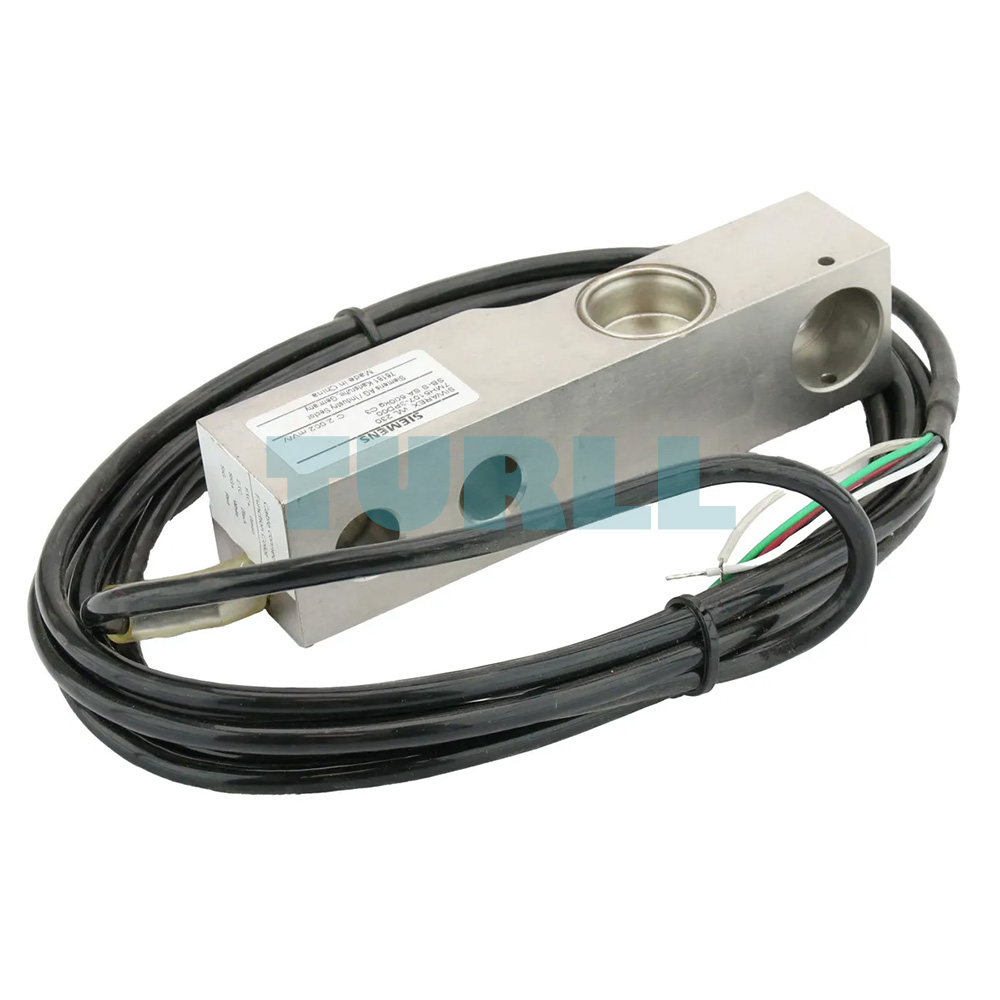

7MH5107-3PD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 500kg Original Brand New

7MH5107-3PD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 500kg Original Brand New

The 7MH5107-3PD00 SIEMENS SIWAREX WL230 SB-S SA load cell offers a premium solution for precise weight measurement applications in industrial settings. Designed with advanced strain gauge technology in a shear beam and multipoint configuration, this load cell delivers exceptional accuracy and reliability. With a rated capacity of 500kg and a high-precision classification of C3, it is an ideal component for platform scales, hoppers, and overhead rail systems where precise load detection is essential.

The unit is made from high-grade stainless steel EN 1.4542, ensuring excellent resistance to corrosion and long-term durability in harsh environments. Its IP68 degree of protection allows safe operation even in wet and dusty conditions. The 3-meter cable with 4-wire technology ensures flexible installation and strong signal integrity.

Overview

Engineered specifically for shear force measurement, this load cell is particularly well-suited for applications involving hopper scales, rail-based systems, and platform scales. Its design ensures stable and repeatable results in demanding industrial environments, making it a reliable choice for automated weighing systems.

Design

The internal mechanism consists of a shear tension spring constructed from stainless steel. Precision strain gauges are mounted at a 45° angle to the axis of the spring body, directly engaging the applied force. As a result, the sensor deforms elastically under load, producing a voltage signal that is linearly proportional to the force exerted. This results in accurate and stable load measurements across a wide range of industrial applications.

Product Code: 7MH5107-3PD00
