7MH5107-4GD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 2t C3 Original Brand New
$613.28
SIEMENS 7MH5107-4GD00 load cell with 2t capacity, stainless steel construction, IP68 protection, and C3 accuracy for reliable weighing performance in industrial use.
7MH5107-4GD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 2t C3 Original Brand New

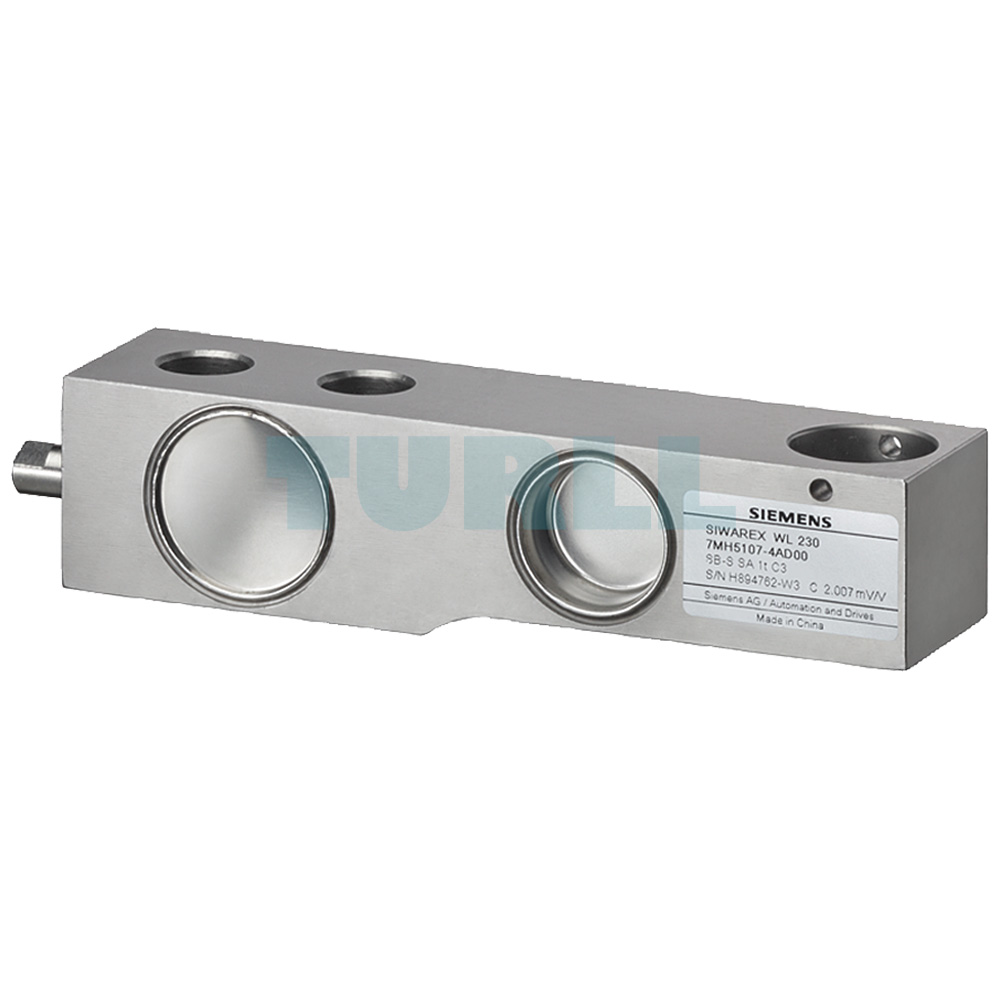

The 7MH5107-4GD00 SIEMENS SIWAREX WL230 SB-S SA load cell is a highly reliable and precision-engineered weighing solution designed for demanding industrial applications. This original brand-new load cell features a rated load of 2 tons and an accuracy class of C3, ensuring consistent and accurate measurements under heavy-duty usage. With a compact shear beam / multi-point design, it is ideal for use in hopper scales, overhead rail systems, and platform weighing installations where stability, performance, and resistance to harsh environments are essential.
The load cell is constructed using stainless steel EN 1.4542, making it highly resistant to corrosion and mechanical stress. It is equipped with a 3-meter, 4-wire cable connection, ensuring easy integration with standard weighing systems. With IP68 protection, it is completely dust-tight and resistant to continuous submersion in water, offering robust performance in both indoor and outdoor environments.
Overview
The shear beam load cell is particularly well-suited for industrial weighing applications such as hopper scales, platform scales, and overhead rail systems. Its design allows it to handle large loads while maintaining measurement precision, making it a popular choice across various industries, including logistics, manufacturing, and food processing.
Design
This load cell incorporates a shear tension spring as its primary measuring element. Strain gauges are positioned at a 45° angle on the sides of the stainless-steel spring body, ensuring maximum sensitivity to shear forces. When a load is applied, the strain gauges deform elastically with the spring body, producing a signal voltage directly proportional to the applied force. This design guarantees durability, long-term stability, and minimal susceptibility to transverse forces or overload.
Product Code: 7MH5107-4GD00
More Siemens products at Turll.com
| Weight | 1.2 kg |
|---|---|

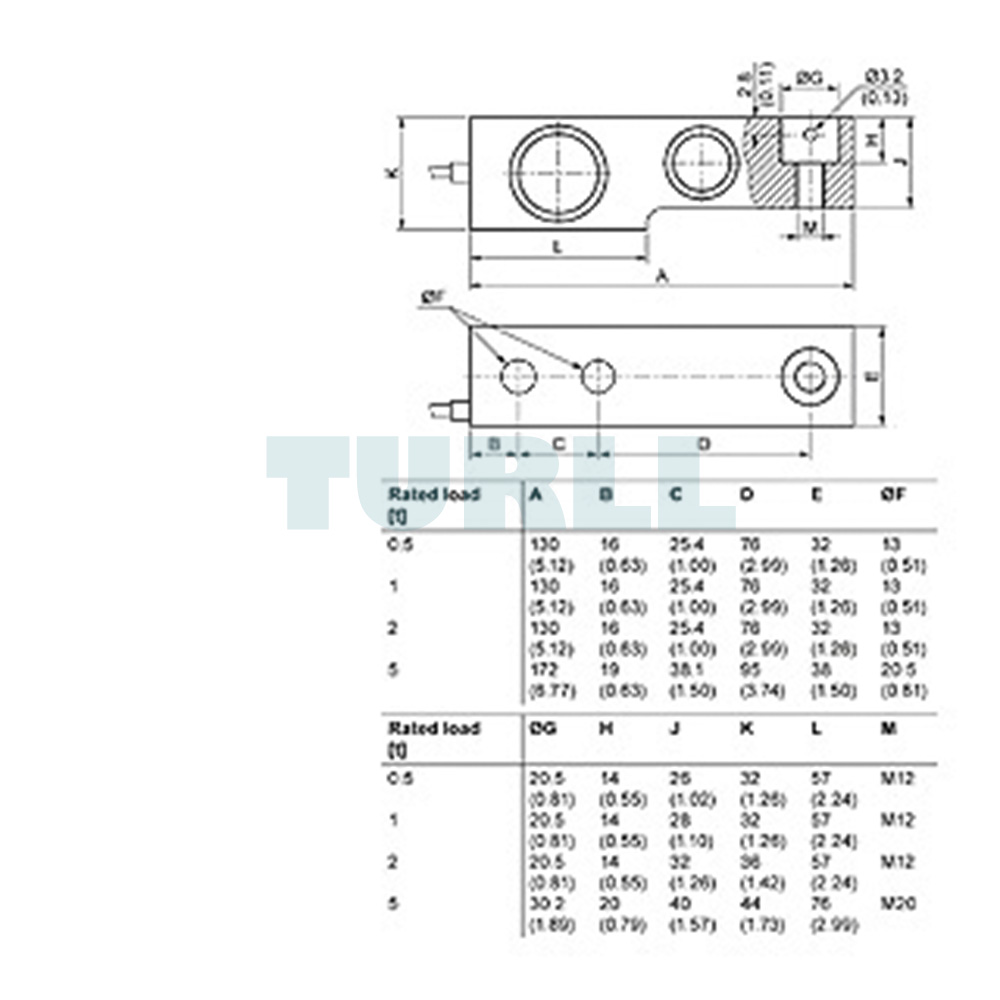

| Dimensions | 226 × 40 × 110 mm |
