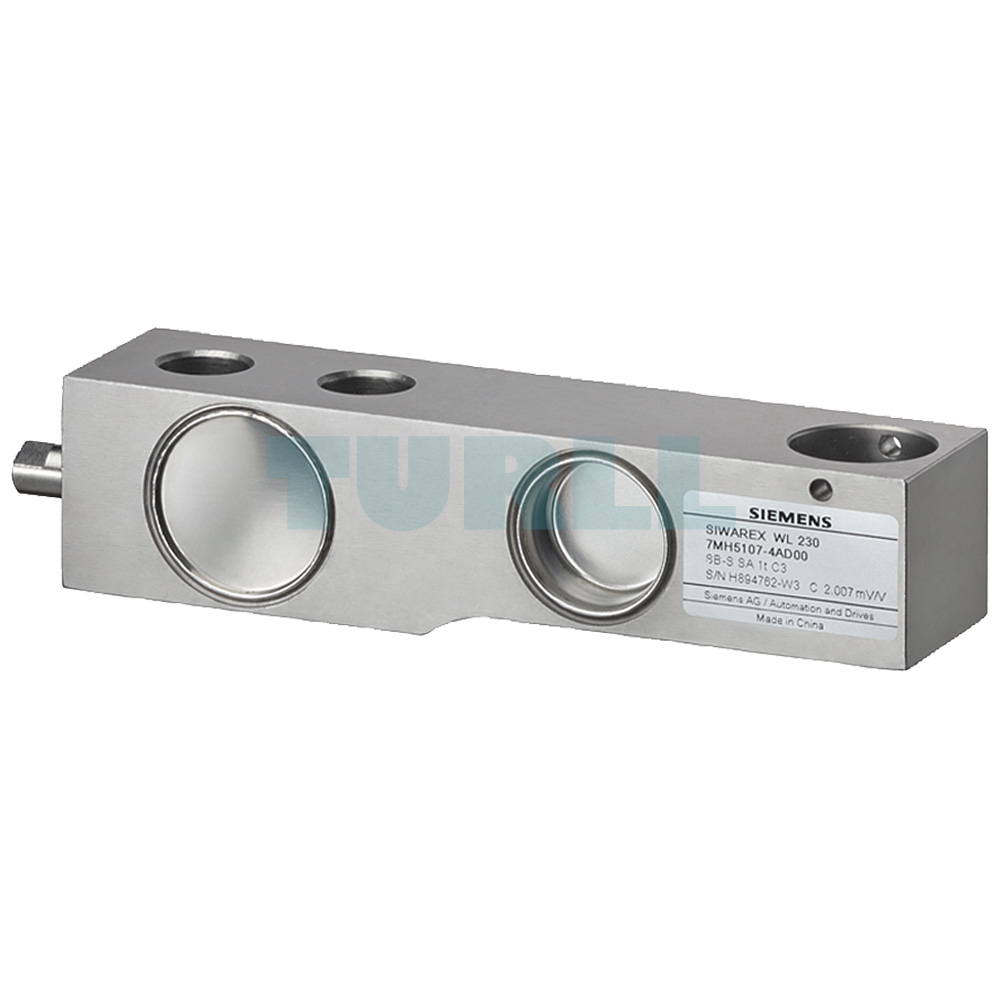

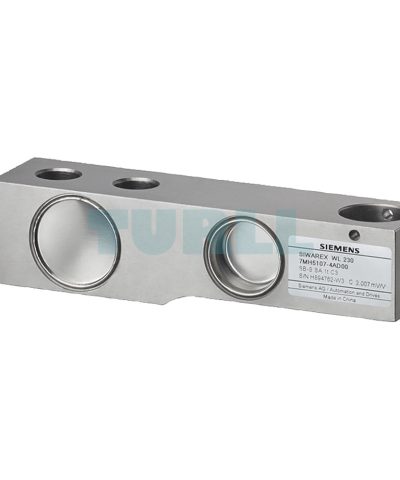

7MH5107-4KD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 3t C3 Original Brand New

7MH5107-4KD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA Load Cell 3t C3 Original Brand New

The 7MH5107-4KD00 SIEMENS SIWAREX WL230 SB-S SA is a high-performance load cell engineered for precision weighing in industrial environments. Designed with a shear beam/multi-point structure, this load cell ensures excellent durability, long-term stability, and consistent performance across various applications such as hopper, overhead rail, and platform scales. Its robust stainless steel housing, made of EN 1.4542 material, offers strong resistance to mechanical stress, corrosion, and moisture, allowing for uninterrupted function even in harsh operating conditions.

This model supports a rated load of 3 tons with an accuracy class of C3, ensuring precise measurement every time. The strain gauge elements are mounted at a 45-degree angle to the longitudinal axis of the shear tension spring, effectively capturing the smallest changes in force and converting them into proportional electrical signals. This ensures the load cell delivers highly accurate and reliable output across its entire measuring range.

With its IP68 protection rating, this load cell is fully sealed against dust and prolonged water immersion, making it suitable for both indoor and outdoor installations. Its 3-meter long cable with 4-wire configuration further enhances ease of integration into existing weighing systems. Whether used in manufacturing, logistics, or industrial automation, the 7MH5107-4KD00 delivers consistent performance that meets stringent measurement standards.

Overview

The shear beam load cell is particularly ideal for use in hopper, overhead rail, and platform scales, where reliability and accuracy are critical. Its compact design and stainless steel construction provide long-lasting durability even in demanding operational settings.

Design

The core measuring element is a shear tension spring made of high-quality stainless steel. Strain gauges are applied to the spring body at precise 45° angles, ensuring they are optimally positioned to detect shear forces. When load is applied in the measuring direction, the spring body deforms elastically, transmitting this force to the strain gauges and producing a voltage signal directly proportional to the applied load.

Product Code: 7MH5107-4KD00
