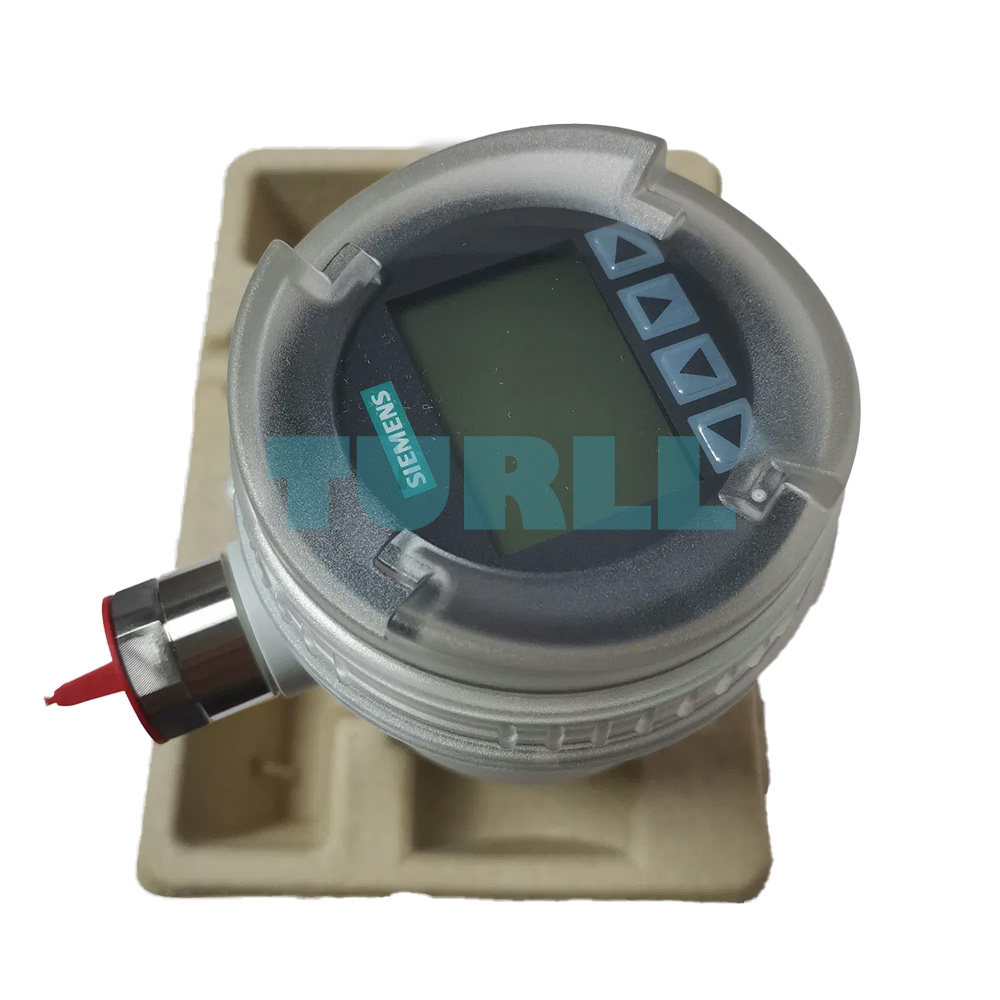

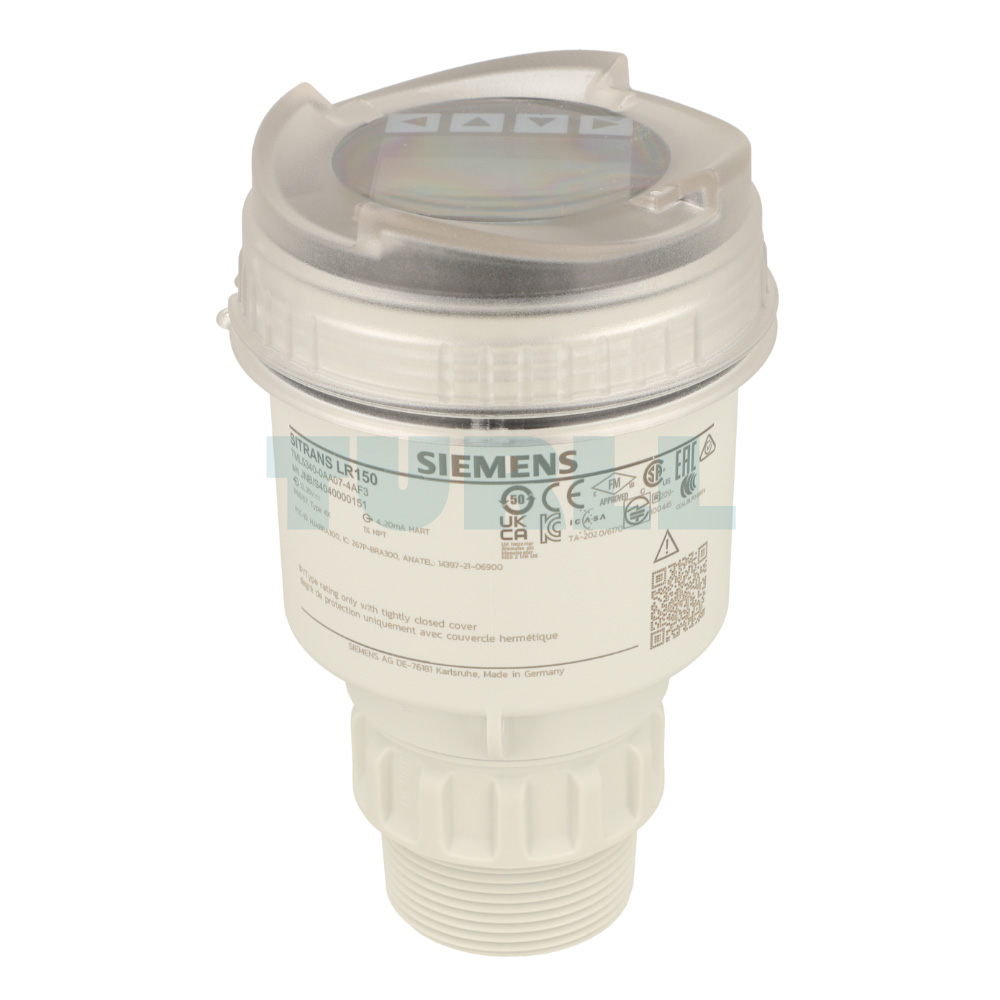

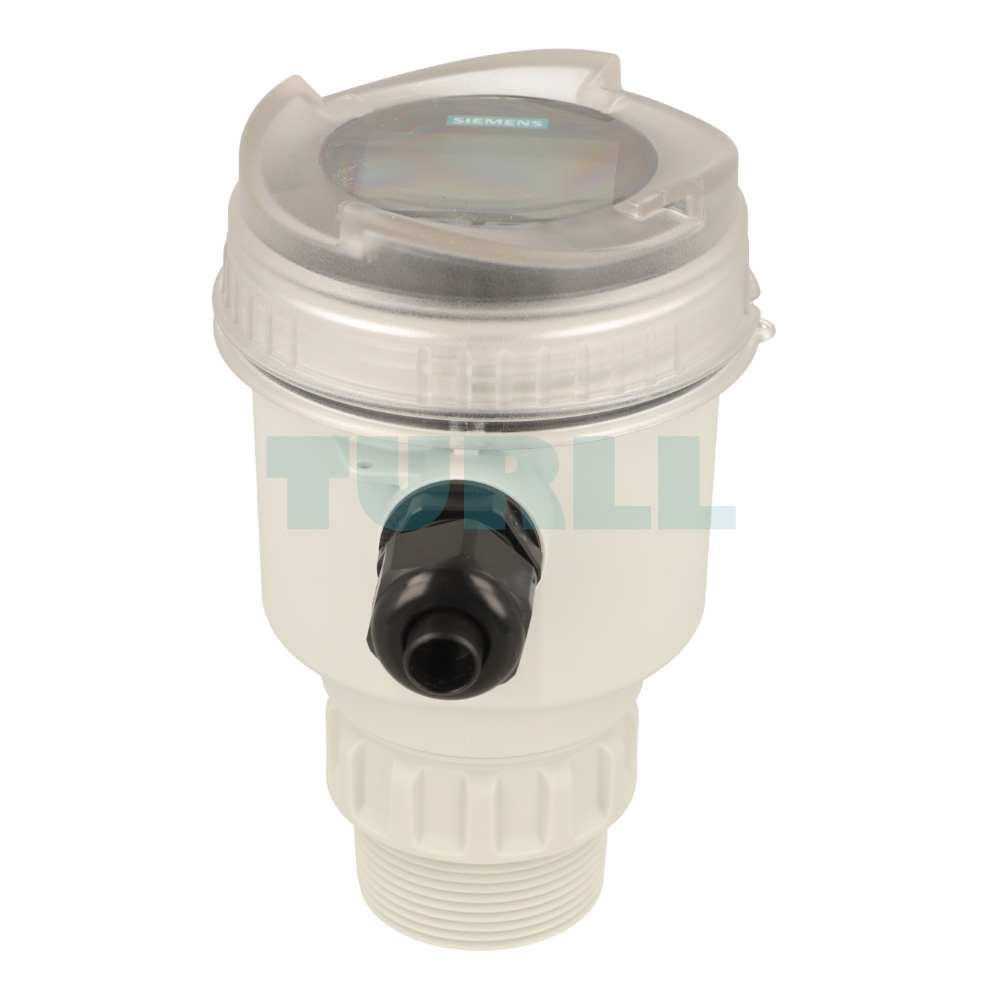

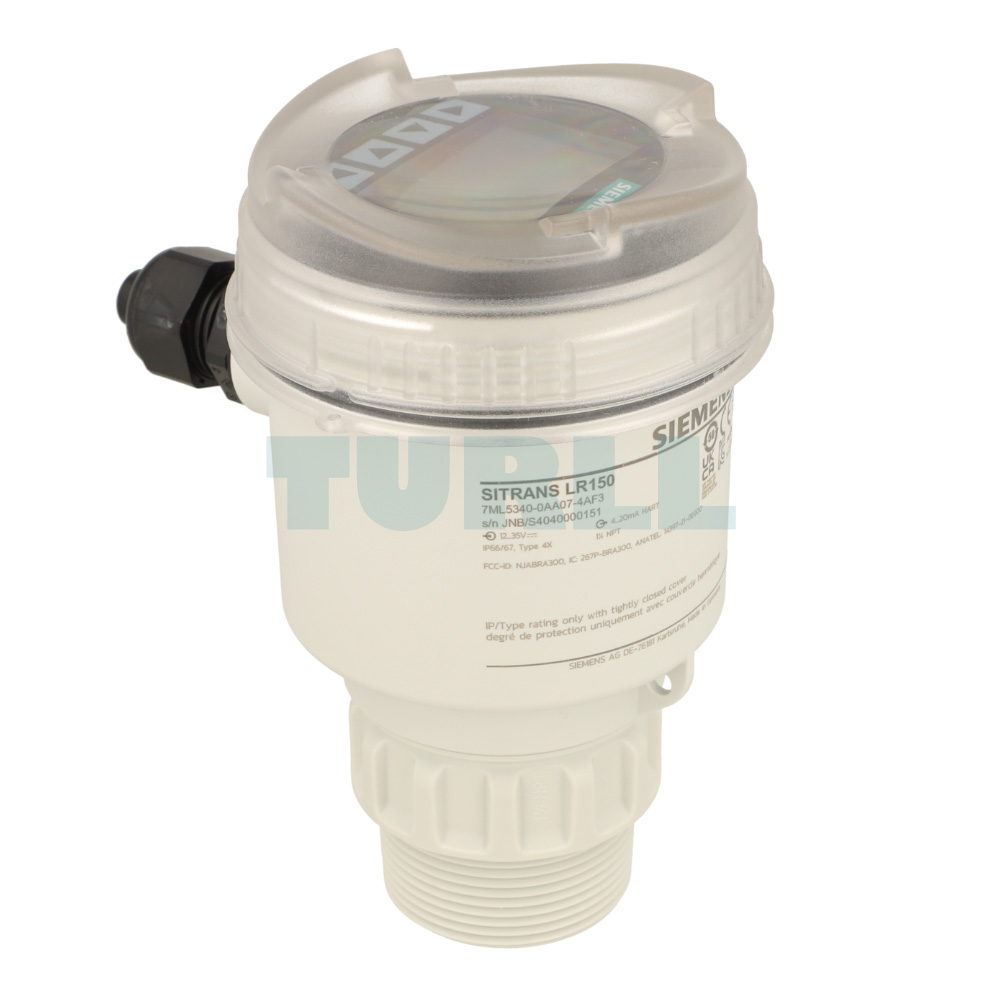

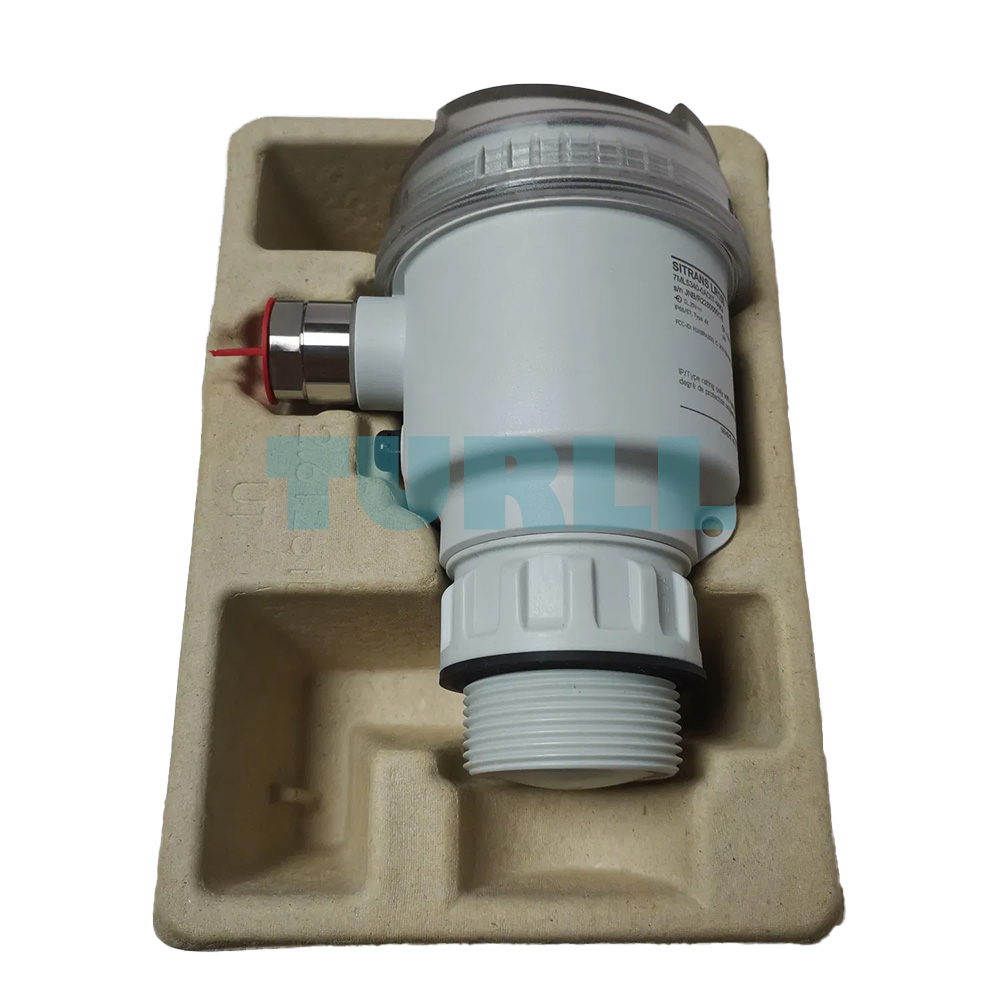

7ML5340-0AC07-4AF3 SIEMENS Exclusive SITRANS LR150 Radar Level Transmitter Original Brand New

7ML5340-0AC07-4AF3 SIEMENS Exclusive SITRANS LR150 Radar Level Transmitter Original Brand New

The SIEMENS 7ML5340-0AC07-4AF3 SITRANS LR150 is a next-generation radar level transmitter engineered for highly reliable non-contact measurement of liquids, slurries, and solids. Designed for demanding industries, this compact device combines superior accuracy with a rugged build that ensures long-term performance. With a measuring range of up to 15 meters (49.2 feet), it offers precision measurement capability, even under challenging process conditions.

Equipped with a chemically resistant PVDF sensor, the SITRANS LR150 ensures extended service life in applications involving aggressive media. This radar transmitter features HART 7.0 communication, which enables seamless integration with advanced control systems for intelligent diagnostics and configuration. Optional HMI with pushbutton programming and a clear display window allows convenient local setup and on-site adjustments. Its W-band FMCW radar technology creates a narrow beam profile with a small antenna, delivering exceptional performance in applications where space is limited and accuracy is critical.

Overview

The SITRANS LR150 is optimized for continuous monitoring and provides a dependable measurement solution that eliminates the need for intrusive contact with materials. The transmitter is certified for open-air use and can be installed in non-explosion areas while also supporting variants suitable for hazardous environments. With zero near-range distance and 2 mm accuracy, it ensures efficient inventory management, improved process control, and reduced maintenance costs.

Benefits

• Bluetooth connectivity enables quick setup via SITRANS mobile IQ on smart devices.
• Optional HMI provides local diagnostic data and user-friendly operation.
• Chemically resistant PVDF sensor ensures durability in harsh conditions.
• W band FMCW radar offers superior short-range performance.
• Compact housing designed for installations with limited space.
• Measurement possible through non-metallic vessel tops for easy integration.

Application

Ideal for industries handling liquids, slurries, and bulk solids, the SITRANS LR150 delivers reliable and precise non-contact measurements. It is powered by a 4 to 20 mA loop with HART protocol, ensuring compatibility with a wide range of control systems. Whether used in tanks, silos, or open-air installations, the LR150 provides stable performance, reduced downtime, and enhanced safety. Its combination of innovative radar technology, compact design, and advanced communication makes it an outstanding choice for industrial level measurement needs.

Product Code: 7ML5340-0AC07-4AF3
