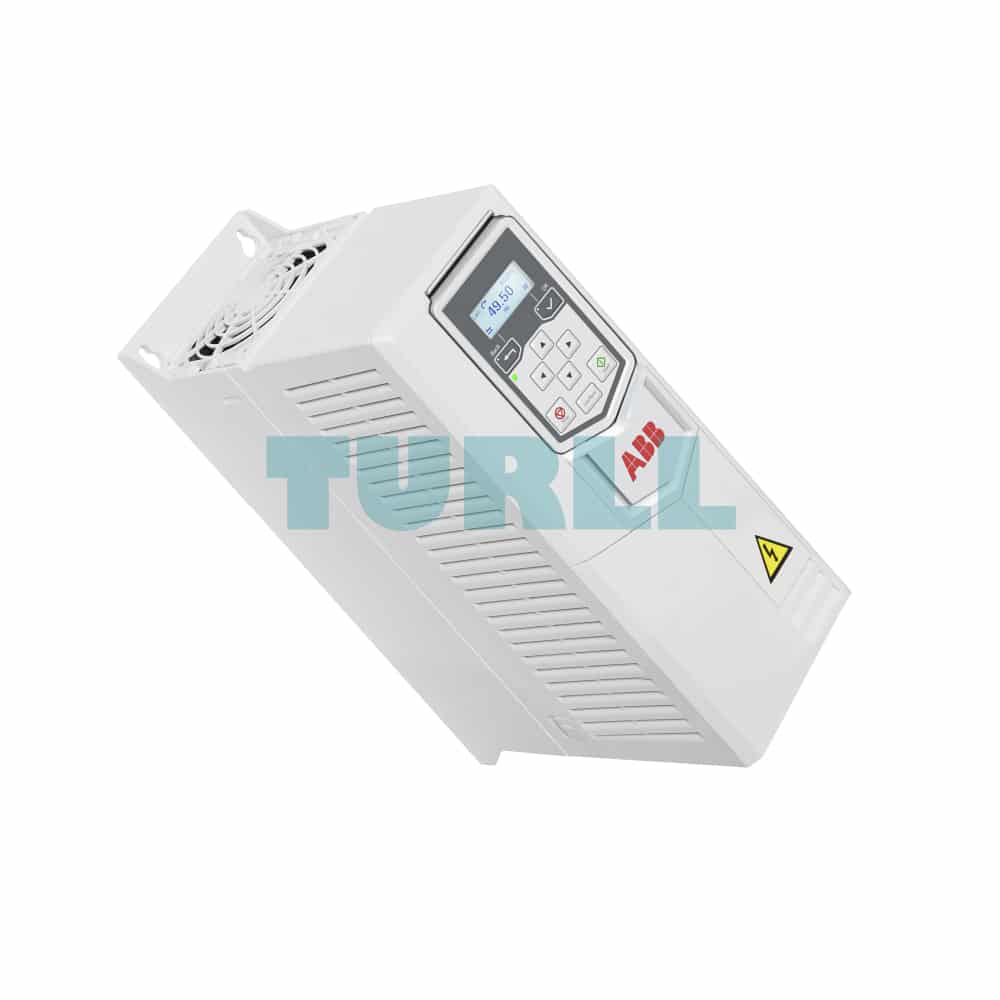

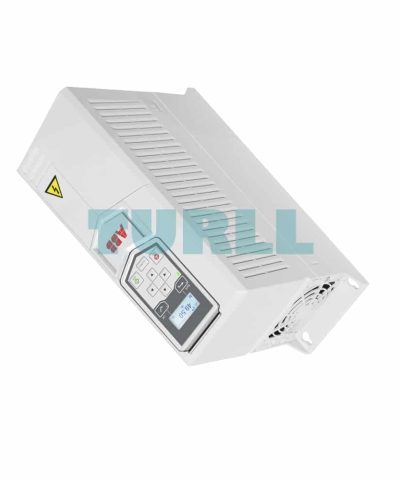

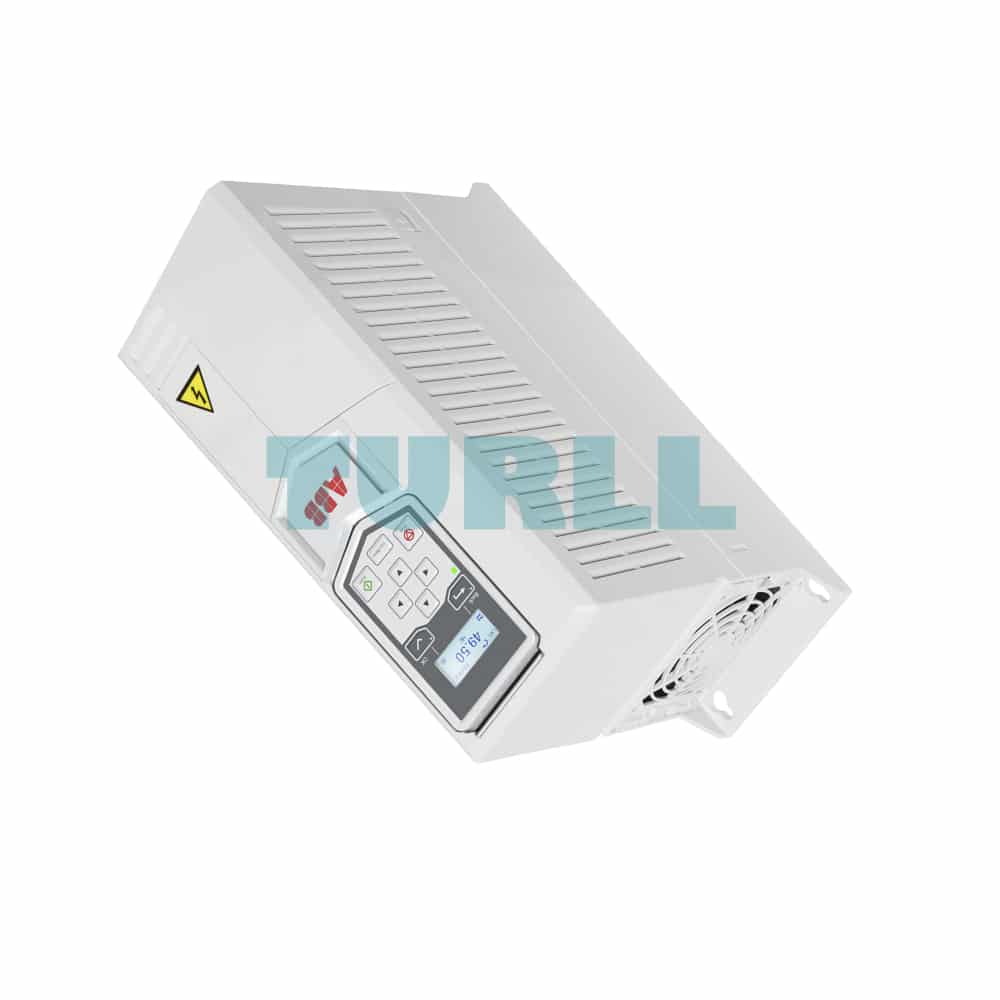

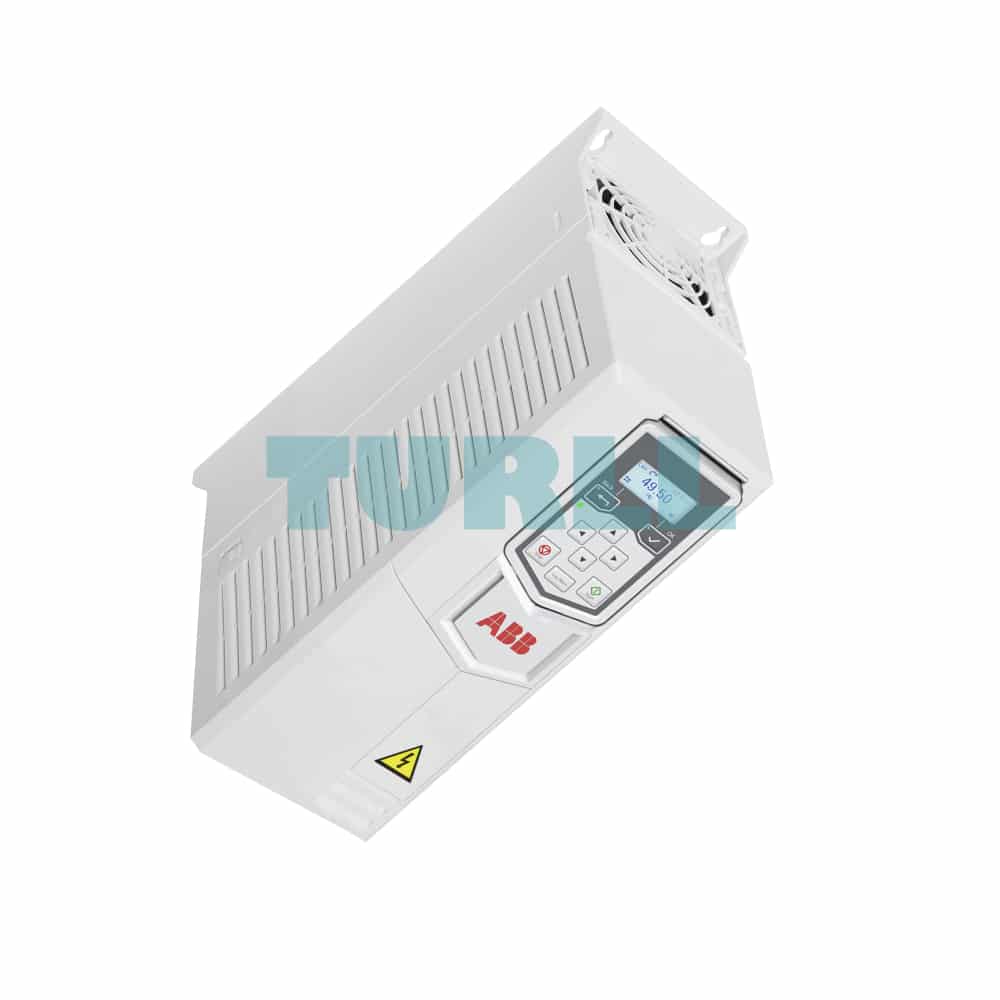

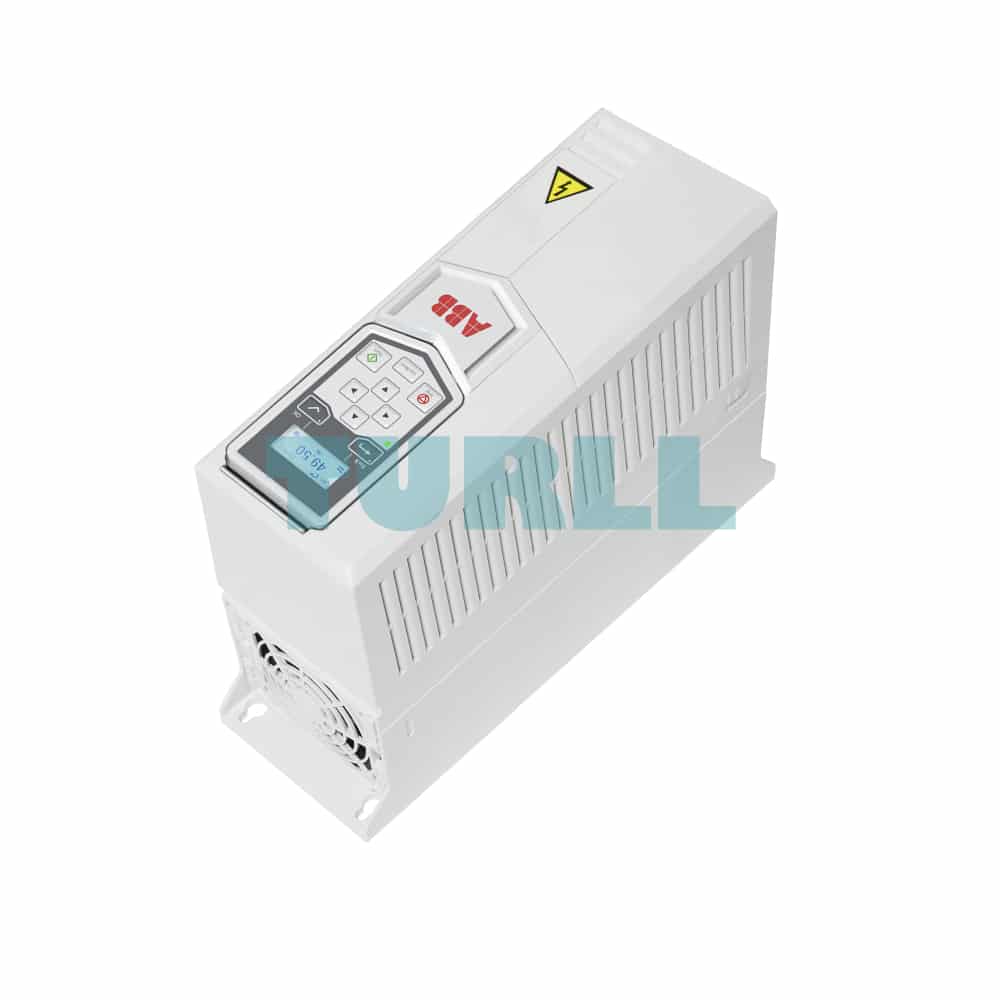

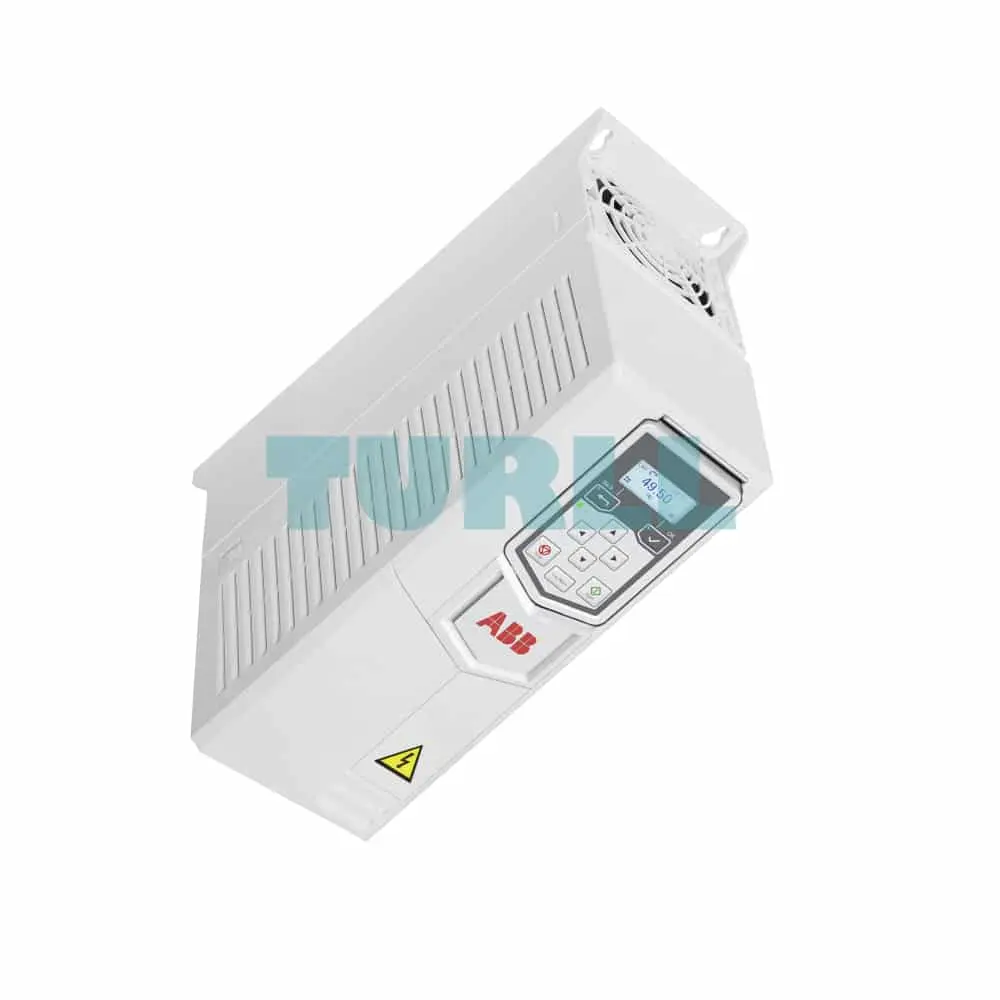

ACS530-01-04A1-4 PN: 1.5 kW, IN: 4 A 3AXD50000747528 Original Brand New
$242.92
ACS530-01-04A1-4
The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias: ACS530-01-04A1-4
Product ID: 3AXD50000747528
ABB Type Designation: ACS530-01-04A1-4
Catalog Description: ACS530-01-04A1-4 PN: 1.5kW, IN: 4A
Long Description: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Ordering
Country of Origin: China (CN)
Customs Tariff Number: 85044085
Invoice Description: ACS530-01-04A1-4 PN: 1.5kW, IN: 4A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 4 kg
Product Net Depth / Length: 223 mm
Product Net Height: 331 mm
Product Net Width: 125 mm
Package Level 1 Depth / Length: 525 mm
Package Level 1 Height: 425 mm
Package Level 1 Width: 225 mm
Package Level 1 Units: 1 carton
Technical
Number of Phases: 3
Degree of Protection: IP20
Enclosure Type NEMA: Open Type
Frequency (f): 47.5 … 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Module_NO UNIT$
Output Current, Light-Overload Use (ILD): 3.8 A
Output Current, Normal Use (In): 4 A
Output Power, Light-Overload Use (PLD): 1.5 kW
Output Power, Normal Use (Pn): 1.5 kW
Apparent Power Output: 2.8 kV·A
Efficiency Level: IE2
Standby Loss: 14 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
33 W
|
1.2 %
|
81.8 %
|
|
0 / 50 %
|
36 W
|
1.3 %
|
88.7 %
|
|
0 / 100 %
|
45 W
|
1.6 %
|
92.1 %
|
|
50 / 25 %
|
34 W
|
1.2 %
|
90 %
|
|
50 / 50 %
|
39 W
|
1.4 %
|
93.9 %
|
|
50 / 100 %
|
50 W
|
1.8 %
|
95.6 %
|
|
90 / 50 %
|
43 W
|
1.5 %
|
96.1 %
|
|
90 / 100 %
|
59 W
|
2.1 %
|
97.1 %
|
Temperature Rating: Maximum 40 °C
Classifications
UNSPSC: 39122001
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Name:
| Weight | 4 kg |
|---|---|
| Dimensions | 525 × 425 × 225 mm |
