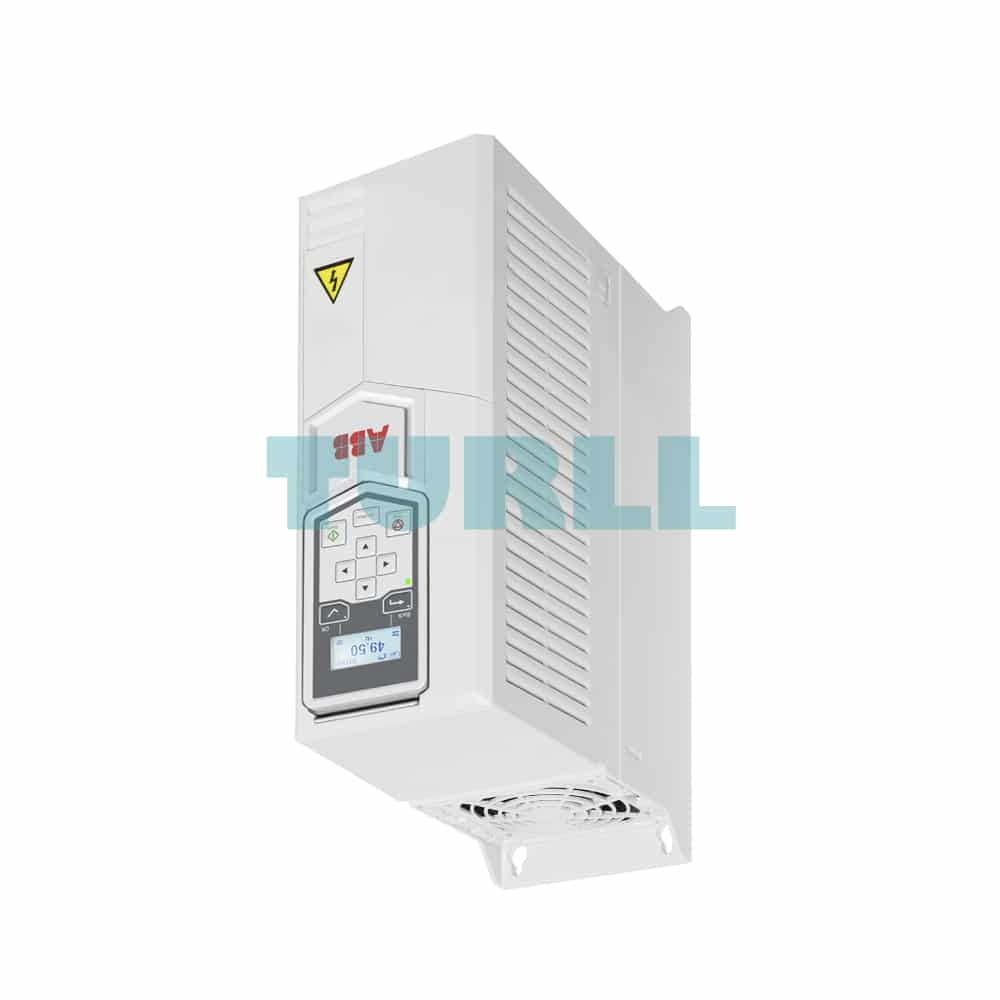

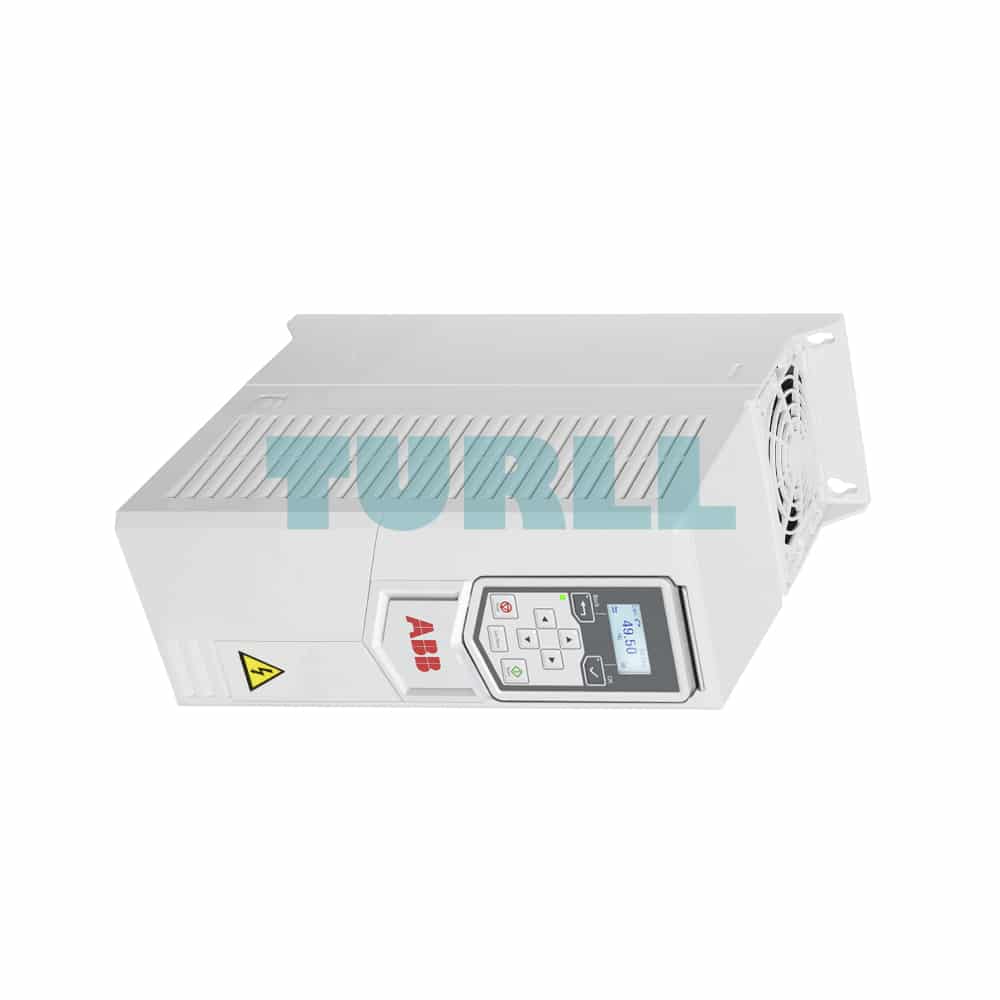

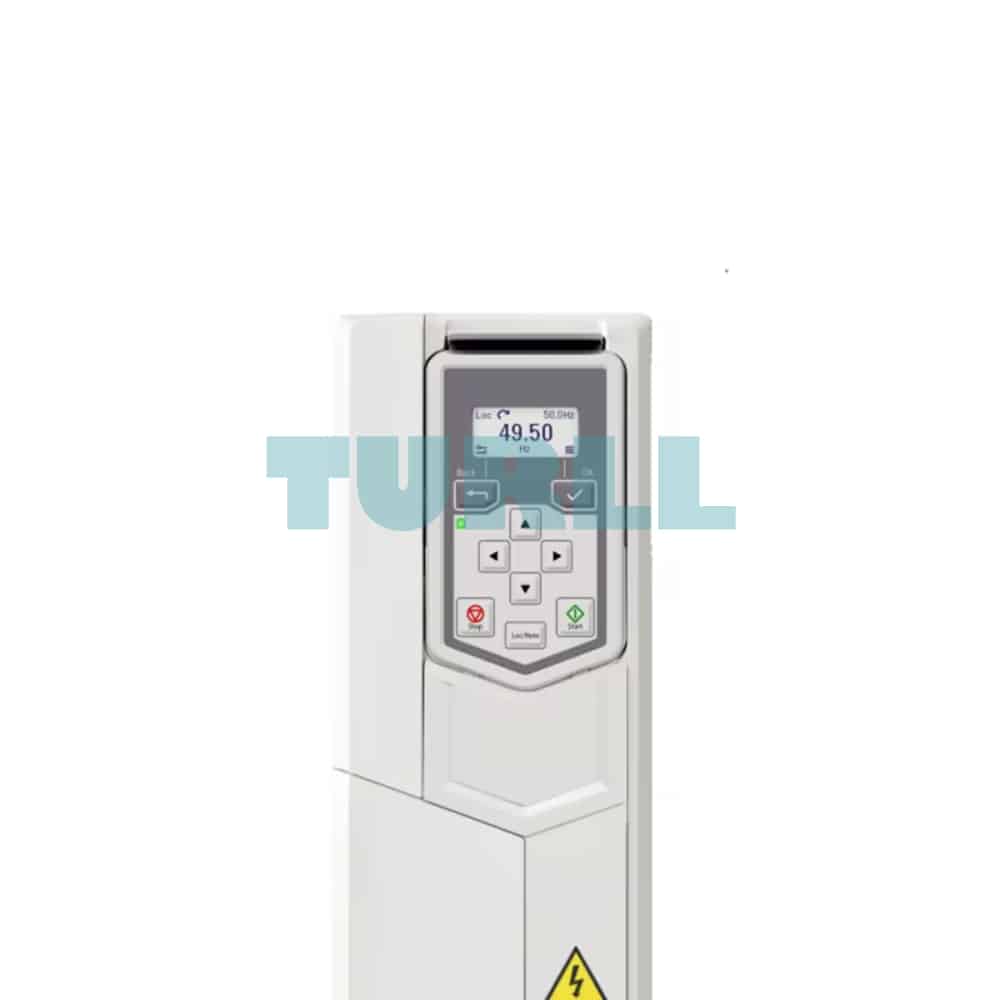

ACS530-01-07A3-4 PN: 3 kW, IN: 7.2 A 3AXD50000747542 Original Brand New
$292.24
ACS530-01-07A3-4
The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enables fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global trade alias: ACS530-01-07A3-4
Product code: 3AXD50000747542
ABB type designation: ACS530-01-07A3-4
Short description: ACS530-01-07A3-4 PN: 3kW, IN: 7.2A
Long description: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enables fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Classification
Country of origin: China (CN)
Tariff code: 85044085
Invoice description: ACS530-01-07A3-4 PN: 3kW, IN: 7.2A
Custom made: No
Minimum order quantity: 1 piece
Multiple order: 1 piece
Quote only: No
Unit of measure for sale: piece
Dimensions
Product weight: 4 kg
Product length: 223 mm
Product Height: 331 mm
Product Width: 125 mm
Level 1 Packaging Length: 525 mm
Level 1 High Packaging: 425 mm
Packaging Level 1 Width: 225 mm
Level 1 Packaging Units: 1 carton
Technical
Number of phases: 3
Degree of protection: IP20
NEMA Module Type: Open Type
Frequency ( f ): 47.5 … 63 Hz
Frame Size: R1
Input voltage (U in ): 380 … 480 V
Mounting Type: Module_NO UNIT$
Output current, use with slight overload ( I LD ): 6.8 A
Output current, normal use ( I n ): 7.2 A
Output power, light overload use ( P LD ): 3 kW
Output power, normal use ( P n ): 3 kW
Apparent output power: 5.0 kV·A
Efficiency level: IE2
Loss on hold: 14 W
Full drive module efficiency (61800-9-2):
| Operating Point Frequency/Current |
Absolute Loss | Relative Loss | Efficiency |
|---|---|---|---|
|
0 / 25 %
|
47 W
|
1 %
|
84.7 %
|
|
0 / 50 %
|
55 W
|
1.1 %
|
90.2 %
|
|
0 / 100 %
|
76 W
|
1.5 %
|
92.6 %
|
|
50 / 25 %
|
50 W
|
1 %
|
91.7 %
|
|
50 / 50 %
|
60 W
|
1.2 %
|
94.7 %
|
|
50 / 100 %
|
85 W
|
1.7 %
|
95.9 %
|
|
90 / 50 %
|
66 W
|
1.3 %
|
96.7 %
|
|
90 / 100 %
|
97 W
|
1.9 %
|
97.3 %
|
Nominal temperature: Maximum 40 °C
Rankings
UNSPSC: 39122001
Atmosphere
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Additional information
Product Name:
Frequency Converter
Visit: ACS530-01-07A3-4
For more our products visit turll.com
| Weight | 4 kg |
|---|---|
| Dimensions | 525 × 425 × 225 mm |
