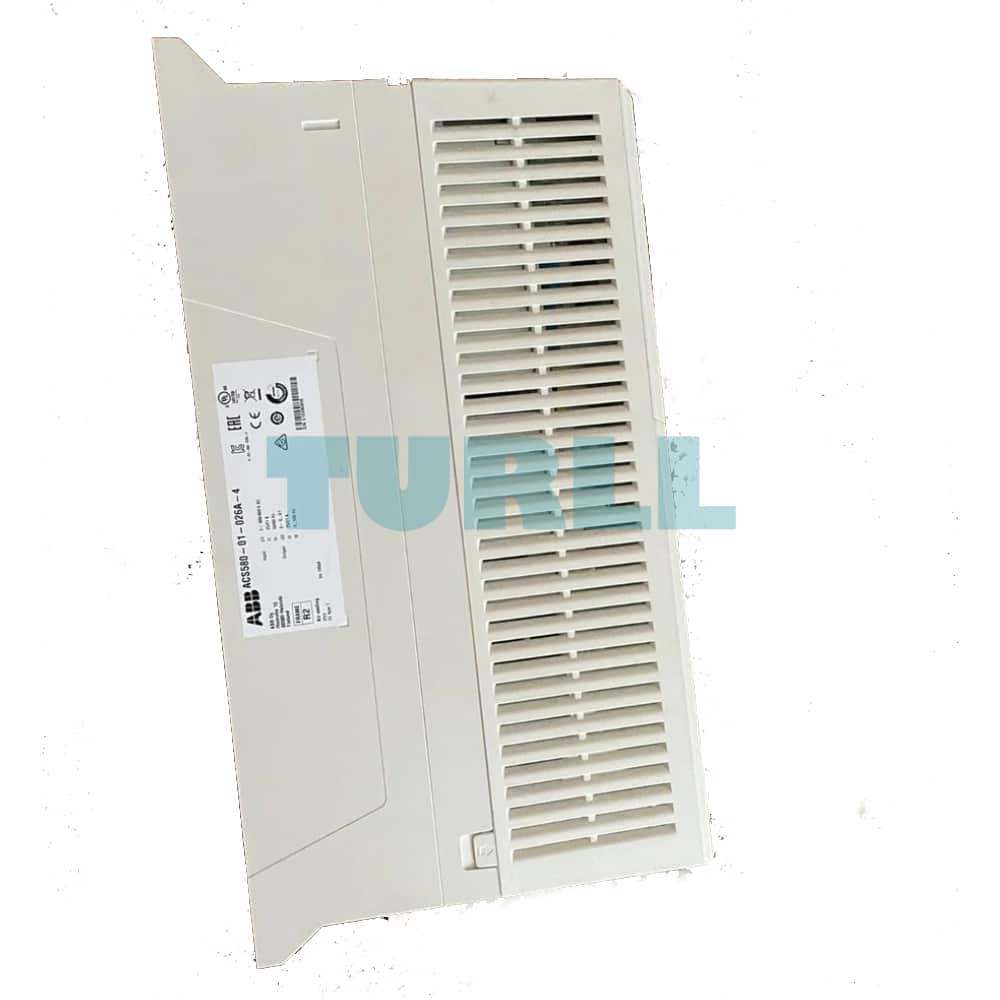

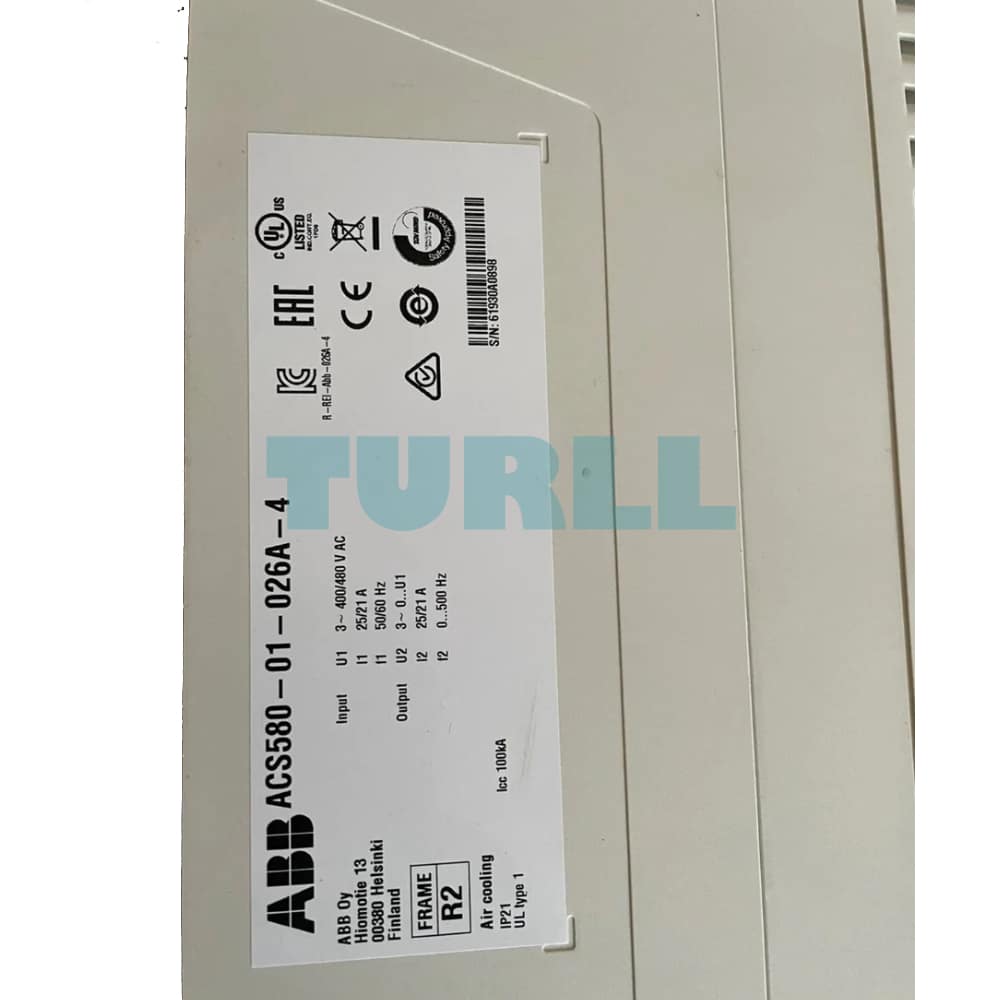

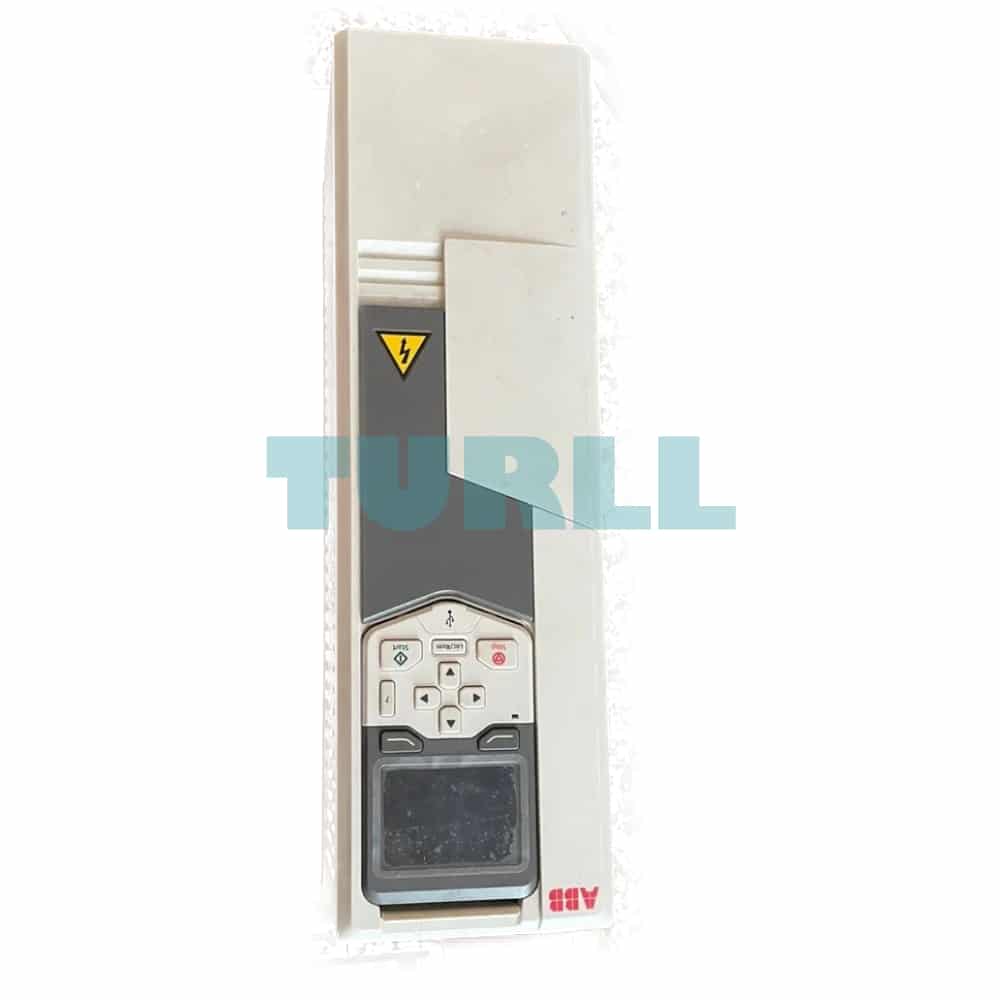

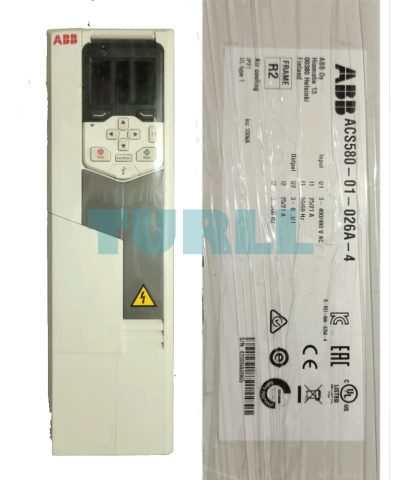

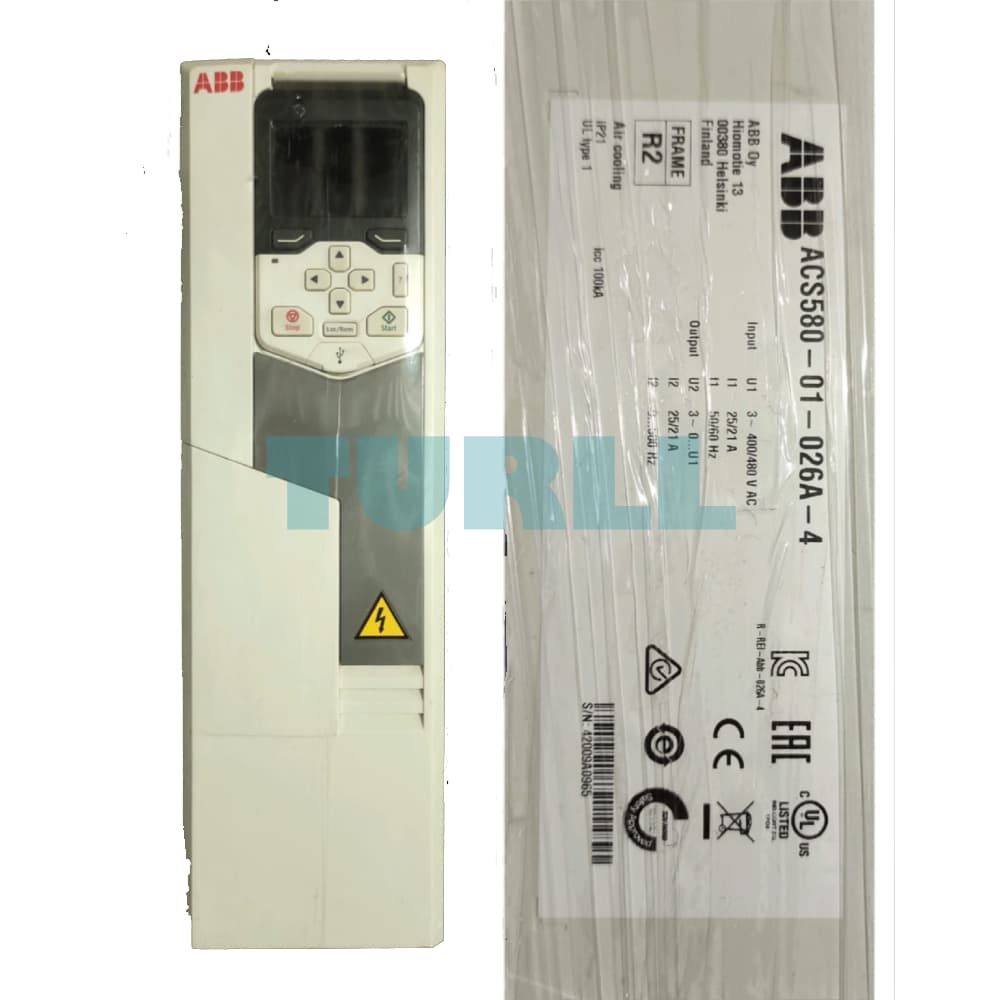

ACS580-01-026A-4 frequency converter
ACS580-01-026A-4 frequency converter
ACS580-01-026A-4 frequency converter
ACS580-01-026A-4 frequency converter

ACS580-01-026A-4 PN: 11 kW, IN: 25 A 3AXD50000038960 Original Brand New

Model / SKUACS580-01-026A-4

ACS580-01-026A-4

LV AC general purpose wall-mounted drive, IEC: Pn 11 kW, 25 A, 400 V (ACS580-01-026A-4)

$554.29
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

General Information

Global Commercial Alias: ACS580-01-026A-4
Product ID: 3AXD50000038960
ABB Type Designation: ACS580-01-026A-4
EAN: 6438177459255
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 11 kW, 25 A, 400 V (ACS580-01-026A-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.

Ordering

Country of Origin: Romania (RO)
                                  Finland (FI)
                                  China (CN)
Customs Tariff Number: 85044086
HS Code: 850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description: ACS580-01-026A-4 PN: 11.0 kW, IN: 25 A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece

Dimensions

Product Net Weight:
6.6 kg
14.551 lb
Product Net Depth / Length:
228.50 mm
9.02 in
Product Net Height:
473.00 mm
18.62 in
Product Net Width:
125.00 mm
4.92 in
Package Level 1 Depth / Length:
225.00 mm
8.858 in
Package Level 1 Height:
370.00 mm
14.567 in
Package Level 1 Width:
621.00 mm
24.449 in
Package Level 1 Units:
1 carton

Technical

Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 ... 95
Sound dB (A):
64 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 ... 63 Hz
Frame Size:
R2
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Heavy-Duty Use (IHD):
17.0 A
Output Current, Light-Overload Use (ILD):
23.8 A
Output Current, Normal Use (In):
25 A
Output Power, Heavy-Duty Use (PHD):
7.5 kW
Output Power, Light-Overload Use (PLD):
11.0 kW
Output Power, Normal Use (Pn):
11 kW
Apparent Power Output:
17 kV·A
Efficiency Level:
IE2
Standby Loss:
15 W
Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Efficiency Relative
Loss
0/25 %
126 W
87.9 %
0.7 %
0/50 %
162 W
91.6 %
0.9 %
0/100 %
284 W
92.6 %
1.6 %
50/25 %
135 W
93.4 %
0.8 %
50/50 %
180 W
95.4 %
1.0 %
50/100 %
322 W
95.8 %
1.9 %
90/50 %
196 W
97.1 %
1.1 %
90/100 %
383 W
97.2 %
2.2 %
Temperature Rating:
Maximum 40 °C
Minimum -15 °C

Classifications

ETIM 8: EC001857 - Frequency converter =< 1 kV
ETIM 9: EC001857 - Frequency converter =< 1 kV
UNSPSC: 39122001

Environmental

SCIP: 4a4ed2db-43e7-4612-8e9c-3921e4acd08b Finland (FI)
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information

Product Name: Frequency converter

Visit: ACS580-01-026A-4

For more our products visit turll.com

Specifications

SKU / ModelACS580-01-026A-4
Weight6.6 kg
Dimensions225 × 370 × 621 mm
