JJY023434020001 SIEMENS Exclusive Braking Resistor for Power Module PM240-2 Original Brand New

JJY023434020001 SIEMENS Exclusive Braking Resistor for Power Module PM240-2 Original Brand New

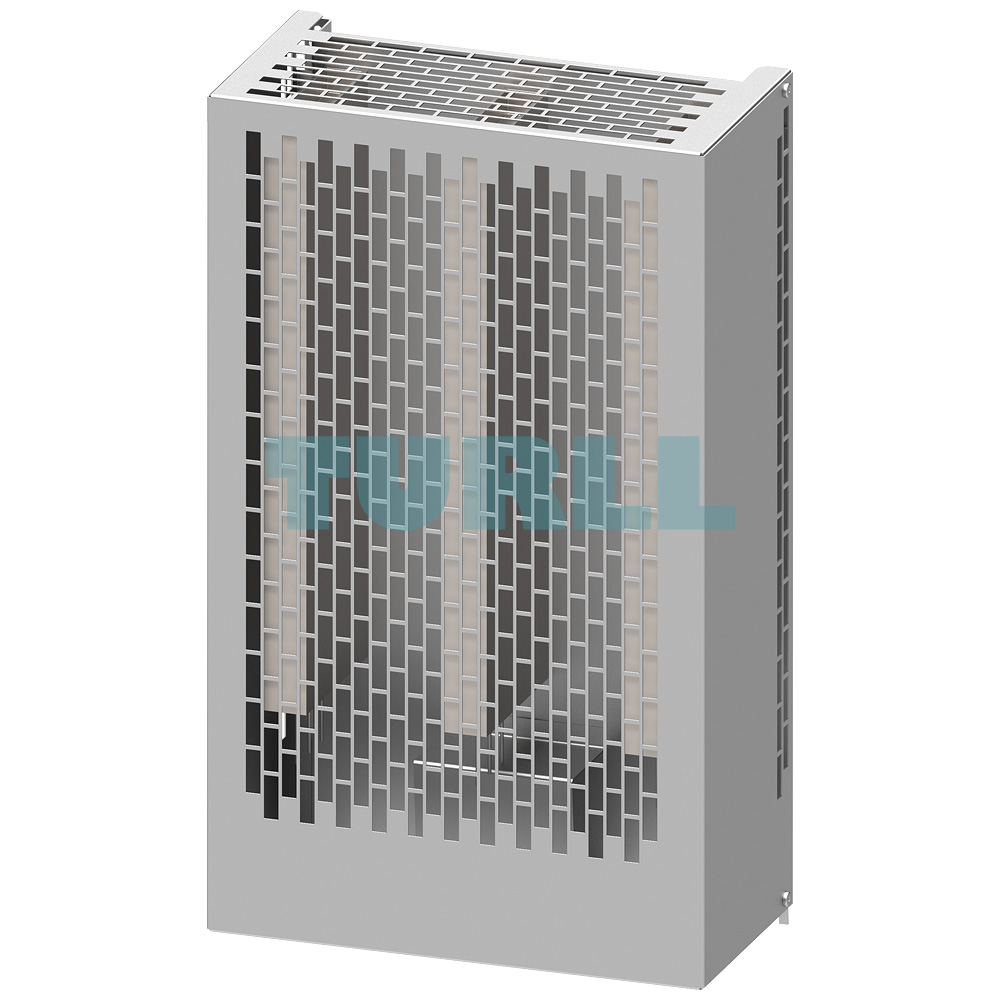

The SIEMENS JJY023434020001 braking resistor is a high-quality component designed specifically for use with PM240-2 Power Modules, frame size FSG. This resistor provides a safe and efficient solution for dissipating excess energy generated in the DC link during braking operations. With a rated resistance of 10 Ohm and a continuous power handling capacity of 2750 W, it ensures reliable performance under demanding industrial conditions. Engineered for durability and long service life, this braking resistor plays a critical role in protecting power modules and maintaining system stability.

When operating in applications where regenerative energy cannot be fed back into the supply system, braking resistors are essential. The JJY023434020001 converts surplus energy into heat, making it suitable for scenarios such as the deceleration of heavy rotating machinery with significant inertia. By integrating this resistor into your automation setup, you enhance system safety while ensuring consistent performance of the PM240-2 Power Module.

Overview

This braking resistor is intended for lateral installation next to PM240-2 modules. For frame sizes FSD through FSG, it is recommended to position the unit outside the control cabinet or switchgear room to facilitate proper heat dissipation and reduce cooling requirements. Each braking resistor is equipped with a UL-listed temperature switch. The switch provides an additional layer of protection by monitoring temperature levels and preventing potential damage from overheating.

For an electromagnetically compatible connection, a shield connection kit should be ordered in combination with the braking resistor for frame sizes FSD to FSG. This ensures optimal EMC compliance and stable long-term operation.

Product Code: JJY023434020001
