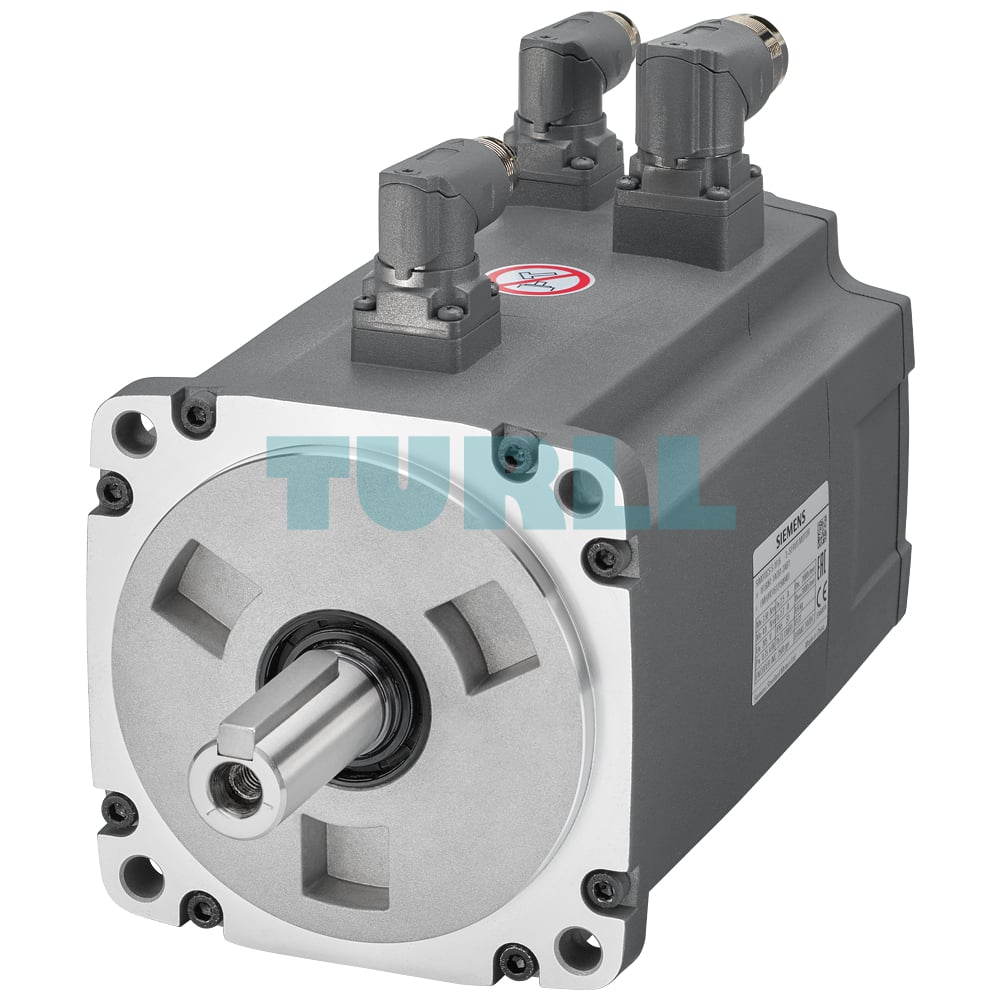

Siemens 1FL6066-1AC61-2AG1 SIMOTICS S-1FL6 Servo Motor 1.75kW Original Brand New

Overview

The SIMOTICS S-1FL6 series represents the pinnacle of Siemens’ motion control technology for general purpose applications. The 1FL6066-1AC61-2AG1 model is a high-inertia motor with a 65mm shaft height, providing the stability and torque needed for precise positioning. With a rated speed of 2000 rpm and a stall torque ($M_0$) of 11 Nm, this motor delivers consistent power delivery across its entire operating range.

Key Benefit

• Reliable Protection: Rated IP65 with a sealing ring, making it resistant to dust and water jets.

• High Precision: Equipped with an incremental encoder (2500 incr./rev.) for accurate feedback.

• Efficient Design: Natural cooling and a plain shaft (Tolerance N) ensure longevity and low maintenance.

• Seamless Integration: Specifically optimized for use with SINAMICS V70 and V90 drive systems.

Features & Function

• Operating voltage: 3AC 400 V

• Power: 1.75 kW

• Speed: 2000 rpm

• Starting torque (M0): 11 Nm

• Nominal torque (MN): 8.36 Nm

• Shaft height: 65 mm

• Angle plug connection for easy integration

• Incremental encoder: 2500 incr./rev., plain shaft

• Tolerance N, no holding brake

• Degree of protection: IP65 with sealing ring

• Compatible with SINAMICS V70 & V90 converters

Visit 1FL6066-1AC61-2AG1 for more detail info

For more our products visit turll

Download

Datasheet in PDF
