Overview

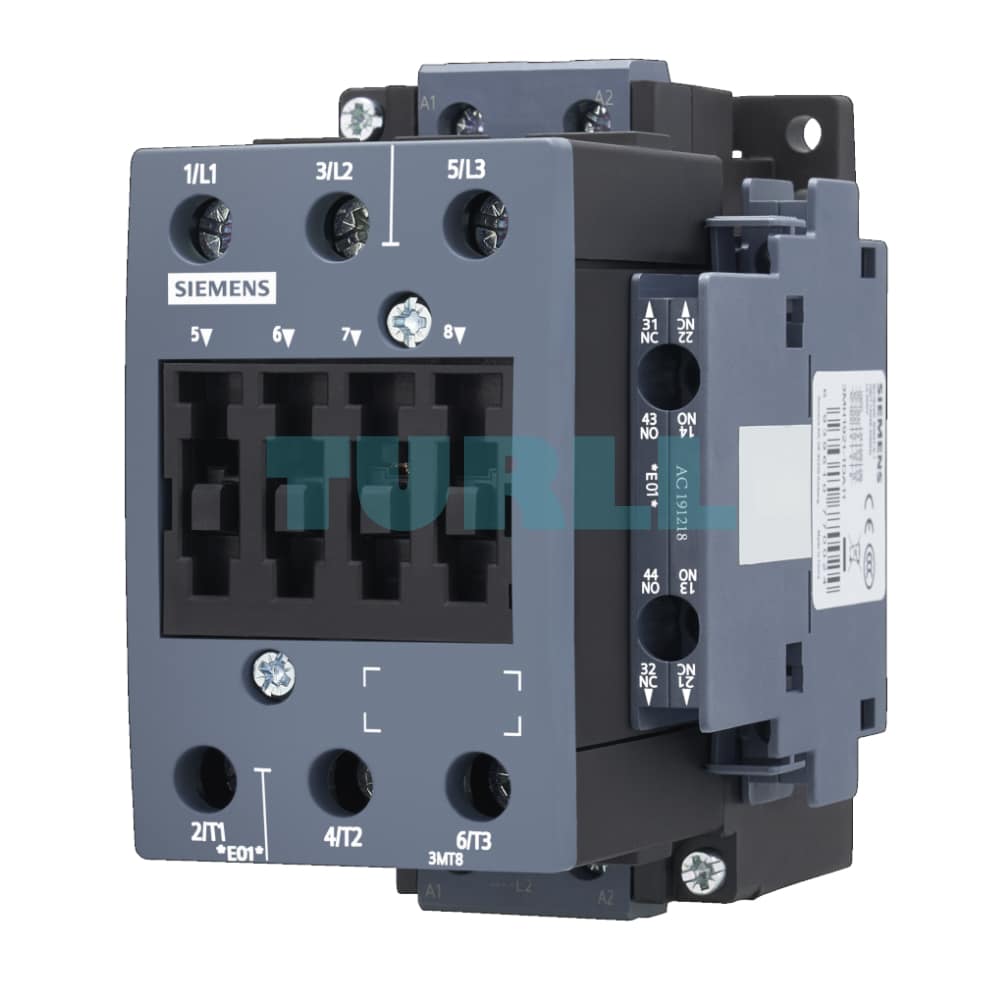

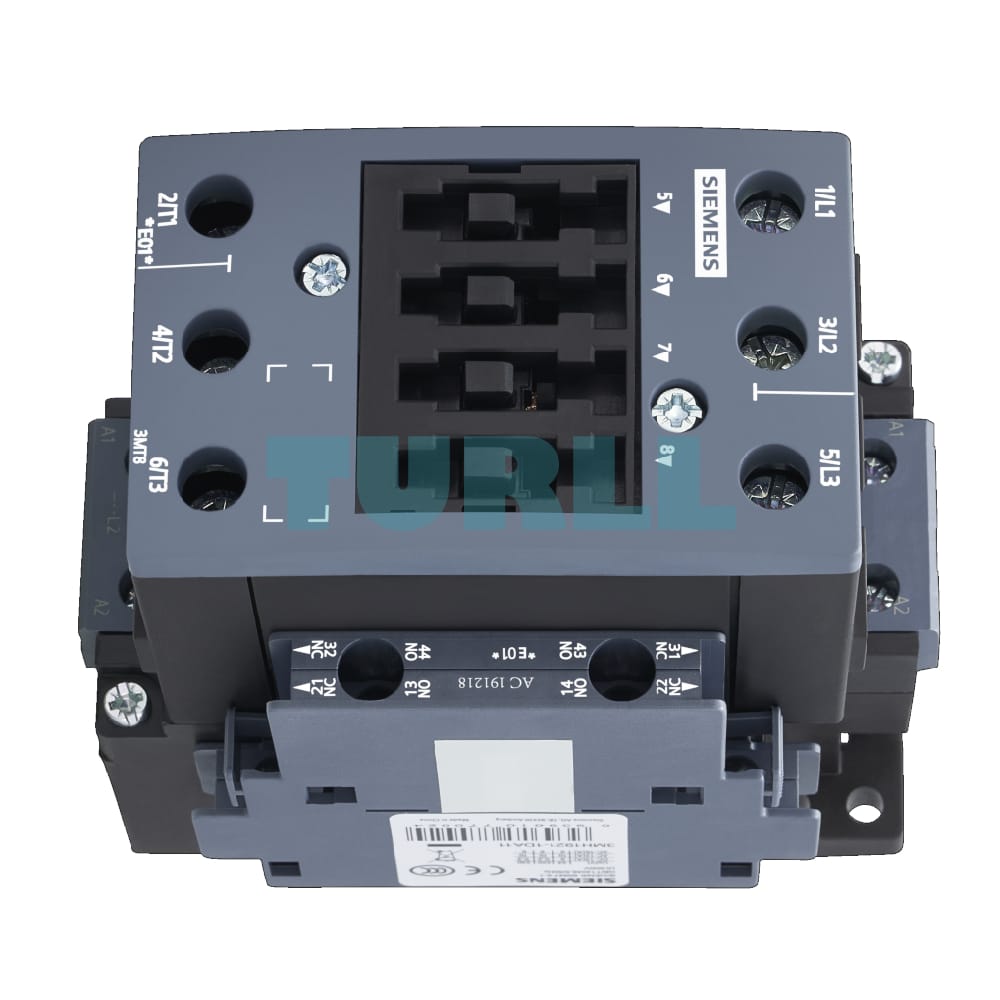

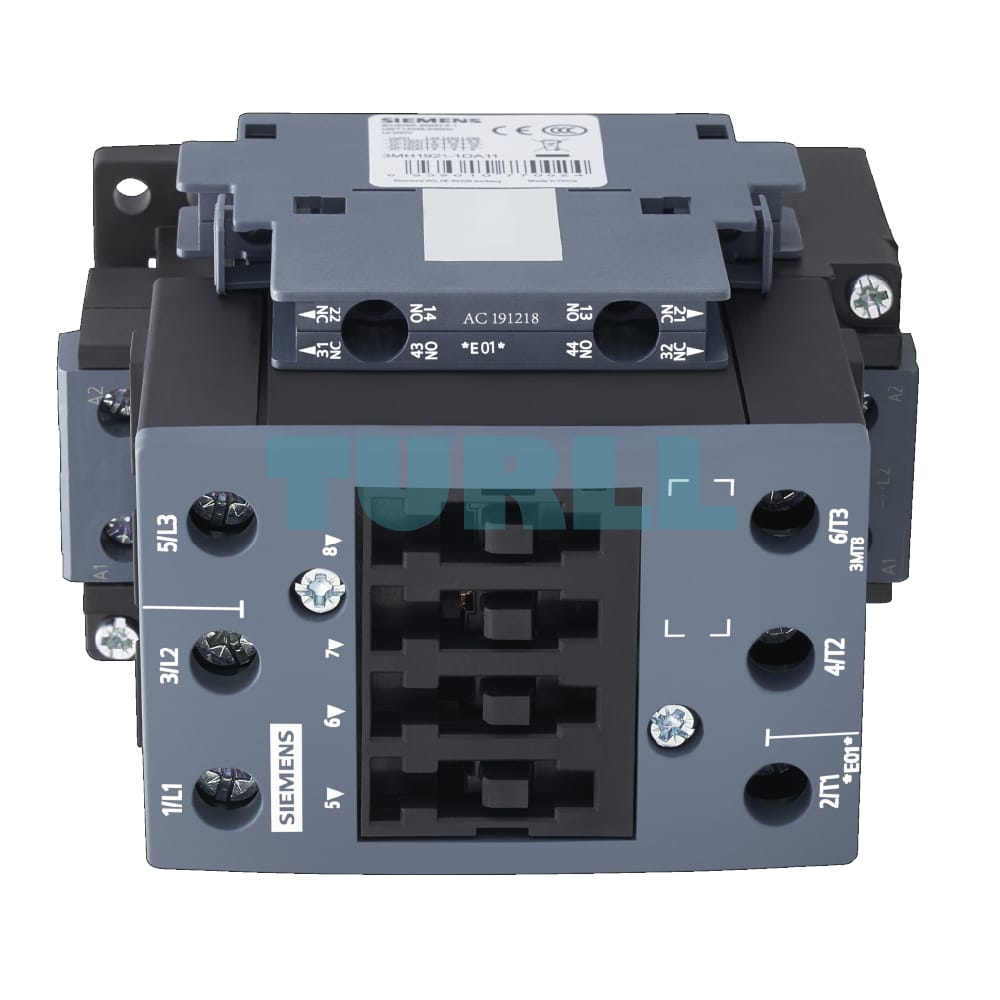

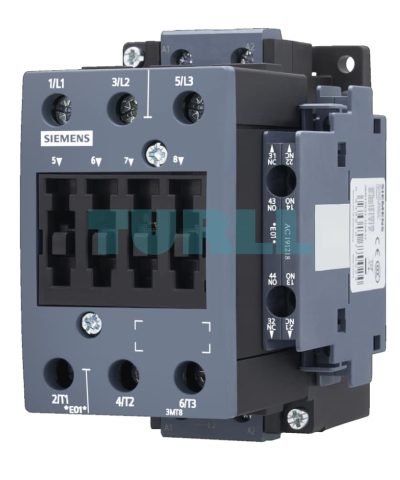

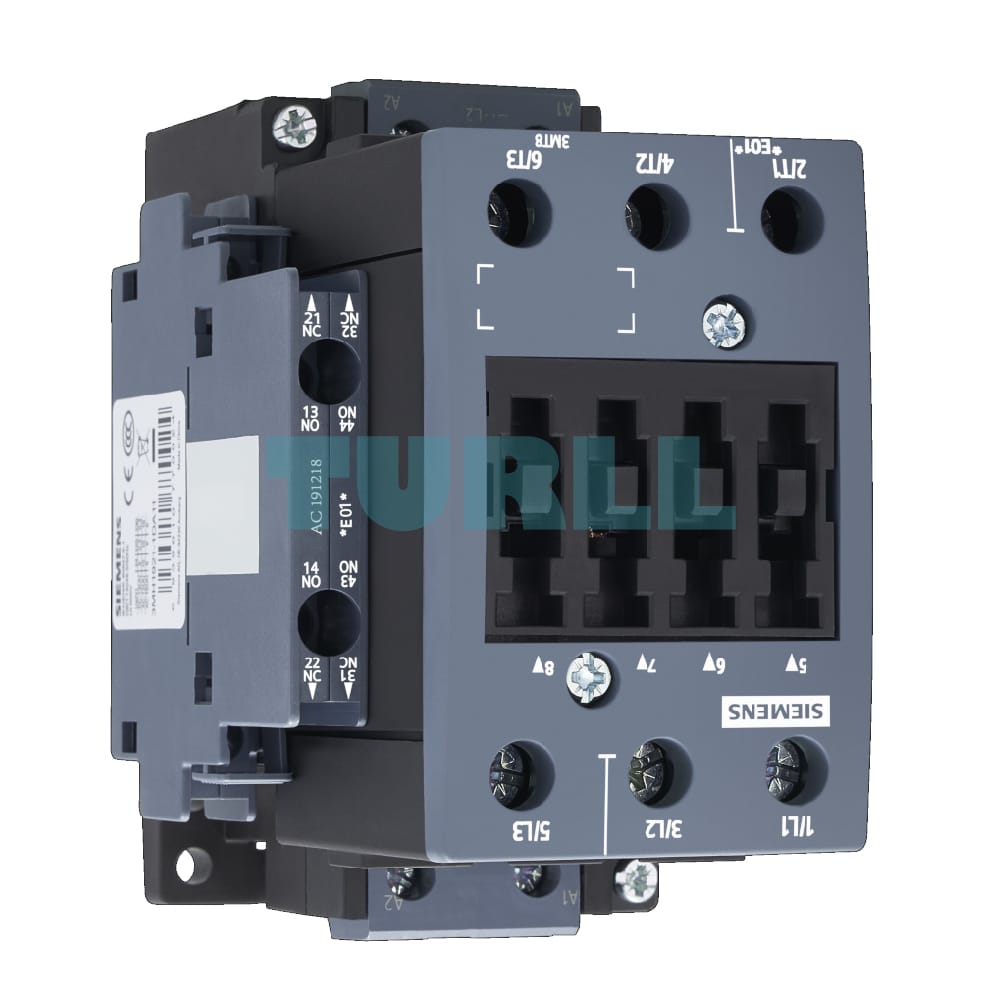

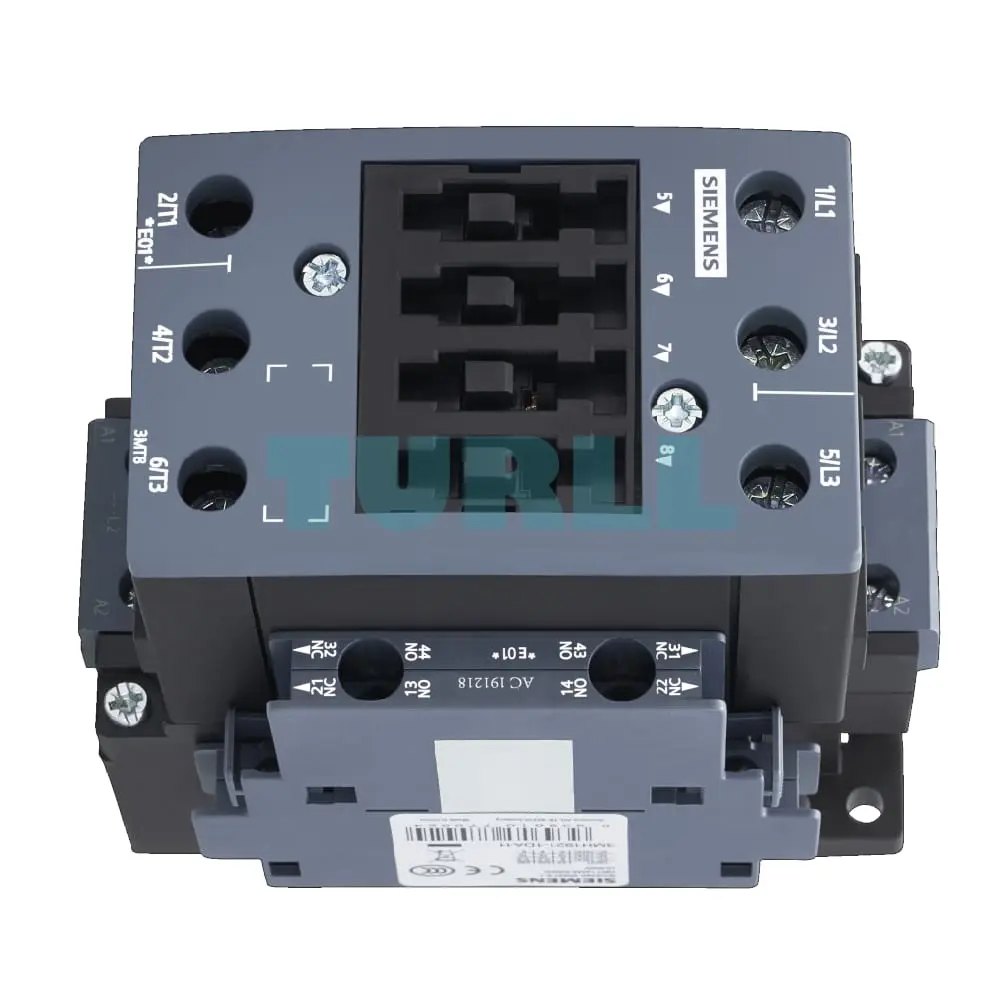

The Siemens 3MT8050-1AB03 is a robust and reliable AC-3 contactor, specifically engineered for demanding industrial application, particularly for controlling AC motor. This high-performance device is rated for 50 Ampere (AC-3) and capable of handling up to 22 kilowatt at 400 Volt, making it suitable for a wide range of machinery and equipment. Its compact Size S2 form factor ensures efficient use of panel space.
Designed with a 3-pole configuration, it provides secure and efficient switching for three-phase system. The integrated 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts offer versatile control and feedback option. Operated by a 24 VAC, 50 Hz control coil, the 3MT8050-1AB03 ensures reliable operation in standard industrial power systems. Installation is straightforward with secure screw terminal.
Benefit
- Reliable Motor Control: Specifically designed for AC-3 utilization, providing robust and safe switching for squirrel-cage motors and other resistive load.
- High Power Handling: With a 50A/22kW rating at 400V, it efficiently manages significant power demands in industrial setting.
- Space-Saving Design: The compact Size S2 ensures optimized use of valuable control panel space.
- Versatile Auxiliary Contact: Features 1NO and 1NC auxiliary contact for flexible integration into control circuit, allowing for status indication, interlocking, and more.
- Standardized Control Voltage: The 24 VAC, 50 Hz coil seamlessly integrate with common industrial control system.
- Secure Connection: Reliable screw terminals ensure strong and durable electrical connections, minimizing downtime.
- Siemens Quality: Benefit from Siemens' renowned engineering and manufacturing quality, ensuring long-term performance and durability.
Function
- Switching of AC Motors: Primarily functions as a switching device for starting, stopping, and reversing AC motor in various industrial machinery.
- Load Control: Can be used to switch other resistive or inductive load within its specified voltage and current rating.
- Remote Control: Enables remote activation and deactivation of connected equipment via its 24 VAC control coil.
- Interlocking and Signaling: The integrated NO/NC auxiliary contact provide essential feedback for control system, allowing for interlock, status indication, and safety circuit.
- Overload Protection Integration: Designed to work seamlessly with thermal overload relay (not included) for comprehensive motor protection.
Application
The Siemens 3MT8050-1AB03 contactor is ideally suited for a wide array of industrial application, including but not limited to:
- Motor control for pump, fan, compressor, and conveyor
- HVAC system
- Material handling equipment
- Machine tool
- Packaging machinery
- Industrial automation and control panel
- Lighting control in large facilities
- Heaters and resistive load
