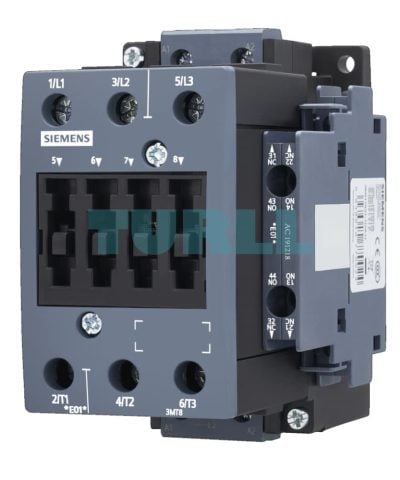

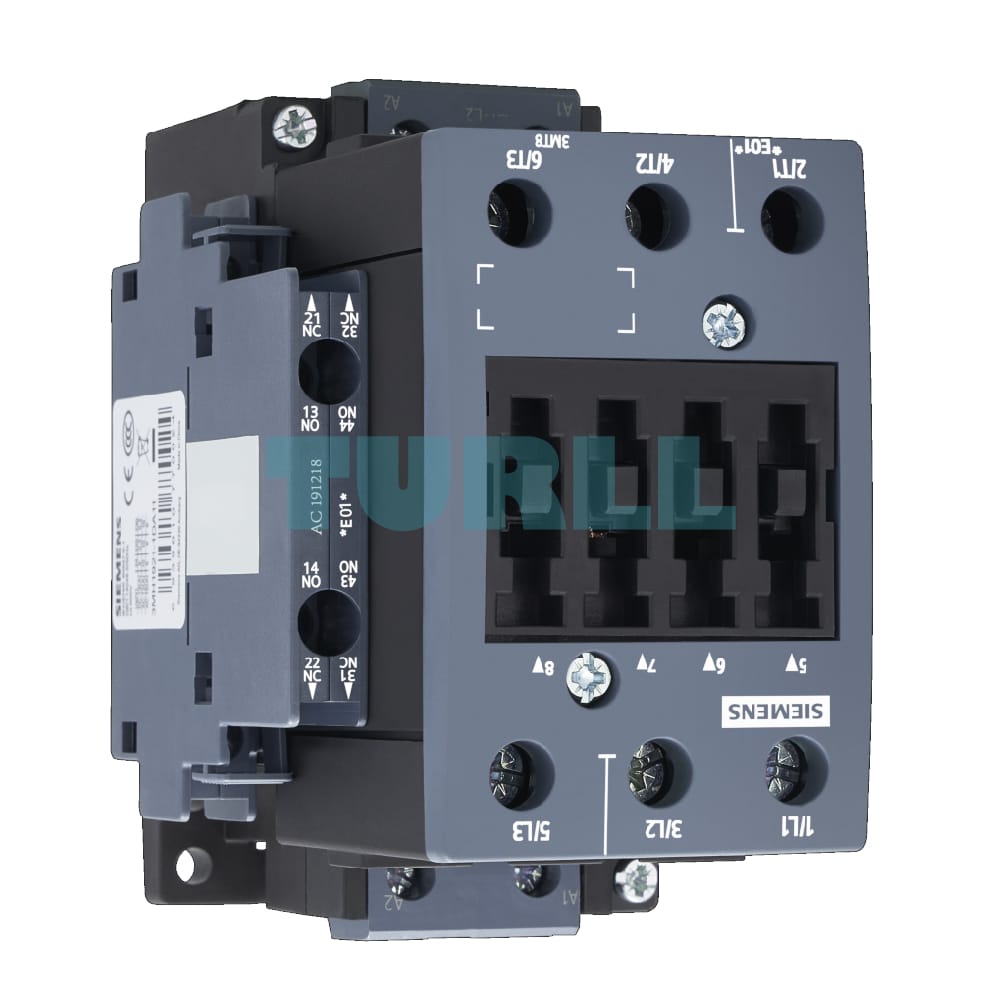

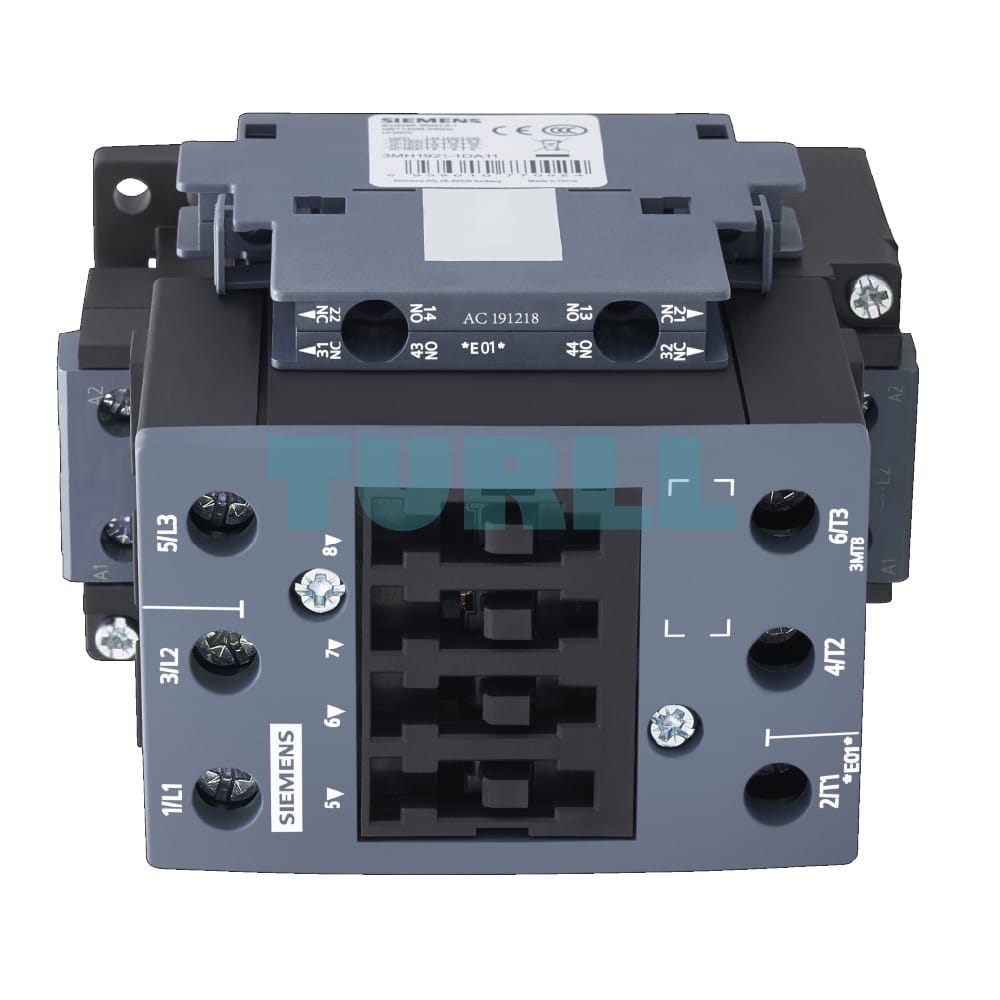

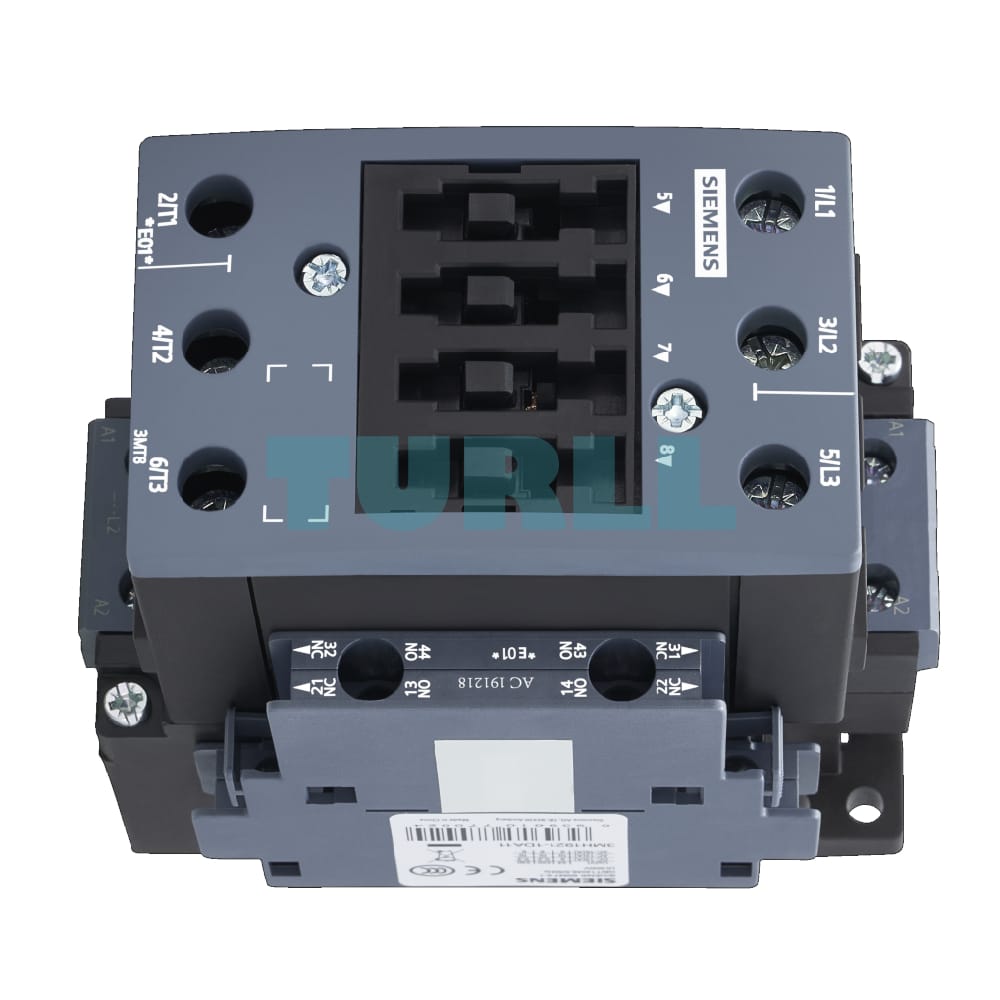

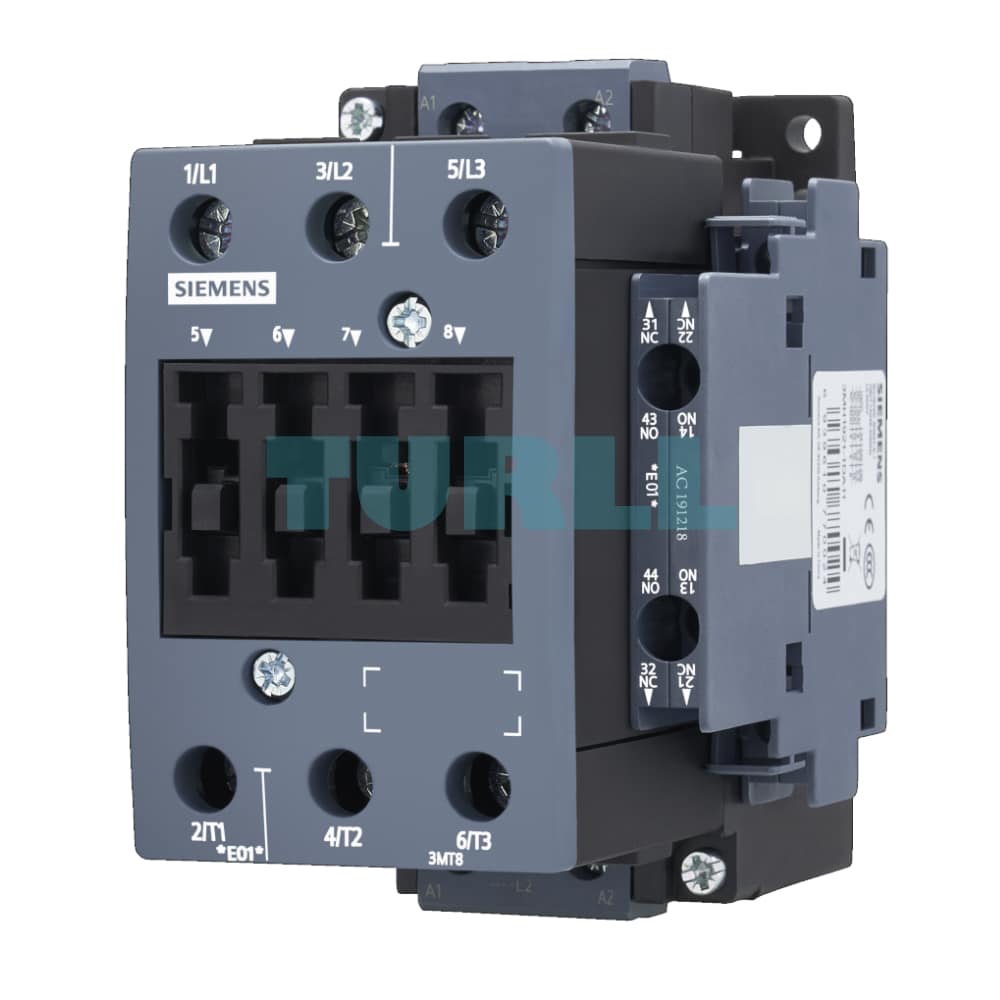

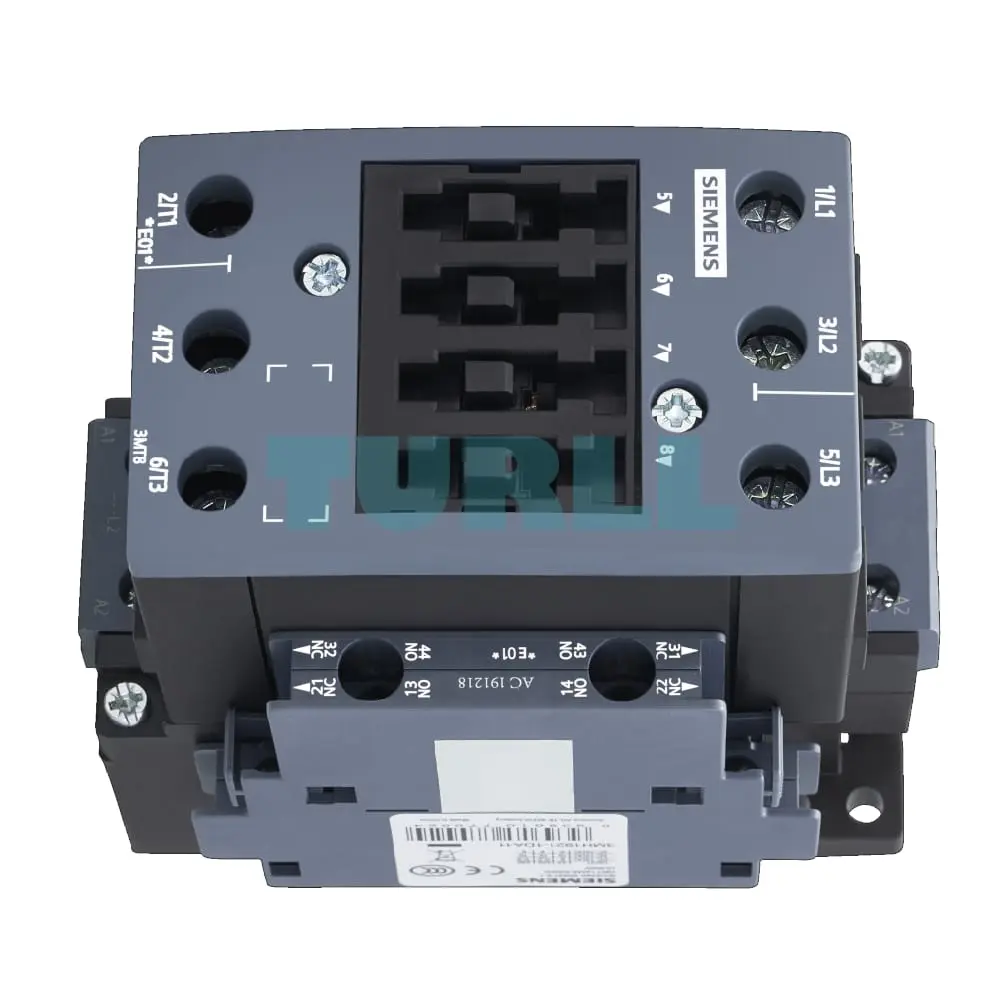

Siemens 3MT8050-1AN24 Contactor AC-3, 50A/22kW, 400V, 2NO2NC, 220 VAC, 50/60 Hz, 3-pole, size S2 Original Brand New

Overview

The Siemens 3MT8050-1AN24 is a robust and reliable 3-pole AC-3 contactor, meticulously engineered for demanding industrial applications. Designed for motor control up to 22 kW at 400V, this S2 size contactor features a highly efficient 220V AC 50/60 Hz coil for precise and dependable operation. Its versatile 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts provide enhanced control and signaling capabilities, making it an ideal choice for a wide range of switching tasks in automation and power distribution systems. With its convenient screw terminals, installation and wiring are straightforward, ensuring a secure and lasting connection.

Function

The Siemens 3MT8050-1AN24 contactor serves as an electromagnetic switch for controlling electrical power circuits, particularly those connected to electric motors. When the 220V AC coil is energized, it creates a magnetic field that pulls the main contacts together, allowing the flow of high current to the connected load. Conversely, when the coil is de-energized, the contacts open, interrupting the circuit. The integrated 2NO+2NC auxiliary contacts offer additional functionality, enabling interlocking, signaling, and control circuit integration. This contactor is specifically rated for AC-3 utilization category, making it perfectly suited for switching squirrel-cage motors during operation, where breaking occurs while the motor is running.

Key Feature

• High Power Rating: Capable of handling 50A current and 22kW power at 400V, suitable for medium to high-power motor applications.
• AC-3 Utilization Category: Optimized for reliable switching of squirrel-cage motors, ensuring long operational life.
• 3-Pole Design: Ideal for controlling three-phase motor circuits.
• Versatile Auxiliary Contacts: Features 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for enhanced control and feedback.
• Efficient Coil Voltage: Operates with a standard 220 VAC, 50/60 Hz coil, compatible with common industrial control voltages.
• Compact Size S2: Optimized for space-saving installation in control panels.
• Screw Terminals: Provides secure and easy wiring connections, simplifying installation and maintenance.
• Robust Siemens Quality: Manufactured to Siemens’ high standards, ensuring durability, reliability, and long-term performance in industrial environment.

Application

The Siemens 3MT8050-1AN24 contactor is widely used in:

• Motor control circuit
• HVAC system
• Pumping station
• Conveyor system
• Industrial machinery
• Building automation
• Power distribution panel
