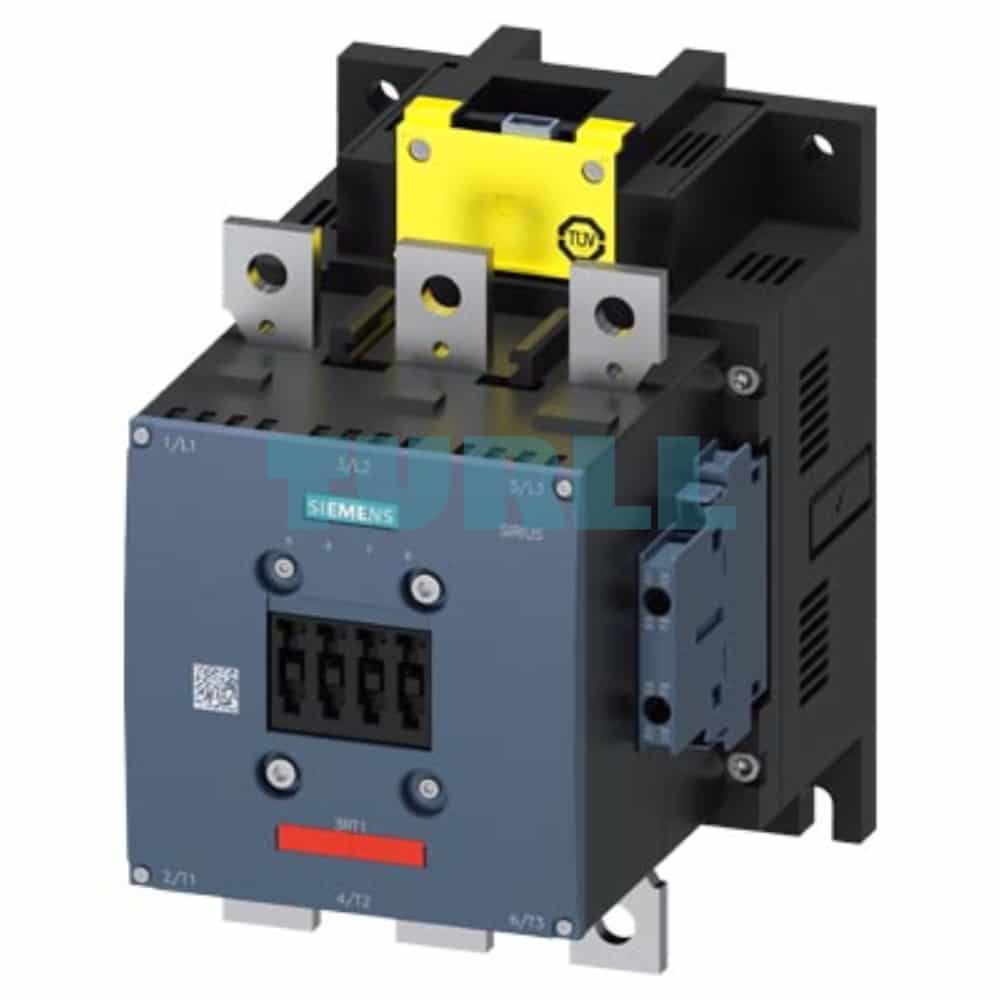

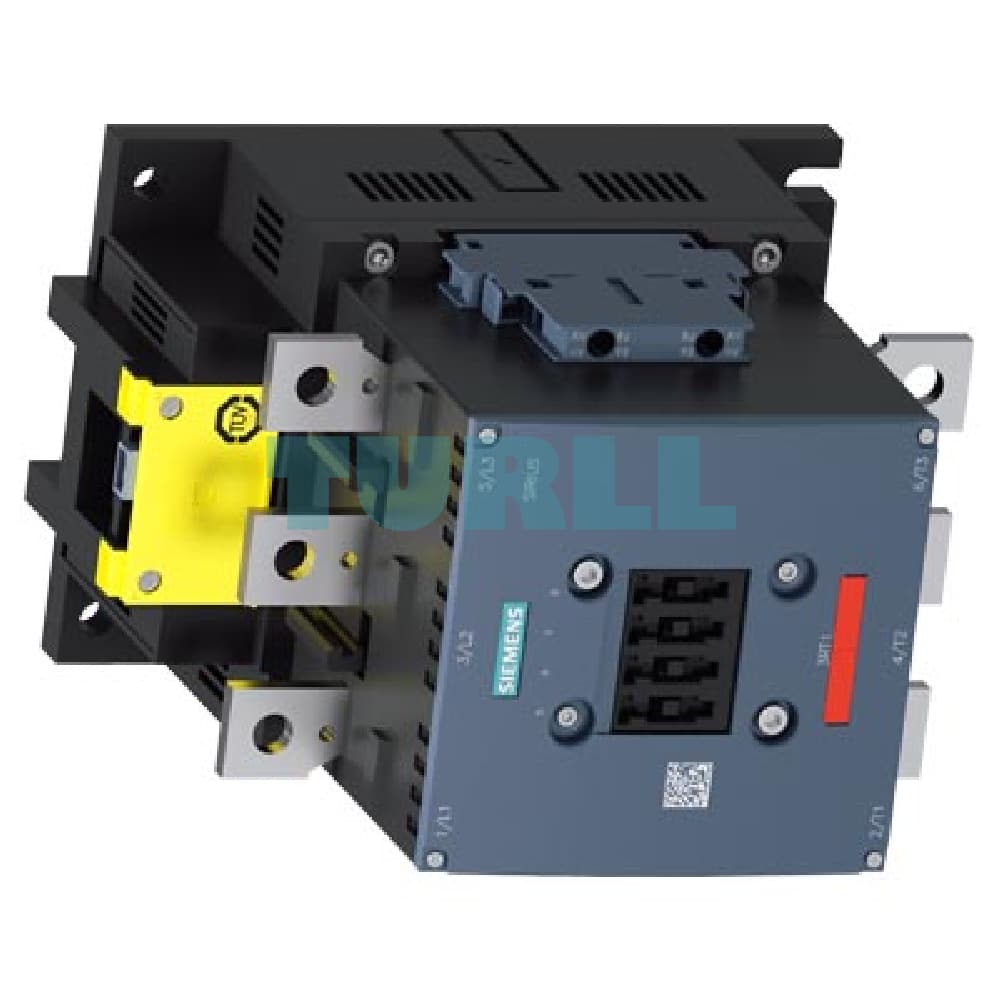

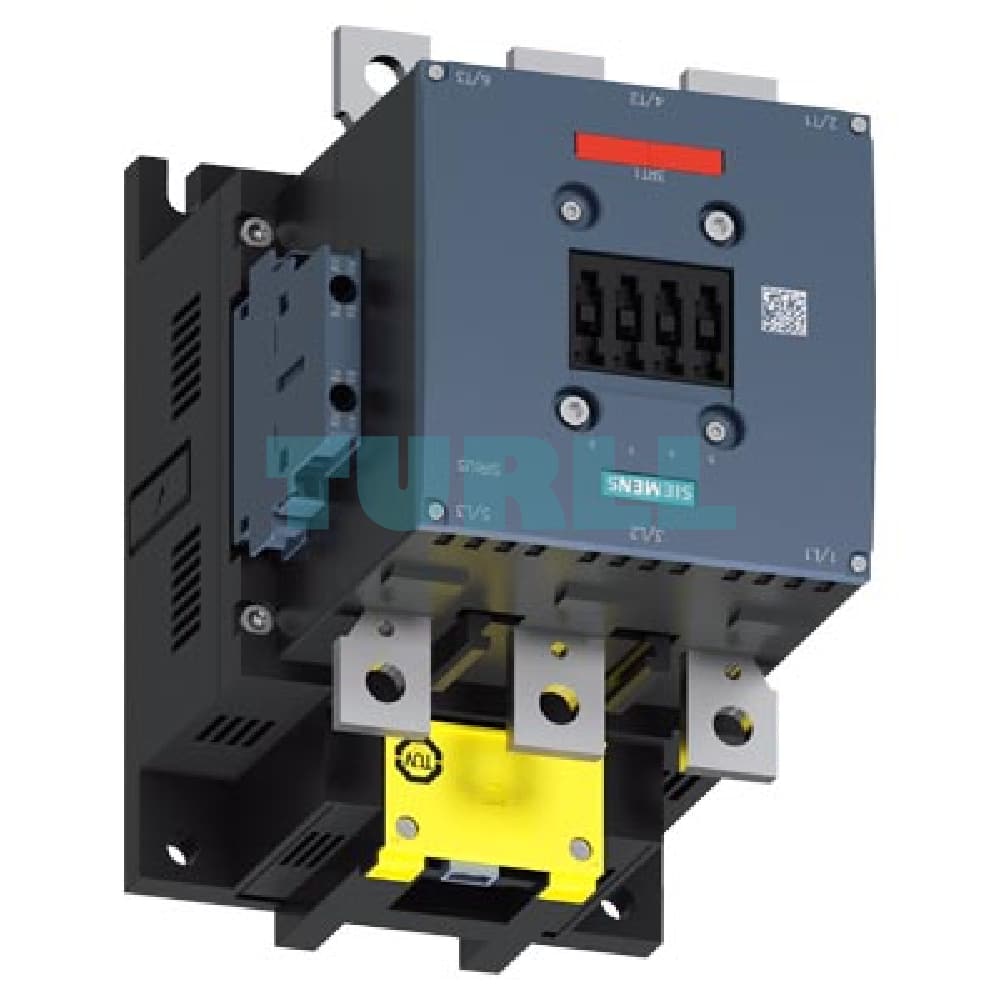

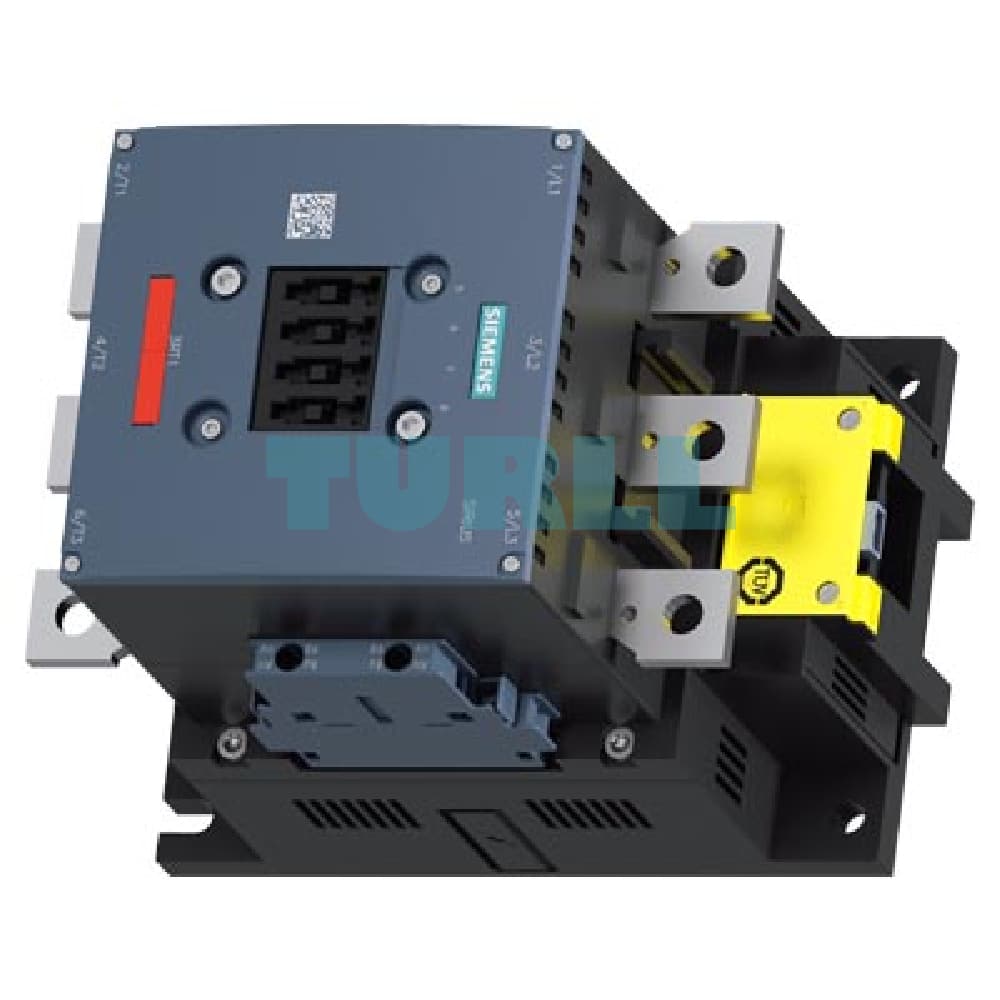

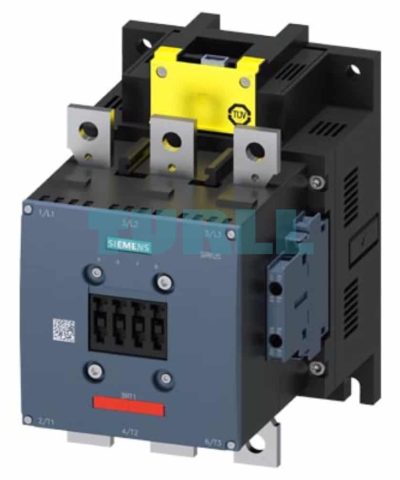

Siemens 3RT1064-6SP36-3PA0 SIRIUS Power Contactor, 225A, 110kW, F-PLC Input, 3-Pole, Size S10 Original Brand New

Overview

The Siemens 3RT1064-6SP36-3PA0 Power Contactor from the renowned SIRIUS 3RT family is a high-performance switching device engineered for demanding industrial motor applications. This robust 3-pole contactor is rated for $225\text{ A}$ (AC-3e/AC-3) and a power output of $110\text{ kW}$ at $400\text{ V}$.

A standout feature is the integrated F-PLC input designed for safety-oriented applications, operating at $24\text{ V DC}$. The electronic drive offers a wide voltage range of $200\text{ V}$ to $277\text{ V}$ (AC $50/60\text{ Hz}$ / DC) for versatile control power compatibility. This Size S10 contactor is built for permanent installation, featuring a busbar connection for the main circuit and reliable screw terminals for the control and auxiliary circuits, ensuring easy integration into your electrical systems.

Key Features / Specification

• Product: Power Contactor
• Series: Siemens SIRIUS 3RT10 (Size S10)
• Part Number (MLFB): 3RT1064-6SP36-3PA0
• Rated Operational Current (AC-3e/AC-3): $225\text{ A}$ at $400\text{ V}$
• Rated Operational Power (AC-3e/AC-3): $110\text{ kW}$ at $400\text{ V}$
• Poles: 3-pole
• Control Supply Voltage (Coil): $200\text{ V}-277\text{ V}$ AC $(50-60\text{ Hz})$ / DC (Wide Voltage Range)
• Special Input: F-PLC input $24\text{ V DC}$ (Fail-Safe functionality)
• Auxiliary Contacts: $2\text{ NO}+2\text{ NC}$ (Permanently mounted)
• Drive: Electronic Drive
• Main Circuit Connection: Busbar
• Control/Auxiliary Circuit Connection: Screw Terminal

Benefit and Application

• High Performance and Reliability: Rated for $225\text{ A}$ and $110\text{ kW}$, ideal for heavy-duty motor switching and high-power industrial loads.
• Integrated Safety: The F-PLC $24\text{ V DC}$ input simplifies wiring and integration into safety-related control systems, meeting modern industrial safety standards.
• Global Versatility: The wide-range $200-277\text{ V}$ AC/DC electronic drive coil simplifies stocking and installation across different supply voltages.
• Seamless Integration: Part of the modular SIRIUS system, allowing for easy combination with other SIRIUS components like overload relays.
• Durable Design: Robust construction with busbar connection for main power circuit and reliable screw terminals for control, ensuring a secure and long-lasting electrical connection.

Function

The 3RT1064-6SP36-3PA0 functions as an electromechanical switch in power circuits. It is primarily used for switching electric motors, resistance loads, and other inductive loads. When the control coil is energized (via the $200-277\text{ V}$ AC/DC electronic drive, often triggered by the $24\text{ V DC}$ F-PLC input), the main contacts close, connecting the load (e.g., a motor) to the main power supply. The permanently mounted $2\text{ NO}+2\text{ NC}$ auxiliary contacts provide feedback or interlock signals to the control system.
