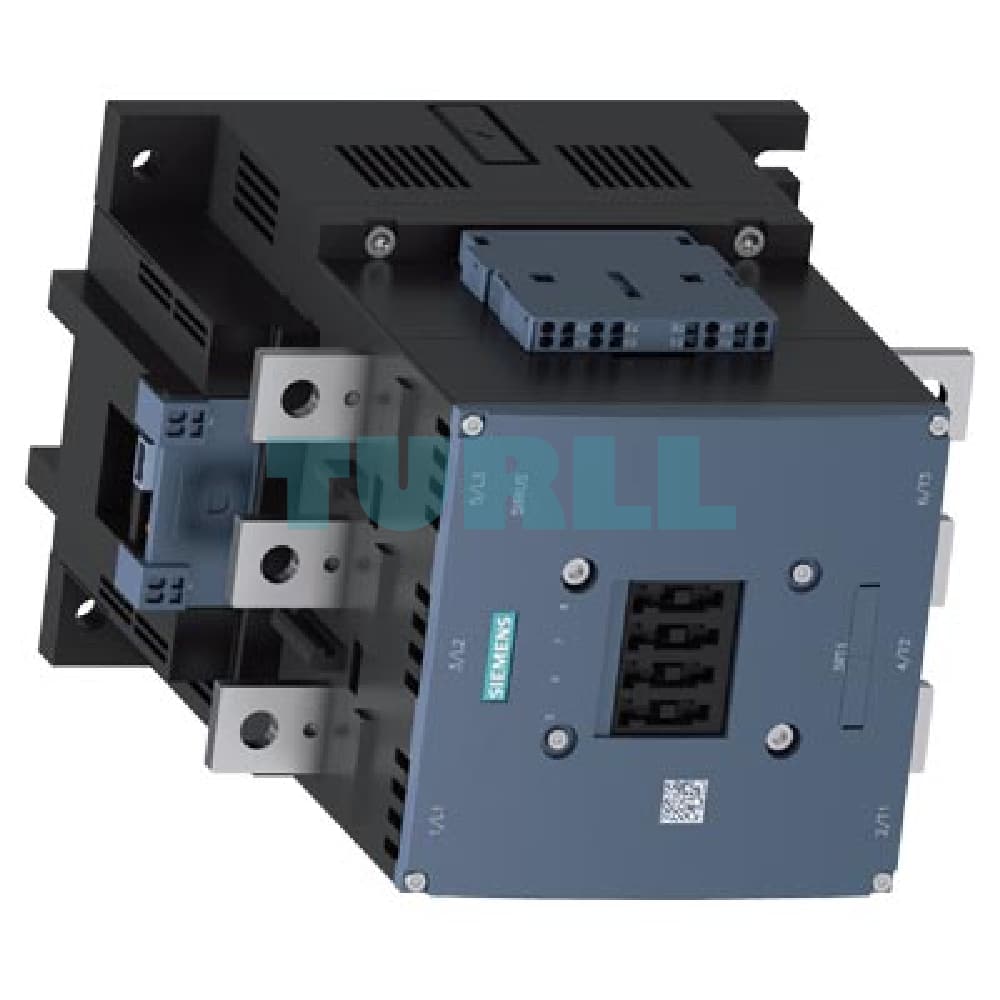

Siemens 3RT1075-2NF36 SIRIUS Power Contactor AC-3e/AC-3, 400A, 200kW, 96-127V AC/DC Control, Spring-Loaded Terminal Original Brand New

Overview

The Siemens 3RT1075-2NF36 is a high-performance power contactor from the SIRIUS series, engineered for reliable switching of electric motors and other loads. This robust 3-pole contactor is rated for AC-3e/AC-3 applications, handling up to 400 A and 200 kW at 400 V. Its versatility is enhanced by a wide operating range for the control circuit, accepting both AC and DC voltages from 96-127 V. The contactor also features a 24 V DC PLC input, making it ideal for integration into automated systems.

Key Features & Benefit

• High-Capacity Performance: Handles heavy-duty applications with a 400 A current rating, suitable for motors up to 200 kW.
• Flexible Control: The electronic drive supports a wide control voltage range (96-127 V AC/DC) and includes a dedicated 24 V DC PLC input for seamless automation.
• Integrated Auxiliary Contacts: Comes with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing essential feedback and control signals for safety and monitoring circuits.
• Easy & Secure Connections: The main circuit connects via busbar, ensuring robust, high-current connections, while the control and auxiliary circuits use spring-loaded terminals for quick, vibration-proof, and maintenance-free wiring.
• Durable & Reliable: Part of the trusted SIRIUS family, known for its long service life and dependable operation in demanding industrial environments.

Technical Specification

• Product Number: 3RT1075-2NF36
• Type: Power Contactor
• Series: Siemens SIRIUS 3RT
• Poles: 3
• Operational Current (AC-3e/AC-3): 400 A
• Rated Power: 200 kW @ 400 V
• Control Voltage (Uc): 96-127 V AC/DC
• PLC Input: 24 V DC
• Auxiliary Contacts: 2 NO + 2 NC
• Drive Type: Electronic
• Main Circuit Connection: Busbar
• Control/Auxiliary Circuit Connection: Spring-loaded terminal
