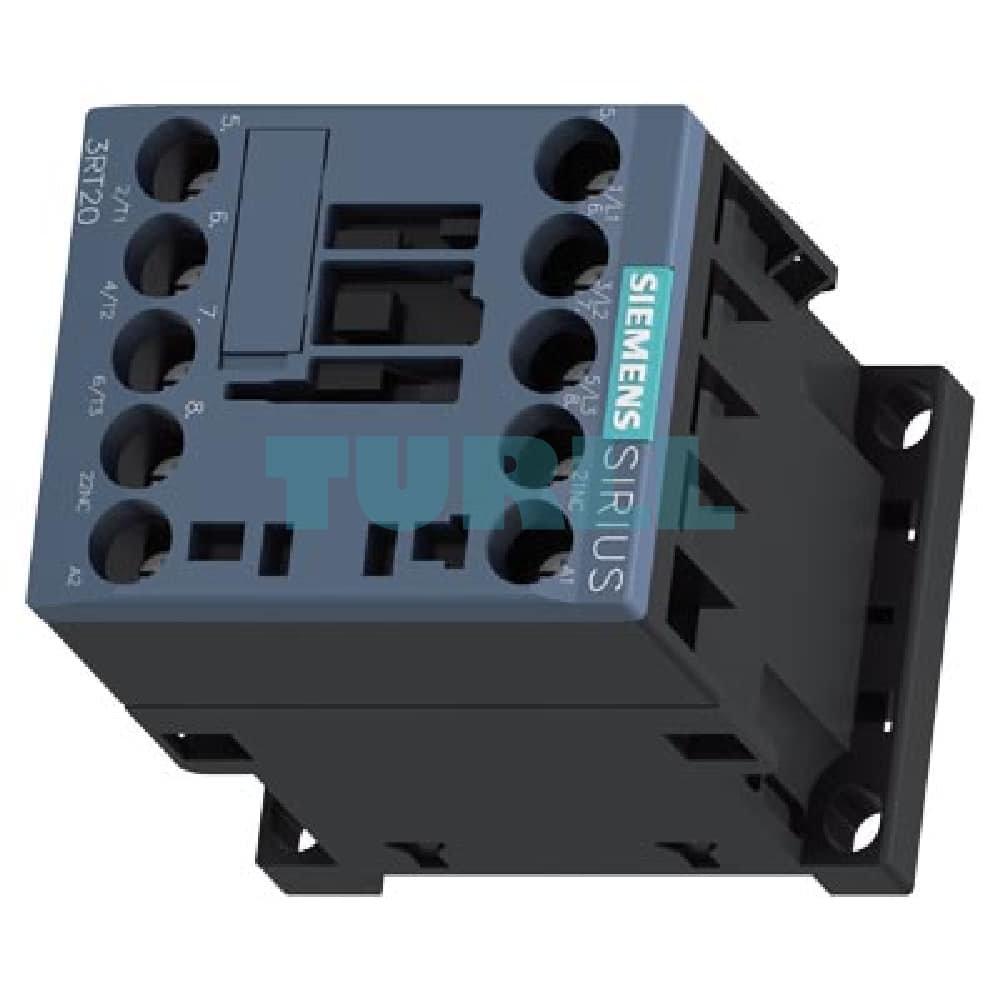

Siemens 3RT2015-1AQ02 Power Contactor 7A, 3kW, 380V AC, Size S00 with 1NC Auxiliary Contact Original Brand New
$16.77
Siemens 3RT2015-1AQ02 power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 380 V AC, 50/60 Hz, auxiliary contacts: 1 NC, screw terminal, size: S00
Overview
The Siemens 3RT2015-1AQ02 is a high-performance power contactor from the SIRIUS 3RT2 series, engineered for reliable switching of motors and other electrical loads. This compact and robust device is ideal for use in industrial control panels, automation systems, and various applications requiring a dependable AC-3e/AC-3 rated contactor.
Featuring a 3-pole design and a 380 V AC control voltage, the 3RT2015-1AQ02 ensures efficient and safe operation. Its screw terminals provide a secure and easy-to-install connection, while the inclusion of a 1 NC (normally closed) auxiliary contact offers added functionality for control and signaling circuits.
Key Benefit
- Reliable Performance: Designed for demanding industrial environments, ensuring long-term operational stability.
- Space-Saving Design: The compact Size S00 form factor allows for efficient use of space in control cabinets.
- Versatile Application: Suitable for a wide range of applications, including motor switching, heating, and lighting circuits.
- Easy Installation: Screw terminals simplify wiring, reducing installation time and effort.
- Enhanced Safety: Compliant with IEC and UL standards, providing a safe and reliable solution for your electrical systems.
- Integrated Auxiliary Contact: The 1 NC auxiliary contact provides an additional output for control systems and status indication.
Technical Specification
- Product Number: 3RT2015-1AQ02
- Product Type: Power Contactor
- Rated Operational Current (AC-3e/AC-3): 7 A
- Rated Operational Power (AC-3e/AC-3): 3 kW at 400 V
- Number of Poles: 3
- Control Supply Voltage (Us): 380 V AC, 50/60 Hz
- Auxiliary Contacts: 1 NC (Normally Closed)
- Terminal Type: Screw Terminal
- Size: S00
- Mounting: DIN Rail or Screw Mounting
- Operating Temperature: -25 to +60 °C
Application
The Siemens 3RT2015-1AQ02 is primarily used for the following applications:
- Switching of three-phase motors.
- Control of resistive loads (e.g., heating elements).
- Integration into control circuits and automation panels.
- Use in various industrial machinery and equipment.
For more products, visit our website at Turll.
| Weight | 0.235 kg |
|---|---|
| Dimensions | 61.5 × 50 × 77.5 mm |
