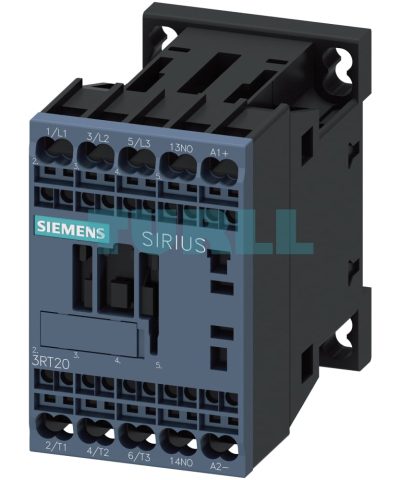

Siemens 3RT2016-2BB41-1AA0 SIRIUS Power Contactor, 9A, 24V DC, S00 Original Brand New

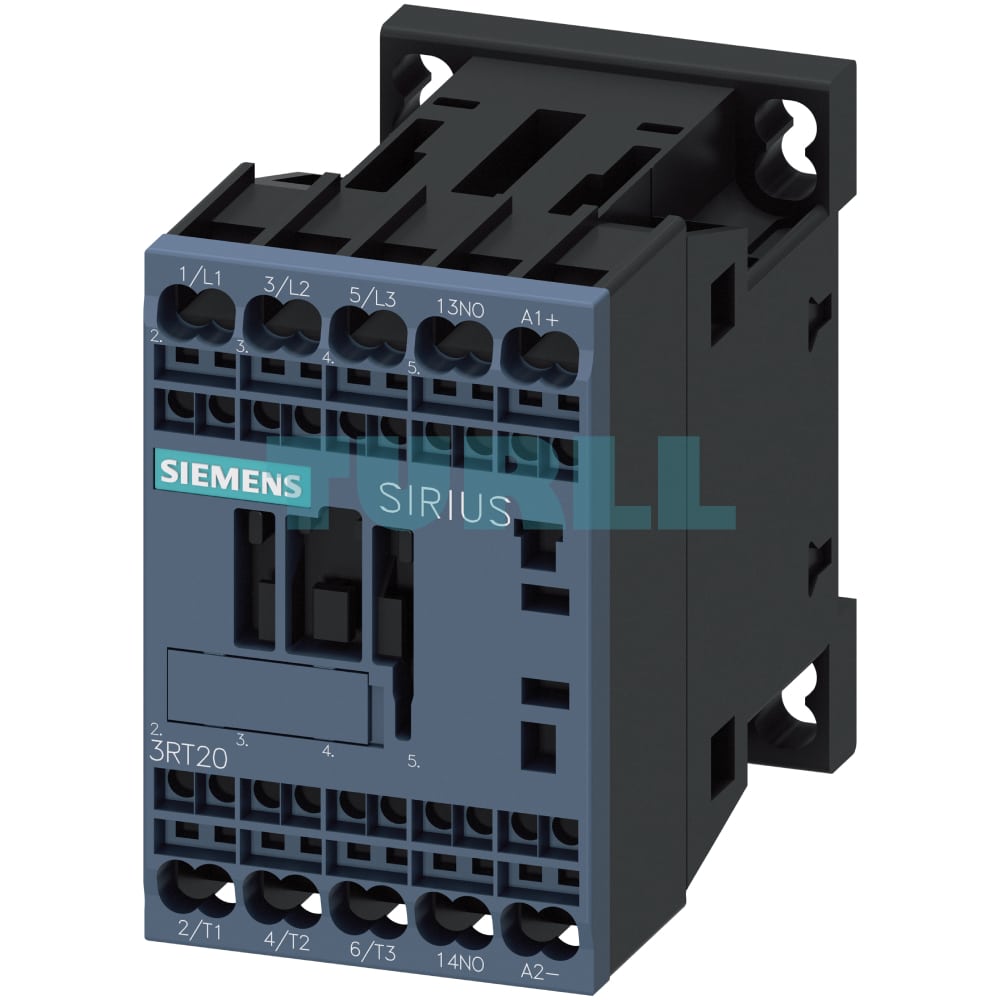

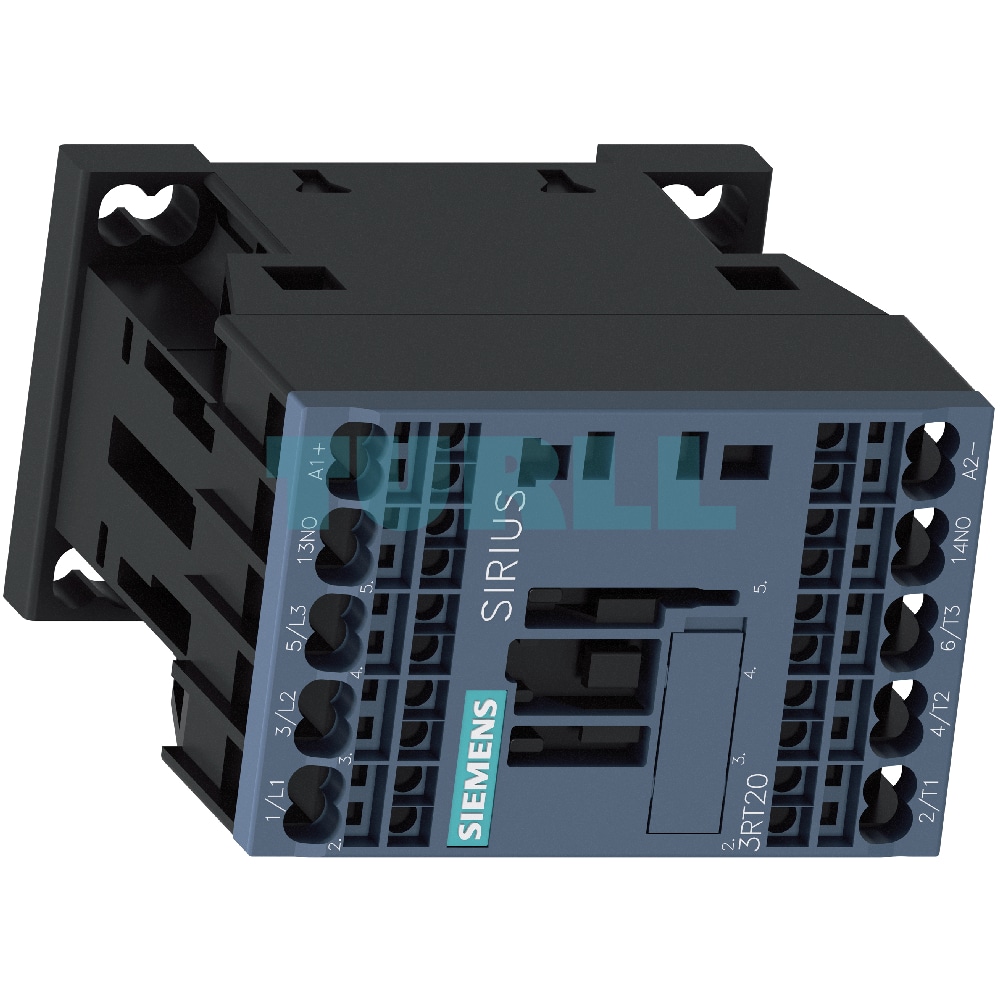

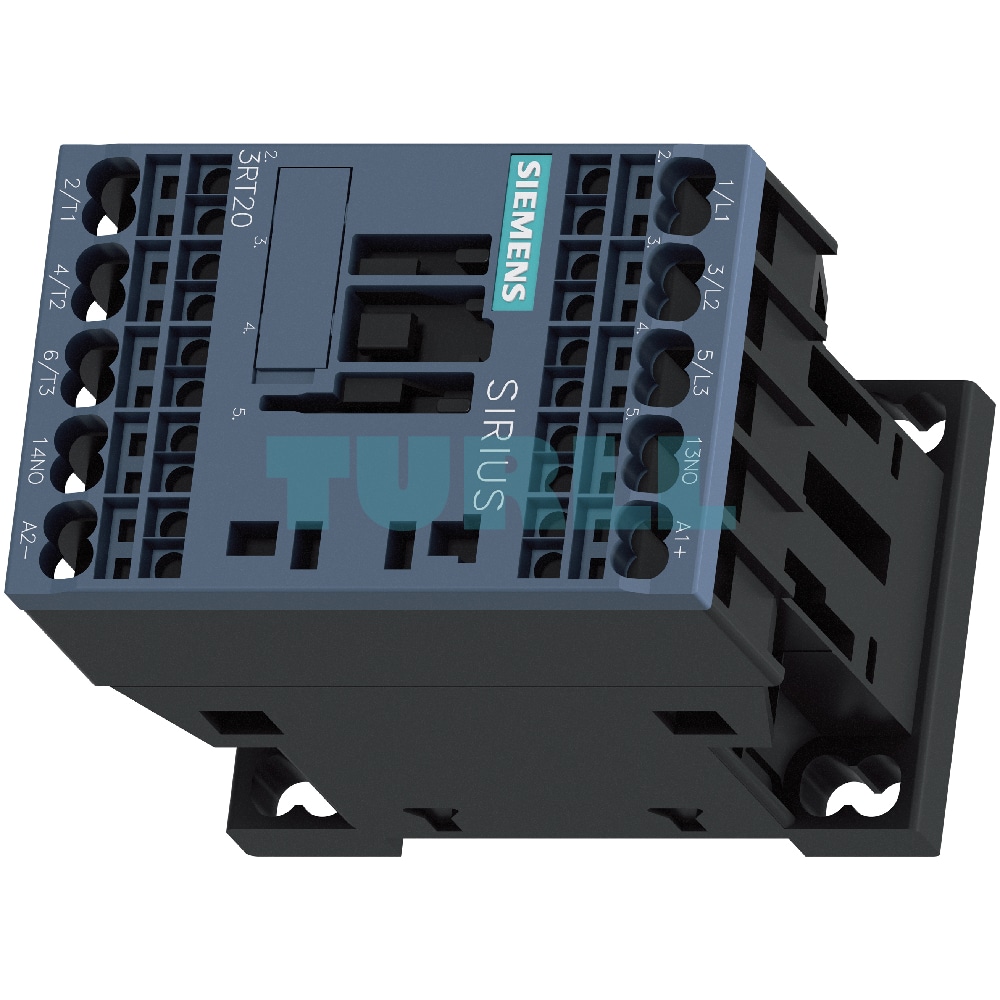

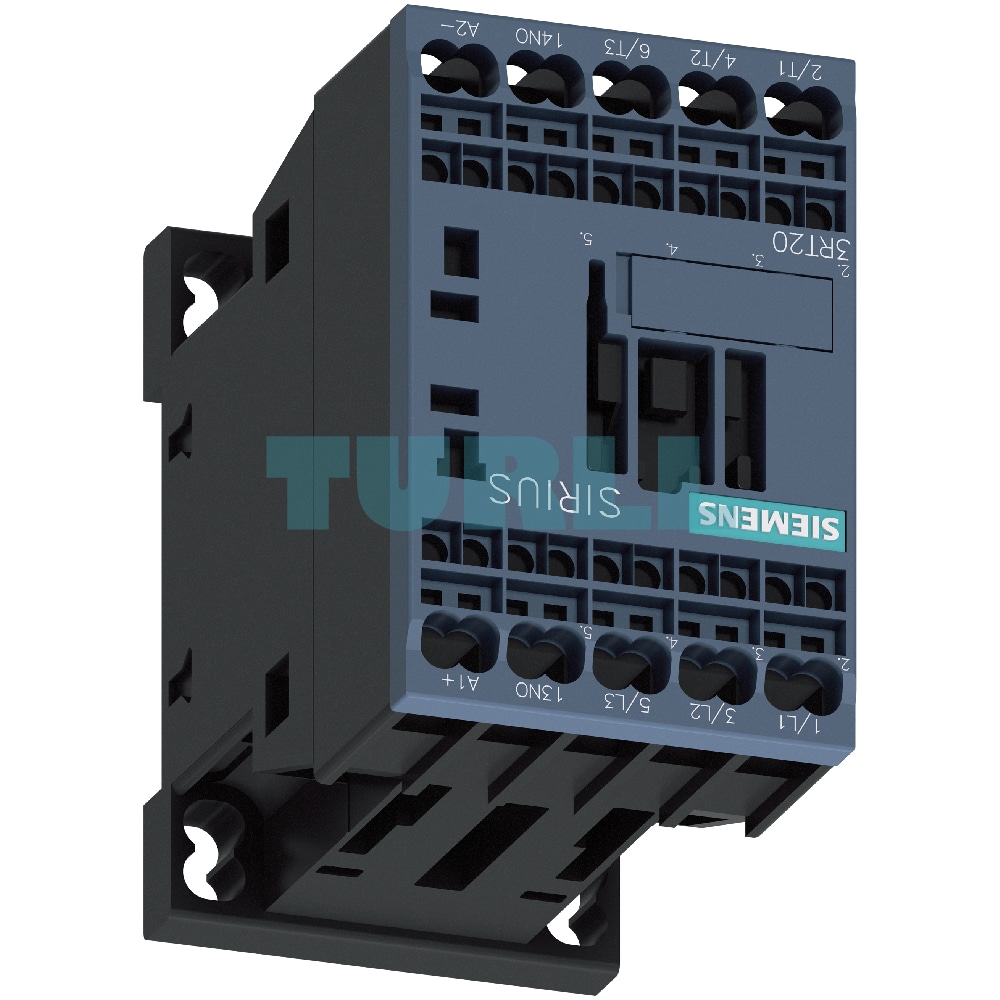

Overview: Siemens SIRIUS 3RT2016-2BB41-1AA0 Power Contactor

The Siemens 3RT2016-2BB41-1AA0 is a high-performance 3-pole power contactor from the trusted SIRIUS 3RT2 family, specifically engineered for switching motors. This compact, size S00 contactor is designed for demanding industrial applications, offering exceptional reliability and a long mechanical service life of up to 30 million operating cycles. It is rated for 9 A (AC-3e/AC-3) for motor switching, with a corresponding power rating of 4 kW at 400 V.

A key feature of this model is its efficient 24 V DC coil, which provides reliable control with lower power consumption. It includes one integrated Normally Open (1 NO) auxiliary contact and utilizes convenient, time-saving spring-loaded terminals for secure and vibration-proof wiring.

Key Benefit

• High Efficiency (AC-3e/AC-3): Meets the new IEC standard for use with modern, energy-efficient IE3/IE4 motors.
• Space-Saving Design: Its compact Size S00 form factor and suitability for side-by-side mounting maximize space efficiency in control cabinets.
• Fast, Reliable Wiring: Features secure and maintenance-free spring-loaded terminals for quick installation and high connection reliability.
• Long Service Life: Offers an extremely long mechanical service life (up to 30 million operating cycles typical), ensuring maximum operational availability.
• Global Standard Compliance: Part of the SIRIUS system, ensuring compliance with international standards and worldwide applicability.
• Low Power Loss: Engineered for low power dissipation, which reduces heat generation in the control cabinet.

Function & Application

The 3RT2016-2BB41-1AA0 is a robust power contactor used for remotely switching electrical loads.

• Function: It is primarily used for switching 3-phase AC motors (up to 4 kW / 9 A) and other resistive loads. The integrated 1 NO auxiliary contact is perfect for control circuit feedback (e.g., indicating the motor is running) or interlocking logic.
• Applications: Ideal for use in motor starters (Direct-on-Line, Reversing), heating systems, lighting control, and automation panels in machinery, conveyors, HVAC, and industrial processes requiring reliable motor switching and control.
