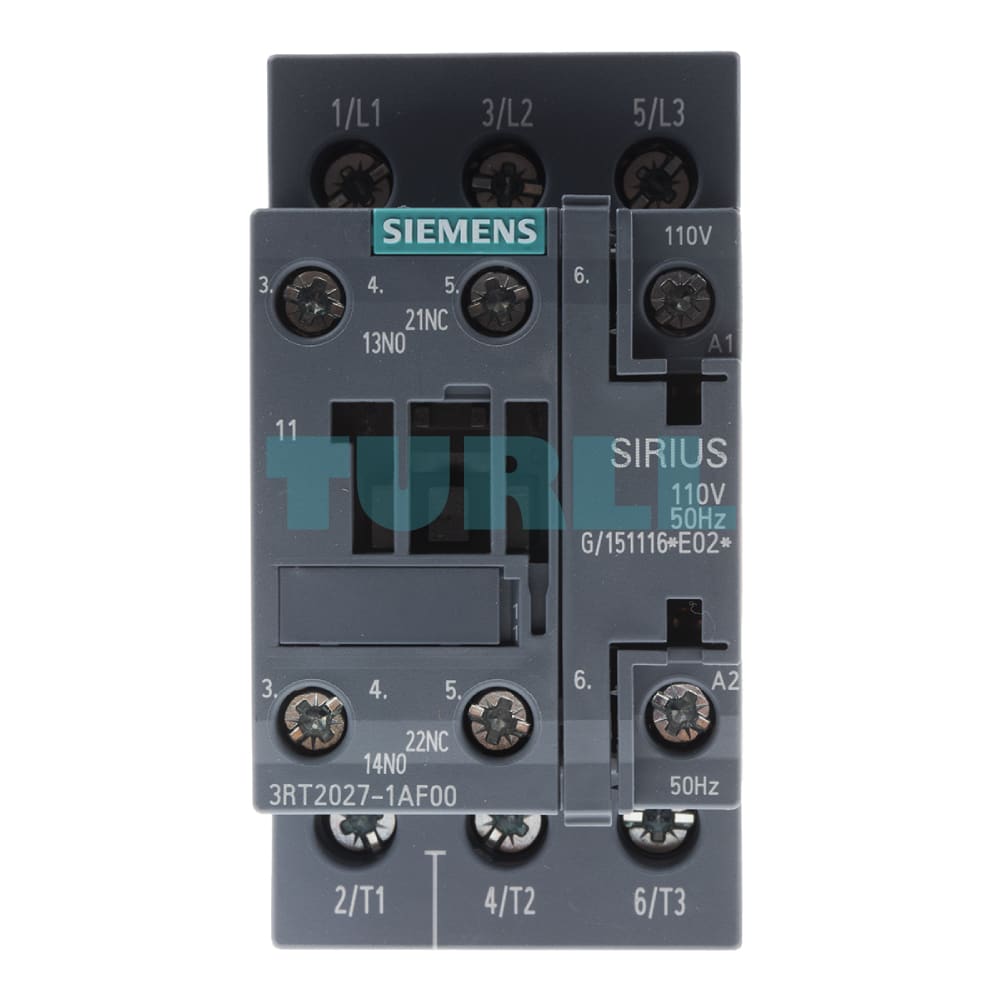

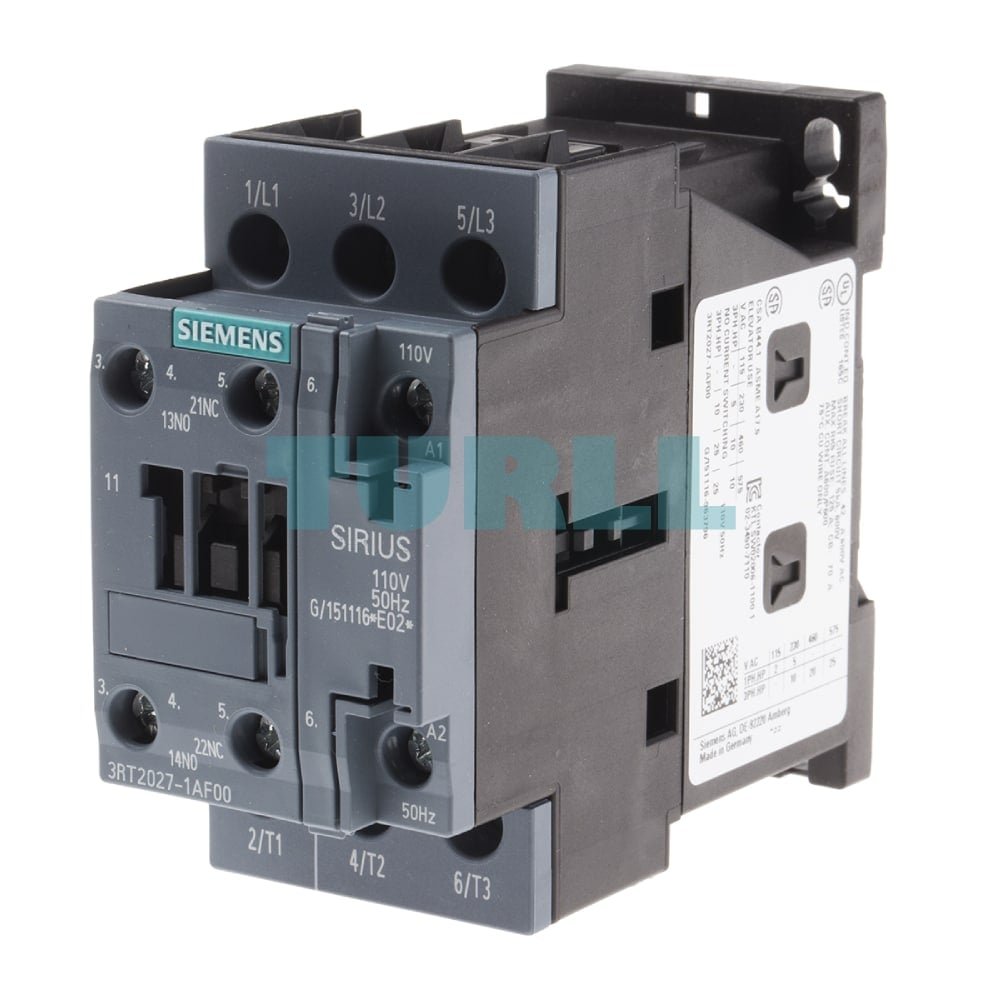

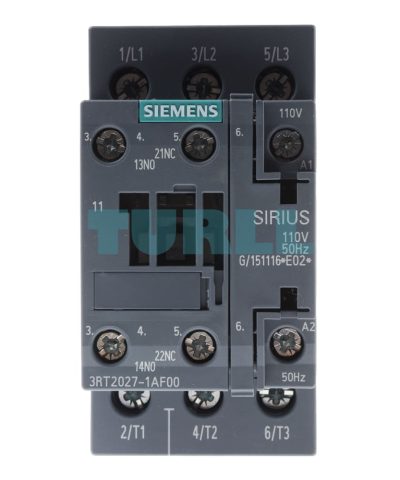

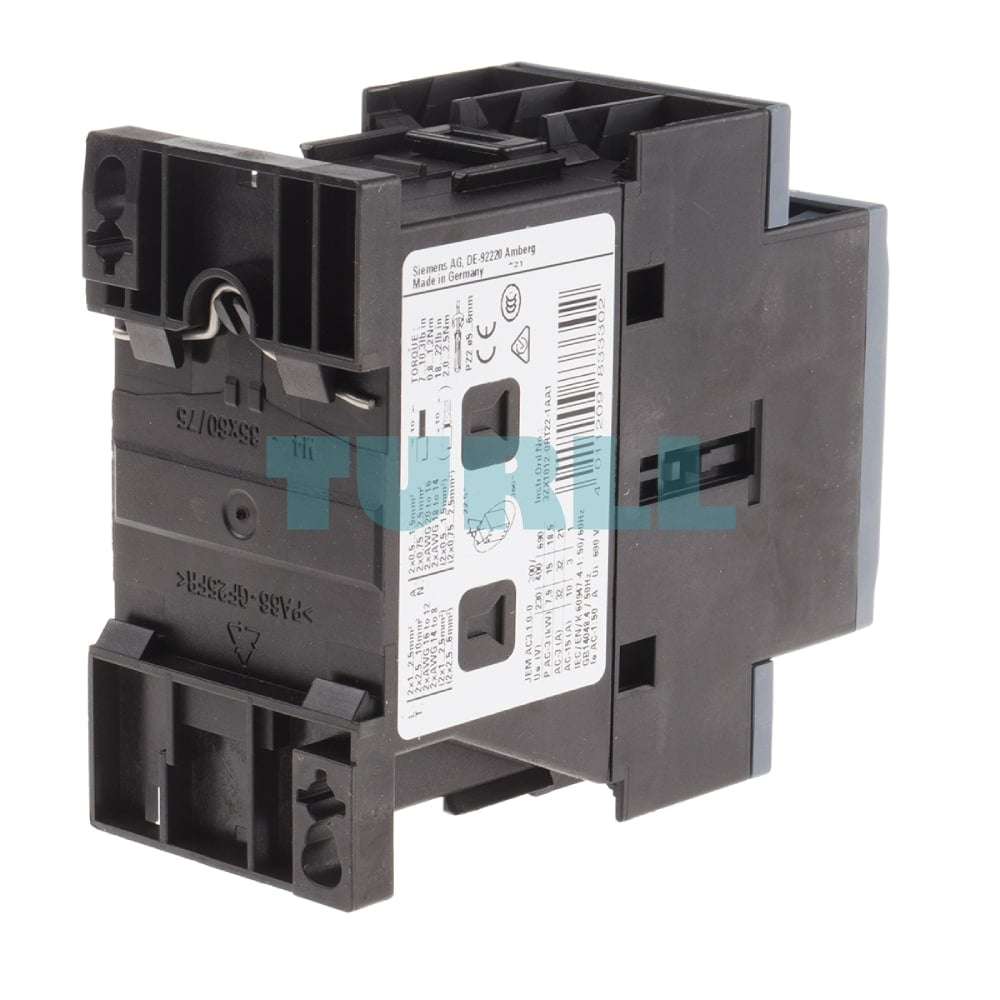

Siemens 3RT2027-1AF00 Power Contactor 3-Pole, 32 A, 15 kW, 110 V AC, SIRIUS S0 Series Original Brand New
$56.67
Siemens 3RT2027-1AF00 power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 110 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0
Overview
The Siemens 3RT2027-1AF00 is a robust and reliable power contactor from the SIRIUS S0 series, meticulously engineered for high-performance switching of three-phase motors. This compact and versatile device is rated for AC-3e/AC-3 operation, handling a significant current of 32 A and a power output of 15 kW at 400 V.
Its 3-pole design and integrated 110 V AC, 50 Hz control coil make it an ideal solution for a wide range of industrial and commercial applications. The inclusion of one normally open (NO) and one normally closed (NC) auxiliary contact provides enhanced flexibility for control and signaling circuits. Featuring user-friendly screw terminals, installation and maintenance are straightforward and secure.
Benefit
- High Performance: Capable of handling up to 32 A and 15 kW, suitable for demanding motor control applications.
- Reliable Operation: Part of the trusted Siemens SIRIUS S0 series, known for its long service life and exceptional durability.
- Space-Saving Design: Its compact S0 size allows for efficient use of panel space.
- Enhanced Control: The integrated 1 NO + 1 NC auxiliary contacts offer greater flexibility for interlocking and status feedback.
- Easy Installation: Screw terminals ensure a secure and simple connection process, reducing installation time and effort.
- Global Compatibility: Designed to meet international standards (AC-3e/AC-3), ensuring its suitability for a global market.
Function
The Siemens 3RT2027-1AF00 power contactor serves as an electromechanical switch to remotely control the flow of electrical power to a load, typically an electric motor. When the 110 V AC control coil is energized, it closes the main power contacts, allowing current to flow to the motor.
The auxiliary contacts simultaneously change state, providing feedback to a control system (e.g., a PLC) or enabling interlocking logic. When the coil is de-energized, the main contacts open, safely disconnecting the motor from the power supply.
Technical Specification
- Product Number: 3RT2027-1AF00
- Rated Operational Current (AC-3e/AC-3): 32 A
- Rated Power (AC-3e/AC-3): 15 kW @ 400 V
- Number of Poles: 3-pole
- Control Supply Voltage: 110 V AC, 50 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Screw terminals
- Size: S0
For more products and solutions from the Siemens SIRIUS series, visit Turll now
| Weight | 0.423 kg |
|---|---|
| Dimensions | 92 × 54 × 105.5 mm |
