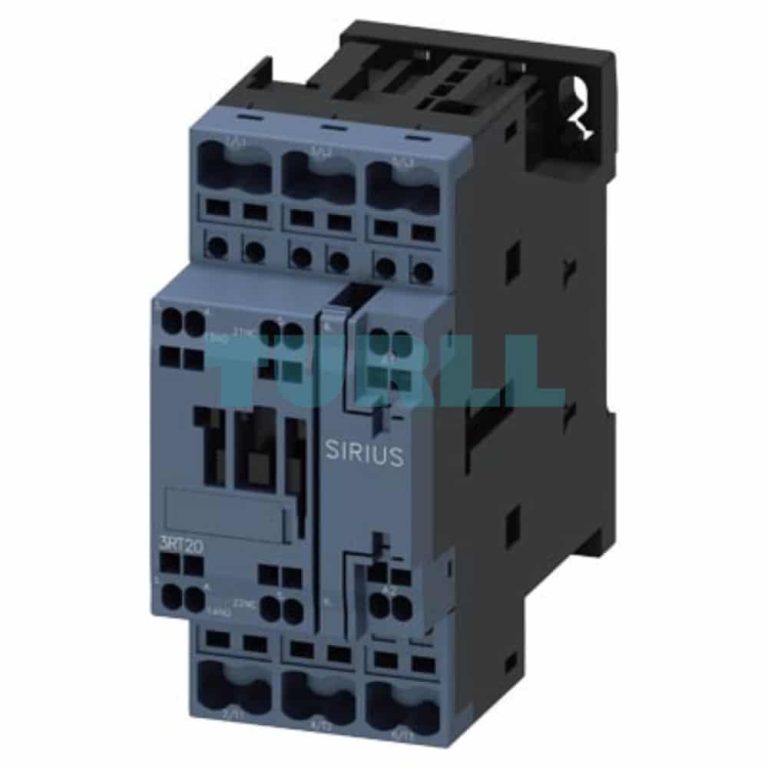

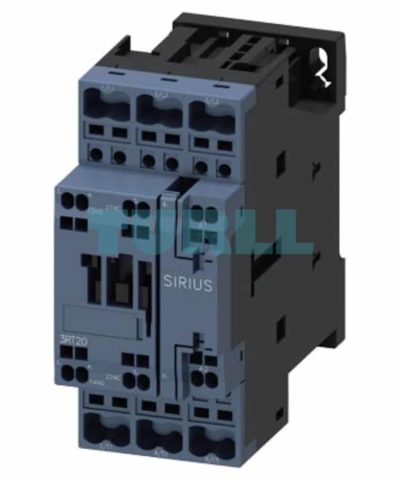

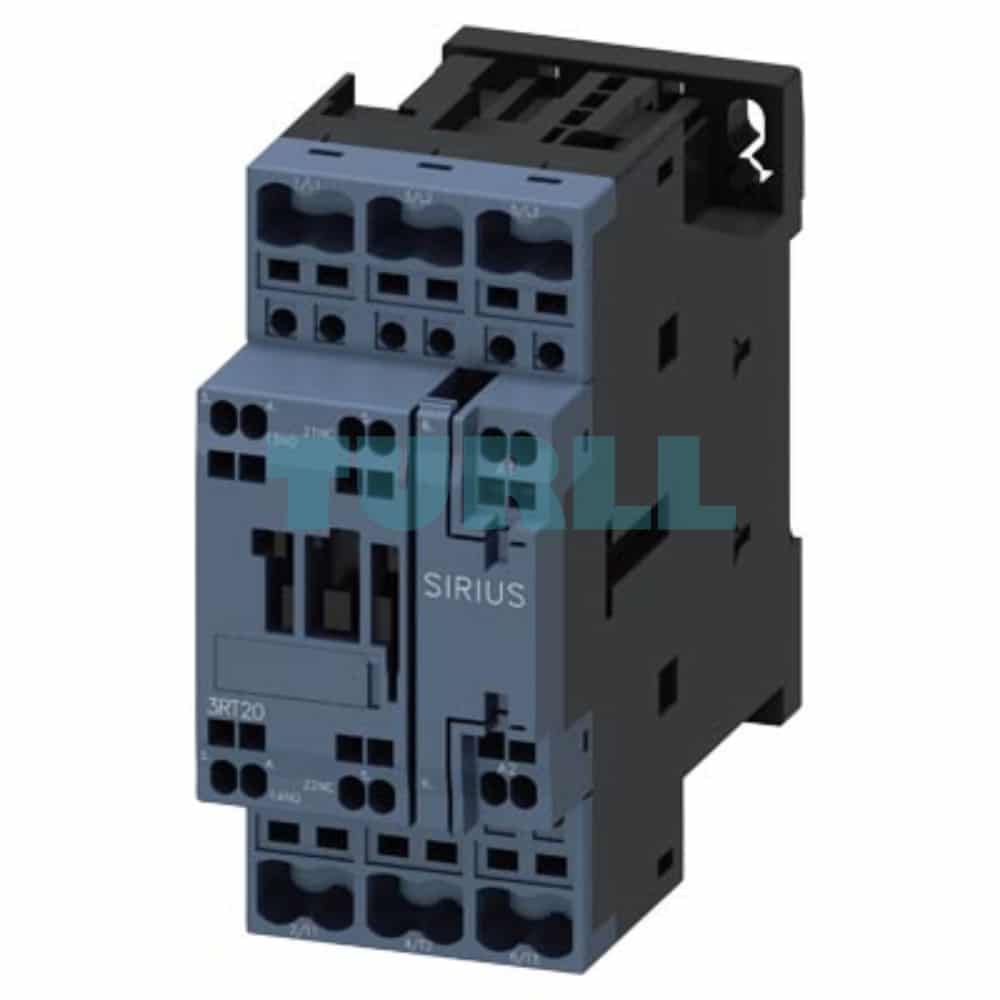

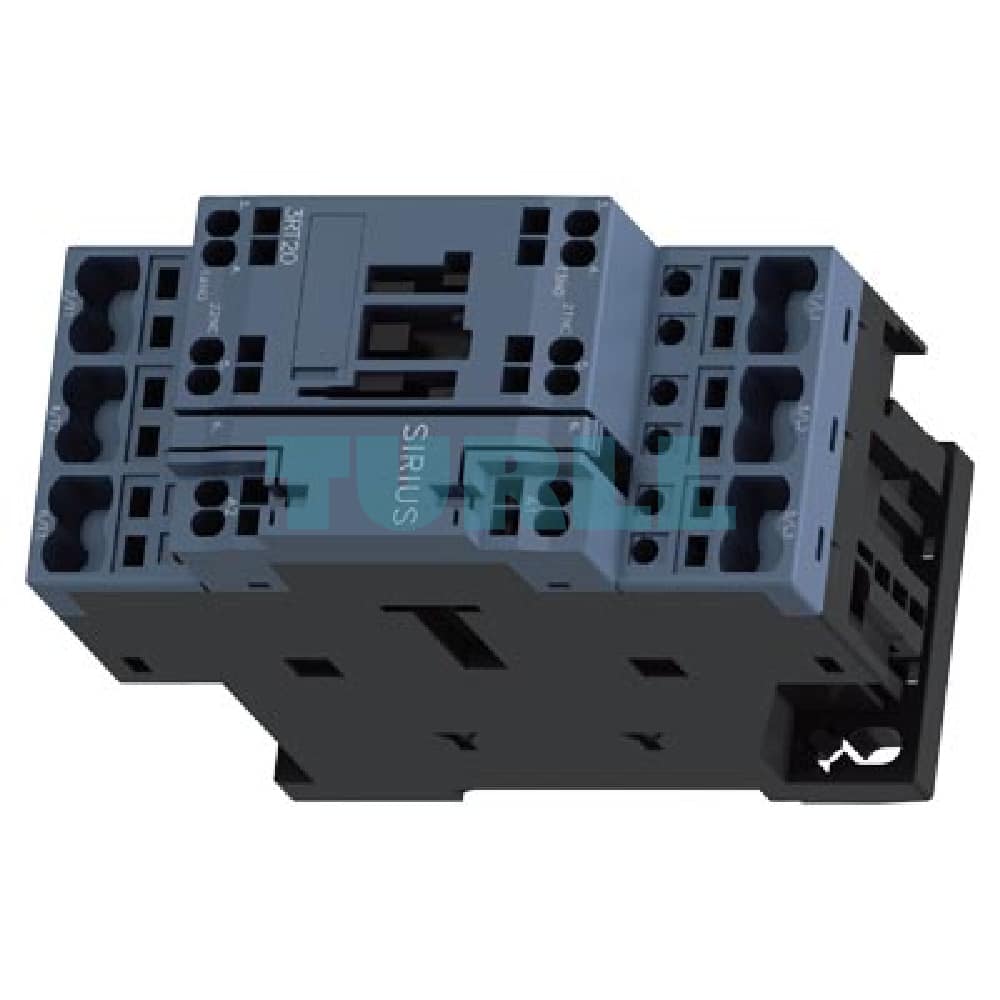

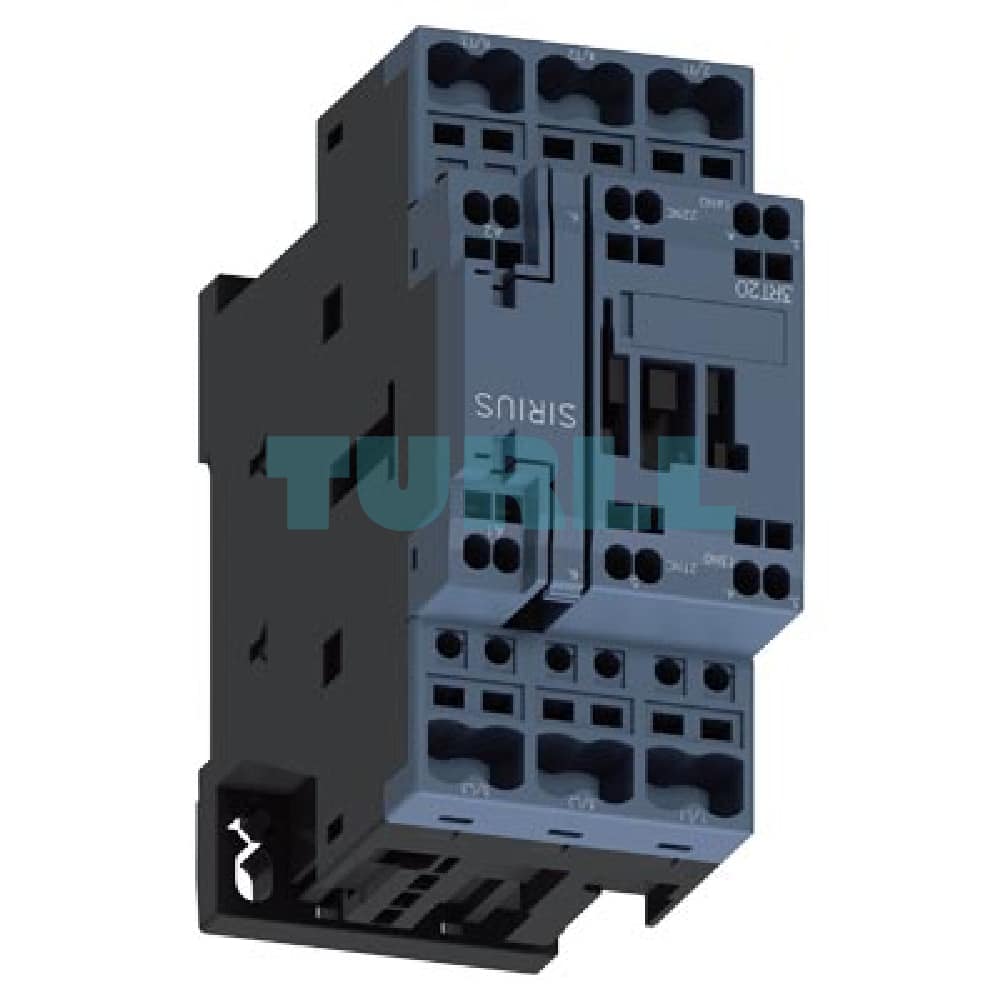

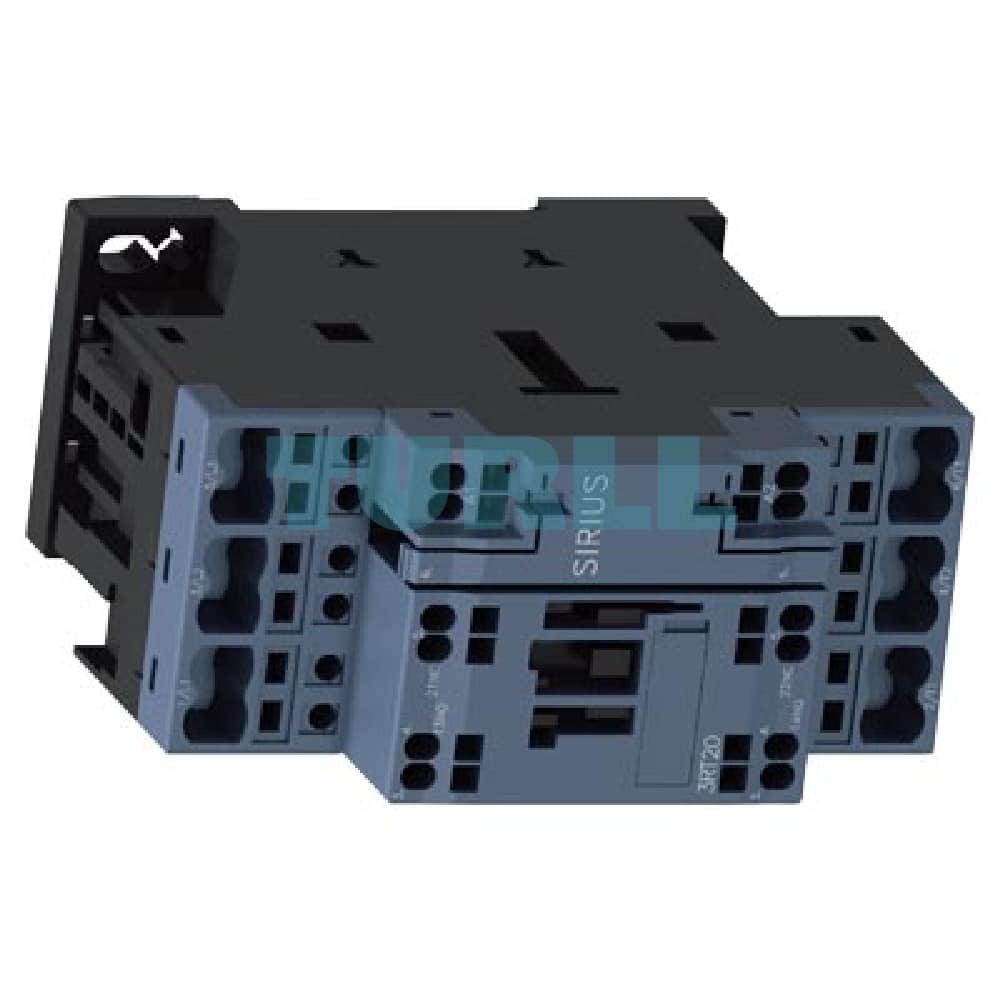

Siemens SIRIUS 3RT2027-2AK60 Power Contactor 32A, 15kW, 110V AC, Spring-Loaded Original Brand New

Overview

The Siemens SIRIUS 3RT2027-2AK60 is a high-performance power contactor engineered for reliable switching of motors and other electrical loads. As part of the globally recognized SIRIUS modular system, this contactor offers a compact design, exceptional functionality, and seamless integration into industrial control panels. It is specifically designed to handle AC-3e/AC-3 applications, making it an ideal choice for a wide range of industrial environments.

Key Features & Specification

• Product Number: 3RT2027-2AK60
• Contactor Type: Power Contactor
• Operating Current (AC-3e/AC-3): 32 A
• Power Rating: 15 kW at 400 V
• Number of Poles: 3-pole
• Control Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
• Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)
• Terminal Type: Spring-Loaded Terminal
• Size: S0 (Compact and space-saving design)
• Standards: IEC 60947-4-1, UL/CSA
• Application: Suitable for switching of motors, heating systems, and general industrial loads.

Benefit

• High Performance & Reliability: Built with Siemens’ renowned quality, this contactor ensures long-term operational reliability and superior performance in demanding industrial applications.
• Space-Saving Design: The compact S0 size allows for high-density panel installations, helping to optimize space and reduce overall cabinet size.
• Fast & Secure Connections: The innovative spring-loaded terminals enable quick and vibration-proof wiring, reducing installation time and maintenance efforts. This technology ensures a stable connection even in harsh environments.
• Global Compliance: Conforming to international standards like IEC and UL/CSA, the 3RT2027-2AK60 is suitable for use in global markets, simplifying design and procurement.
• Integrated Auxiliary Contacts: The built-in 1 NO + 1 NC auxiliary contacts provide convenient feedback and control signals without the need for additional add-on blocks.

Function

The Siemens 3RT2027-2AK60 functions as an electrically operated switch for a power circuit. When a control voltage of 110 V AC (50 Hz) or 120 V AC (60 Hz) is applied to its coil, it closes the main power contacts, allowing current to flow to the connected load (e.g., a motor).

When the control voltage is removed, the contacts open, interrupting the power. The integrated auxiliary contacts change state simultaneously, providing signals for monitoring or interlocking functions in the control system. The spring-loaded terminals ensure a reliable, maintenance-free connection for the control and power wiring.

Application

• Motor control and protection
• HVAC systems
• Pump and fan control
• Conveyor systems
• Machine tools
• General industrial automation
