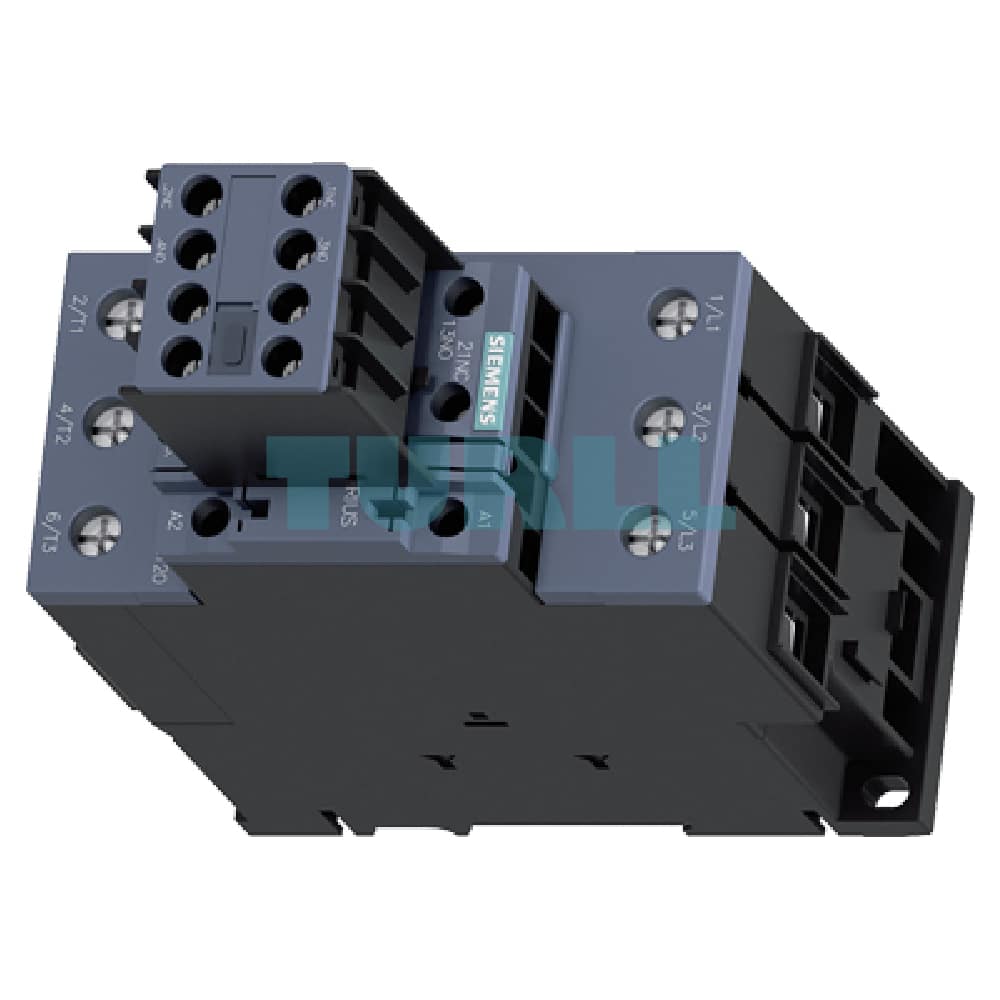

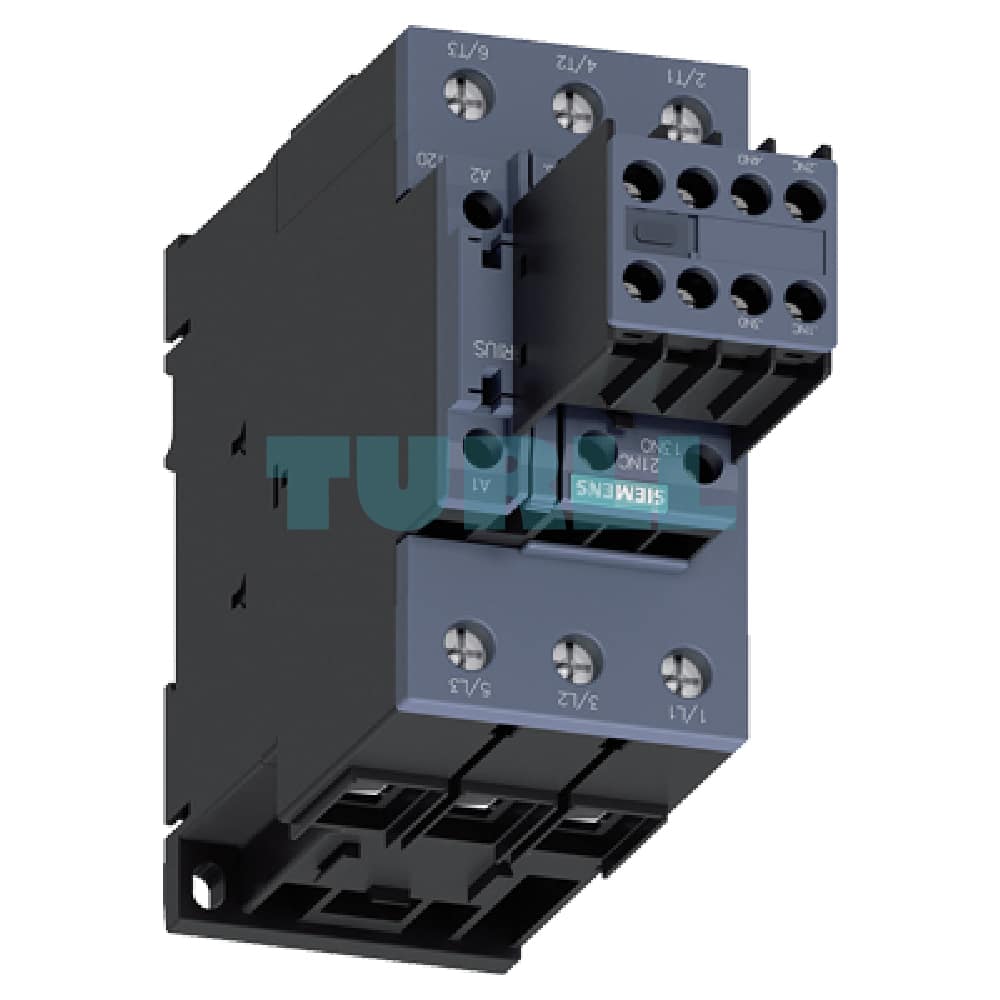

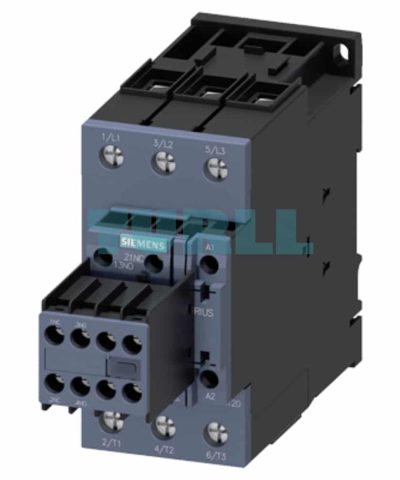

Siemens 3RT2036-1AC24 Power Contactor, 51A, 22kW, 24V AC, 2NO+2NC, S2, Screw Terminal Original Brand New

Overview

The Siemens 3RT2036-1AC24 is a high-performance power contactor from the trusted SIRIUS series, designed for reliable and efficient switching of three-phase loads. With an impressive 51 A rating for AC-3e/AC-3 applications and a power capacity of up to 22 kW at 400 V, this contactor is ideal for controlling motors, pumps, fans, and other industrial machinery.

Its robust design and high-quality components ensure a long service life and dependable operation in demanding environments. The compact Size S2 form factor allows for space-saving installation in control cabinets, while the integrated auxiliary contacts and removable auxiliary switch offer enhanced flexibility and control options.

Benefit

• High Performance: Capable of handling significant loads up to 51 A and 22 kW, making it suitable for a wide range of industrial applications.
• Reliable Operation: Built with Siemens' renowned engineering, ensuring long-term durability and minimal maintenance.
• Enhanced Functionality: Comes equipped with two normally open (NO) and two normally closed (NC) auxiliary contacts, providing versatile control and signaling options.
• Flexible and Modular: The removable auxiliary switch allows for easy configuration changes and maintenance without rewiring.
• Easy Installation: Features robust screw terminals for secure and straightforward wiring. The compact Size S2 design saves valuable space in control panels.
• Global Standard: Complies with multiple international standards (AC-3e/AC-3), ensuring compatibility and safety for global applications.

Function

• Motor Control: Acts as a reliable switching device for three-phase motors.
• Load Switching: Efficiently switches various resistive and inductive loads.
• Safety Interlocking: The built-in auxiliary contacts can be used for safety circuits and interlocking functions.
• Signaling: The NO/NC auxiliary contacts provide feedback on the contactor's status to a PLC or control system.

Technical Specification

• Product Number: 3RT2036-1AC24
• Product Type: Power Contactor
• Rated Operating Current (AC-3e/AC-3): 51 A
• Rated Power (AC-3e/AC-3): 22 kW at 400 V
• Poles: 3-pole
• Operating Voltage: 24 V AC, 50/60 Hz
• Auxiliary Contacts: 2 NO + 2 NC
• Terminals: Screw Terminal
• Size: S2
• Features: Removable Auxiliary Switch
• Brand: Siemens
• Series: SIRIUS
