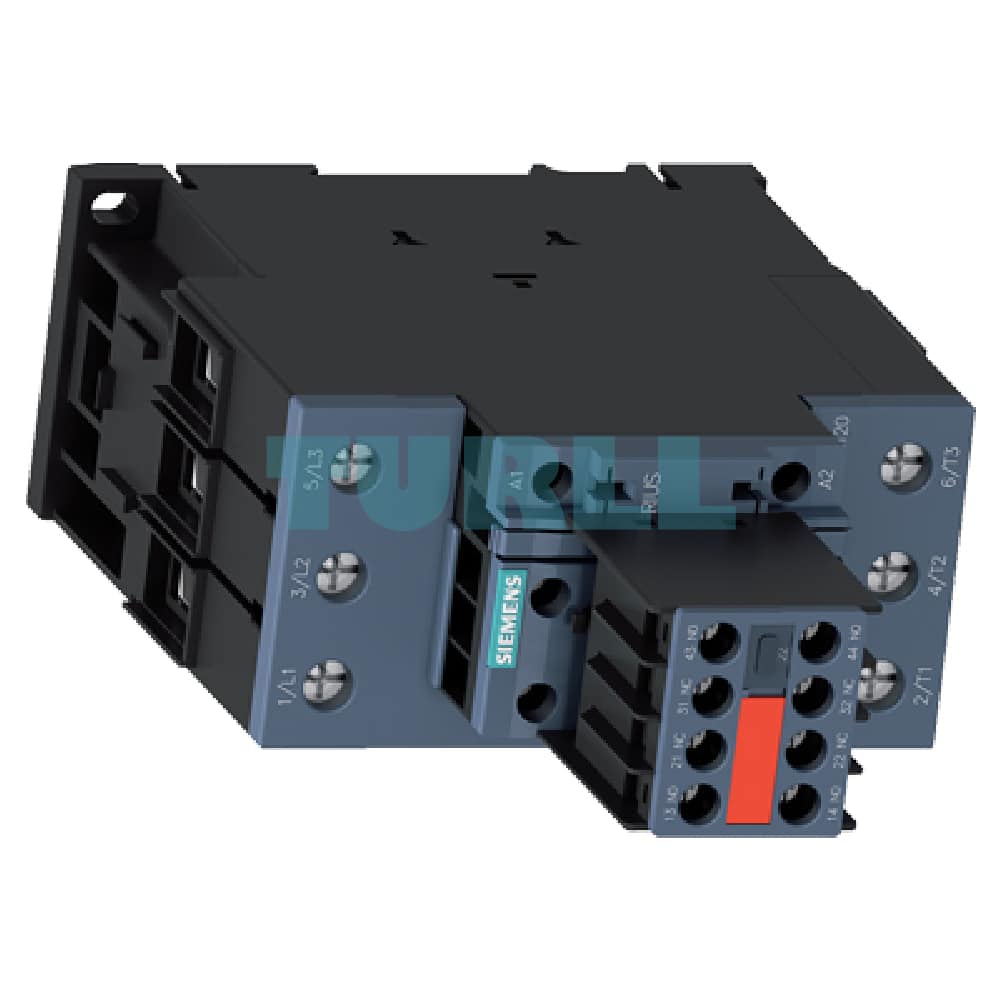

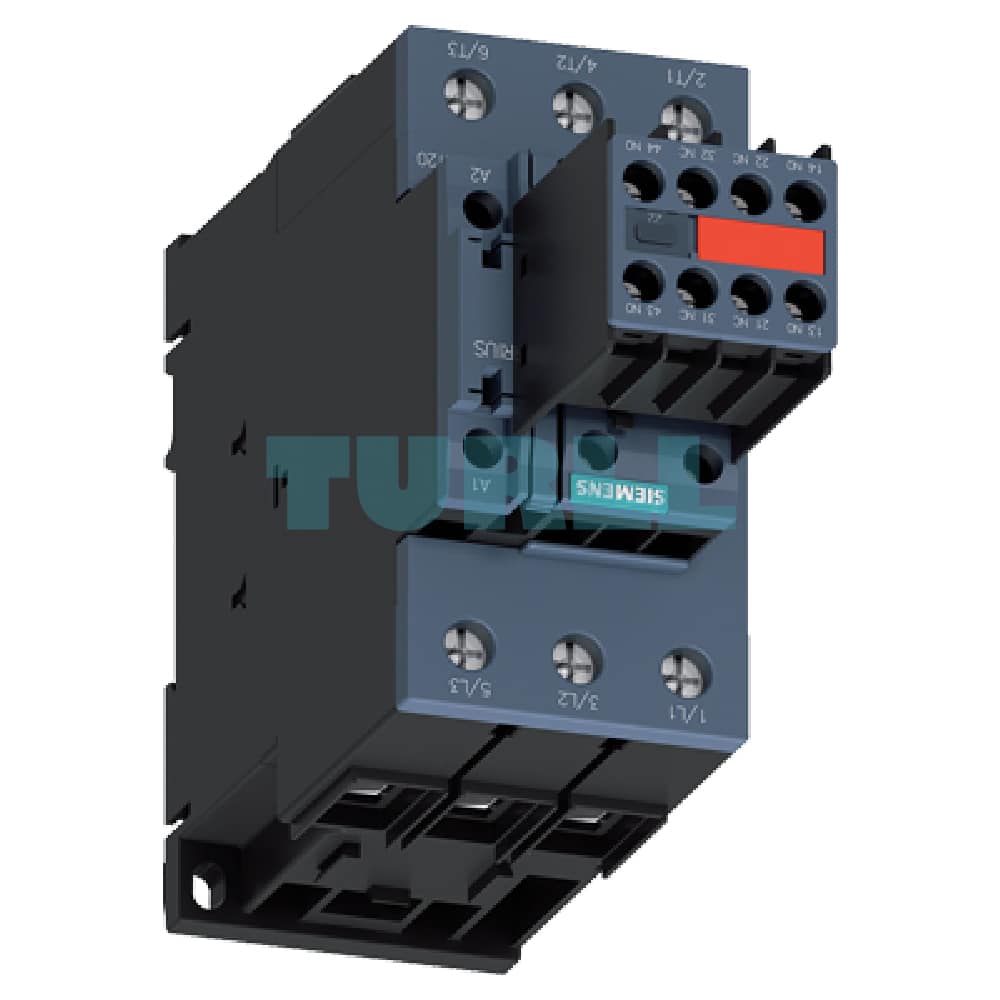

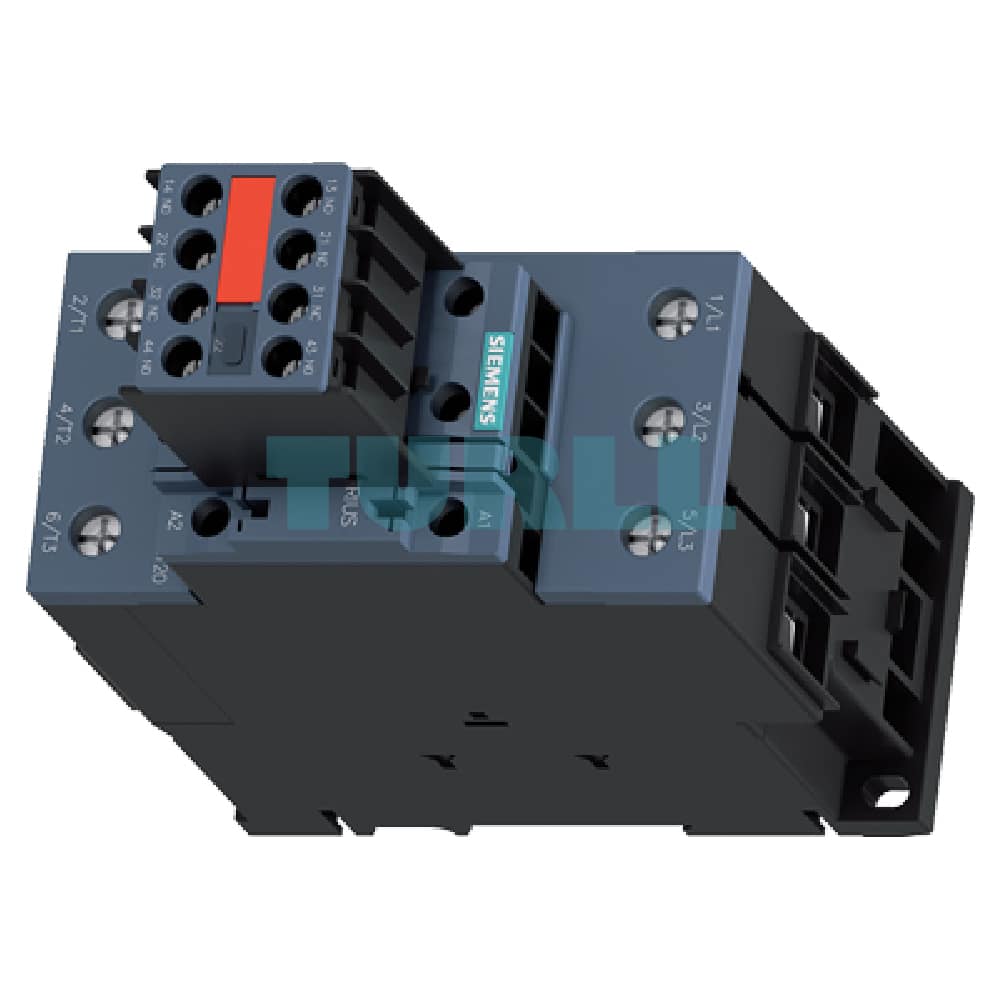

Siemens 3RT2036-1CL24-3MA0 Power Contactor AC-3e/AC-3, 51A, 22kW, 230V AC, Size S2, Varistor, 2 NO + 2 NC Aux Contacts Original Brand New

Overview: High-Performance Siemens SIRIUS 3RT2036 Power Contactor

The Siemens 3RT2036-1CL24-3MA0 is a robust and reliable power contactor from the SIRIUS 3RT2 series, engineered for high-performance switching of motors and other industrial loads. This specific model is designed for demanding applications, meeting both AC-3 and AC-3e standards. With a rated operational current of 51 A for AC-3 and a power rating of 22 kW at 400 V, it offers a powerful solution for controlling your machinery efficiently.

Key Features & Technical Specification

• Product Number: 3RT2036-1CL24-3MA0
• Contactor Type: Power Contactor
• Operating Standards: AC-3e / AC-3
• Rated Operational Current (AC-3): 51 A
• Rated Power (AC-3): 22 kW at 400 V
• Number of Poles: 3-pole
• Operating Voltage: 230 V AC, 50/60 Hz coil
• Integrated Protection: Plugged-in varistor for surge suppression, protecting the coil and extending its lifespan.
• Auxiliary Contacts: 2 NO (Normally Open) + 2 NC (Normally Closed) captive auxiliary switches for flexible circuit control and signaling.
• Connection Type: Screw terminals for secure and easy wiring.
• Size: S2 (Size 2) – a compact yet powerful design for panel integration.
• Auxiliary Switch: Captive auxiliary switch ensures a reliable and fixed connection.

Benefit

• Enhanced Reliability: The integrated varistor provides superior surge protection, minimizing downtime and maintenance costs.
• Versatile Application: Suitable for a wide range of motor control applications in various industries, including manufacturing, automation, and HVAC.
• Simplified Installation: The user-friendly screw terminals make wiring straightforward and secure, reducing installation time.
• Space-Saving Design: Its S2 size form factor allows for efficient use of space within control cabinets.
• Extended Lifespan: Built with high-quality materials and robust engineering, this contactor is designed for a long service life, even in harsh industrial environments.

Function

The Siemens 3RT2036-1CL24-3MA0 serves as an electromechanical switch. When its 230V AC coil is energized, it closes the main power contacts, allowing current to flow to the connected load (e.g., an electric motor). When the coil is de-energized, a spring mechanism opens the contacts, interrupting the power. The 2 NO and 2 NC auxiliary contacts can be used for interlocking circuits, signaling the status of the main contactor (e.g., "on" or "off"), or controlling other parts of the automation system.

Application

• Motor starters (direct-on-line, reversing)
• Pump control systems
• Ventilation and fan systems
• Conveyor systems
• General industrial switching tasks
