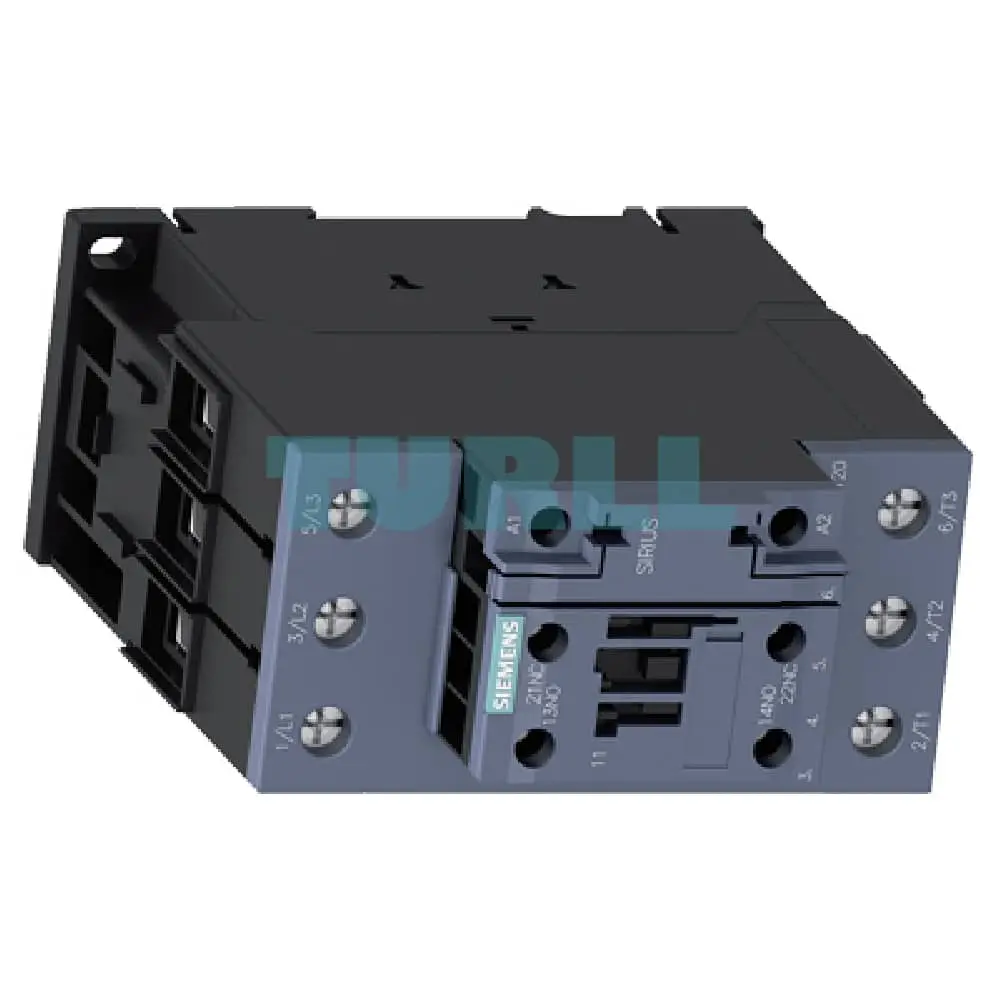

Siemens SIRIUS 3RT2038-1AP00-1AA0 Power Contactor 80A, 3-Pole, 230V AC, Screw Terminal (Size S2) Original Brand New

Overview

The Siemens SIRIUS 3RT2038-1AP00-1AA0 is a high-performance power contactor designed for reliable switching of motors and other electrical loads. This robust 3-pole contactor is rated for AC-3e/AC-3 operation, handling currents up to 80 A and motor power up to 37 kW at 400 V. Its compact size (S2) and upright mounting position make it an excellent choice for a wide range of industrial control applications where space efficiency is crucial. The integrated auxiliary contacts (1 NO + 1 NC) provide additional functionality for control circuits and status monitoring. Featuring a user-friendly screw terminal design, installation and wiring are straightforward and secure.

Key Features & Benefit

• High Performance: Rated for 80 A and 37 kW (at 400 V), suitable for demanding motor control applications.
• Reliable Operation: Built with Siemens' renowned quality and engineering for long-lasting, dependable performance.
• Integrated Auxiliary Contacts: The built-in 1 NO + 1 NC auxiliary contacts simplify wiring for control and feedback loops, reducing the need for external components.
• Space-Saving Design: The compact Size S2 and upright mounting position optimize panel space.
• Easy & Secure Installation: Screw terminals ensure a solid, reliable connection, making wiring and maintenance simple.
• Versatile Application: Ideal for switching a variety of electrical loads in industrial automation, HVAC systems, and machinery.

Function

The Siemens 3RT2038-1AP00-1AA0 power contactor is a remotely operated switch that controls the flow of electrical power to a load, such as an electric motor. When the 230 V AC control voltage is applied to the coil, the magnetic field pulls the main contacts together, allowing power to flow to the motor. When the control voltage is removed, a spring forces the contacts open, disconnecting the power. The auxiliary contacts change state simultaneously with the main contacts, providing a signal that can be used for interlocking, status indication, or other control functions.

Technical Specification

• Product Number: 3RT2038-1AP00-1AA0
• Contactor Type: Power Contactor
• Poles: 3-pole
• Rated Current (AC-3e/AC-3): 80 A
• Rated Power (AC-3e/AC-3): 37 kW at 400 V
• Operating Voltage: 230 V AC, 50 Hz
• Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)
• Connection Type: Screw Terminal
• Size: S2
• Mounting Position: Upright
