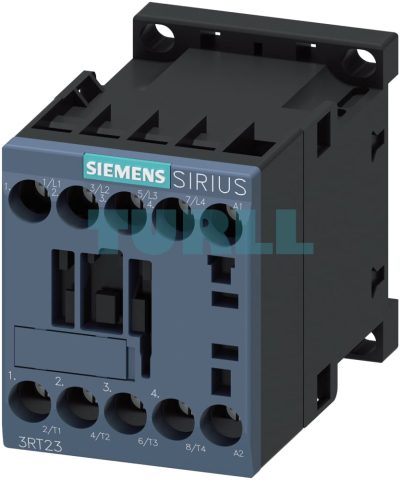

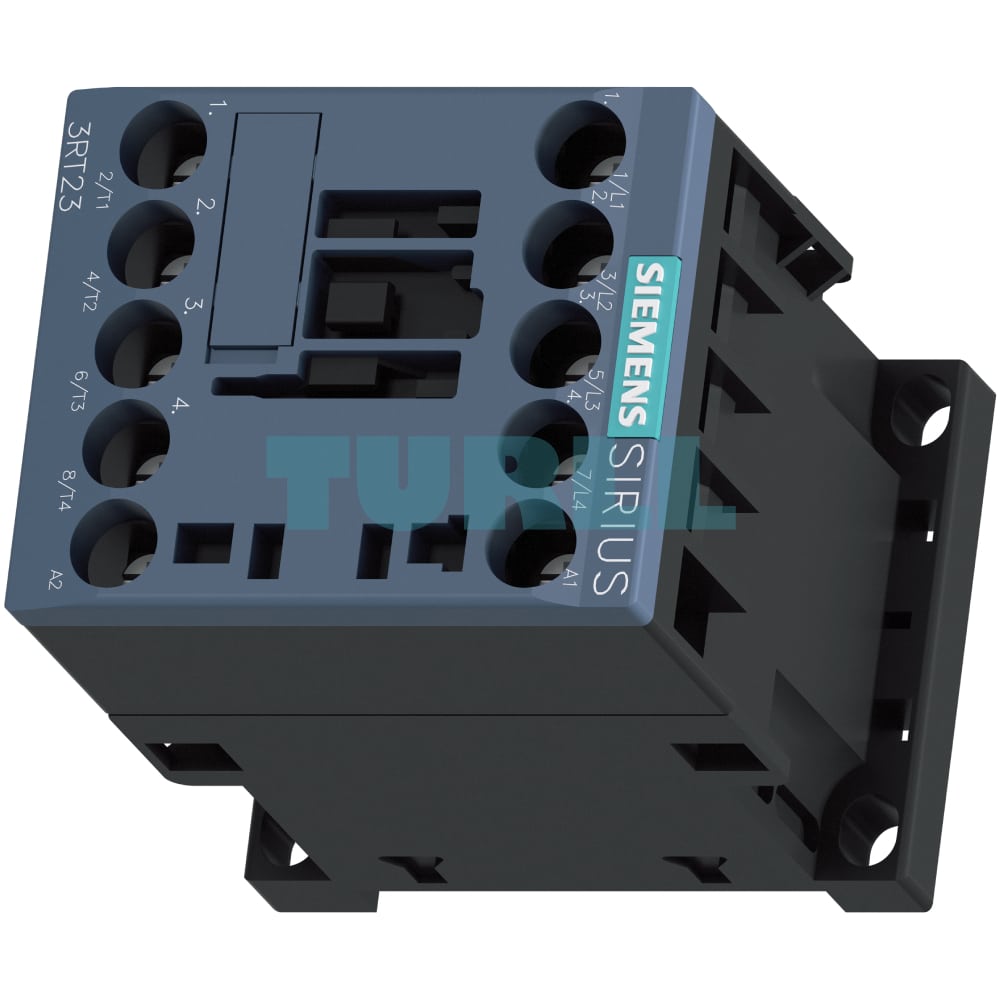

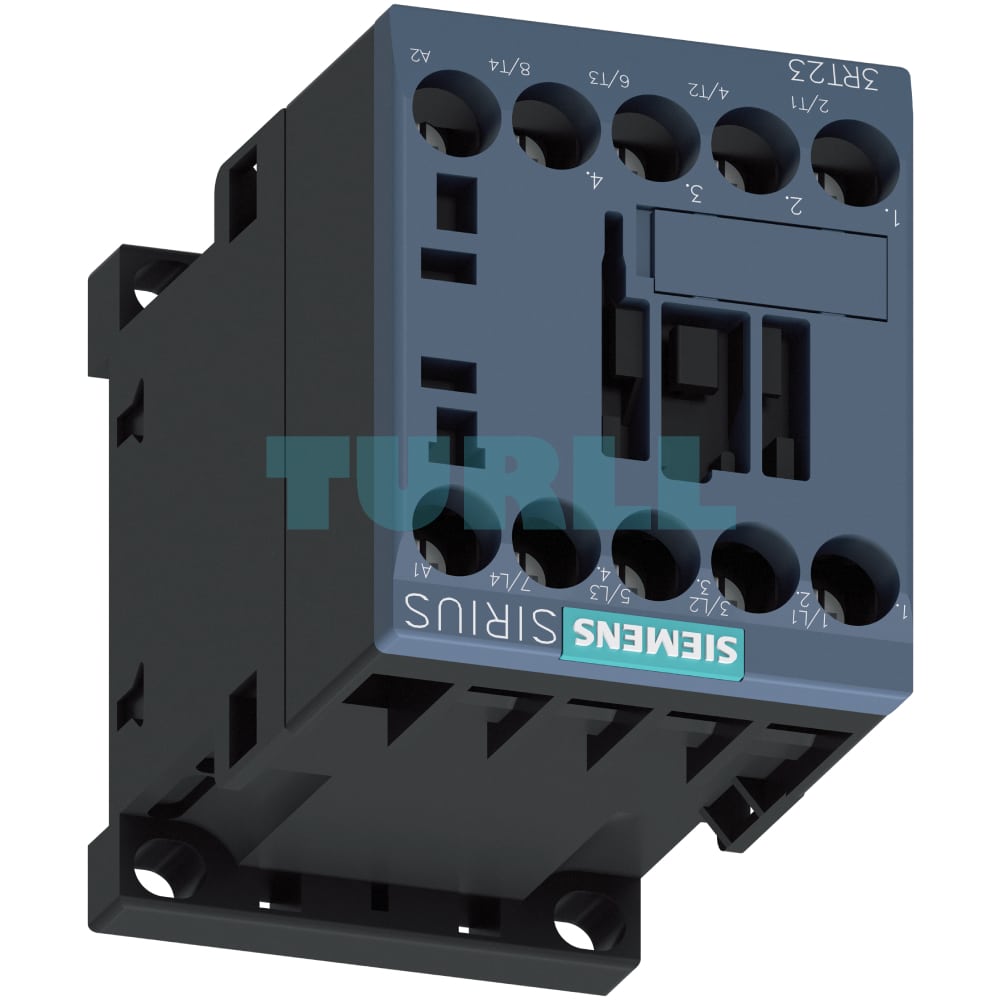

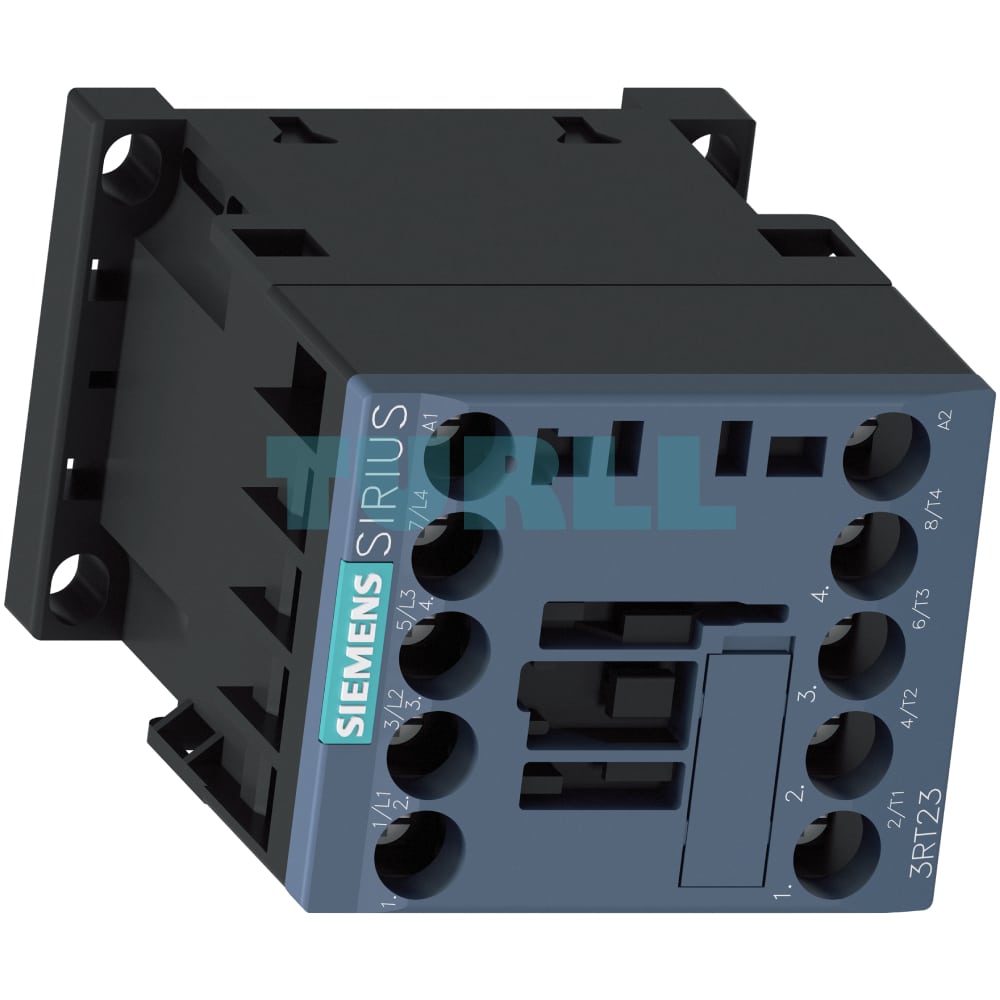

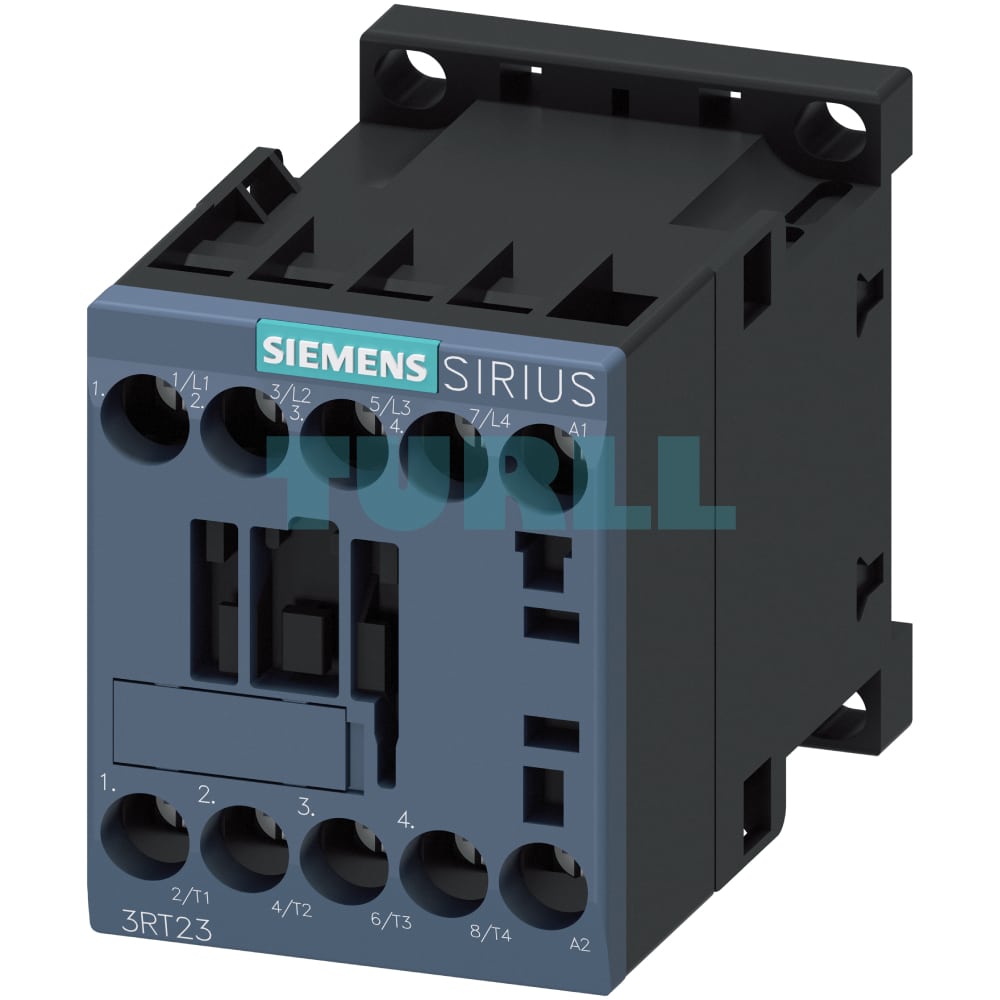

Siemens 3RT2316-1AF00 Contactor 4-Pole, AC-1, 18A, 110V AC, Screw Terminal (Size S00) Original Brand New

Overview

The Siemens 3RT2316-1AF00 is a high-performance 4-pole power contactor from the SIRIUS 3RT23 series, designed for reliable switching of non-inductive or weakly inductive loads (AC-1) up to 18 Amperes at 400 Volts (at 40 °C). This compact S00 size contactor features a 110V AC (50/60 Hz) operating mechanism and secure screw terminals for easy and dependable wiring. Built to international standards, it’s an essential component for various industrial control, power distribution, and automation applications.

Key Features & Benefit

• Reliable AC-1 Switching: Specifically engineered for four-pole switching of resistive and non-inductive loads, making it ideal for heating, lighting, and distribution circuits.
• Compact S00 Size: Optimizes space within control panels, offering powerful performance in a small footprint.
• Versatile Power Handling: Capable of handling up to 18A at 400V (40 °C), suitable for a wide range of general-purpose switching tasks.
• Standardized Control Voltage: Operates with a common 110V AC (50/60 Hz) control supply, simplifying integration into existing systems.
• Secure Screw Terminals: Provides robust and straightforward electrical connections, ensuring long-term reliability.
• Integrated Auxiliary Contact: The 3RT231 series includes an integrated auxiliary contact (1 NO + 1 NC for 3RT232-3RT234, this product 3RT231 has 1 aux contact) for feedback or interlocking purposes, enhancing system functionality.
• High Contact Reliability: Auxiliary contacts are optimized for low-voltage/low-current applications, ensuring dependable operation even in sensitive electronic circuits.
• Standards Compliant: Meets rigorous international standards including IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1, guaranteeing quality and safety.
• Flexible Protection Options: Compatible with 3RU2 thermal and 3RB3 electronic overload relays for comprehensive motor protection when used in motor feeder applications.
• Expandable Functionality: Easily expandable with additional auxiliary switches (sold separately) to meet specific application requirements.
• Durable Design: Built for industrial environments, ensuring long operational life and consistent performance.

Function

• Four-Pole Switching: Designed to open and close four electrical circuits simultaneously.
• Load Disconnection: Effectively disconnects resistive or weakly inductive loads and power generation plants from the grid.
• Transfer Switching: Facilitates seamless transitions between different power sources or loads.
• Integration into Control Systems: Acts as a critical switching element within automated control circuits, responding to signals from PLCs, sensors, or manual controls.

Protection and Safety:

The Siemens 3RT2316-1AF00 contactor is designed with comprehensive protection considerations:

• Short-Circuit and Overload Protection: Main and auxiliary connections require external protection. Refer to technical data sheets for detailed guidance on free-standing contactors or device combinations (e.g., with overload relays or circuit breakers).
• Control Supply Voltage Protection: Adherence to relevant standards for control panel configuration is crucial. The selection of a suitable power supply with current-limiting functions and appropriate protection devices (e.g., miniature circuit breakers) is recommended.
• Overvoltage Protection: The 3RT23 series allows for retrofitting with surge suppressors (RC elements, varistors, diodes) to dampen opening surges in the coil, protecting against overvoltage. Note that damping may increase break times.

Connection Methods:

• Main Circuit: Screw terminals are standard, offering reliable and straightforward wiring.
• Auxiliary and Control Circuit: Screw terminals ensure secure connections for control and auxiliary wiring.

Application

The Siemens 3RT.3 contactors are versatile and ideal for:

• Four-pole switching of weak or non-inductive loads (AC-1): Perfect for resistive heating elements, lighting circuits, and distribution applications.
• Disconnecting loads or power generation plants from the grid: Provides a safe and efficient means of isolation.
• Transfer switching: Enables seamless switching between different power sources or loads in various industrial setups.

Related Products & Accessories:

• Overload Relays: Pair with Siemens 3RU2 thermal overload relays or 3RB3 electronic overload relays for robust motor protection.
• Auxiliary Switches: Expand functionality with additional instantaneously switching auxiliary switches.
• Surge Suppressors: Enhance coil protection with external RC elements, varistors, or diode assemblies.

For more products and detailed documentation, visit Turll.
