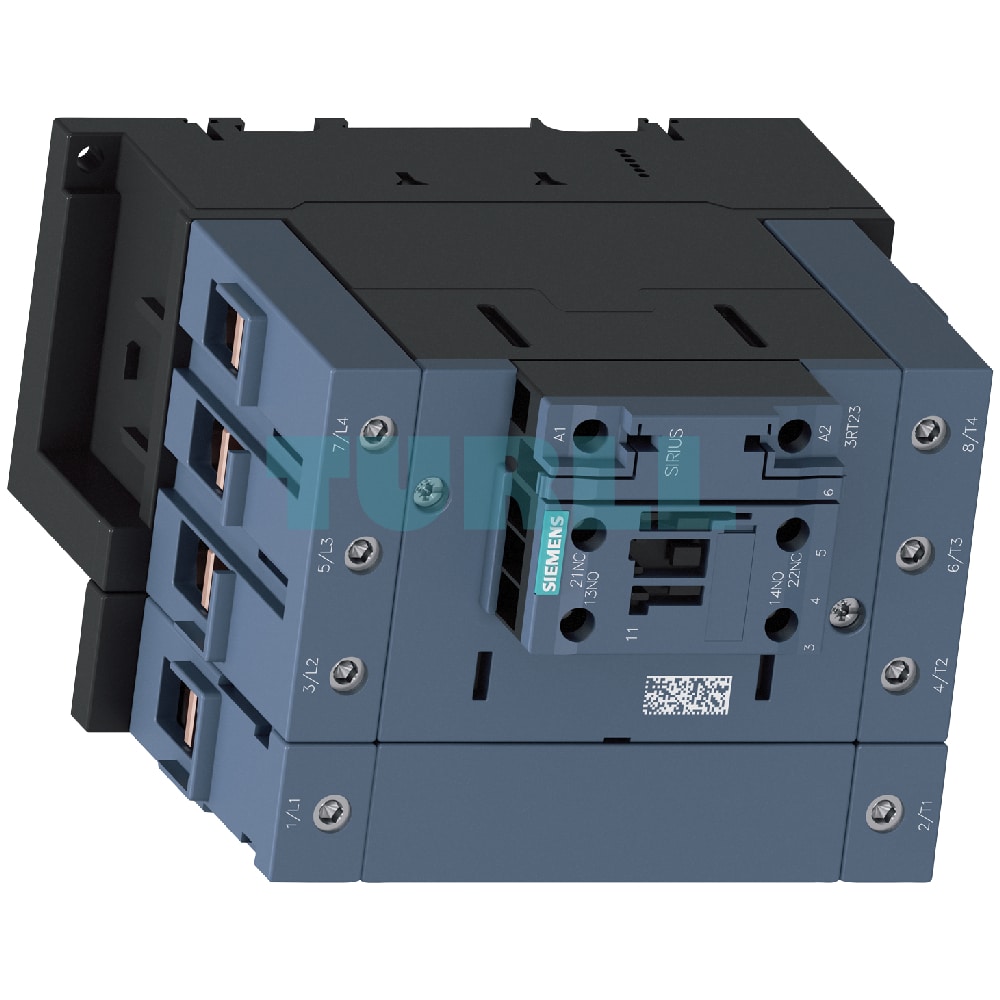

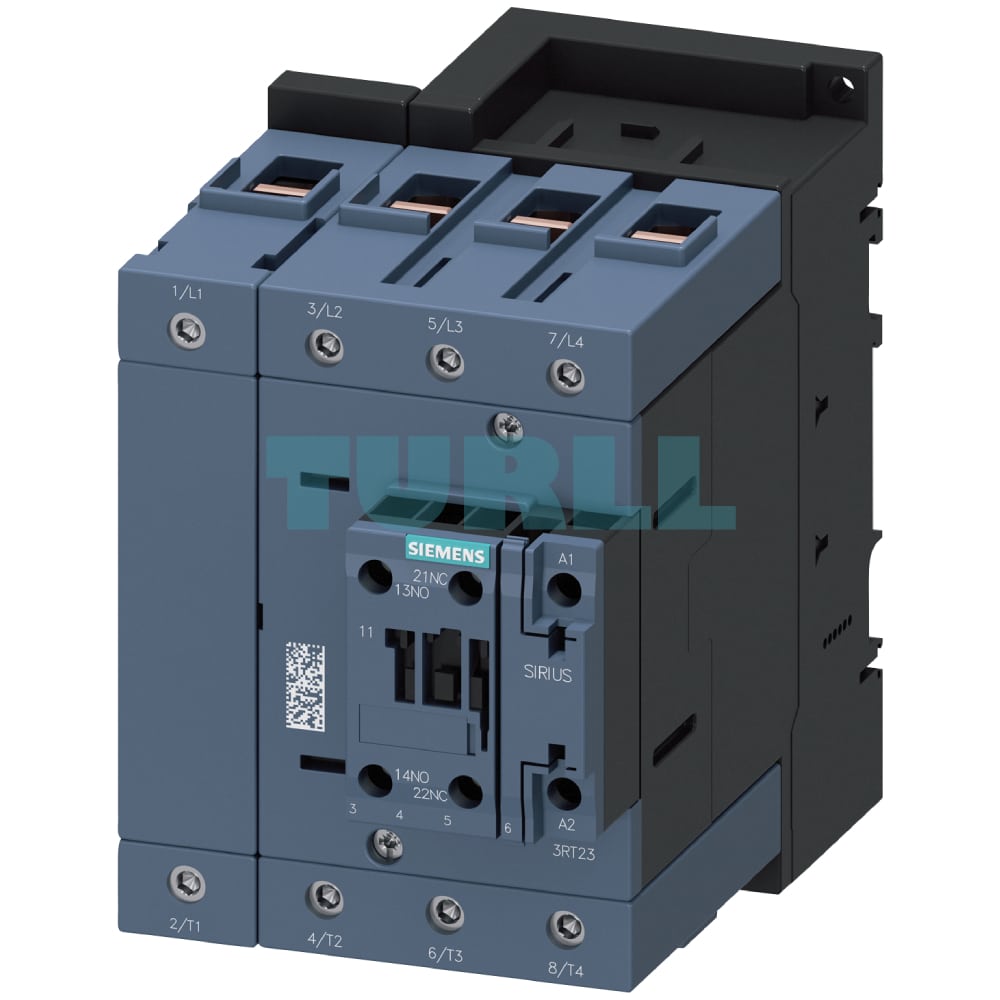

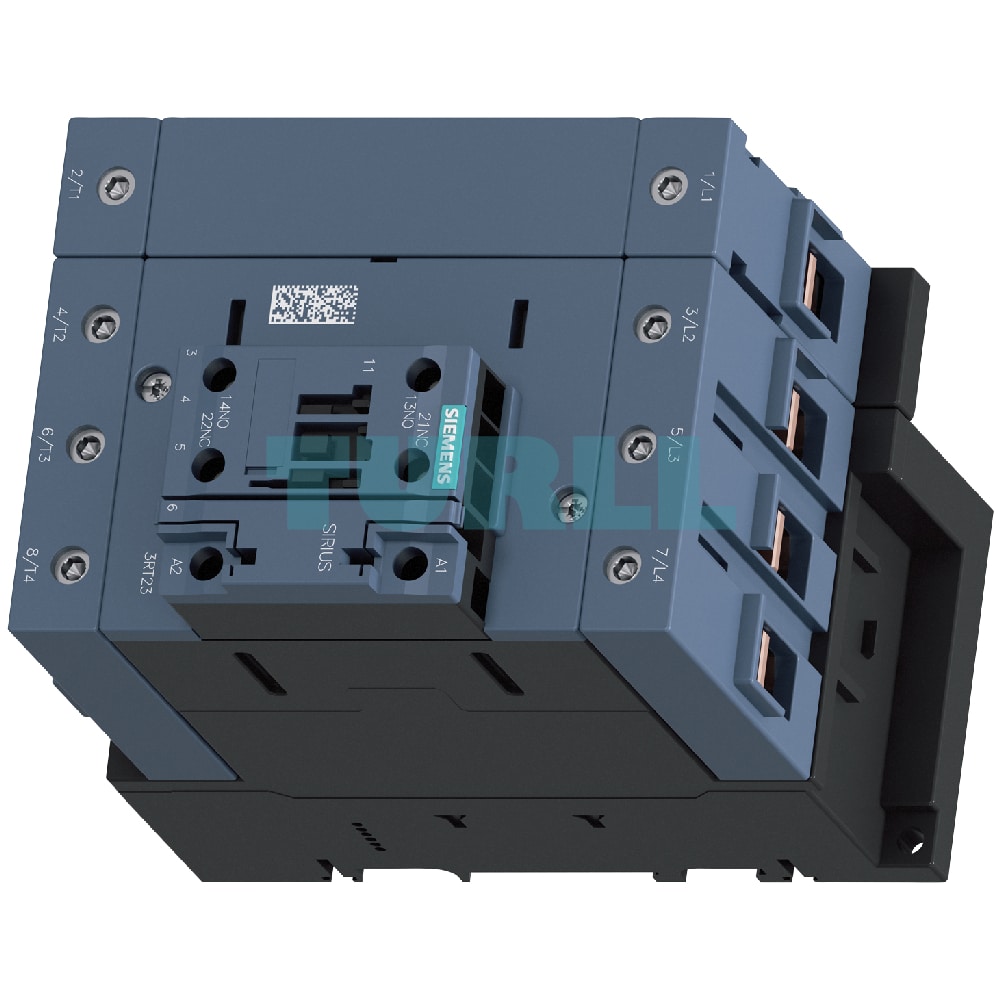

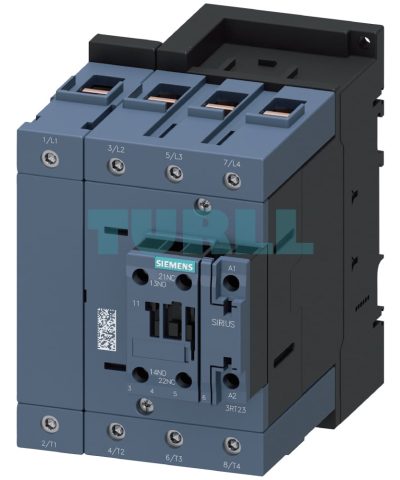

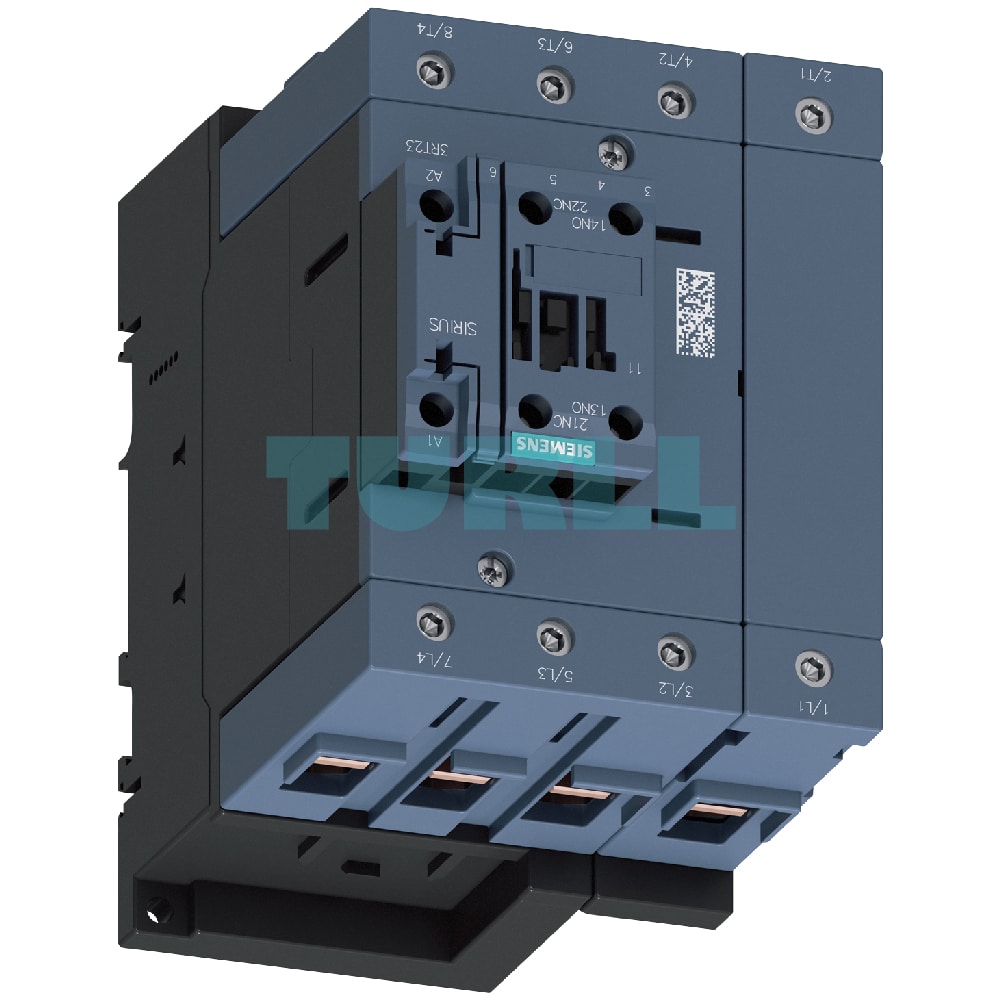

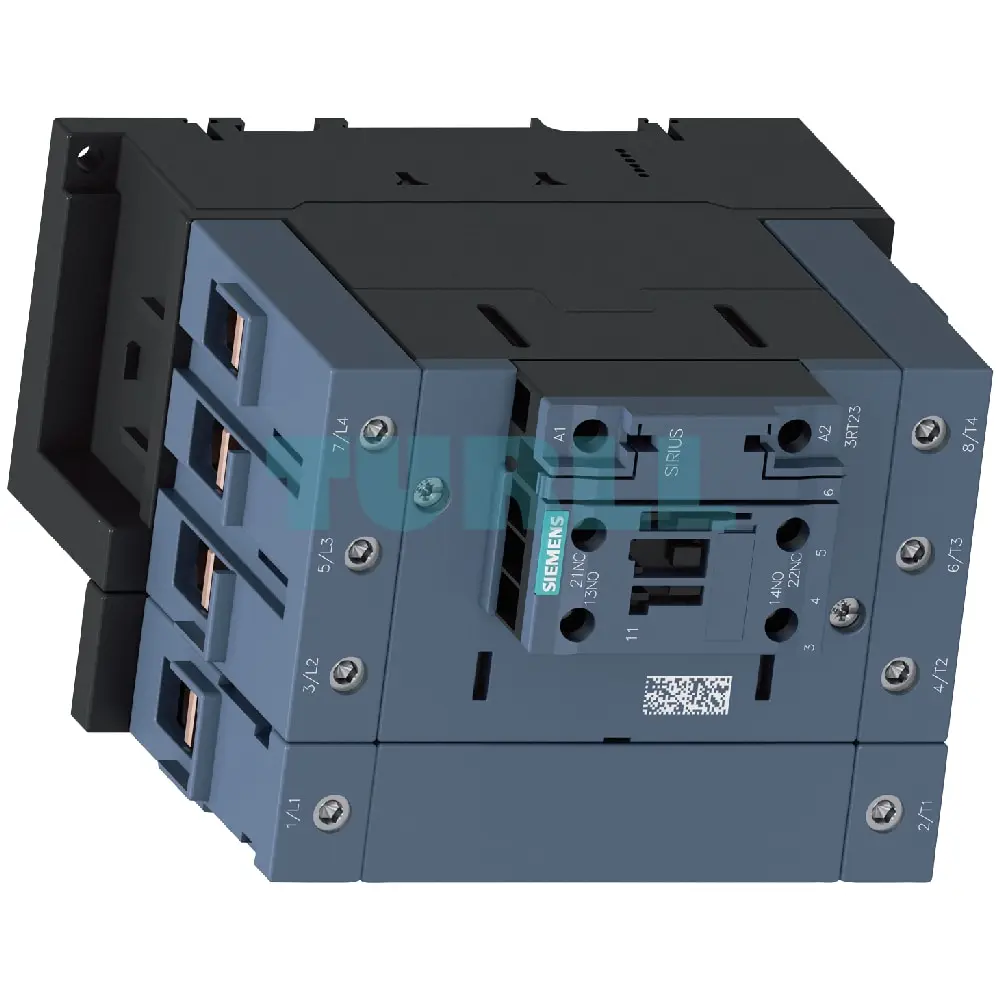

Siemens 3RT2348-1NB30 Contactor 4-Pole, AC-1, 160A, 20-33V AC/DC Coil, S3 Size Original Brand New

Siemens 3RT2348-1NB30 Contactor: High-Performance 4-Pole Switching for Industrial Application

The Siemens 3RT2348-1NB30 is a robust and versatile 4-pole AC-1 contactor, engineered for reliable switching of weak or non-inductive loads. With a current rating of 160 A at 400 V and 40 °C, this Size S3 contactor is a crucial component for a wide range of industrial control and power management systems.

Key Features & Benefits:

• Powerful AC-1 Switching: Designed specifically for AC-1 applications, ensuring efficient and safe switching of non-inductive loads like resistive heaters, furnaces, or isolation of power generation plants from the grid.
• Integrated Varistor Protection: Equipped with an integrated varistor, this contactor offers enhanced protection against overvoltage surges in the control supply, prolonging coil life and improving system reliability.
• Versatile Coil Voltage: The 20-33 V AC/DC (50/60 Hz) wide-range solid-state operating mechanism allows for flexible integration into various control circuits, simplifying inventory and application.
• Comprehensive Auxiliary Contacts: Features 1 NO (normally open) + 1 NC (normally closed) auxiliary contacts, providing essential feedback and control possibilities for interlocking, signaling, and advanced automation sequences.
• Secure Screw Terminals: All connections, including main, auxiliary, and control circuits, are secured with reliable screw terminals, ensuring a robust and straightforward installation process.
• Compact Size S3: The optimized S3 frame size balances powerful switching capabilities with a space-saving design, ideal for efficient panel layouts.
• Standards Compliant: Adheres to rigorous international standards including IEC 60947‑1, IEC 60947‑4‑1, and IEC 60947‑5‑1 (for auxiliary switches), guaranteeing safety and performance.

Enhanced Protection and Reliability:

The Siemens 3RT2348-1NB30 is built with an emphasis on protection and durability. All connections require suitable short-circuit and overload protection, with detailed guidance available in the technical product data sheet and configuration manuals. The integrated varistor provides crucial overvoltage protection for the control supply, contributing to a longer operational lifespan. For critical low-voltage and low-current applications, the auxiliary contacts ensure high contact reliability, suitable even for solid-state circuits.

Flexible Integration & Maintenance:

This 3RT23 contactor is designed for ease of integration and maintenance. It is compatible with 3RU2 thermal overload relays or 3RB3 electronic overload relays for comprehensive motor protection (though this specific model is primarily for AC-1 loads, the compatibility highlights the series’ versatility). The solenoid coil is replaceable, allowing for extended product life and simplified servicing. Expansion possibilities with additional auxiliary switches further enhance its adaptability to evolving control requirements.

Application

The Siemens 3RT2348-1NB30 contactor is an excellent choice for:

• Four-pole switching of weak or non-inductive loads (AC-1)
• Disconnecting loads or power generation plants from the grid
• Transfer switching applications
• General industrial control and automation systems requiring reliable power switching
