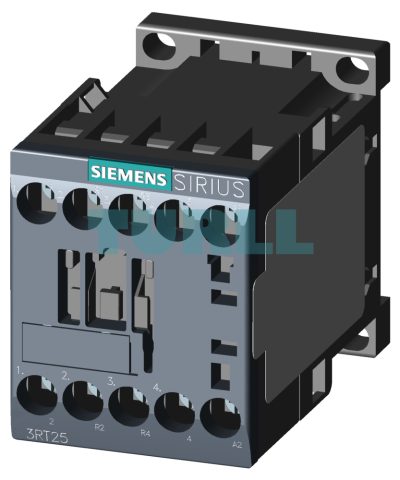

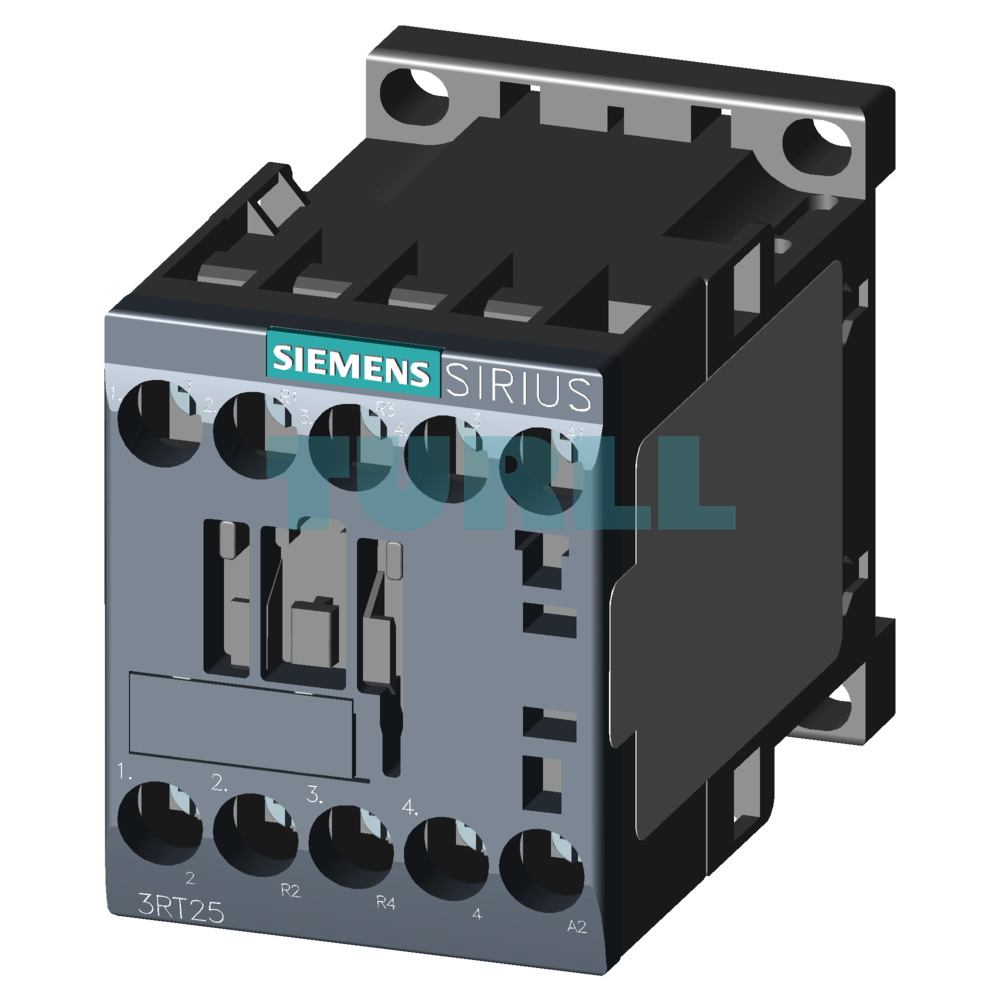

Siemens 3RT2516-1AB00 Power Contactor AC-3, 9A, 4kW, 400V, 4-Pole, 24V AC Coil, S00 Size Original Brand New

Overview

The Siemens 3RT2516-1AB00 is a high-performance power contactor engineered for reliable motor control in industrial applications. Designed for durability and efficiency, this compact S00-size contactor delivers exceptional switching performance in AC-3 duty up to 9 A and 4 kW at 400 V. With a 24 V AC coil and a robust 4-pole configuration featuring 2 NO + 2 NC main contacts, it ensures dependable operation in automation, machinery, and control panel systems.

Key Benefit

• Space-Saving Design: The compact Size S00 minimizes panel space requirements, ideal for constrained environments.

• High Reliability: Part of the trusted SIRIUS modular system, offering convincing performance and high contact reliability even under challenging conditions.

• Versatile Switching: The 4-pole configuration (2 NO + 2 NC) is perfectly suited for complex applications like reversing contactor assemblies or switching two distinct loads.

• Simplified Wiring: Features secure and proven screw terminals for straightforward, durable electrical connections.

• Global Standard Compliance: Approved for worldwide use (e.g., IEC and UL/CSA), ensuring suitability for international projects.

Functions & Features

• Rated Operational Current: 9 A (AC-3)

• Power Rating: 4 kW / 400 V

• Contact Configuration: 4-pole (2 NO + 2 NC)

• Control Voltage: 24 V AC, 50/60 Hz

• Terminal Type: Screw terminals for reliable wiring

• Size: S00 compact frame

• Application Areas: Motor control, switching, automation, machinery, and power distribution systems

Visit 3RT2516-1AB00 for more detail info

For more our products visit turll

Download

Datasheet in PDF
