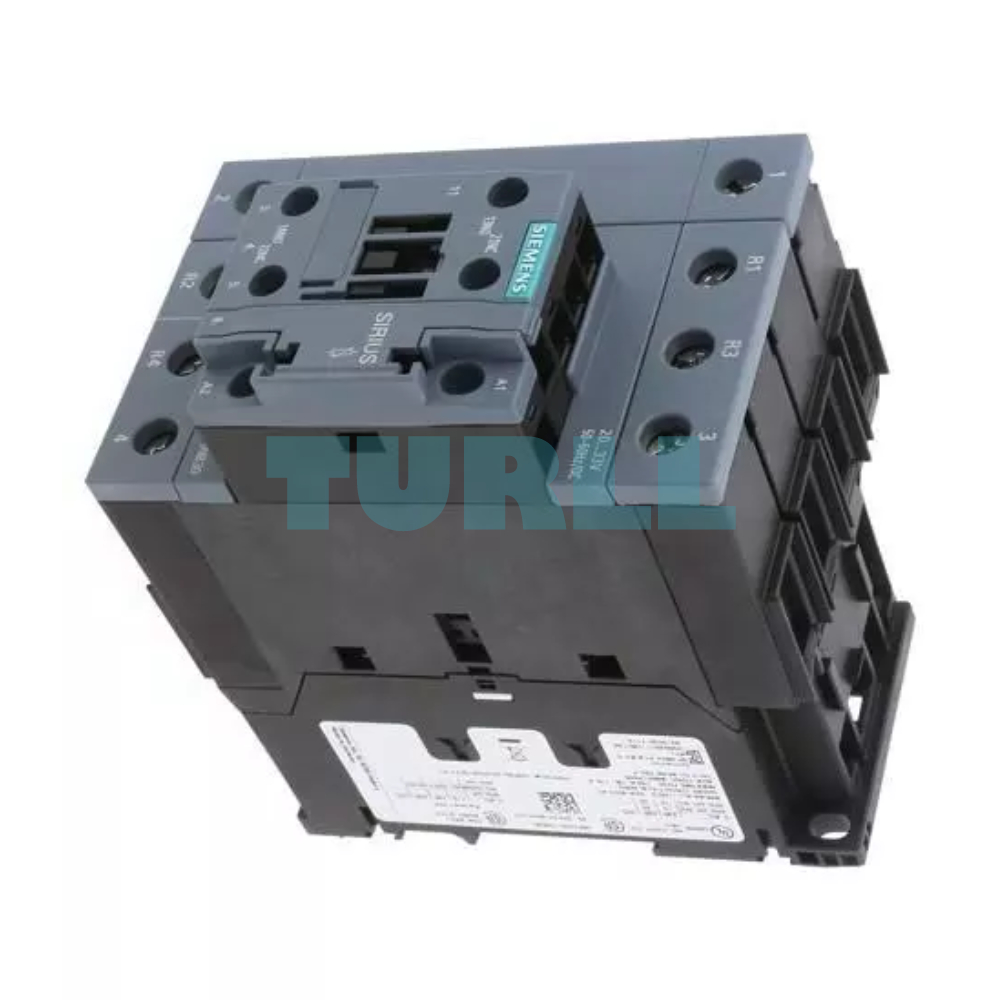

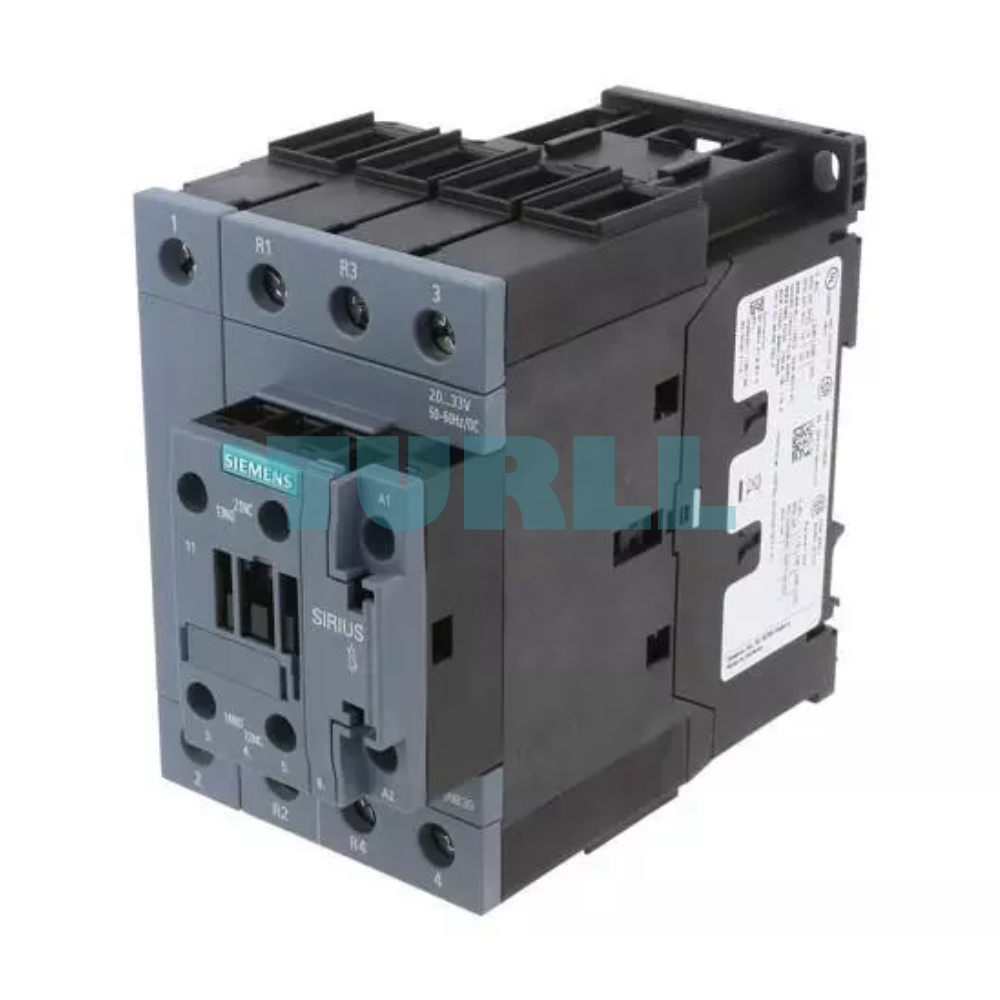

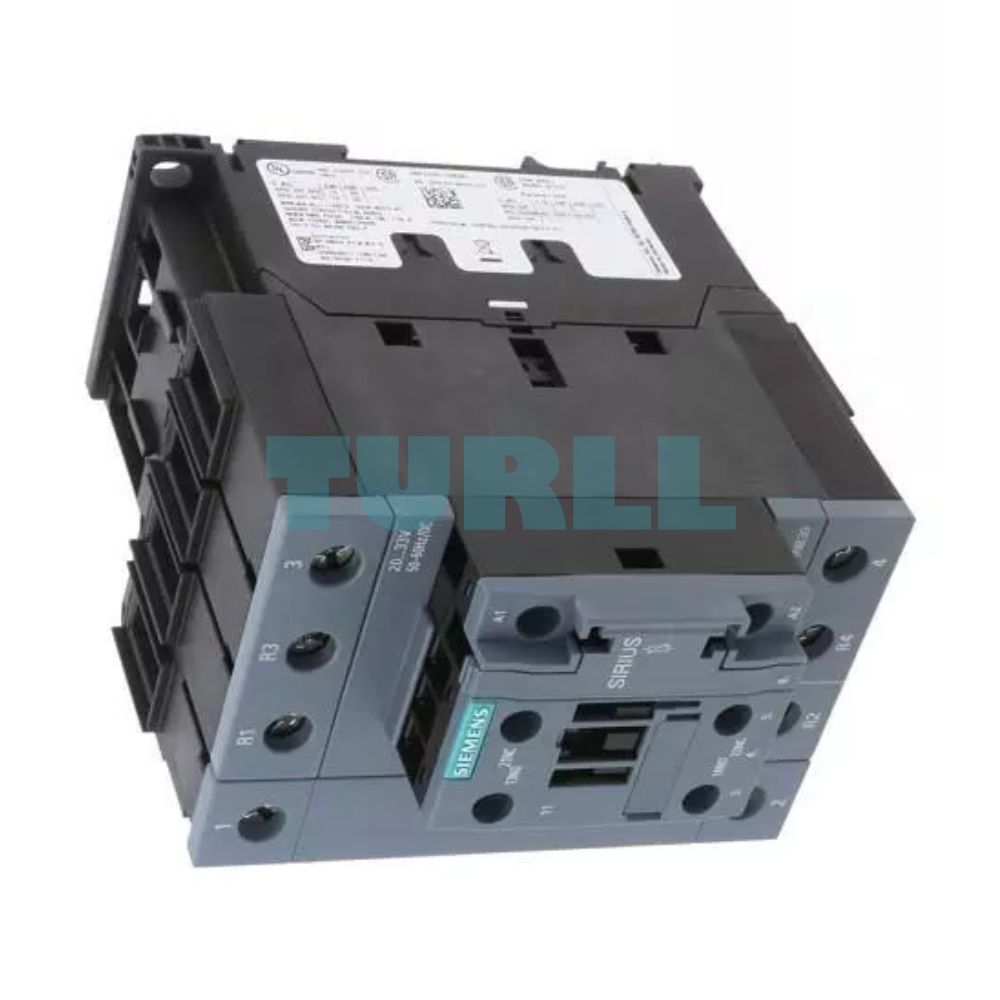

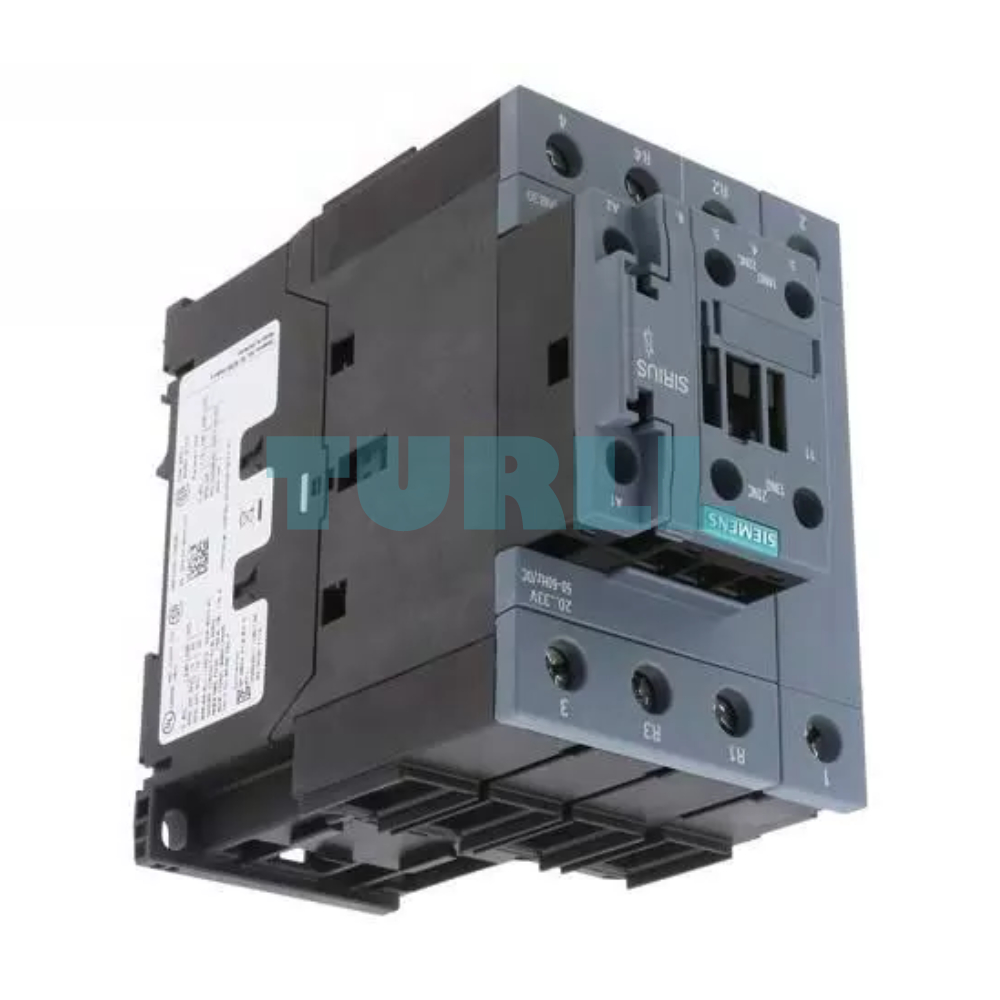

The Siemens 3RT2535-1AB00 is a high-performance power contactor designed for reliable switching of AC motors and industrial loads. Engineered for durability and precision, this 4-pole contactor ensures optimal performance for medium-duty motor control applications. With a 35 A AC-3 rating and 18.5 kW capacity at 400 V, it is ideal for industrial automation systems, offering both efficiency and safety.
AC-3 Rated: Perfect for motor switching applications.
Current & Voltage: 35 A, 18.5 kW at 400 V ensures robust performance.
Poles: 4-pole configuration for versatile connectivity.
Coil Voltage: 24 V AC, 50 Hz.
Contacts: Main contacts: 2 NO + 2 NC; Auxiliary contacts: 1 NO + 1 NC.
Connection Type: Screw terminals for secure and reliable connections.
Size: Compact S2 size for easy integration into existing panels.
Reliable Operation: Siemens engineering guarantees long-lasting durability.
Efficient Motor Control: Optimized for AC-3 rated loads, ensuring smooth switching.
Easy Installation: Screw terminal design simplifies wiring and maintenance.
Versatile Use: Suitable for a wide range of industrial automation and motor applications.
The 3RT2535-1AB00 contactor primarily functions as a remotely controlled switch in electrical circuits. Its 4-pole (2 NO + 2 NC) main contacts make it ideal for:
Motor Control: Switching 3-phase AC motors (AC-3 category) or controlling loads where four distinct poles are required.
Load Switching: Handling high-current resistive and non-inductive loads (AC-1).
Circuit Isolation: Providing a safe disconnection point in industrial machinery.
The combination of main and integrated 1 NO + 1 NC auxiliary contacts provides immediate feedback on the contactor's switching status for interlocking and control circuitry.
For more Siemens SIRIUS 3RT2 products and other industrial control components, visit turll today!
| SKU / Model | 3RT2535-1AB00 |
|---|---|
| Weight | 1.142 kg |
| Dimensions | 122.5 × 82 × 142 mm |
