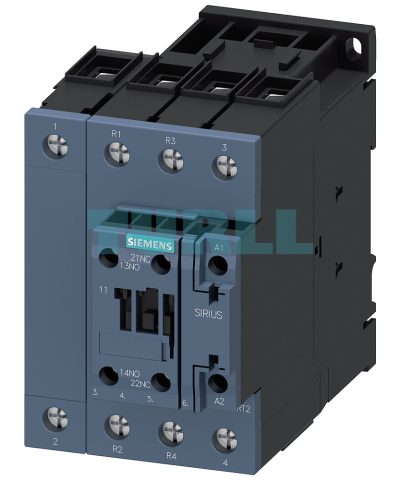

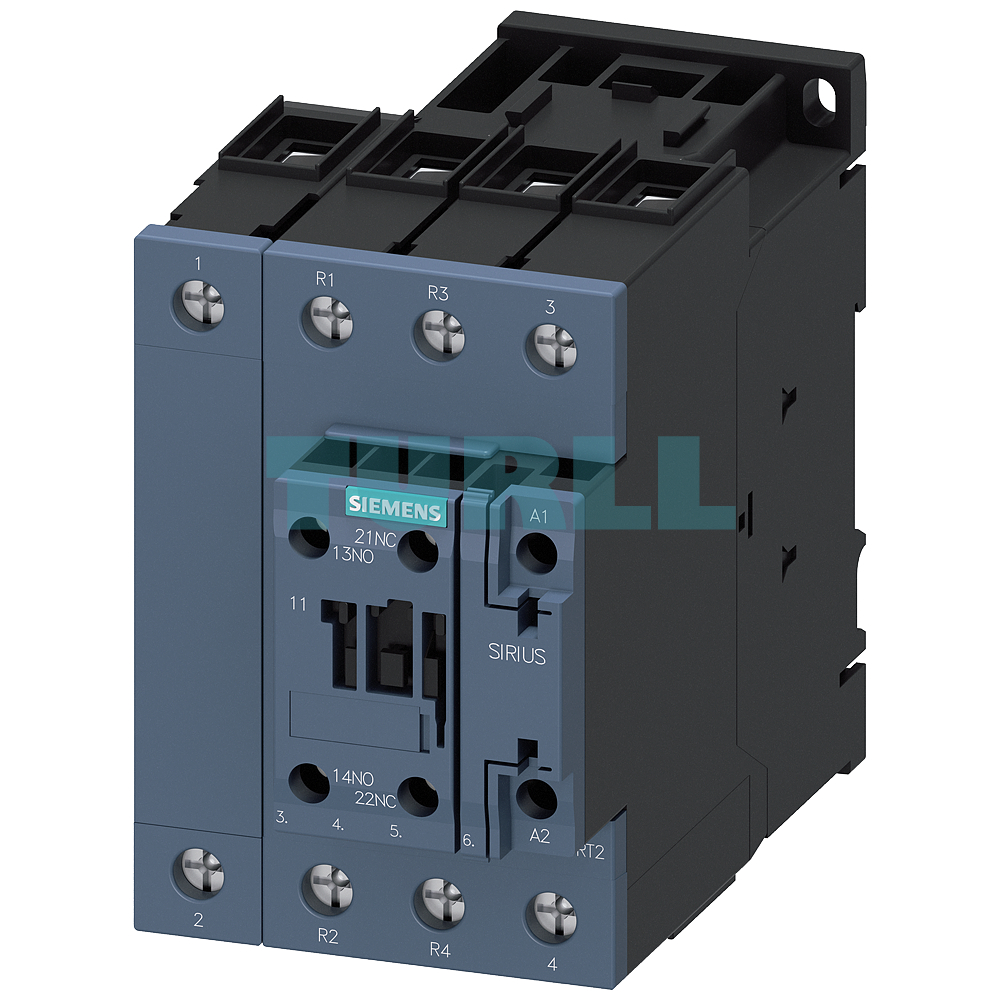

Siemens 3RT2535-1AP60 Power Contactor 35A, AC-3, 18.5 kW / 400V, 4-Pole Original Brand New

Overview

The Siemens 3RT2535-1AP60 is a robust, high-performance power contactor designed for demanding industrial switching applications, especially motor control under the AC-3 utilization category. Part of the reliable SIRIUS 3RT2 series, this contactor offers exceptional current switching capability and high operational reliability in a compact Size S2 form factor. It is the ideal component for safely and efficiently controlling motors up to 18.5 kW at 400 V.

Benefit

• Optimized Motor Control: Classified for AC-3 operation, it reliably handles high-inrush currents associated with motor starting.

• Versatile Switching: Features a 4-pole configuration (2 NO + 2 NC main contacts), providing flexibility for applications requiring the switching of four separate load circuits, dual-voltage systems, or non-motor loads.

• Global Compatibility: Equipped with a wide-range control coil compatible with standard line voltages: 220 V AC, 50 Hz, or 240 V AC, 60 Hz.

• Reliable Connections: Utilizes screw terminals for secure, robust, and easy wiring connections, minimizing downtime during installation and maintenance.

• Space-Saving Design: Despite its high power rating (35 A), the Size S2 design allows for efficient installation in control cabinets.

Key Features & Function

• Type: AC-3 Power Contactor

• Rated Current: 35 A

• Power Rating: 18.5 kW / 400 V

• Poles: 4

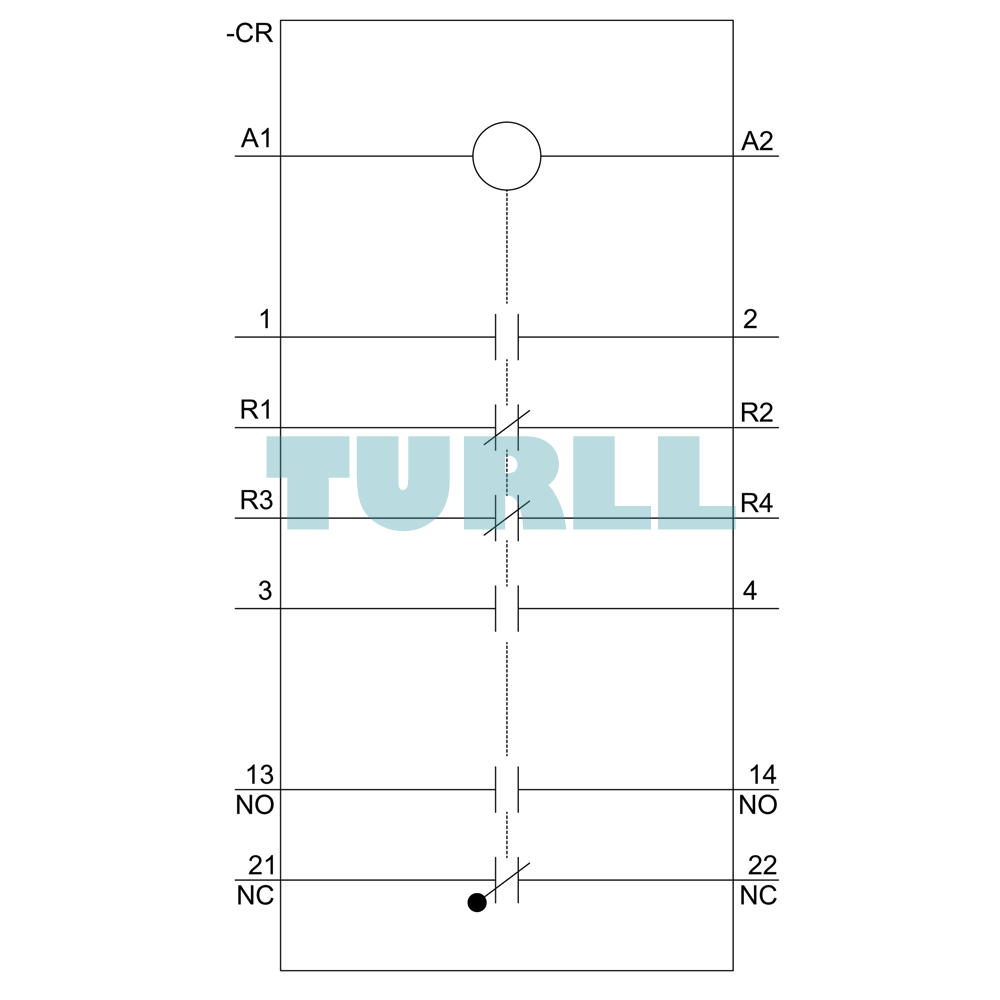

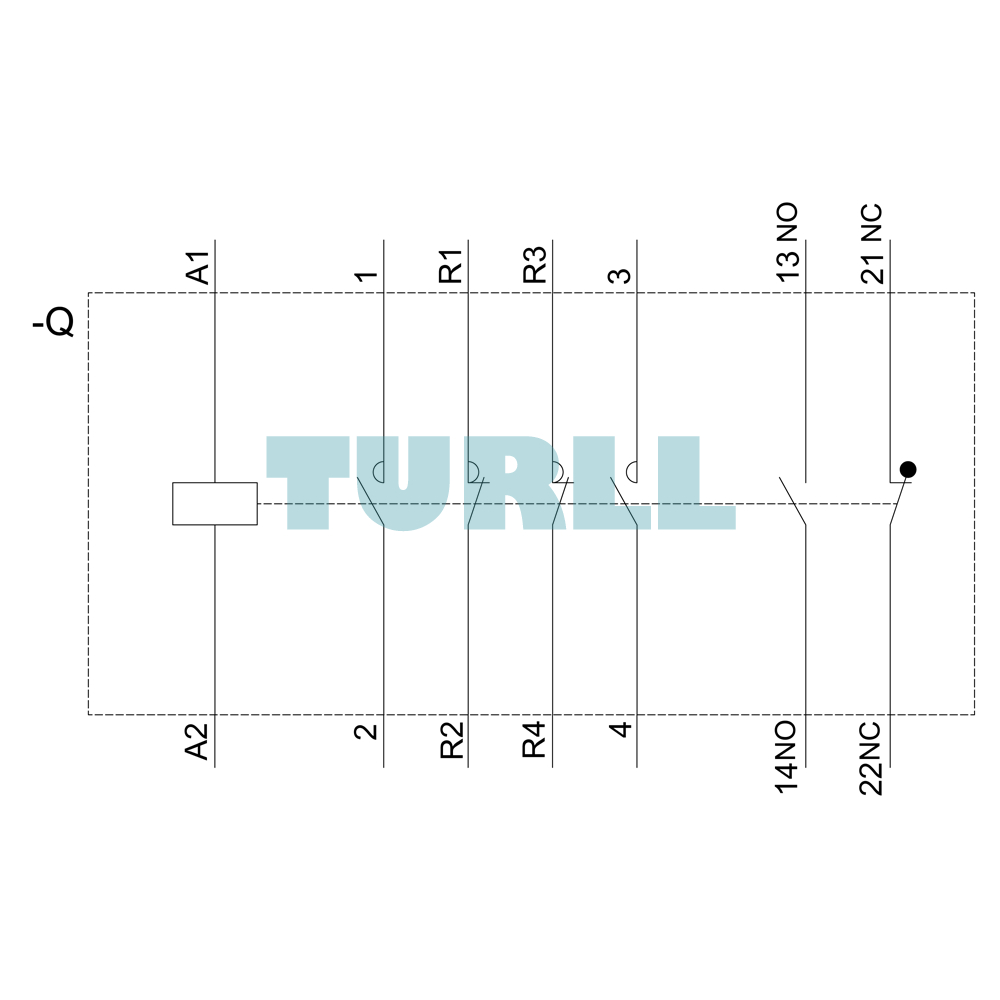

• Main Contacts: 2 Normally Open (NO) + 2 Normally Closed (NC)

• Auxiliary Contacts: 1 NO + 1 NC

• Coil Voltage: 220 V AC (50 Hz) / 240 V AC (60 Hz)

• Terminal Type: Screw

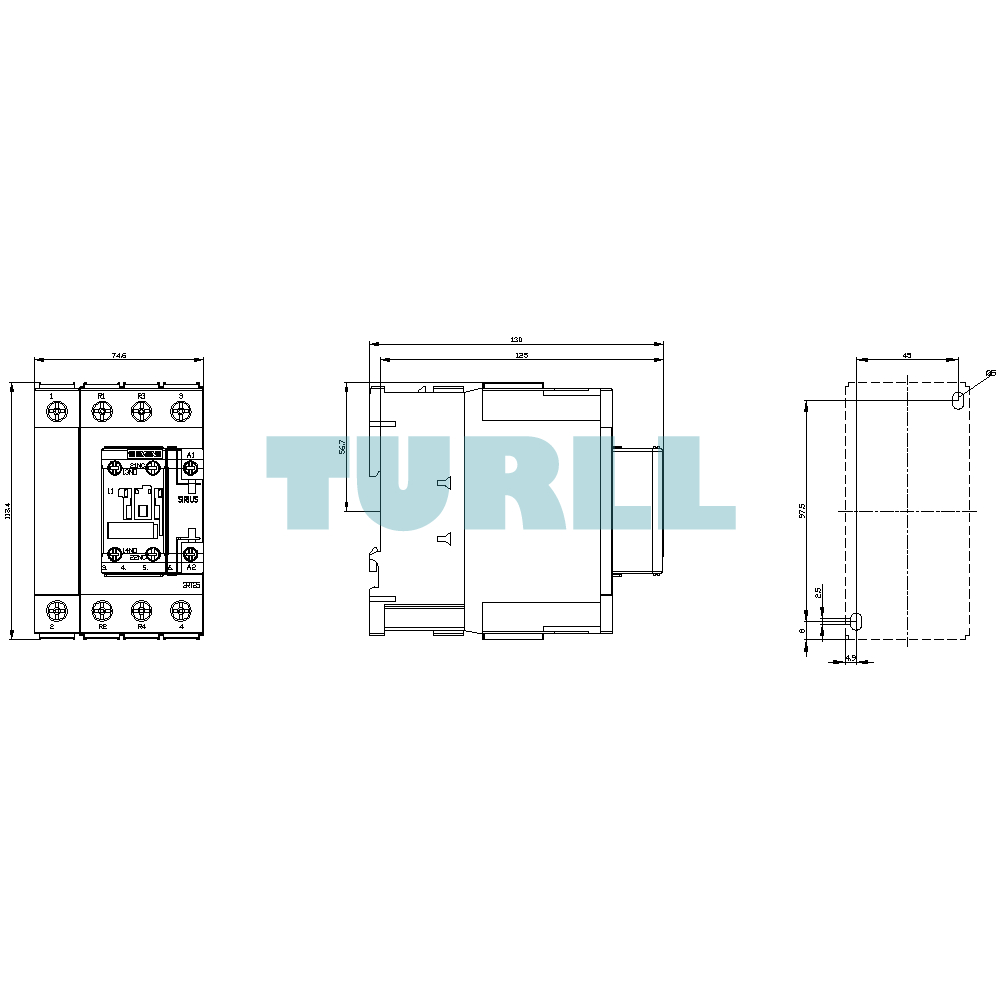

• Size: S2

• Ensures reliable motor and load control in industrial environments

• Compact design for easy installation in control panels
