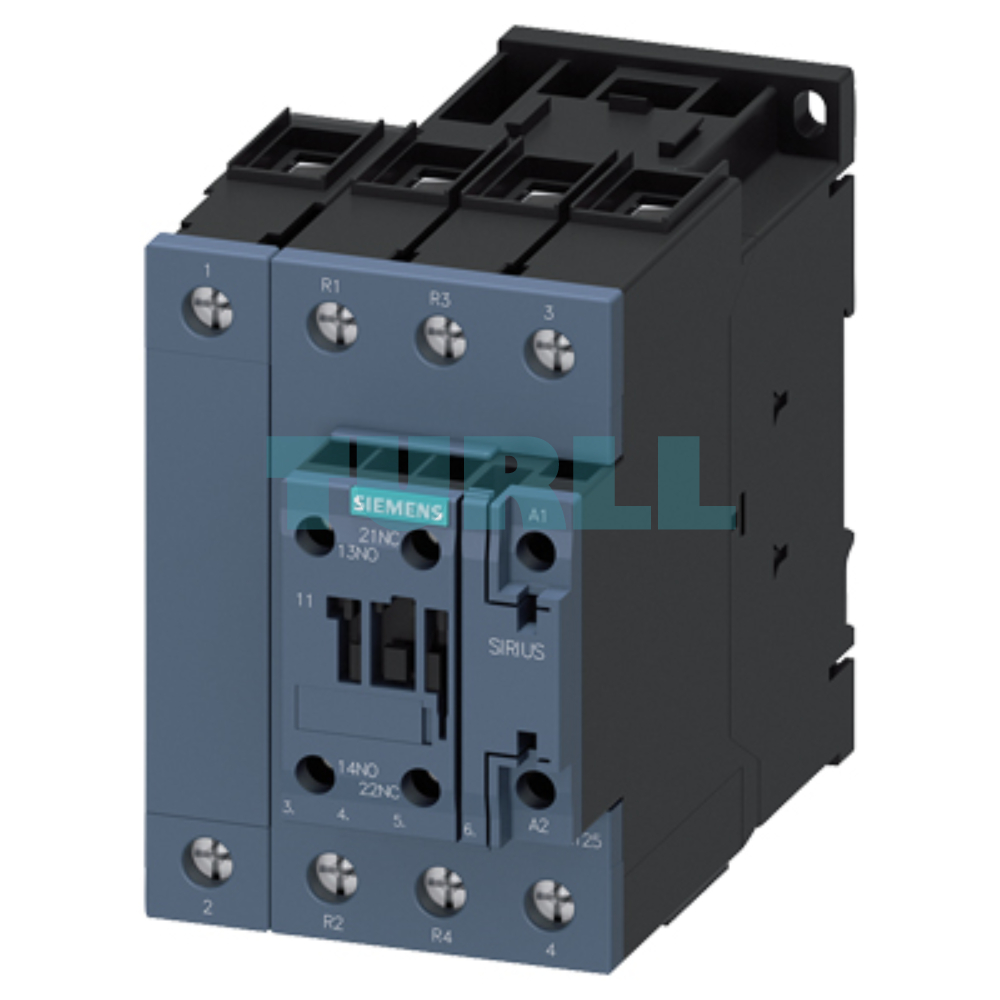

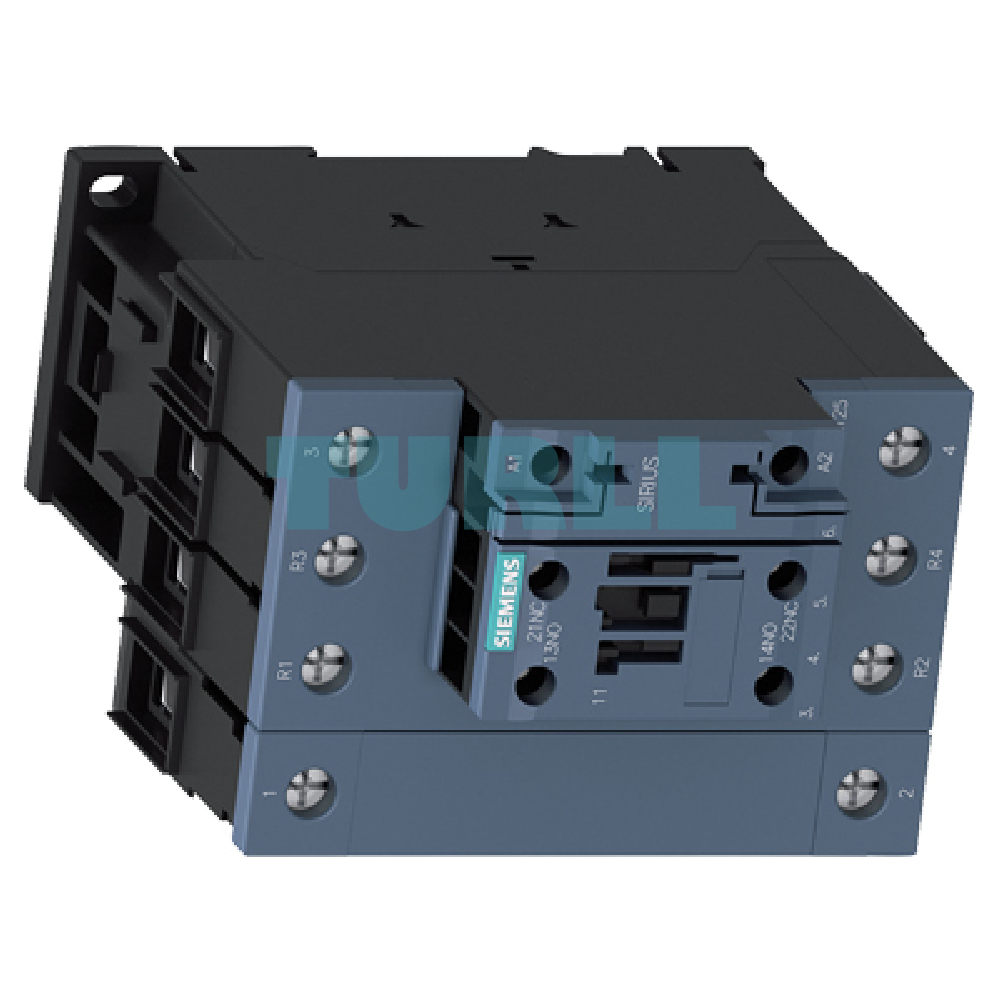

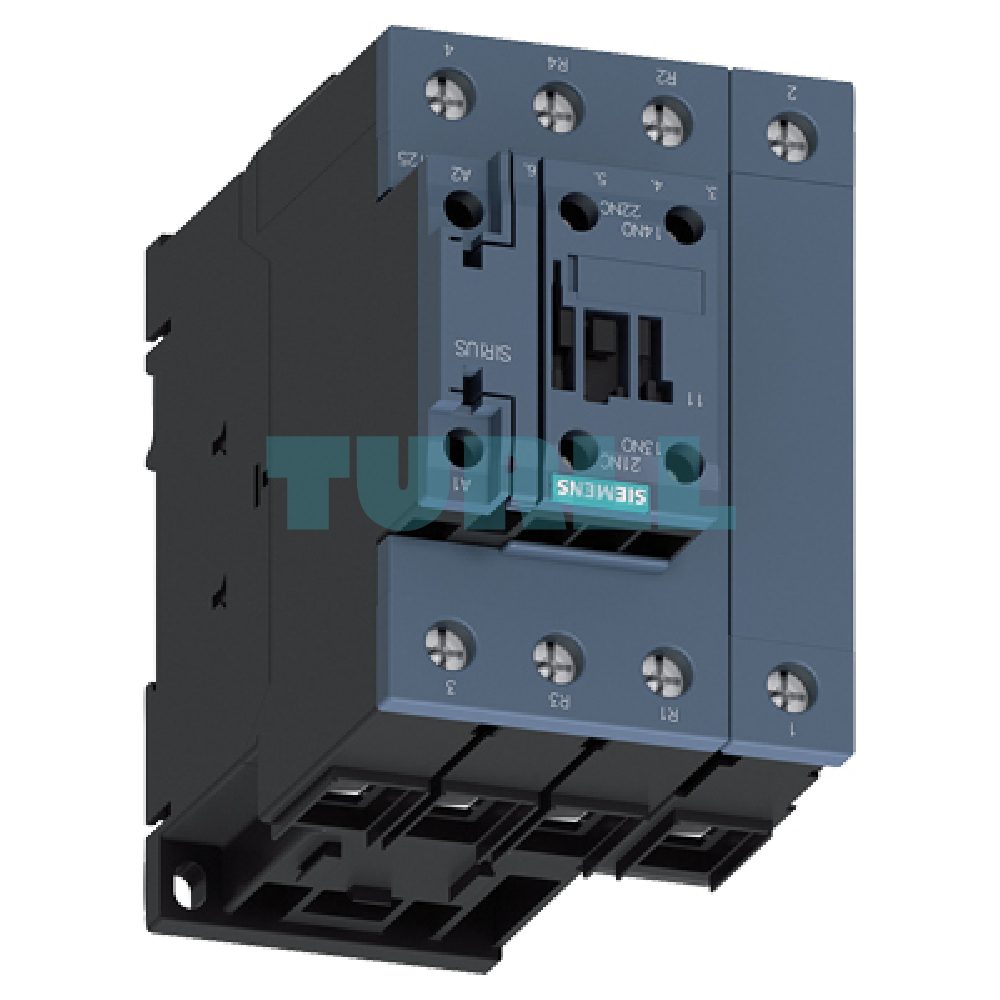

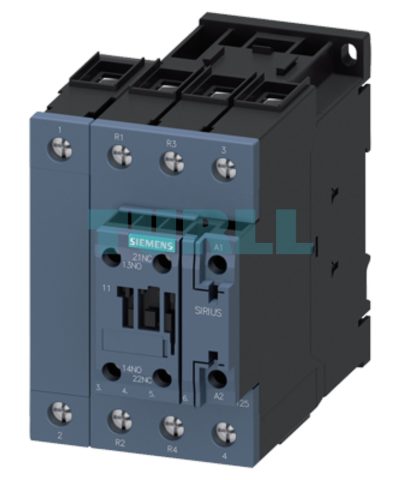

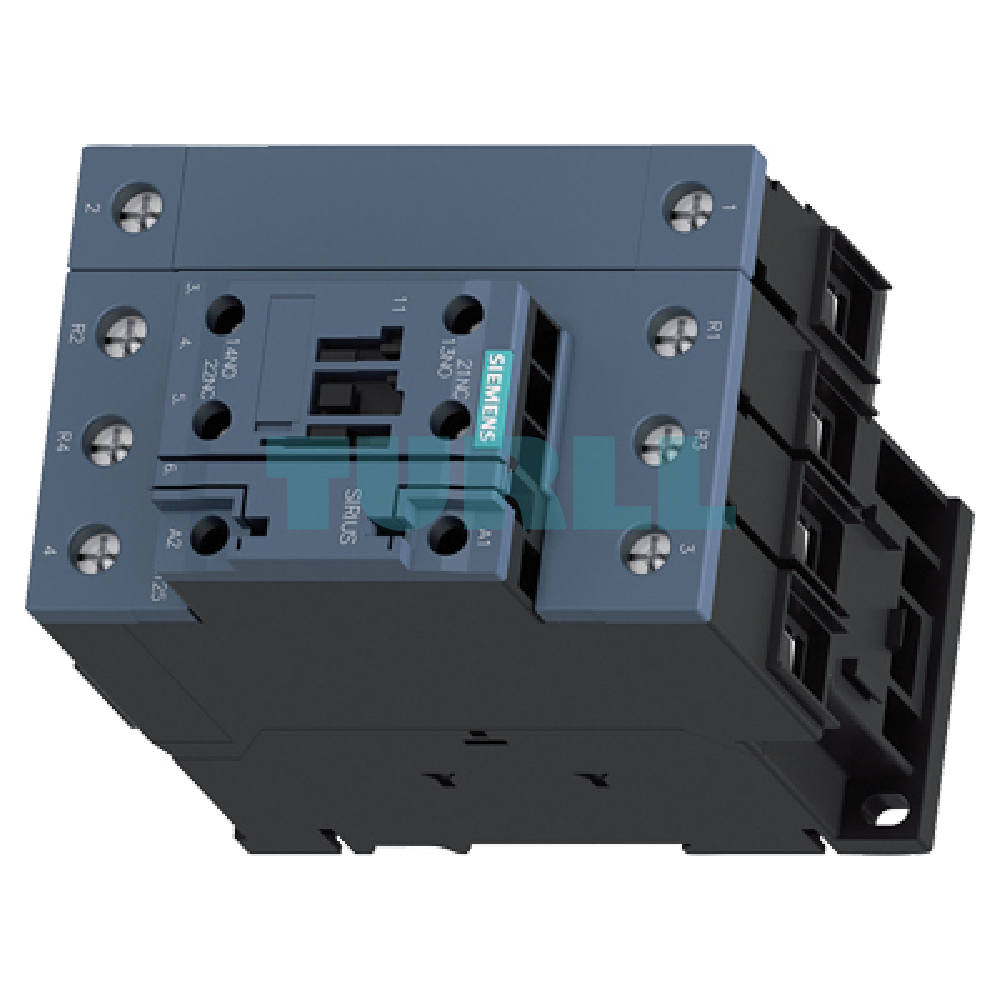

Siemens 3RT2535-1NF30 Power Contactor 35A AC-3, 18.5 kW / 400V, 4-Pole with Integrated Varistor Original Brand New

Overview

The Siemens SIRIUS 3RT2535-1NF30 Power Contactor is a robust and flexible switching solution designed for high-performance industrial applications. As part of the SIRIUS 3RT2 series, this 4-pole contactor is perfectly suited for switching resistive and low-inductance loads (AC-1) as well as motor loads up to 18.5 kW at 400 V (AC-3).

Its most notable feature is the wide operating voltage range coil (83-155 V AC/DC), offering maximum flexibility and simplified inventory management. With an integrated varistor for surge protection, the contactor ensures high reliability and extended coil life by suppressing switching overvoltages. Rated for 35 A and built in the compact Size S2 housing, the 3RT2535-1NF30 utilizes secure and reliable screw terminals for all connections.

Key Benefit

• Reliable Motor Control: AC-3 rated for heavy-duty motor applications up to 18.5 kW / 400 V.

• Enhanced Protection: Integrated varistor safeguards your system against voltage spikes.

• Versatile Operation: Wide control voltage range (83-155 V AC/DC) compatible with diverse setups.

• Compact & Robust: Space-saving S2 size with durable screw terminals ensures long-term reliability.

• Flexible Contact Options: Main contacts 2 NO + 2 NC and auxiliary contacts 1 NO + 1 NC for efficient wiring.

Function

• Switching and controlling AC motors and industrial loads.

• Providing overload and short-circuit protection in combination with other devices.

• Facilitating energy-efficient operation of industrial machinery.

• Ensuring system reliability with integrated surge protection via varistor.

Specification

• Type: Power Contactor

• Rated Operational Current: AC-3, 35 A

• Rated Power: 18.5 kW / 400 V

• Poles: 4-pole

• Control Voltage: 83-155 V AC/DC, 50/60 Hz

• Main Contacts: 2 NO + 2 NC

• Auxiliary Contacts: 1 NO + 1 NC

• Terminals: Screw

• Size: S2

• Special Feature: Integrated Varistor
