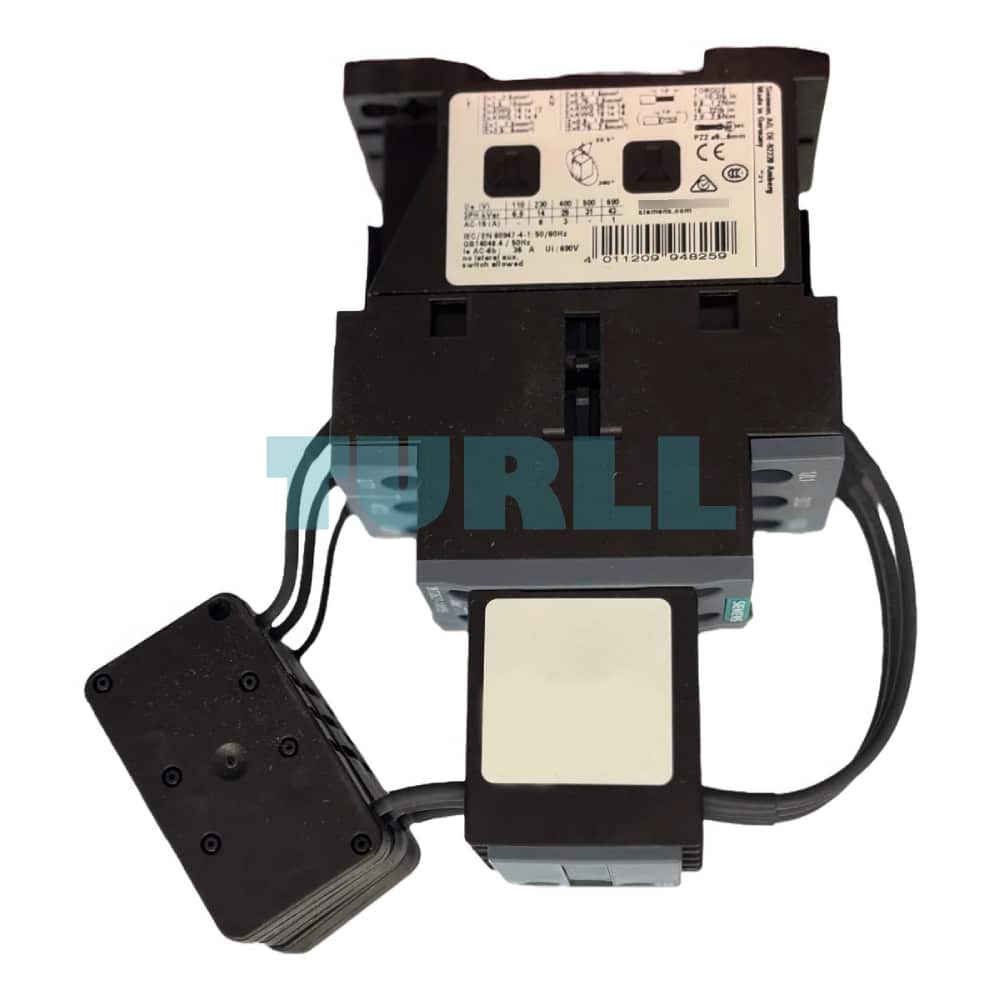

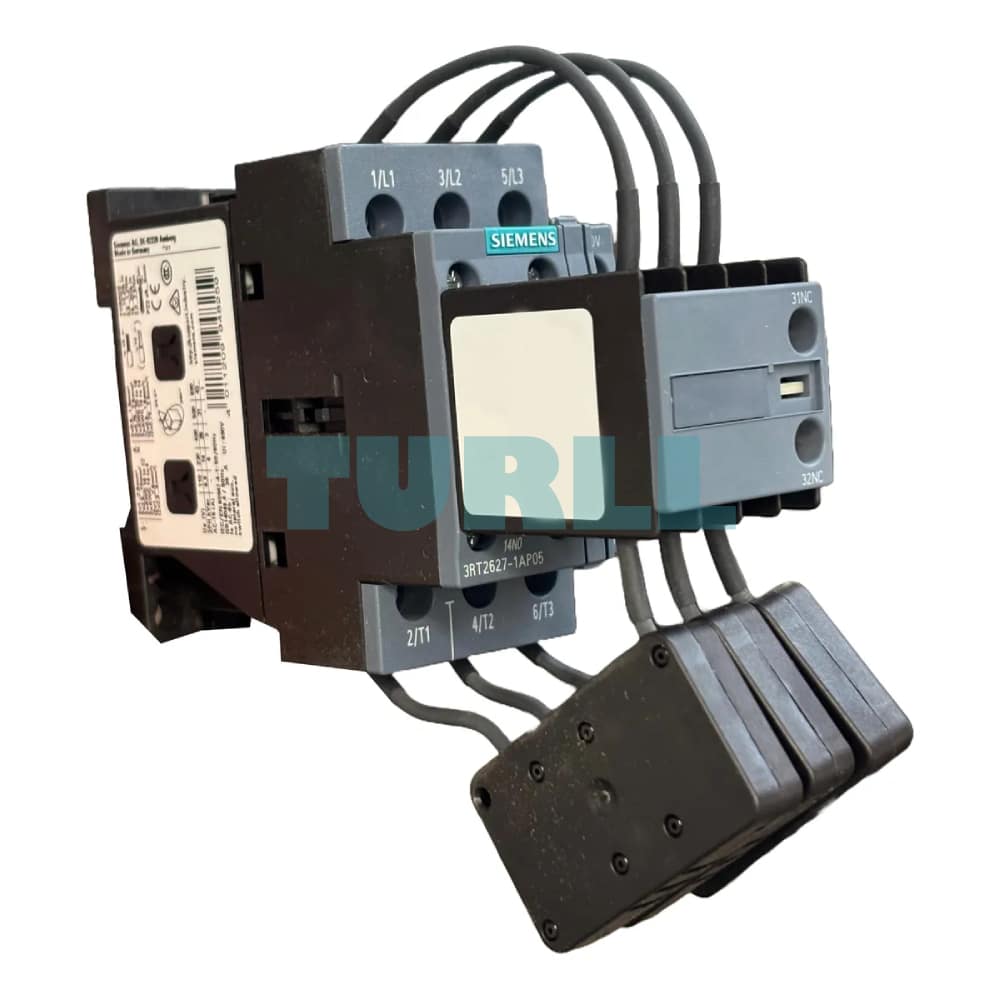

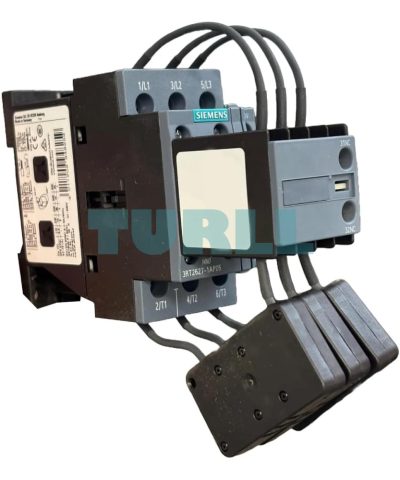

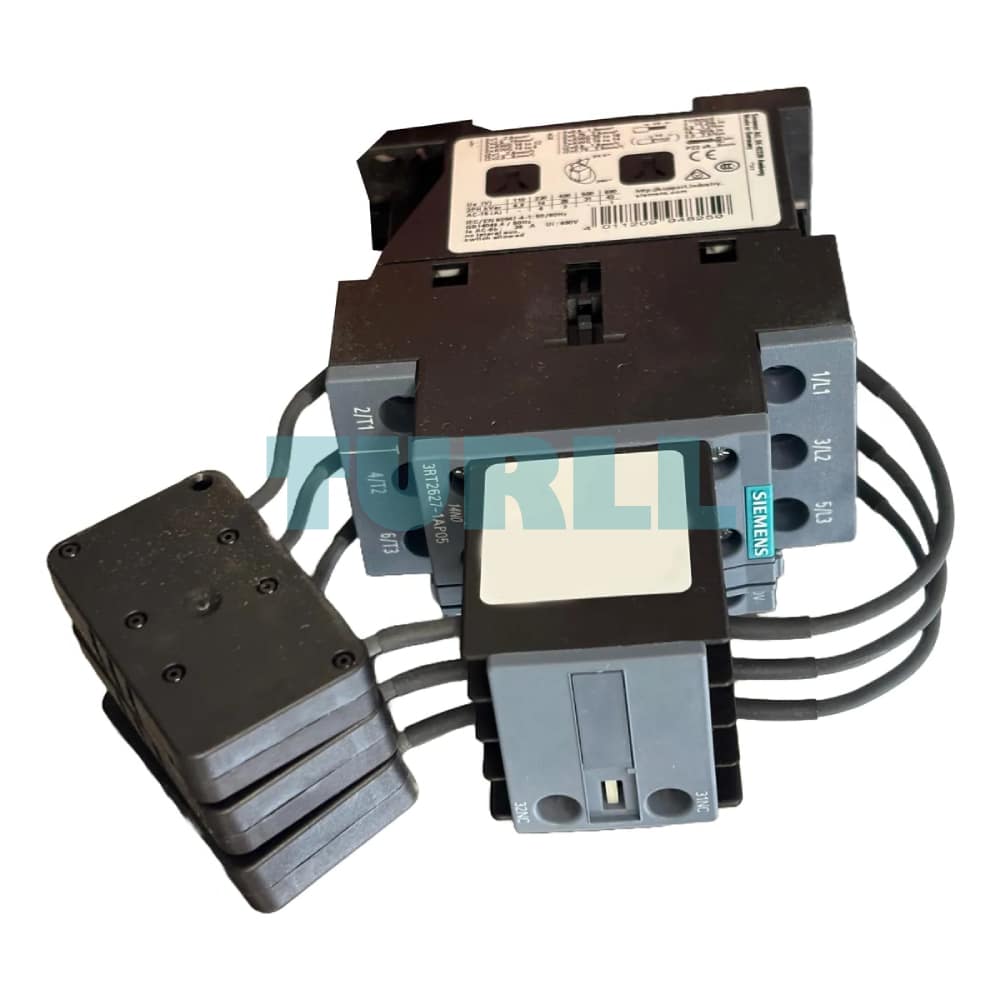

Siemens 3RT2627-1AP05 Capacitor Contactor, AC-6b 25 kVAr, 230V AC Coil, 1 NO + 2 NC Aux Contacts, Size S0 Original Brand New

Overview

The Siemens 3RT2627-1AP05 is a high-performance capacitor contactor from the SIRIUS line, specifically engineered for switching capacitive loads up to 25 kVAr at 400 V. This specialized contactor, a variant of the robust 3RT2 series, is designed to minimize electrical stress on the power supply network and prolong the life of connected equipment. Its key feature is the integrated precharging resistors, which are engaged via leading auxiliary contacts before the main contacts close. This ingenious mechanism effectively limits the inrush current spikes that occur when switching capacitive loads, ensuring a smooth and reliable operation. The 3RT2627-1AP05 is ideal for use in reactive current compensation systems, where it handles both choked and unchoked capacitors, and is also suitable for switching converters.

Features & Benefit

• Optimized for Capacitive Loads: Specifically designed for AC-6b applications, providing superior performance and longevity when switching capacitors.
• Inrush Current Limitation: The integrated precharging resistors significantly reduce peak charging currents, protecting both the contactor and the power supply network.
• High-Quality Construction: Built to international standards (IEC 60947 series, IEC 60831-1, IEC 61921), guaranteeing reliability and safety.
• Versatile Application: Perfect for reactive power compensation systems and converter switching applications.
• Comprehensive Auxiliary Contacts: Equipped with a total of 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts, providing flexibility for control and signaling circuits.
• User-Friendly Installation: Features a convenient screw terminal system for secure and straightforward wiring.
• Compact Design: The Size S0 form factor allows for space-saving installation in control panels and cabinets.
• Easy Expansion: Compatible with additional lateral auxiliary switches for future system expansion and customization.

Functionality

The 3RT2627-1AP05 operates by utilizing a clever two-stage switching process. When the control coil is energized, leading auxiliary contacts close first, engaging the precharging resistors. These resistors are connected in series with the main contacts and serve to dampen the initial surge of current as the capacitor begins to charge. After a fraction of a second, the main contacts close, bypassing the resistors and allowing the full current to flow. This sequential operation prevents high-frequency current spikes, which can cause contact welding, damage to the capacitor, and power quality issues. The device’s robust design and integrated features make it an essential component for any system requiring efficient and safe switching of capacitive loads.
