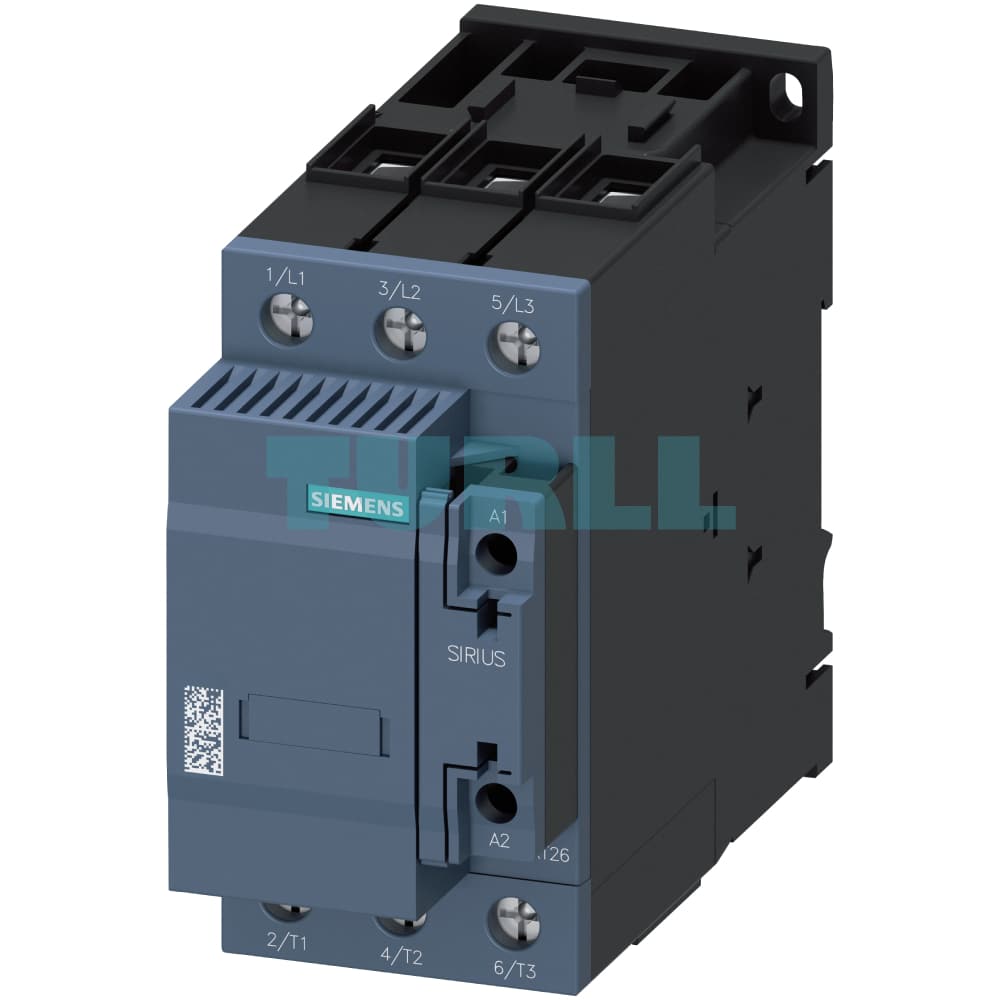

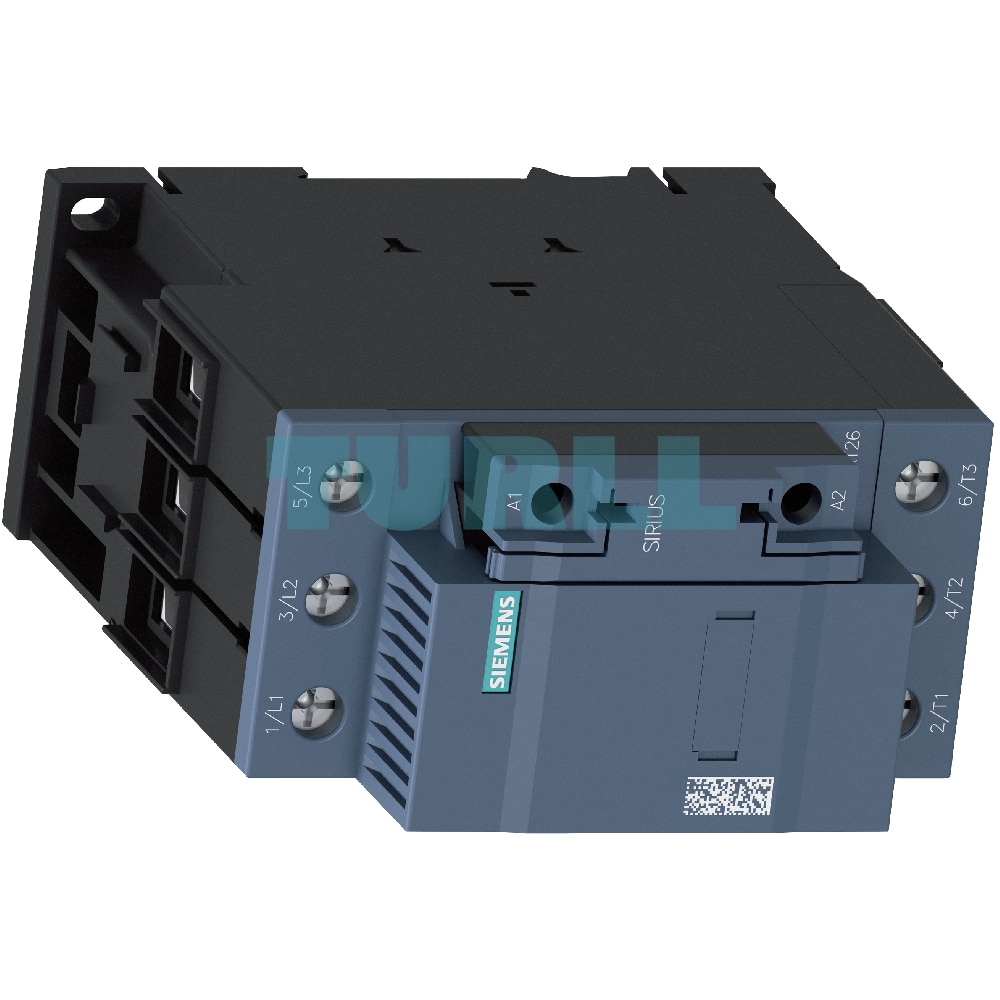

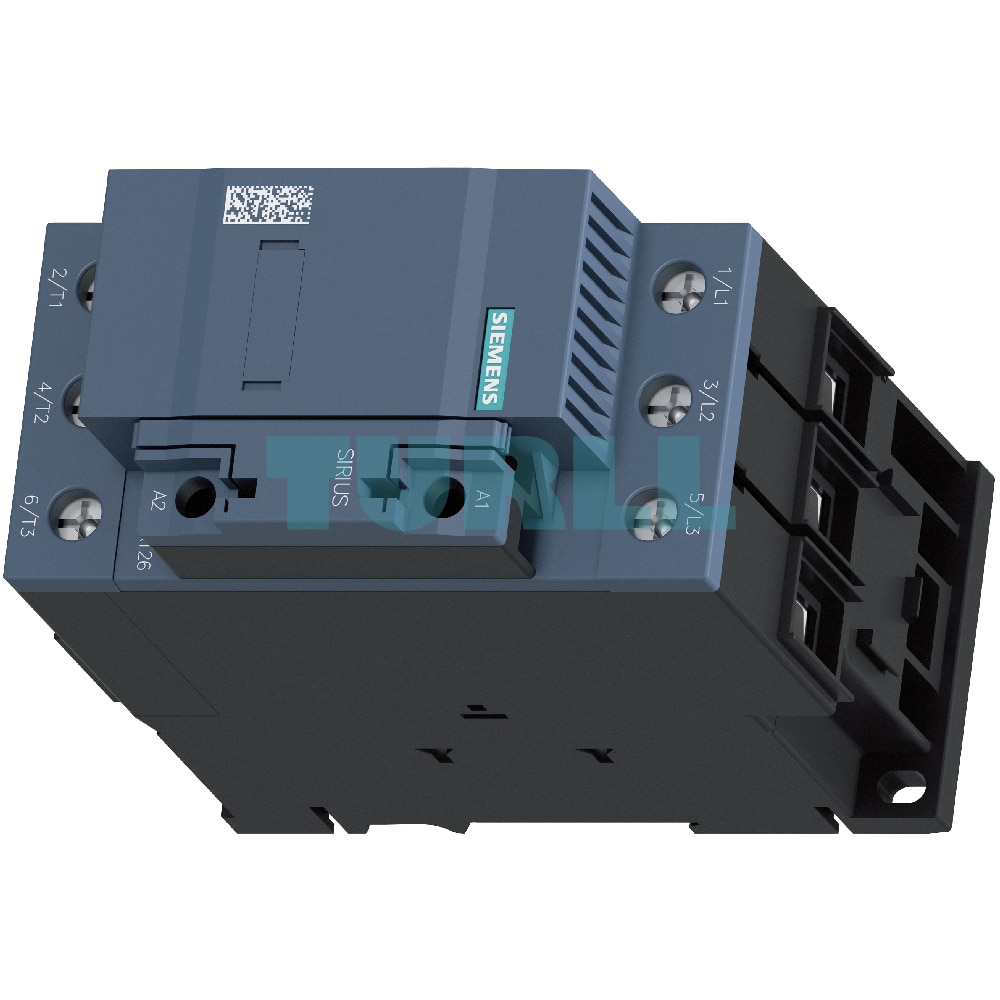

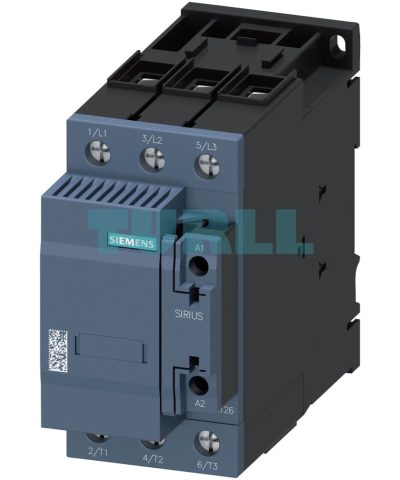

Siemens 3RT2636-1AF05 Capacitor Contactor S2 Size, 50 kVAr / 400V, 110V AC Coil, 2 NC Aux Contact Original Brand New

Overview

The Siemens SIRIUS 3RT2636-1AF05 is a high-performance capacitor contactor specifically engineered for switching capacitive loads in power factor correction systems. This robust size S2 contactor is designed for AC-6b applications up to 50 kVAr at 400 V, making it an ideal solution for industrial and commercial reactive power compensation. Its unique design features leading auxiliary contacts that switch on precharging resistors, effectively limiting the inrush current and protecting the power supply network from negative impacts.

Features & Benefit

• Optimized for Capacitive Loads: Specifically designed for AC-6b switching of capacitors, ensuring reliable and safe operation in reactive current compensation systems.
• Inrush Current Limitation: Integrated precharging resistors, activated by leading auxiliary contacts, minimize the peak charging current of capacitors, reducing stress on the electrical grid and prolonging equipment life.
• Versatile Application: Suitable for switching both choked and unchoked capacitors and can also be used in converter applications.
• Robust & Reliable: Built to Siemens’ high-quality standards, ensuring long-term durability and performance in demanding industrial environments.
• Efficient Operation: The 110 V AC, 50 Hz coil provides reliable control, while the screw terminals offer secure and easy wiring.
• Integrated Auxiliary Contacts: Features two normally closed (2 NC) auxiliary contacts for flexible integration into control circuits and monitoring systems.
• Expandable Design: The S2 size contactor can be expanded with additional lateral auxiliary switches, offering greater customization and control functionality.

Function

The Siemens 3RT26 contactors are special variants of the 3RT2 series, purpose-built for the switching of capacitive loads (AC-6b). Their primary function is to safely and efficiently connect and disconnect capacitors in reactive current compensation systems. The key to their operation lies in the leading auxiliary contacts, which close milliseconds before the main contacts. These auxiliary contacts first engage the integrated precharging resistors, which absorb the initial high inrush current from the capacitors. Once the inrush current is safely absorbed, the main contacts close, allowing the full current to flow. This clever design prevents voltage sags and harmonics that can be detrimental to the power supply network and other sensitive equipment.

Standards

This product is manufactured and tested to meet stringent international standards, including:

• IEC 60947-1: Low-voltage switchgear and controlgear – General rules
• IEC 60947-4-1: Contactors and motor-starters – Electromechanical contactors and motor-starters
• IEC 60947-5-1: Control circuit devices and switching elements – Electromechanical control circuit devices
• IEC 60831-1: Shunt power capacitors of the self-healing type for AC systems having a rated voltage up to and including 1000 V – General
• IEC 61921: Power capacitors – Power factor correction and reactive power compensation systems – General rules
