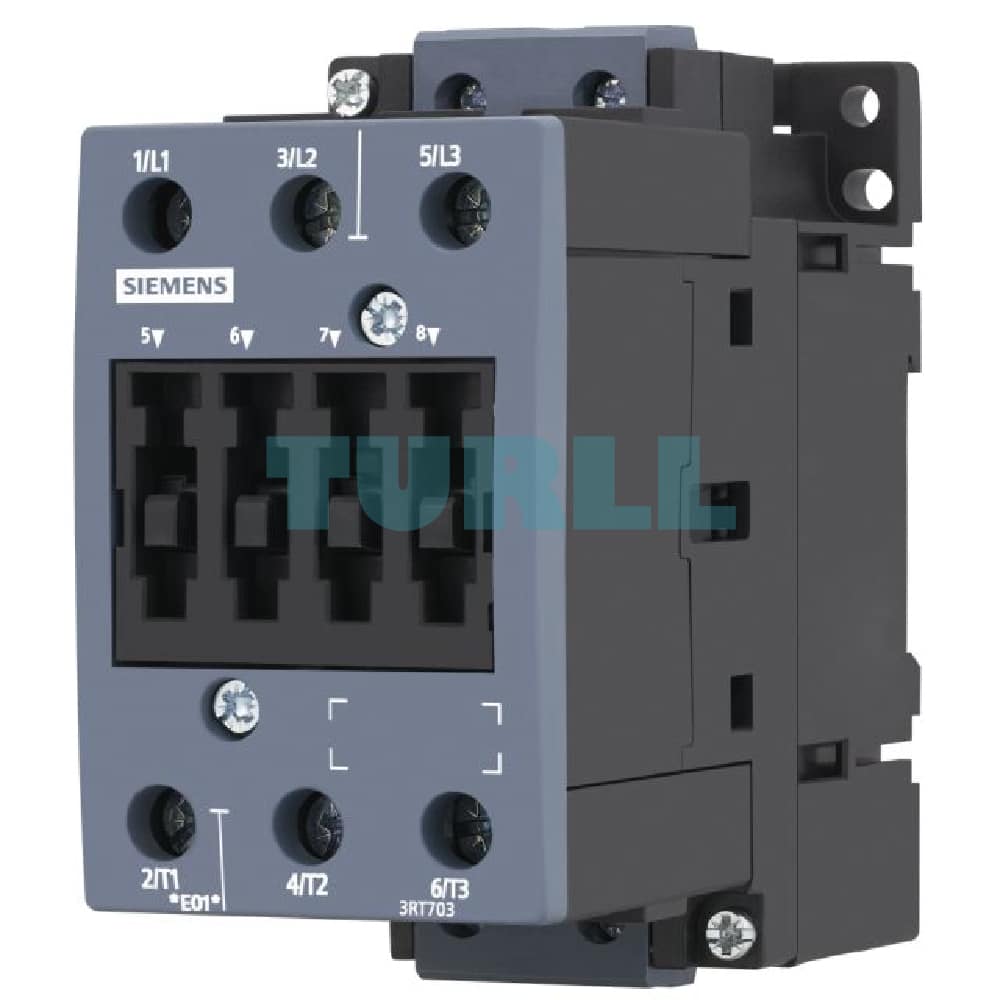

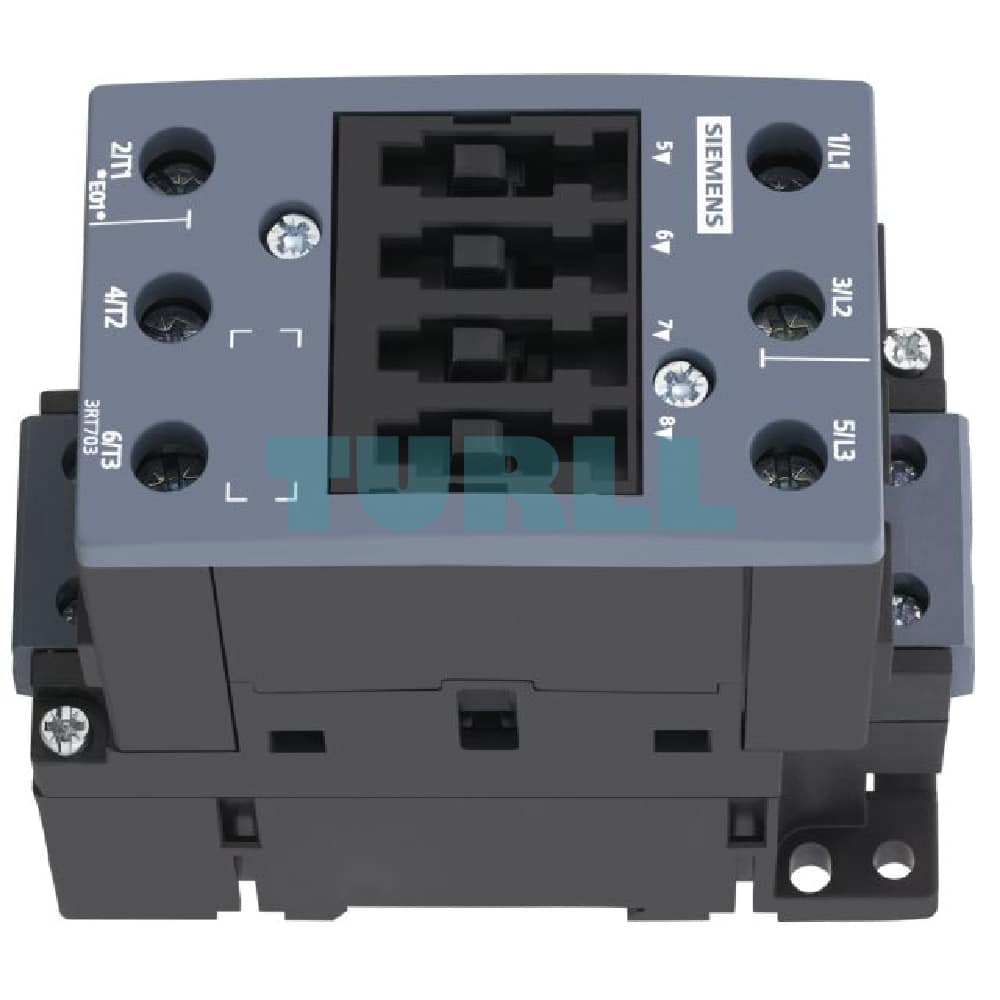

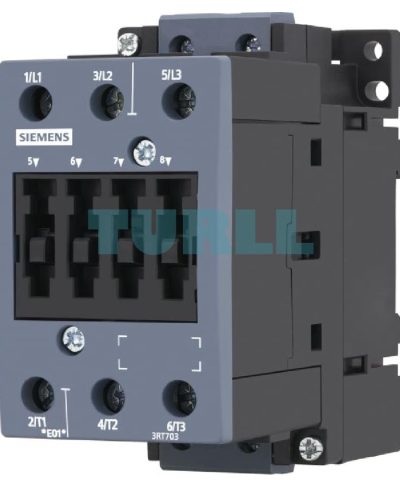

Siemens 3RT7035-1AP00 Contactor AC-3, 40A, 18.5kW, 230V AC Coil, 3-Pole, Size S2, Screw Terminal Original Brand New

Overview

The Siemens 3RT7035-1AP00 is a high-performance, 3-pole contactor designed for reliable switching of standard and demanding AC-3 applications. This model is part of the SIRIUS 3RT series, renowned for its compact design, robust construction, and high switching capacity. With a rated operational current of 40A at 400V, it is the ideal choice for controlling motors up to 18.5kW, as well as for general resistive loads. The contactor features a 230V AC, 50 Hz control coil and secure screw terminals, ensuring a stable and easy-to-manage connection in your electrical panels. Its Size S2 form factor makes it suitable for a wide range of industrial and commercial applications where space efficiency is a priority.

Key Benefit & Features

• Reliable Performance: Engineered to meet the demanding requirements of AC-3 duty, ensuring long-term operational reliability for motor control.
• High Switching Capacity: Rated for 40A at 400V, capable of handling significant power loads up to 18.5kW.
• Versatile Application: Suitable for controlling 3-phase motors, heating systems, and other general industrial loads.
• Space-Saving Design: The compact Size S2 frame allows for high-density panel layouts without compromising on performance.
• Secure Connection: Equipped with robust screw terminals for a reliable and vibration-resistant electrical connection.
• Easy Integration: Compatible with the extensive range of SIRIUS accessories, including auxiliary contacts, overloads, and surge suppressors.
• Globally Recognized Quality: As a Siemens product, it adheres to the highest international quality and safety standards.

Technical Specification

• Product Type: Contactor
• Product Number: 3RT7035-1AP00
• Brand: Siemens
• Series: SIRIUS 3RT
• Poles: 3-pole
• Rated Operational Current (Ie): 40 A (at 400V, AC-3)
• Rated Operational Power (Pe): 18.5 kW (at 400V, AC-3)
• Control Coil Voltage (Us): 230 V AC, 50 Hz
• Size: S2
• Connection Type: Screw terminals
• Mounting: DIN rail mountable
