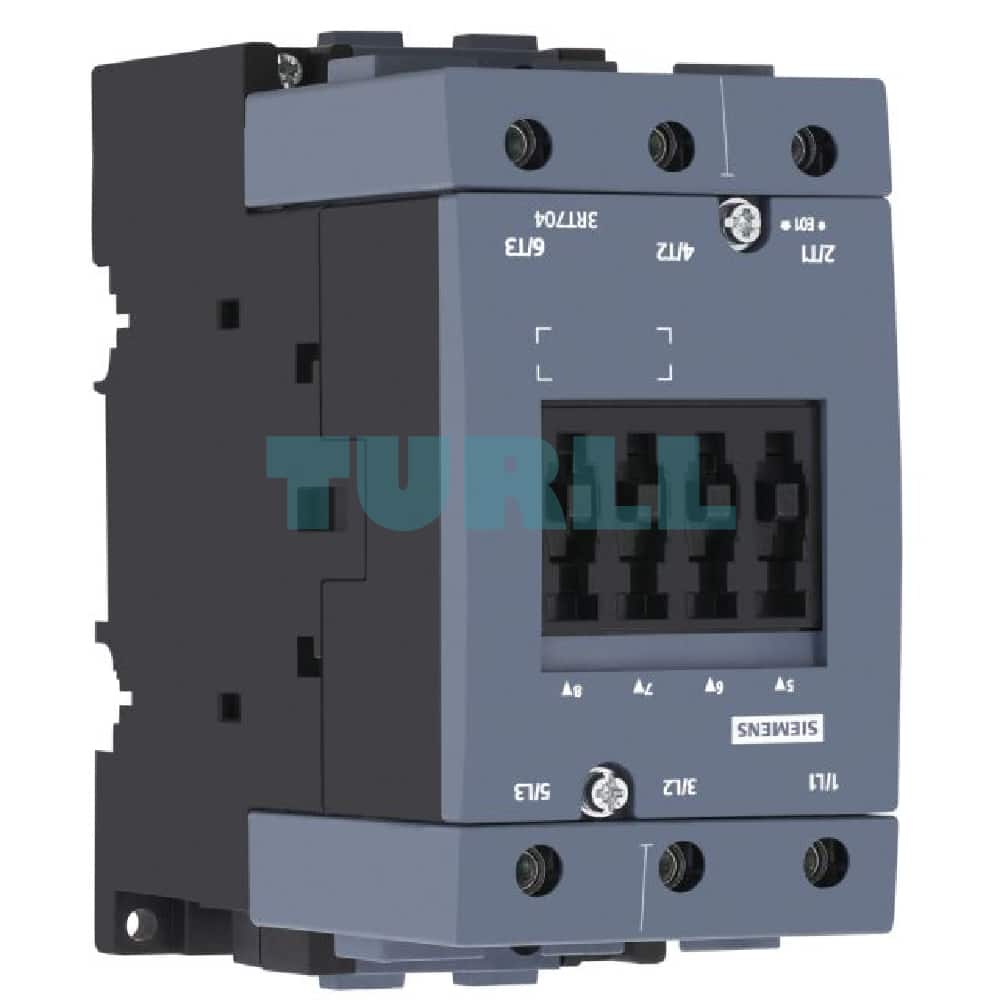

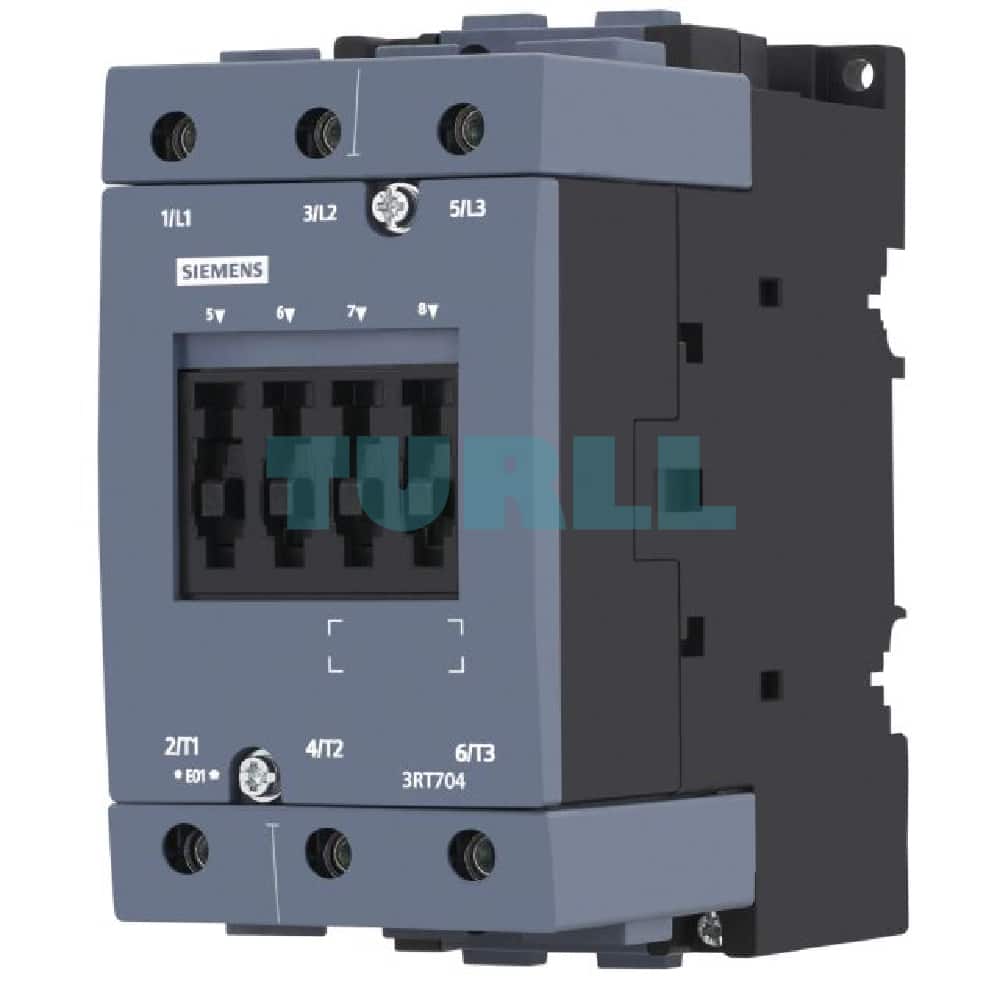

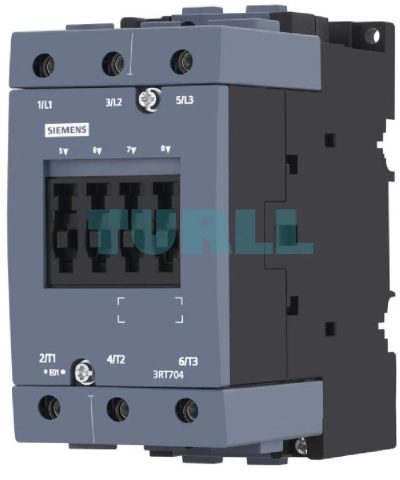

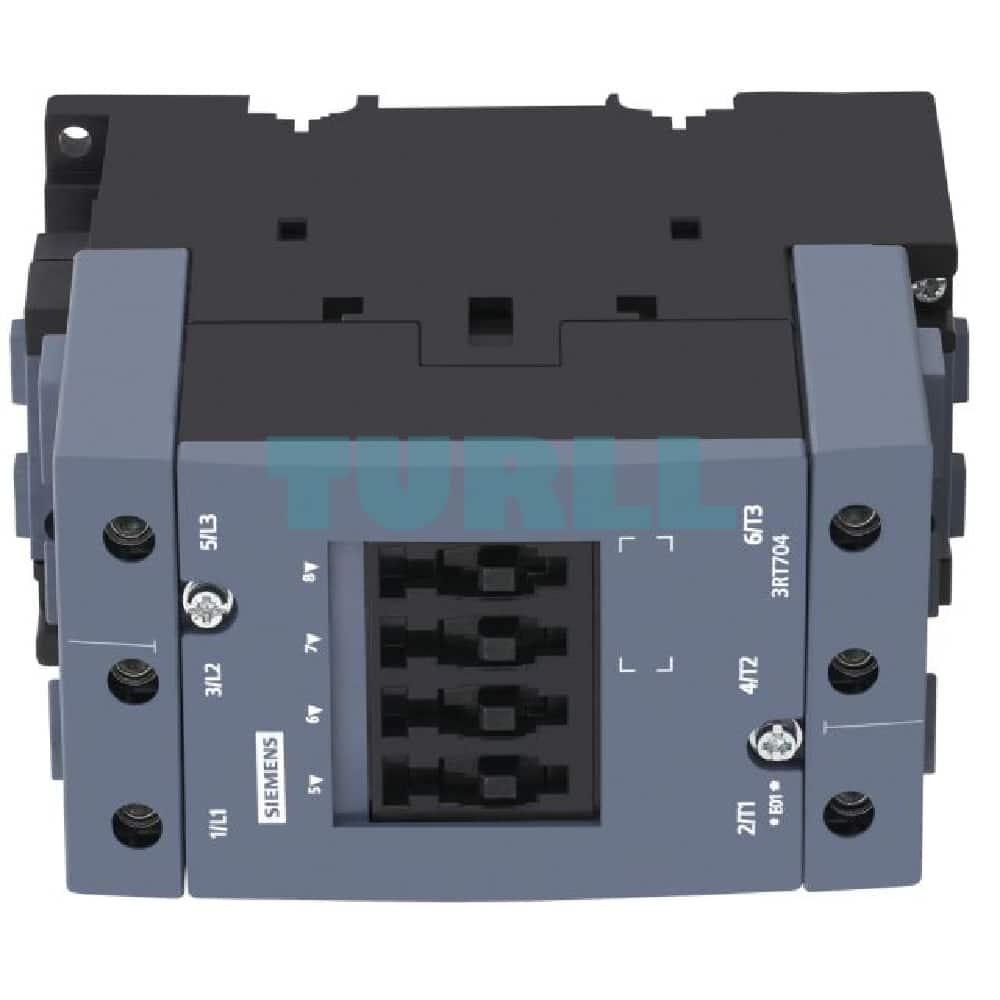

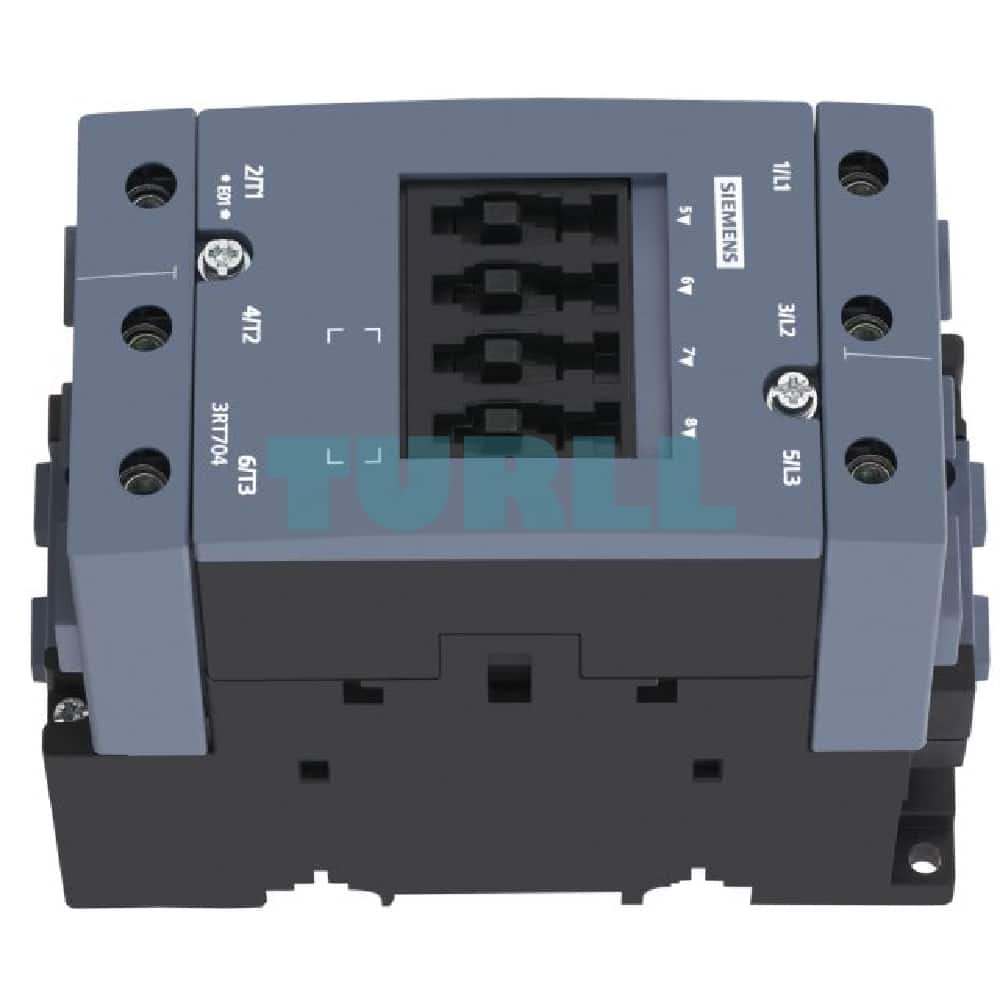

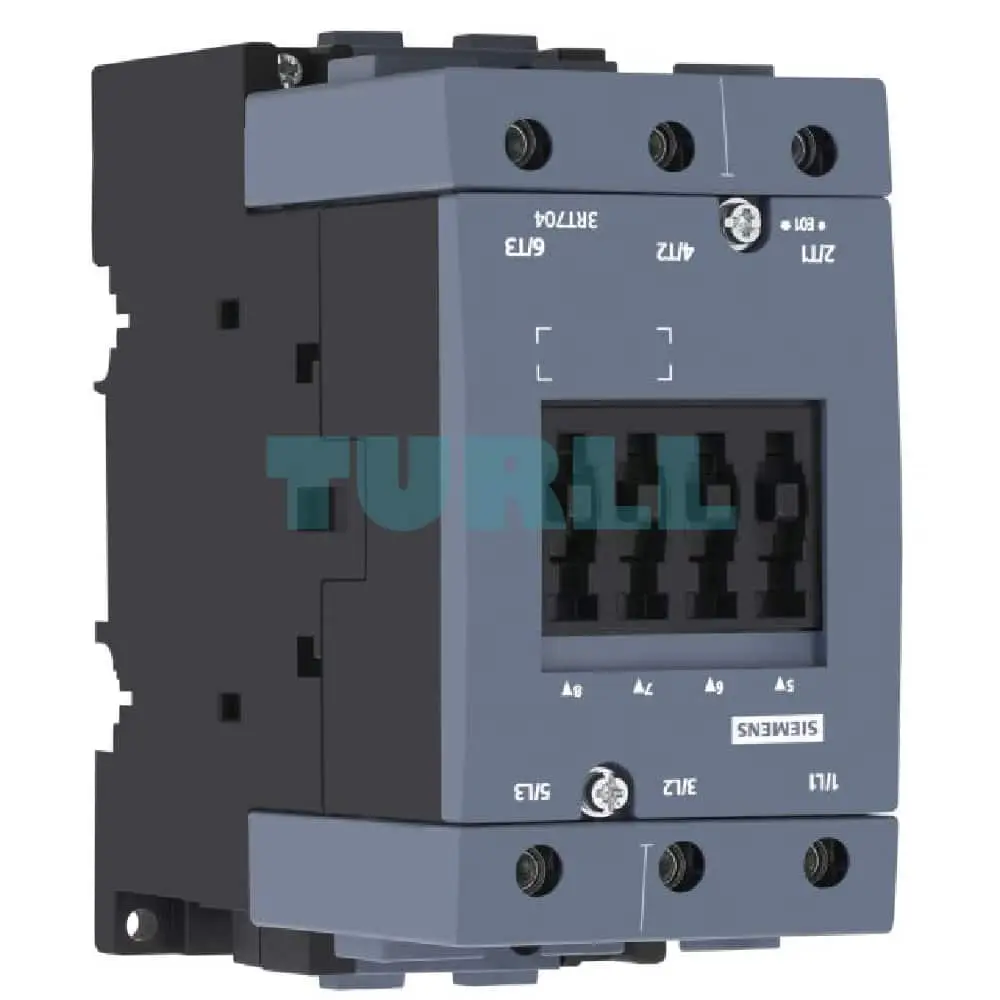

Siemens 3RT7046-1AN20 Contactor 95A, 45kW, 400V, 3-Pole, Size S3 Screw Terminal Original Brand New

Overview

The Siemens 3RT7046-1AN20 is a high-performance, 3-pole contactor from the trusted Siemens SIRIUS series, designed for robust motor control and switching applications. With its impressive AC-3 rating of 95A at 45kW and a 400V operational voltage, this contactor is engineered to handle demanding industrial loads with exceptional reliability. The integrated 220 VAC coil ensures compatibility with common control circuits, while the Size S3 form factor provides a compact yet powerful solution. The secure screw terminals make installation and wiring straightforward and dependable.

Key Features & Benefit

• High Switching Capacity: The 95A AC-3 rating is perfect for switching heavy motor loads, preventing damage and ensuring smooth operation.
• Robust & Durable: Built to Siemens’ rigorous quality standards, the 3RT7046-1AN20 offers a long mechanical and electrical service life, reducing maintenance costs.
• Easy & Secure Installation: Screw terminals provide a strong, reliable connection for both power and control wiring, minimizing the risk of loose contacts.
• Space-Efficient Design: The compact Size S3 profile allows for high-density panel layouts, optimizing valuable cabinet space.
• Global Compatibility: Operates with a standard 220 VAC, 50/60 Hz coil, making it suitable for a wide range of global industrial applications.
• Comprehensive Range: As part of the Siemens SIRIUS family, it integrates seamlessly with other Siemens components like overload relays and auxiliary contacts, offering a complete motor control solution.

Function

The Siemens 3RT7046-1AN20 contactor’s primary function is to act as an electrically-controlled switch for power circuits. It is typically used for:

• Switching Motors: Starting, stopping, and reversing three-phase electric motors.
• Resistive Loads: Controlling heating elements and other resistive loads.
• Distribution Panels: Serving as a reliable switching element in power distribution systems.

When the 220 VAC coil is energized, it creates a magnetic field that pulls the main contacts together, allowing current to flow to the connected load. When the coil is de-energized, the contacts open, interrupting the power circuit.

Technical Specification

• Product Number: 3RT7046-1AN20
• Manufacturer: Siemens
• Series: SIRIUS
• Number of Poles: 3-pole
• Rated Operational Current (AC-3): 95 A
• Rated Operational Power (AC-3): 45 kW at 400 V
• Control Supply Voltage: 220 VAC, 50/60 Hz
• Terminal Type: Screw Terminal
• Size: S3
• Standards: IEC 60947-4-1
• Dimensions: [Insert product dimensions if available]
• Mounting: DIN rail mountable
