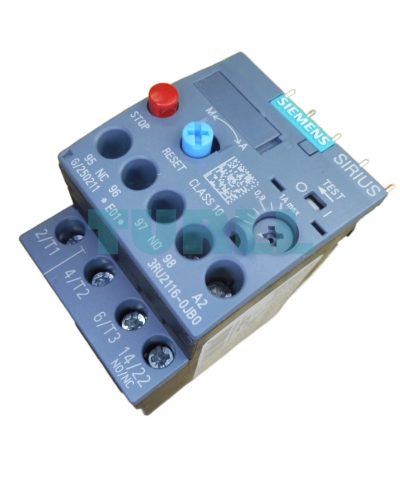

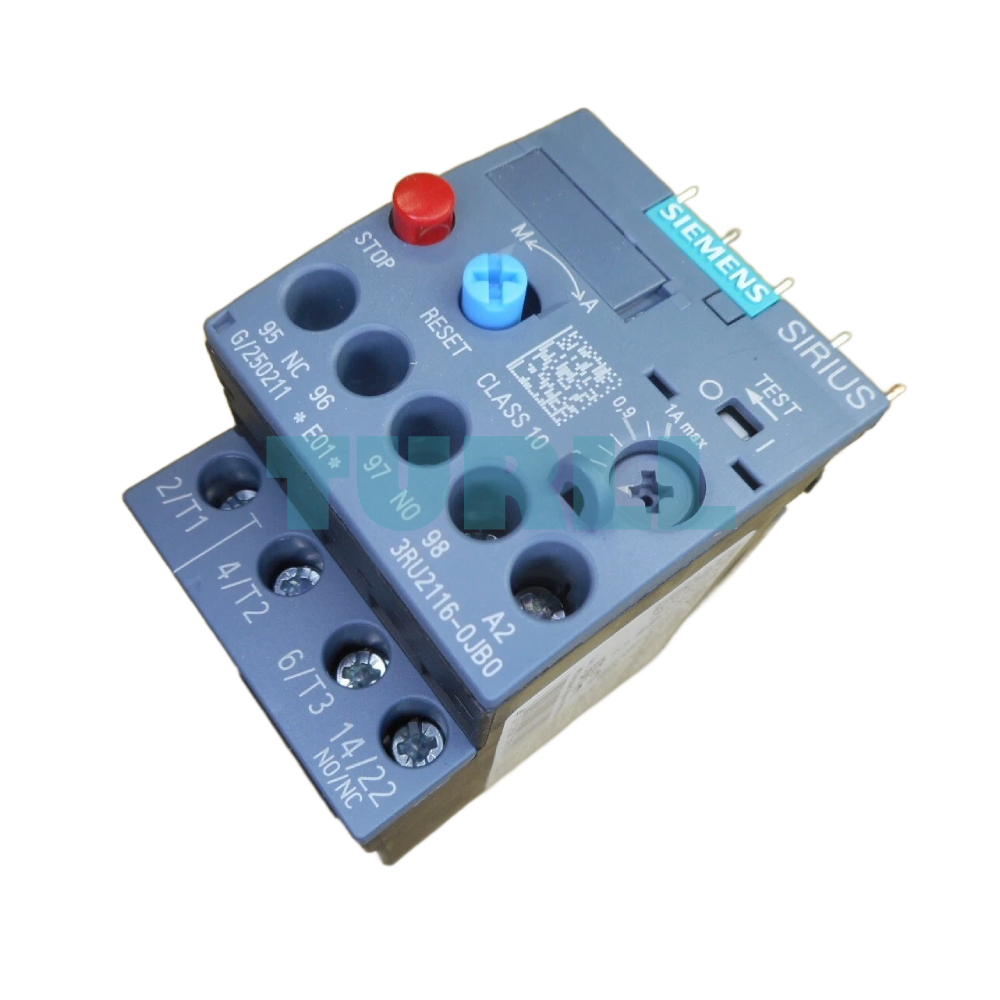

Siemens 3RU2116-0JB0 Overload Relay 0.70–1.0A, Motor Protection Thermal Relay, Size S00 Original Brand New
$44.11
Siemens thermal overload relay for motor protection, featuring an adjustable current range of 0.70 to 1.0 A and a Class 10 tripping characteristic. Designed for direct mounting on S00 contactors with secure screw terminals for all circuits. Includes selectable Manual-Automatic-Reset.
Availability: In stock
Overview
The Siemens 3RU2116-0JB0 is part of the trusted SIRIUS family of industrial control gear, specifically serving as a thermal overload relay. It is the essential protective link between the contactor and the motor, safeguarding the motor against damage caused by excessive thermal loads, phase failure, and prolonged overcurrents. Its compact Size S00 design ensures space efficiency in control cabinets.
Key Features & Benefit
-
Thermal Overload Protection (0.70–1.0 A): Protects motors from overheating and overcurrent situations.
-
Size S00 Compact Design: Fits seamlessly with standard Siemens contactors for space-efficient installations.
-
Class 10 Motor Protection: Provides reliable performance with delayed tripping for short-term overloads.
-
Easy Mounting: Screw connections for both main and auxiliary circuits ensure secure installation.
-
Manual & Automatic Reset Options: Flexible operation modes for various industrial applications.
-
Durable and Reliable: High-quality Siemens components ensure long-lasting performance and minimal maintenance.

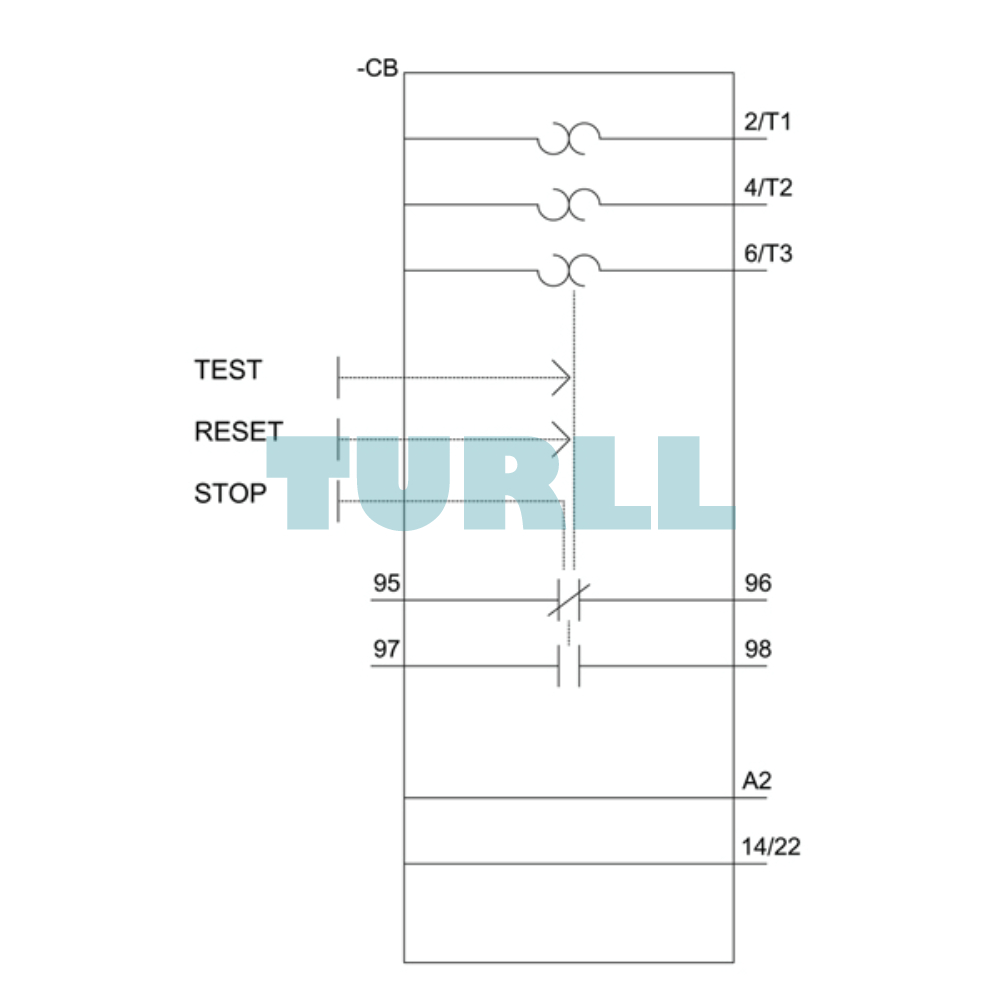

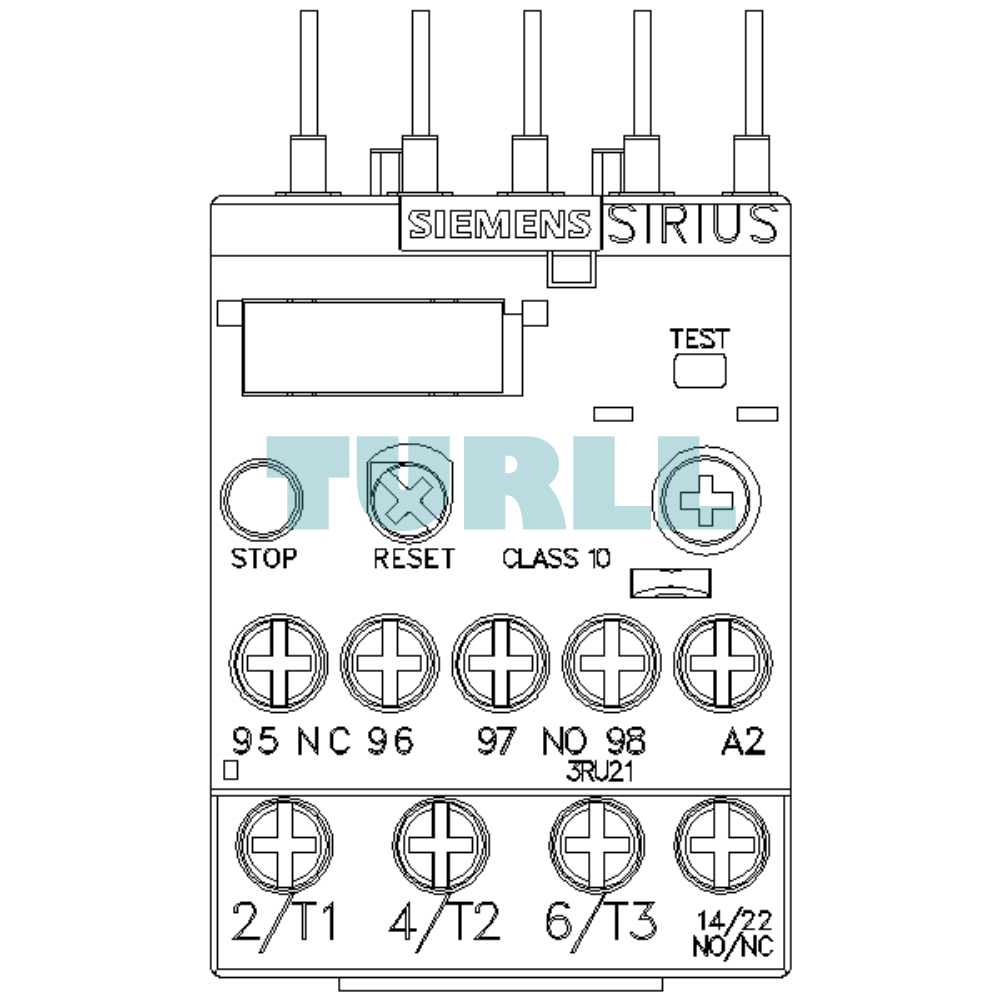

Functionality
This overload relay is designed for motor protection applications, preventing electrical damage caused by overloads. Its thermal design ensures accurate detection of excessive current, while manual and automatic reset functions provide operational flexibility. It is compatible with Siemens contactors, allowing easy integration into existing motor control circuits.
Visit 3RU2116-0JB0 for more detail info
For more our products visit turll
Download
| Weight | 0.154 kg |
|---|---|
| Dimensions | 49.00 × 102.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | thermal overload relay |
| product type designation | 3RU2 |
| size of overload relay | S00 |
| size of contactor can be combined company-specific | S00 |
| power loss [W] for rated value of the current at AC in hot operating state | 4.8 W |
| ● per pole | 1.6 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation in networks with grounded star point | – |
| ● between auxiliary and auxiliary circuit | 440 V |
| ● between main and auxiliary circuit | 440 V |
| shock resistance acc. to IEC 60068-2-27 | 8g / 11 ms |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 98 ATEX G 001 |
| reference code acc. to IEC 81346-2 | F |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | – |
| ● during operation | -40 … +70 °C |
| ● during storage | -55 … +80 °C |
| ● during transport | -55 … +80 °C |
| temperature compensation | -40 … +60 °C |
| relative humidity during operation | 10 … 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 0.7 … 1 A |
| operating voltage | – |
| ● rated value | 690 V |
| ● at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 … 60 Hz |
| operational current rated value | 1 A |
| operating power at AC-3 | – |
| ● at 400 V rated value | 0.25 kW |
| ● at 500 V rated value | 0.37 kW |
| ● at 690 V rated value | 0.55 kW |
| design of the auxiliary switch | integrated |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| ● note | for message "Tripped" |
| number of CO contacts for auxiliary contacts | 0 |
| operational current of auxiliary contacts at AC-15 | – |
| ● at 120 V | 3 A |
| ● at 230 V | 2 A |
| ● at 400 V | 1 A |
| operational current of auxiliary contacts at DC-13 | – |
| ● at 24 V | 2 A |
| ● at 60 V | 0.3 A |
| ● at 110 V | 0.22 A |
| ● at 125 V | 0.22 A |
| ● at 220 V | 0.11 A |
| contact rating of auxiliary contacts according to UL | B600 / R300 |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| full-load current (FLA) for 3-phase AC motor | – |
| ● at 480 V rated value | 1 A |
| ● at 600 V rated value | 1 A |
| design of the fuse link | – |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 6 A, quick: 10 A |
| mounting position | any |
| fastening method | Contactor mounting |
| product component removable terminal for auxiliary and control circuit | No |

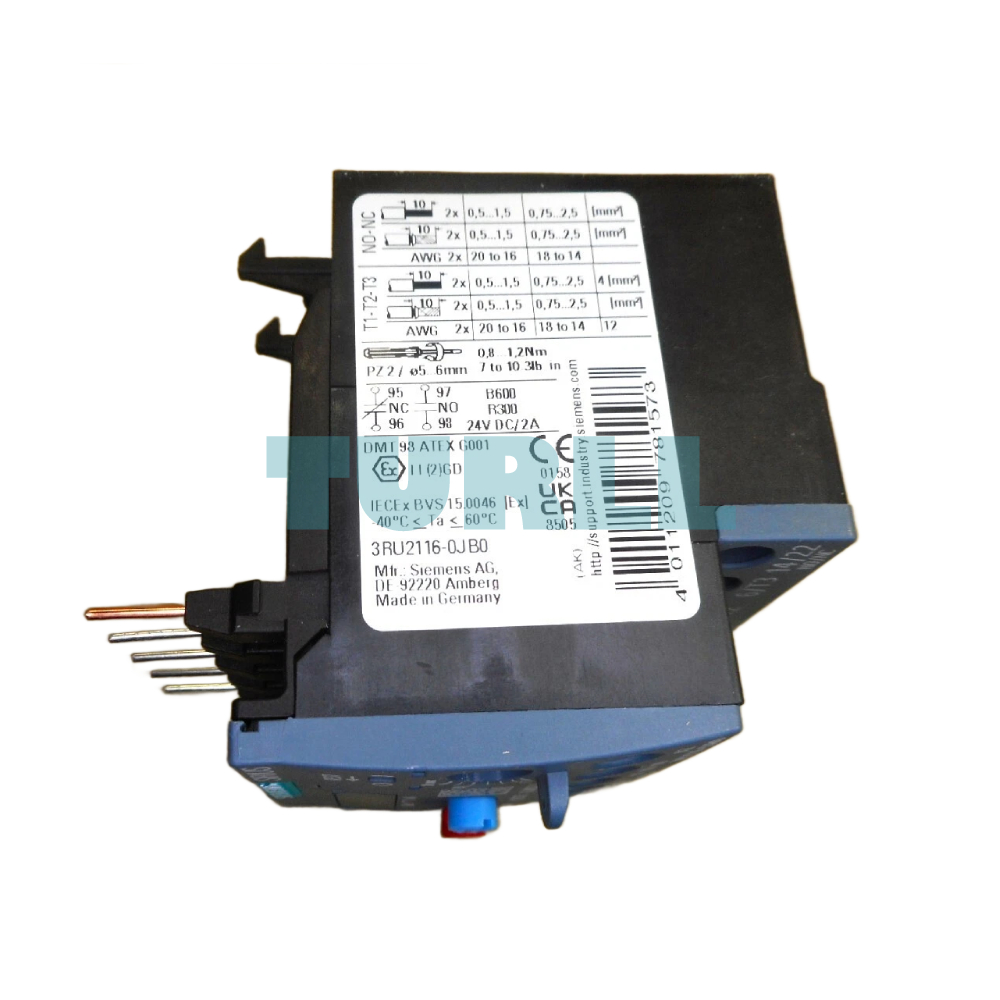

| type of electrical connection | – |
| ● for main current circuit | screw-type terminals |
| ● for auxiliary and control circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| ● at AWG cables for main contacts | 2x (20 … 16), 2x (18 … 14), 2x 12 |
| type of connectable conductor cross-sections | – |
| ● for auxiliary contacts | – |
| — solid or stranded | 2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| ● at AWG cables for auxiliary contacts | 2x (20 … 16), 2x (18 … 14) |
| tightening torque | – |
| ● for main contacts with screw-type terminals | 0.8 … 1.2 N·m |
| ● for auxiliary contacts with screw-type terminals | 0.8 … 1.2 N·m |
| design of screwdriver shaft | Diameter 5 … 6 mm |
| size of the screwdriver tip | Pozidriv PZ 2 |
| design of the thread of the connection screw | – |
| ● for main contacts | M3 |
| ● of the auxiliary and control contacts | M3 |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 50 FIT |
| MTTF with high demand rate | 2 280 y |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Slide switch |
| Vibration and Shock | – |
| last modified: | 12/1/2021 |
