Read shipping & delivery →SIEMENS
3RU2116-1HB0

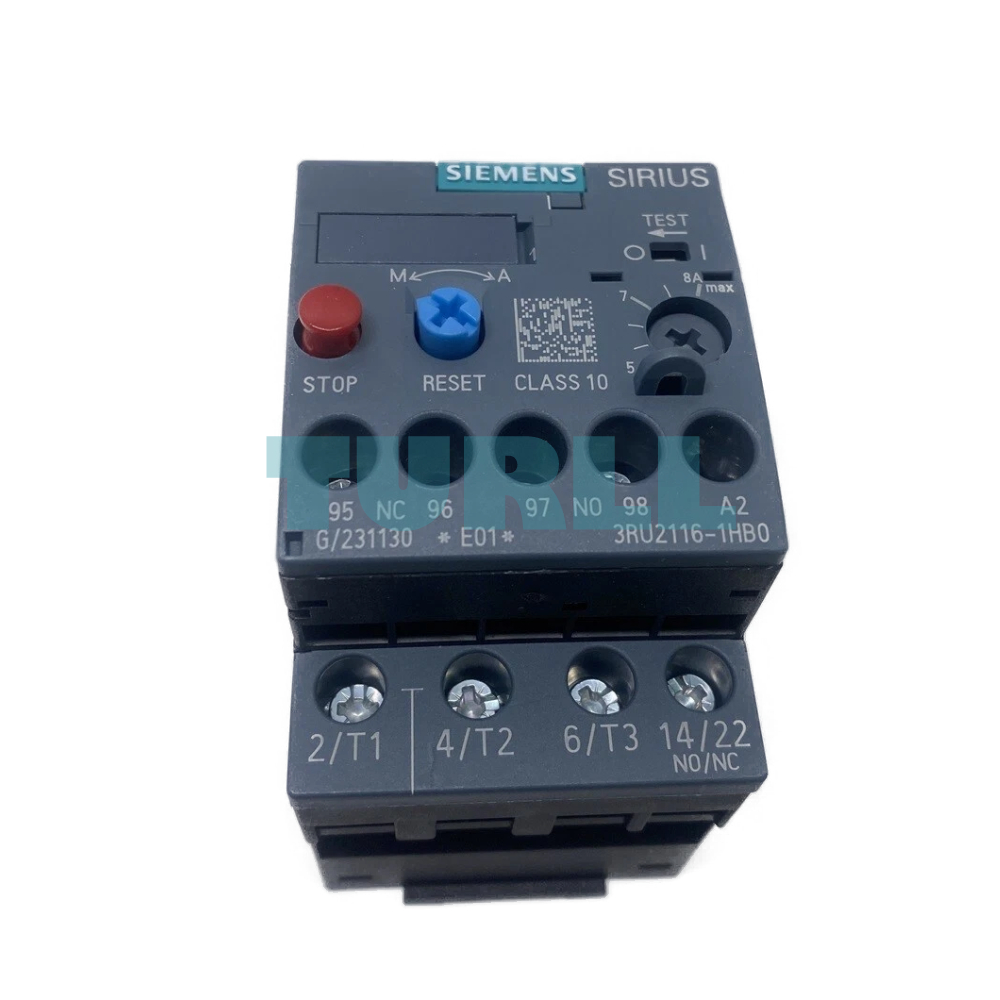

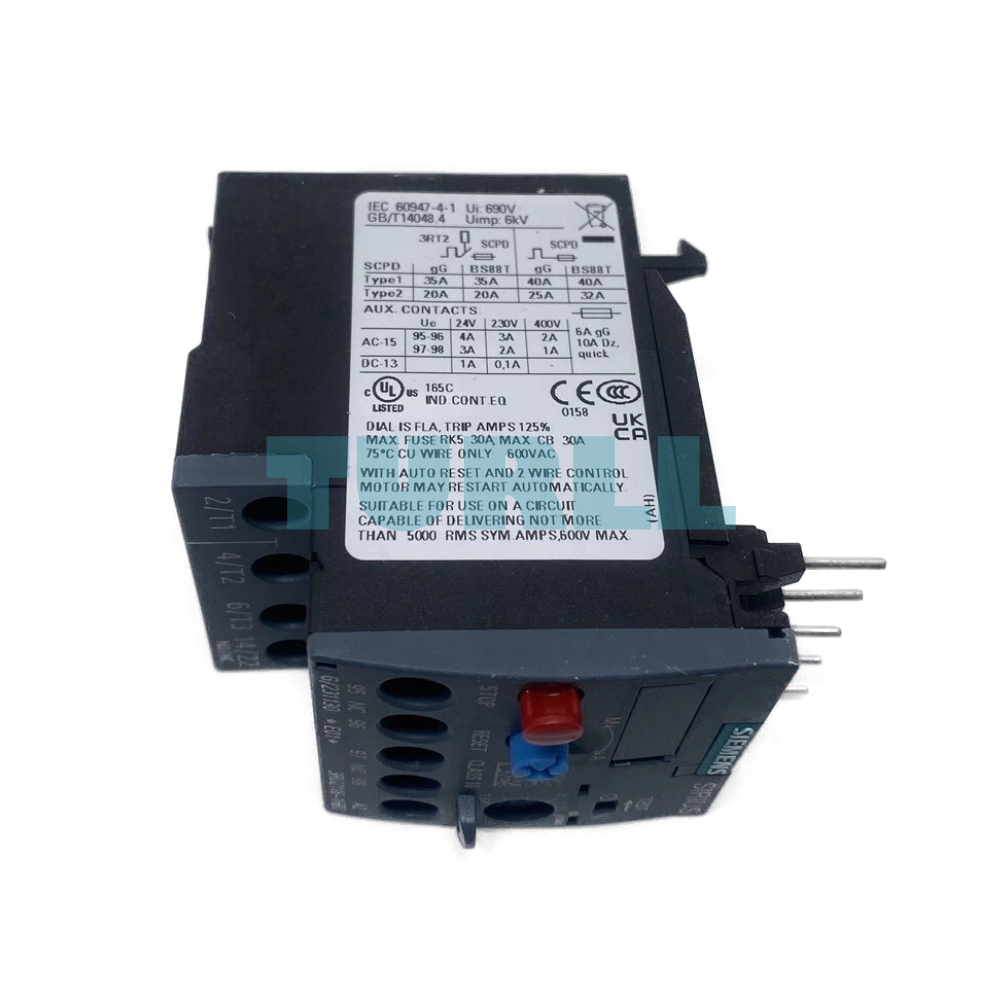

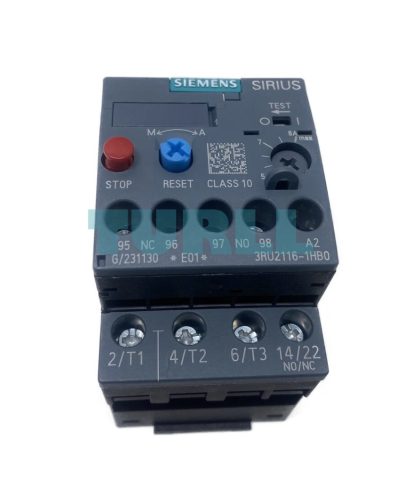

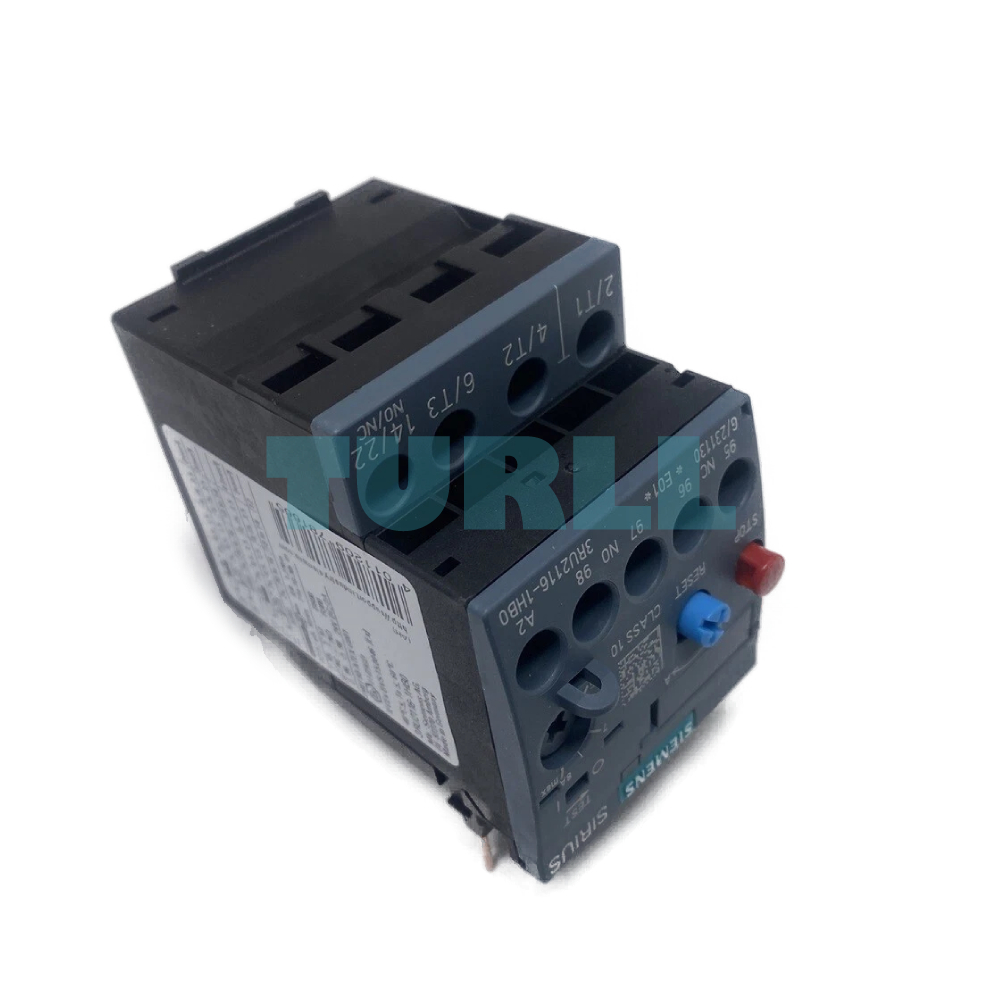

Siemens 3RU2116-1HB0 Overload Relay 5.5–8.0A Thermal Motor Protection, Size S00, Class 10 Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3RU2116-1HB0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | thermal overload relay |
| product type designation | 3RU2 |
| size of overload relay | S00 |
| size of contactor can be combined company-specific | S00 |
| power loss [W] for rated value of the current at AC in hot operating state | 6.6 W |
| ● per pole | 2.2 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation in networks with grounded star point | - |
| ● between auxiliary and auxiliary circuit | 440 V |
| ● between main and auxiliary circuit | 440 V |
| shock resistance acc. to IEC 60068-2-27 | 8g / 11 ms |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 98 ATEX G 001 |
| reference code acc. to IEC 81346-2 | F |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | - |
| ● during operation | -40 ... +70 °C |
| ● during storage | -55 ... +80 °C |
| ● during transport | -55 ... +80 °C |
| temperature compensation | -40 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 5.5 ... 8 A |
| operating voltage | - |
| ● rated value | 690 V |
| ● at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 8 A |
| operating power at AC-3 | - |
| ● at 400 V rated value | 3 kW |
| ● at 500 V rated value | 4 kW |
| ● at 690 V rated value | 5.5 kW |
| design of the auxiliary switch | integrated |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| ● note | for message "Tripped" |
| number of CO contacts for auxiliary contacts | 0 |
| operational current of auxiliary contacts at AC-15 | - |
| ● at 120 V | 3 A |
| ● at 230 V | 2 A |
| ● at 400 V | 1 A |
| operational current of auxiliary contacts at DC-13 | - |
| ● at 24 V | 2 A |
| ● at 60 V | 0.3 A |
| ● at 110 V | 0.22 A |
| ● at 125 V | 0.22 A |
| ● at 220 V | 0.11 A |
| contact rating of auxiliary contacts according to UL | B600 / R300 |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| full-load current (FLA) for 3-phase AC motor | - |
| ● at 480 V rated value | 8 A |
| ● at 600 V rated value | 8 A |
| design of the fuse link | - |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 6 A, quick: 10 A |
| mounting position | any |
| fastening method | Contactor mounting |
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | - |
| ● for main current circuit | screw-type terminals |
| ● for auxiliary and control circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| ● at AWG cables for main contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| type of connectable conductor cross-sections | - |
| ● for auxiliary contacts | - |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| tightening torque | - |
| ● for main contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| ● for auxiliary contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| design of screwdriver shaft | Diameter 5 ... 6 mm |
| size of the screwdriver tip | Pozidriv PZ 2 |
| design of the thread of the connection screw | - |
| ● for main contacts | M3 |
| ● of the auxiliary and control contacts | M3 |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 50 FIT |
| MTTF with high demand rate | 2 280 y |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Slide switch |
| Vibration and Shock | - |
| last modified: | 12/1/2021 |
| Weight for shipping | 0.159 kg |
| Dimensions for shipping | 49.00 × 102.00 × 84.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3RU2116-1HB0 is a premium overload relay designed for reliable motor protection. Engineered with precision, it ensures safe and efficient operation of motors with current ratings from 5.5 to 8.0 A. Its compact Size S00 design and Class 10 thermal tripping make it ideal for industrial and commercial motor control applications.
Key Benefit
-
Seamless Integration: Optimized for Siemens SIRIUS Size S00 contactors for a perfect mechanical and electrical fit.
-
Versatile Reset Options: Features a selectable Manual, Automatic, or Remote reset (with accessories) to suit your operational needs.
-
Robust Protection: Built-in phase failure sensitivity ensures motor safety even during unbalanced power conditions.
-
Easy Installation: Equipped with durable screw terminals for secure and vibration-resistant wiring in industrial environments.

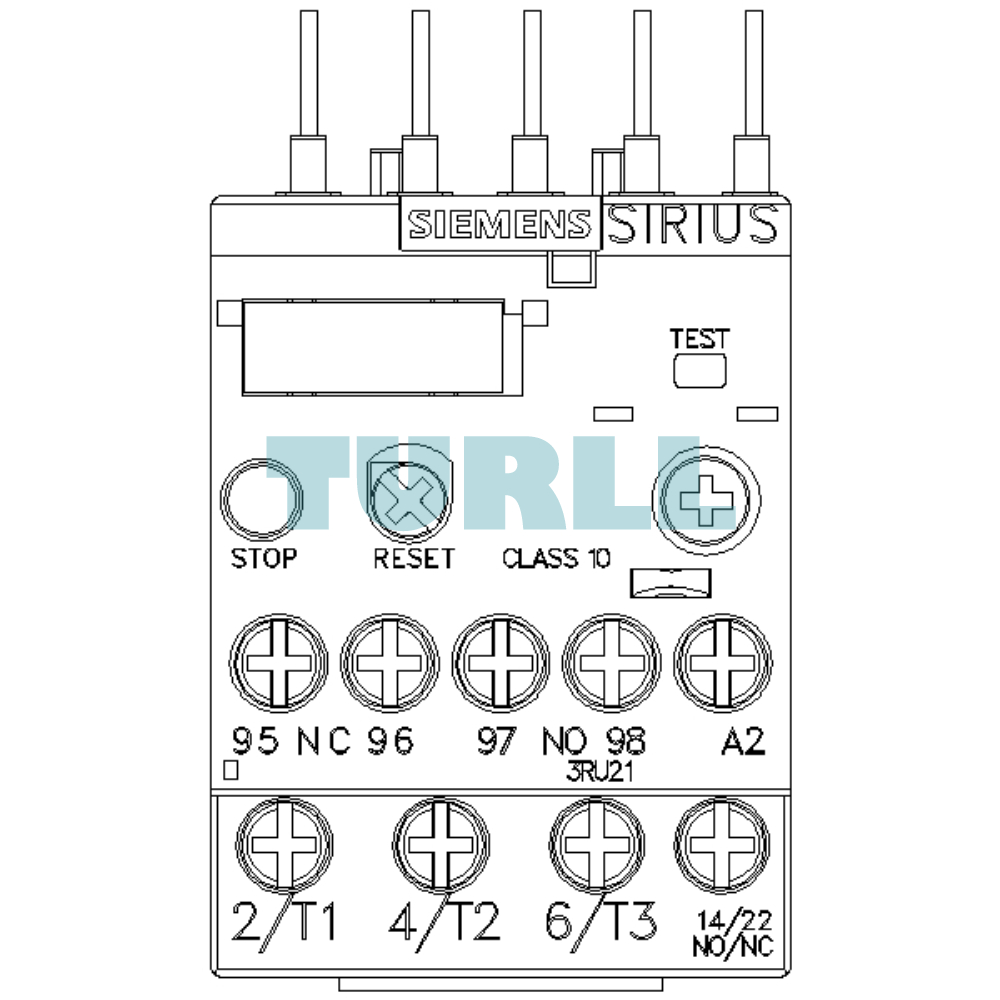

Function & Application
-
Motor Protection: Safeguards 3-phase AC motors against current-related thermal damage.
-
Trip Class 10: Ideal for standard starting conditions where the motor reaches full speed quickly.
-

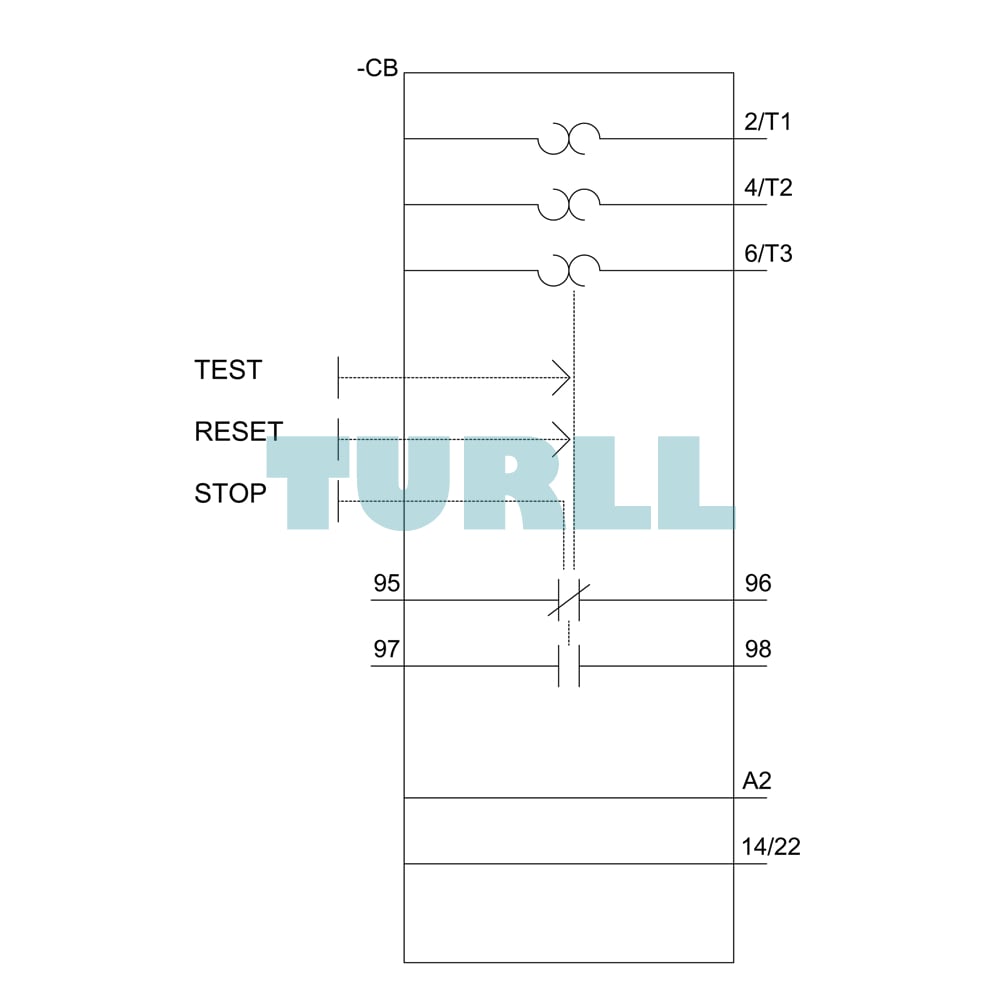

Auxiliary Contacts: Built-in 1NO + 1NC contacts for signaling faults or triggering safety circuits.
-
Climate-Proof: Designed for global use with international approvals (IEC, UL, CSA).
Visit 3RU2116-1HB0 for more detail info
