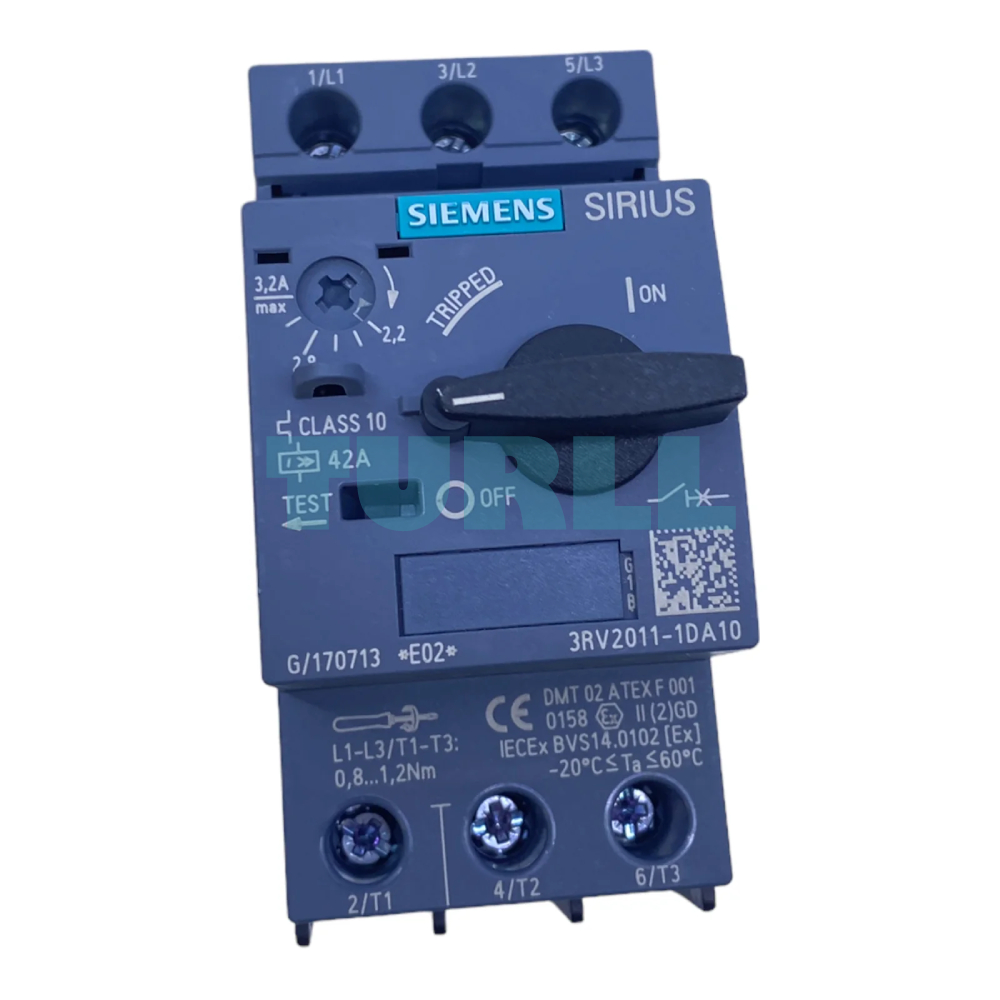

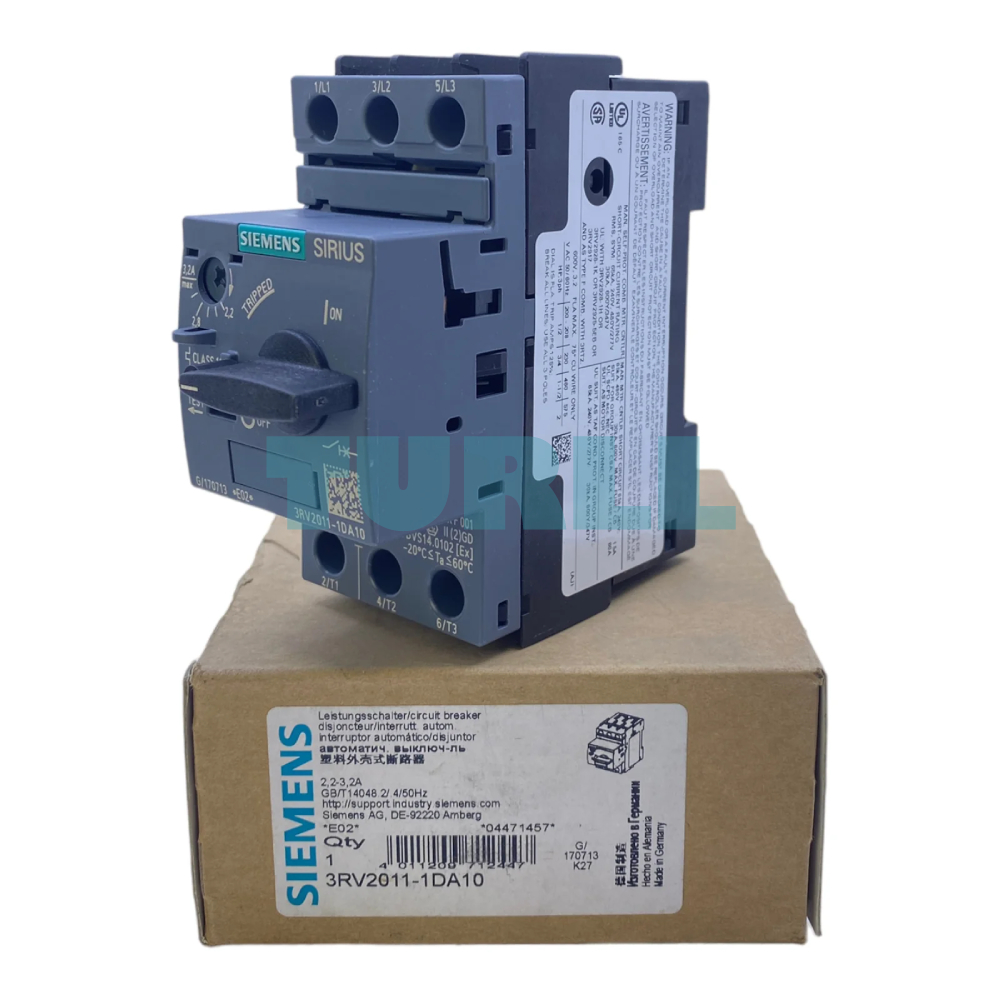

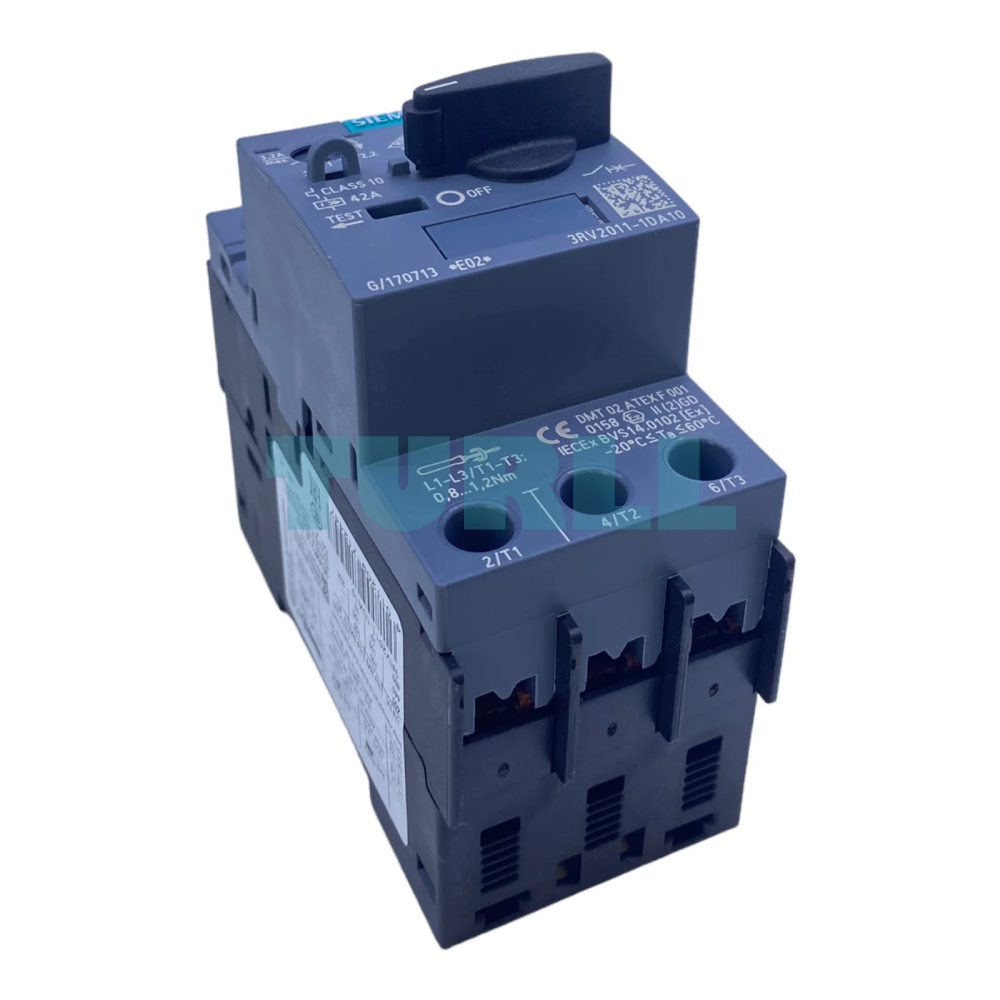

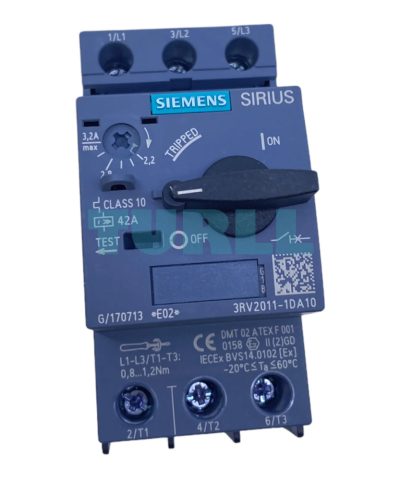

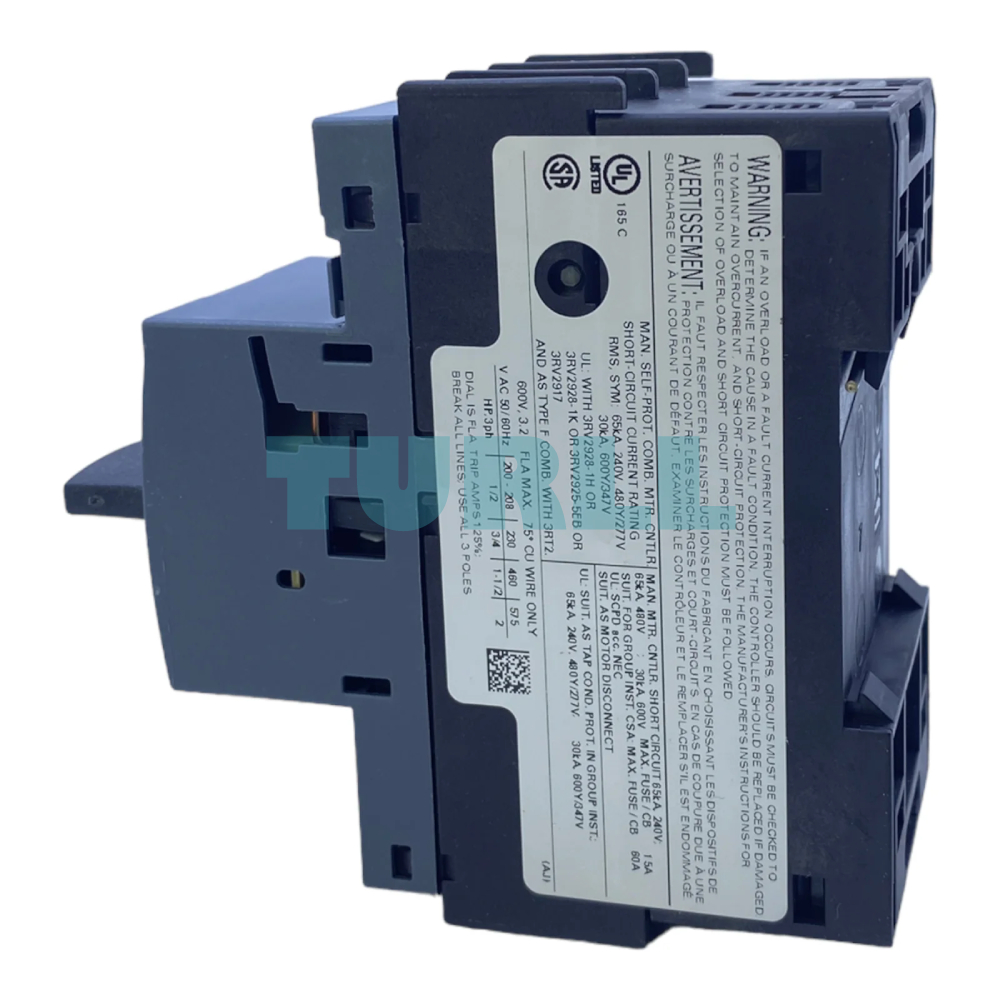

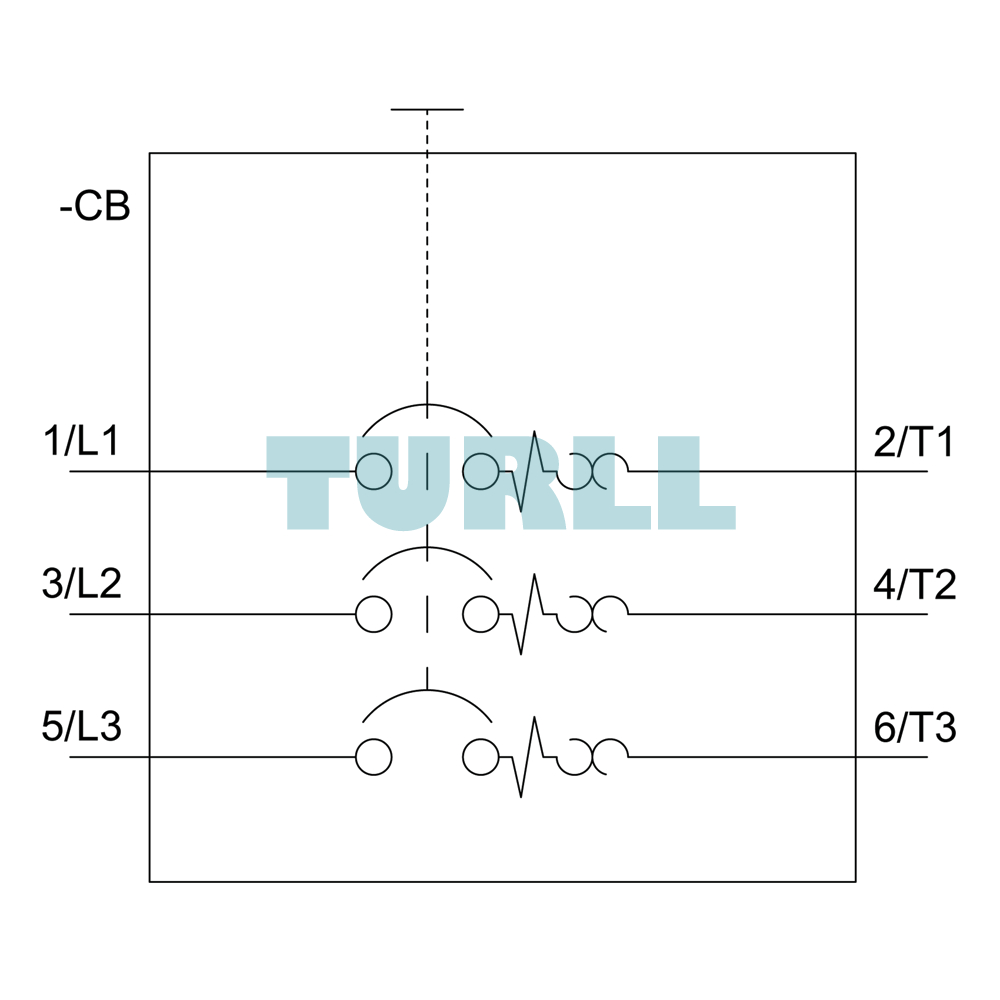

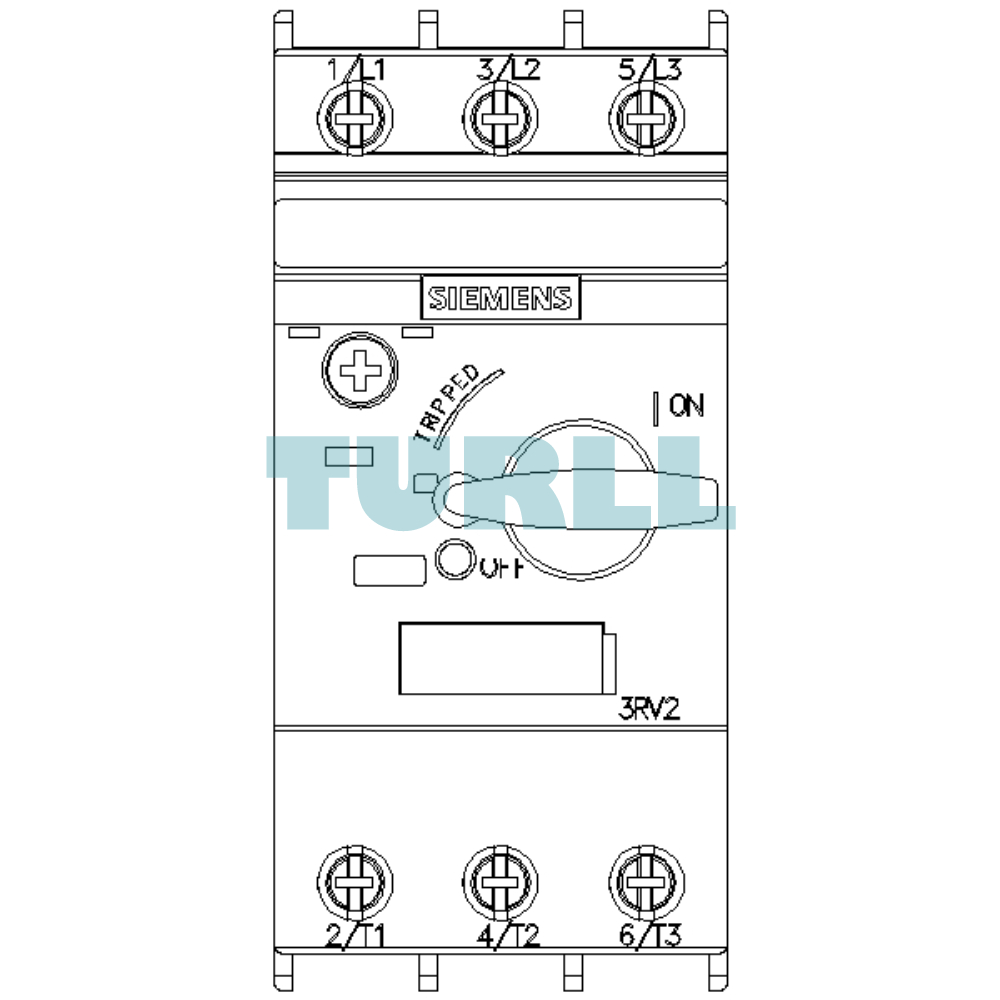

Siemens 3RV2011-1DA10 Motor Protection Circuit Breaker, S00 Size, 2.2–3.2A, 42A N-Release Original Brand New

Model / SKU3RV2011-1DA10

Compact S00 motor protection circuit breaker with Class 10 trip curve, 2.2–3.2 A overload release, 42 A short-circuit release, and screw terminals for reliable industrial motor control.

Original price was: $177.78.Current price is: $61.33.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3RV2011-1DA10 is a high-performance motor protection circuit breaker designed for reliable and efficient protection of motors against overload, short-circuit, and phase failure. Engineered in S00 size, it offers compact installation without compromising operational durability. With a Class 10 trip characteristic, 2.2–3.2 A A-release, and 42 A N-release, this circuit breaker provides precise motor safeguarding and consistent performance in industrial control systems. A robust screw-terminal design ensures secure connections and long-lasting stability.

Benefit

  • Optimal Motor Protection: CLASS 10 tripping characteristic provides fast, effective protection against prolonged overload and phase failure.

  • Reliable Short-Circuit Protection: High short-circuit breaking capacity for enhanced plant and motor safety.

  • Space-Saving Design: Compact S00 size allows for high density installation in cabinets.

  • Easy Installation: Features robust screw terminals for secure and reliable wiring.

  • Versatile Application: Suitable for motor starting and protection in various demanding industrial environments.

Functions & Features

  • Overload Protection: Class 10 trip curve for fast detection and protection.

  • Short-Circuit Protection: 42 A N-release capability for dependable safety.

  • Phase Failure Protection: Prevents motor damage during phase imbalance.

  • Screw Terminal Design: Ensures quick installation and strong electrical contact.

  • Compact S00 Frame: Ideal for tight control cabinet spaces.

  • Manual ON/OFF Switching: Offers easy local control.

  • High Electrical Endurance: Suitable for continuous industrial operation.

Technical Specification

  • Manufacturer: Siemens

  • Product Type: Motor Protection Circuit Breaker

  • Model Number: 3RV2011-1DA10

  • Frame Size: S00

  • Trip Class: Class 10

  • Overload Release (A-release): 2.2…3.2 A

  • Short-Circuit Release (N-release): 42 A

  • Terminal Type: Screw terminal

  • Switching Capacity: Standard

  • Protection Function: Overload, short-circuit, phase failure

Download

Datasheet in PDF

Visit 3RV2011-1DA10 for more detail info

For more our products visit turll



Specifications

SKU / Model3RV2011-1DA10
BrandSIEMENS
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
size of the circuit-breakerS00
size of contactor can be combined company-specificS00, S0
product extension auxiliary switchYes
power loss [W] for rated value of the current-
● at AC in hot operating state7.25 W
● at AC in hot operating state per pole2.4 W
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation in networks with grounded star point-
● between main and auxiliary circuit400 V
shock resistance acc. to IEC 60068-2-2725g / 11 ms
mechanical service life (switching cycles)-
● of the main contacts typical100 000
● of auxiliary contacts typical100 000
electrical endurance (switching cycles) typical100 000
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001
reference code acc. to IEC 81346-2Q
installation altitude at height above sea level maximum2 000 m
ambient temperature-
● during operation-20 ... +60 °C
● during storage-50 ... +80 °C
● during transport-50 ... +80 °C
temperature compensation-20 ... +60 °C
relative humidity during operation10 ... 95 %
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release2.2 ... 3.2 A
operating voltage-
● rated value20 ... 690 V
● at AC-3 rated value maximum690 V
operating frequency rated value50 ... 60 Hz
operational current rated value3.2 A
operational current at AC-3 at 400 V rated value3.2 A
operating power at AC-3-
● at 230 V rated value0.6 kW
operating frequency at AC-3 maximum15 1/h
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
product function-
● ground fault detectionNo
● phase failure detectionYes
trip classCLASS 10
design of the overload releasethermal
breaking capacity operating short-circuit current (Ics) at AC-
● at 240 V rated value100 kA
● at 400 V rated value100 kA
● at 500 V rated value100 kA
● at 690 V rated value10 kA
breaking capacity maximum short-circuit current (Icu)-
● at AC at 240 V rated value100 kA
● at AC at 400 V rated value100 kA
● at AC at 500 V rated value100 kA
● at AC at 690 V rated value10 kA
response value current of instantaneous short-circuit trip unit42 A
full-load current (FLA) for 3-phase AC motor-
● at 480 V rated value3.2 A
● at 600 V rated value3.2 A
yielded mechanical performance [hp]-
● for single-phase AC motor-
— at 110/120 V rated value0.1 hp
— at 230 V rated value0.25 hp
● for 3-phase AC motor-
— at 200/208 V rated value0.5 hp
— at 220/230 V rated value0.75 hp
— at 460/480 V rated value2 hp
— at 575/600 V rated value2 hp
product function short circuit protectionYes
design of the short-circuit tripmagnetic
design of the fuse link for IT network for short-circuit protection of the main circuit-
● at 400 VgL/gG 25 A
● at 500 VgL/gG 32 A
● at 690 VgL/gG 25 A
mounting positionany
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
required spacing-
● for grounded parts at 400 V-
● for live parts at 400 V-
● for grounded parts at 500 V-
● for live parts at 500 V-
● for grounded parts at 690 V-
● for live parts at 690 V-
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
product component removable terminal for auxiliary and control circuitNo
type of electrical connection-
● for main current circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop and bottom
type of connectable conductor cross-sections-
— solid or stranded2x (0,75 ... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG cables for main contacts2x (18 ... 14), 2x 12
tightening torque-
● for main contacts with screw-type terminals0.8 ... 1.2 N·m
design of screwdriver shaftDiameter 5 to 6 mm
size of the screwdriver tipPozidriv 2
design of the thread of the connection screw-
● for main contactsM3
B10 value-
proportion of dangerous failures-
● with high demand rate acc. to SN 3192050 %
failure rate [FIT]-
● with low demand rate acc. to SN 3192050 FIT
T1 value for proof test interval or service life acc. to IEC 6150810 y
protection class IP on the front acc. to IEC 60529IP20
touch protection on the front acc. to IEC 60529finger-safe, for vertical contact from the front
display version for switching statusHandle
For use in hazardous locationsTest Certificates Declaration of Conformity
last modified:11/16/2021
Weight0.345 kg
Dimensions49.00 × 102.00 × 102.00 mm
