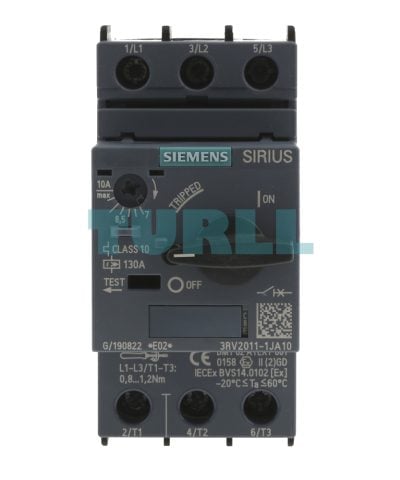

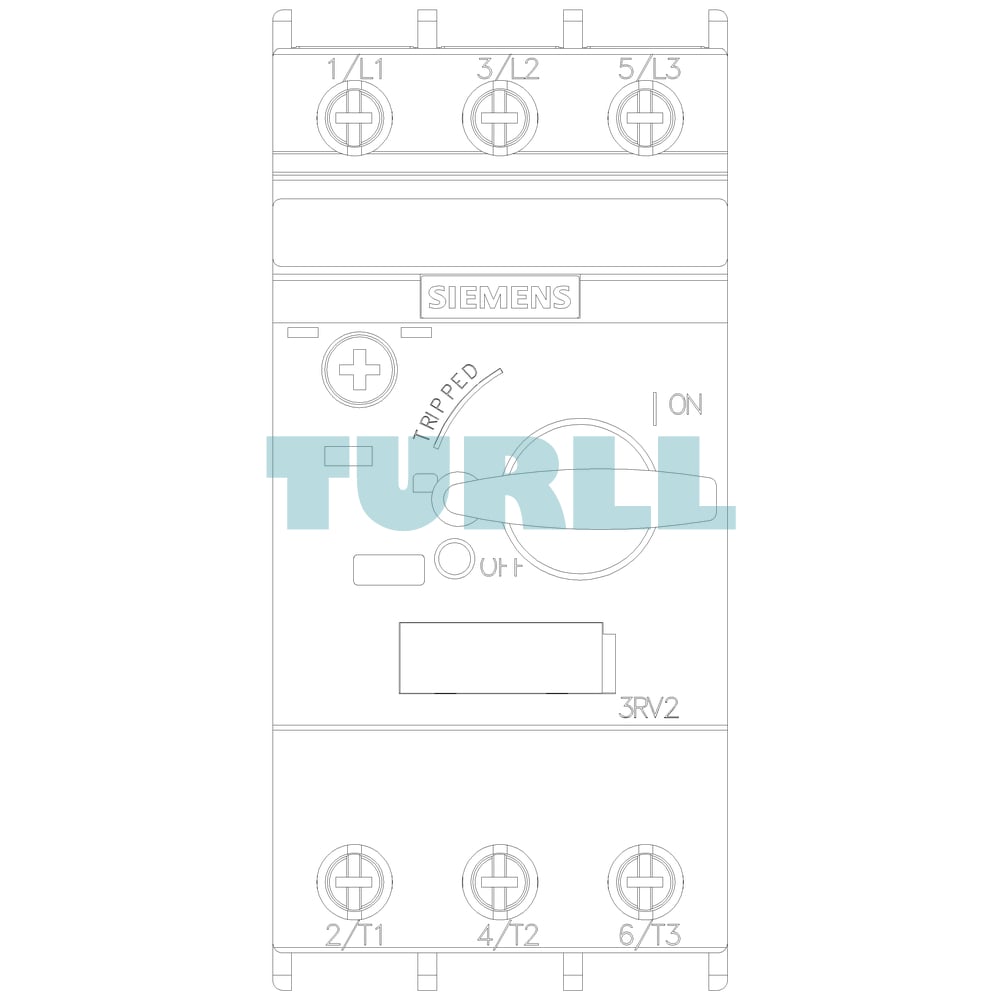

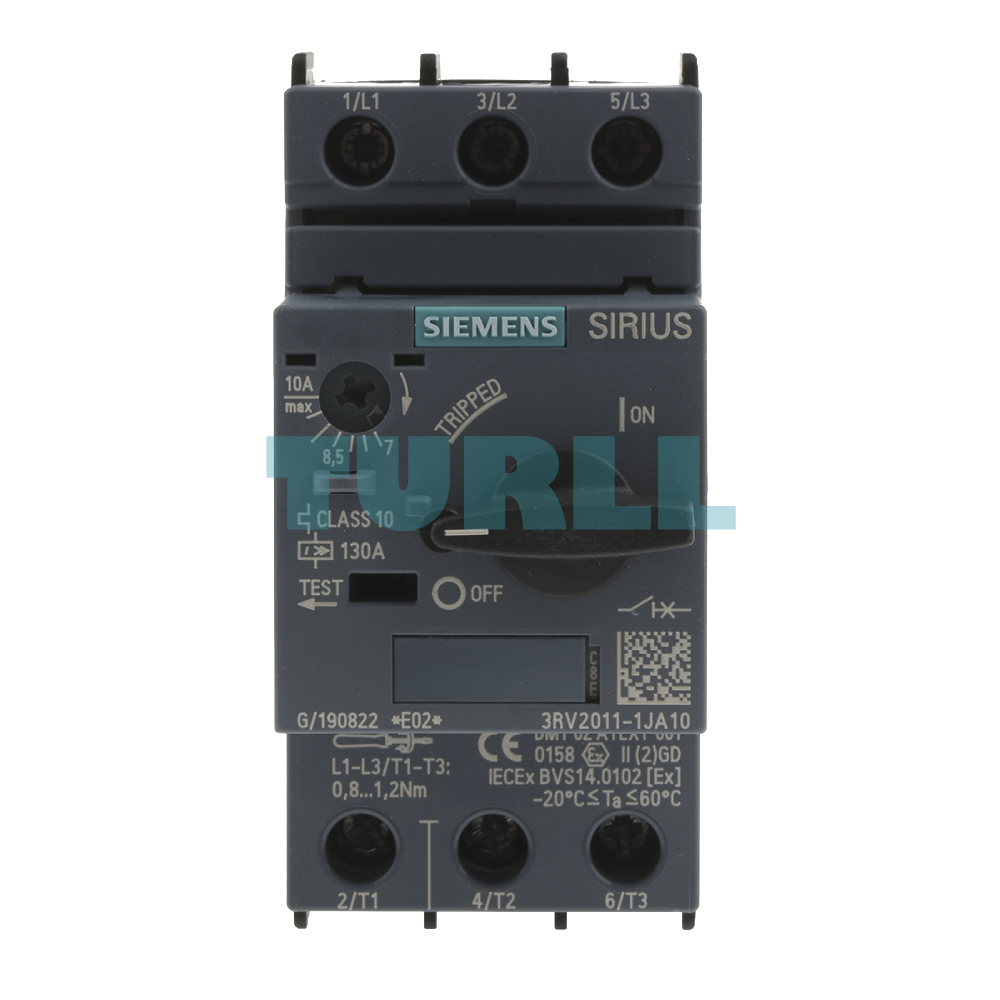

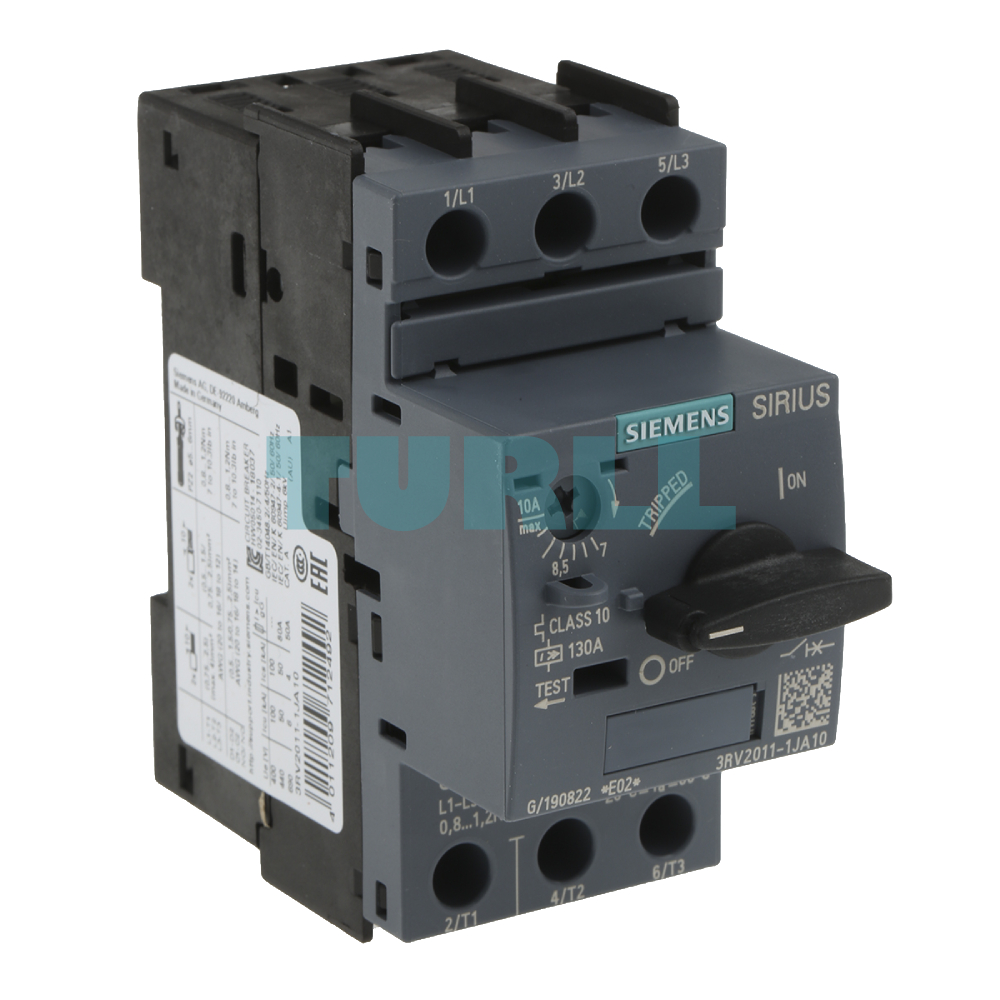

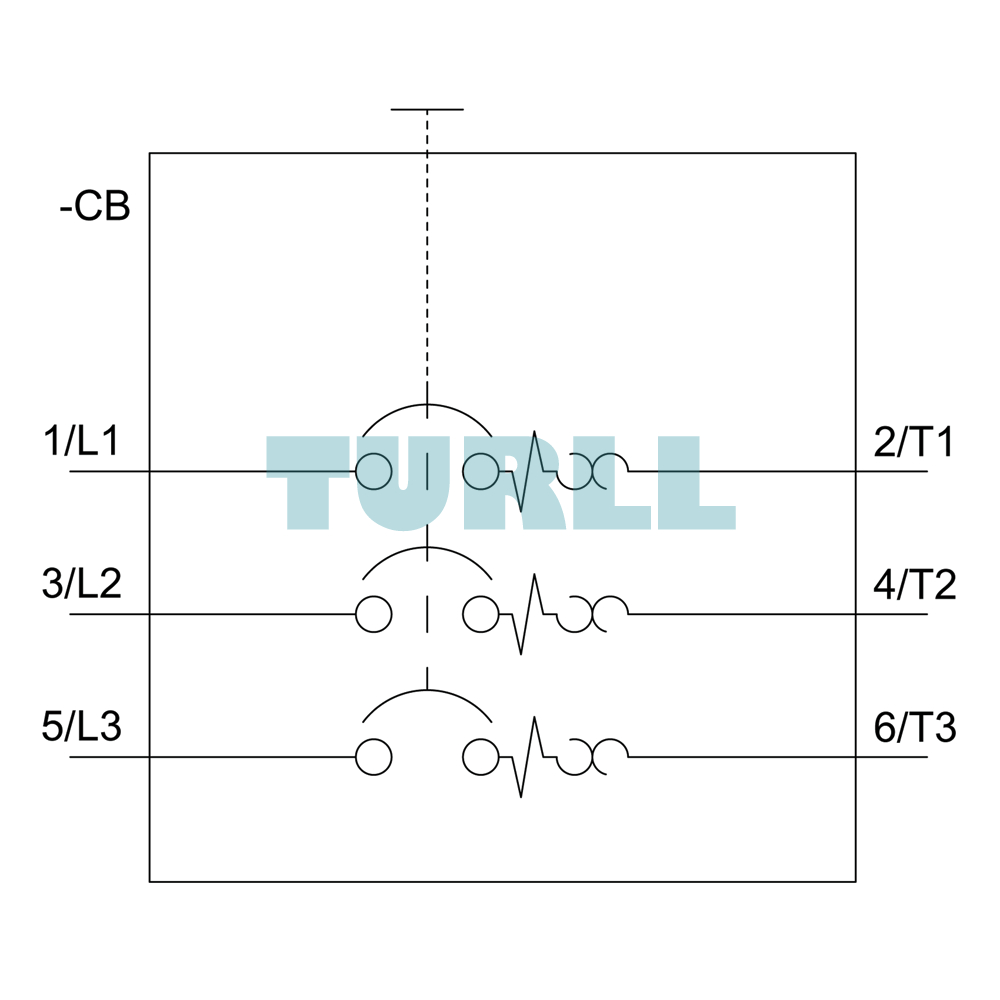

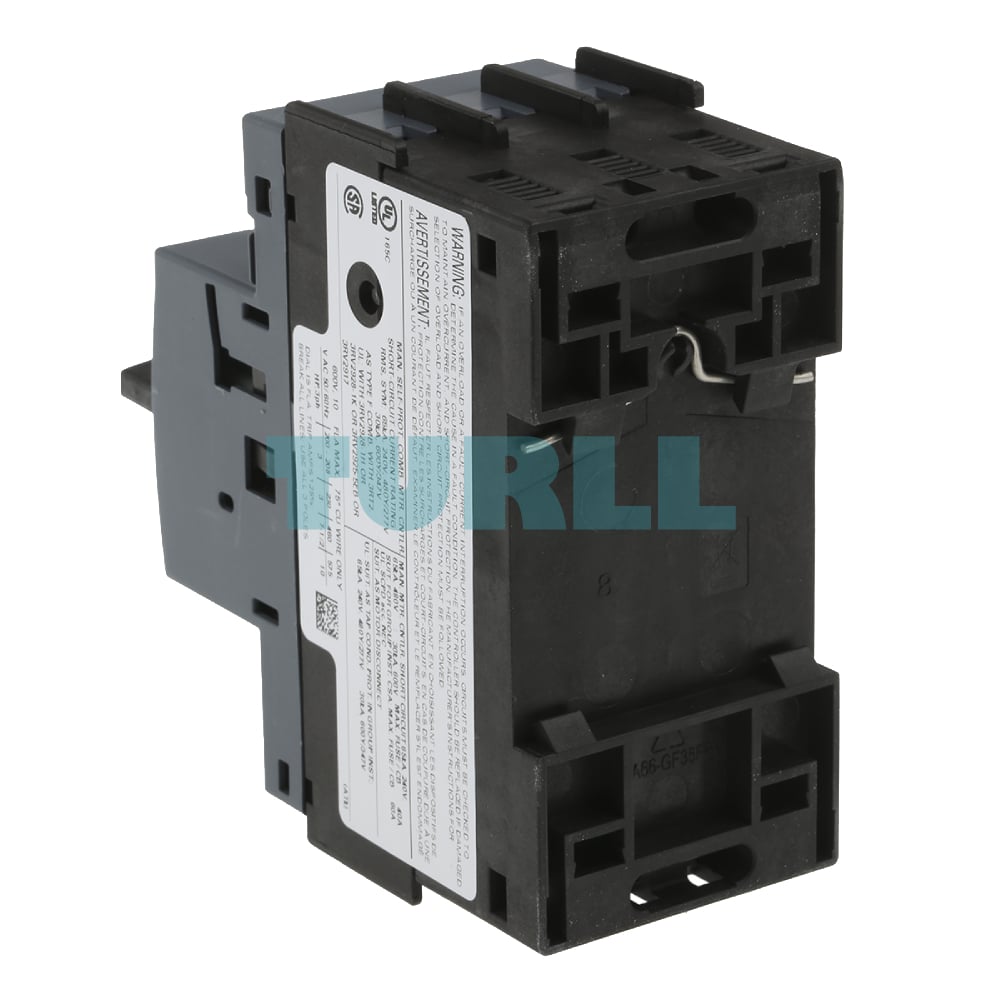

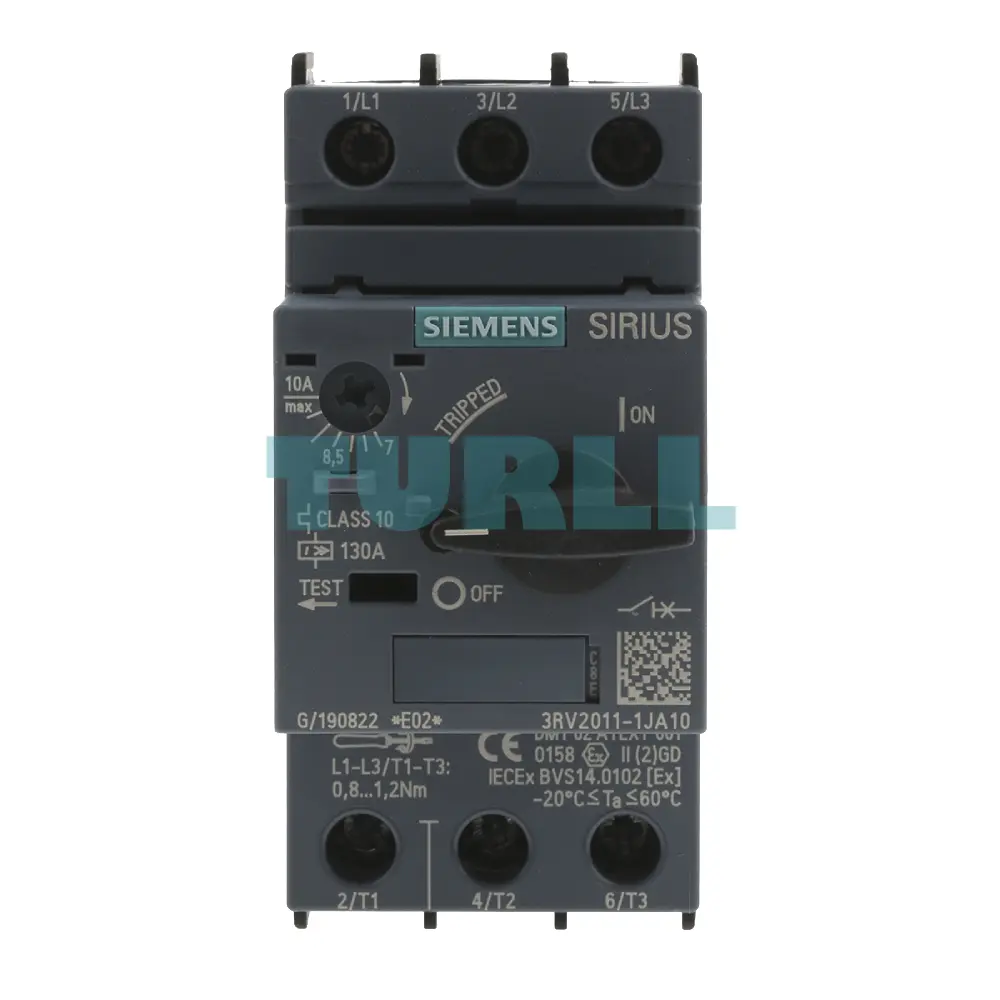

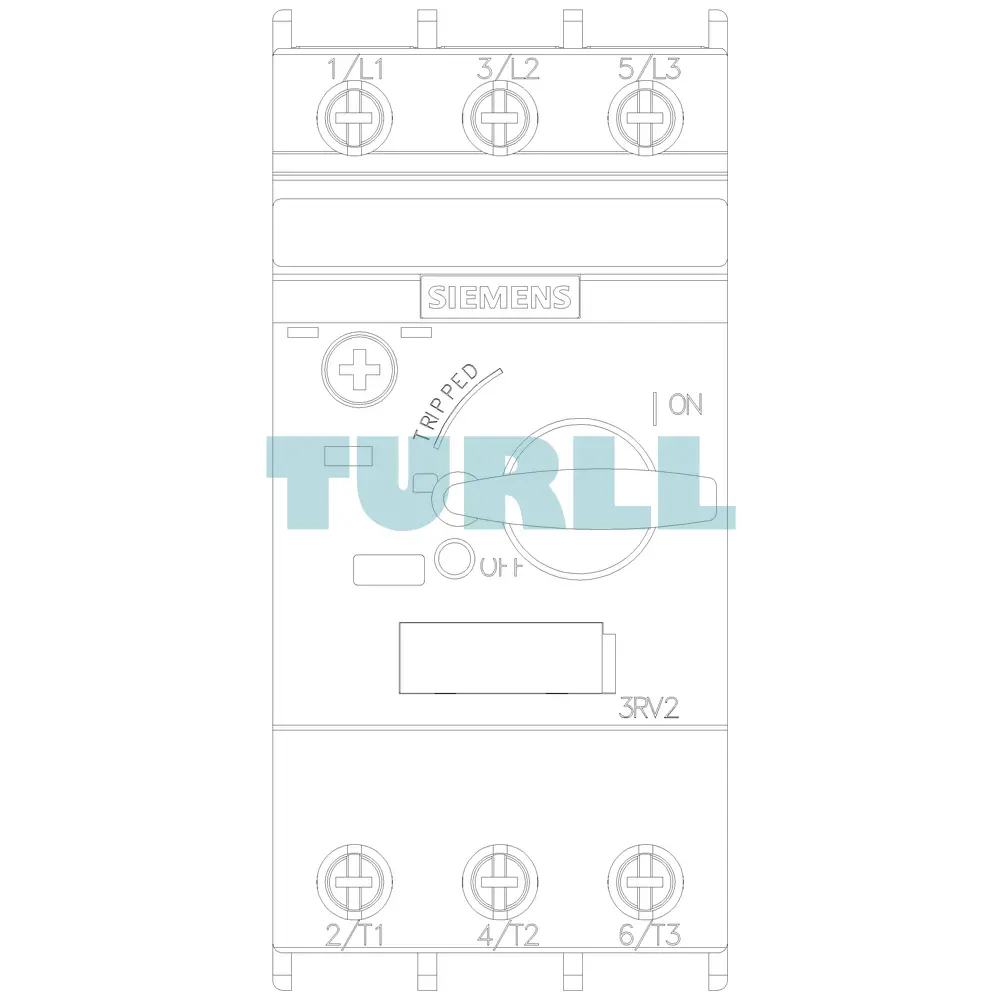

Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release
Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release
Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release
Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release
Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release
Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release

SIEMENS

Siemens 3RV2011-1JA10 Motor Protection Circuit Breaker S00 Size, CLASS 10 A-Release Original Brand New

Model / SKU3RV2011-1JA10

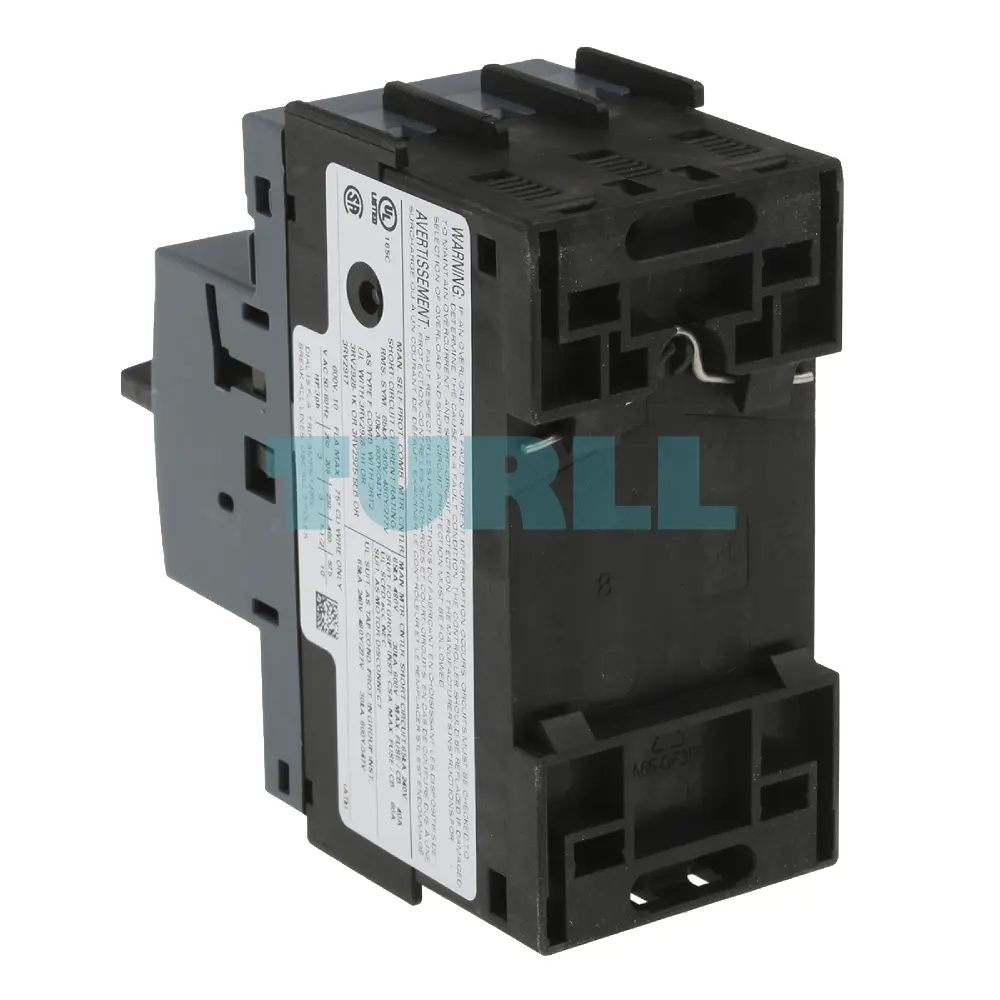

Circuit breaker size S00 for motor protection, CLASS 10. Features an adjustable A-release of 7…10 A, fixed N-release of 130 A, and secure screw terminals. Part of the reliable Siemens SIRIUS 3RV2 family.

Original price was: $176.00.Current price is: $68.62.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens SIRIUS 3RV2011-1JA10 is a highly reliable, compact circuit breaker designed for robust motor protection applications. As a size S00 device, it offers a space-saving solution without compromising on performance. This standard switching capacity circuit breaker is primarily used for switching and protecting three-phase asynchronous motors against overload and short circuits. Its reliable screw terminal connections ensure quick and secure installation in control panels and machinery.

Key Benefit

  • Maximum Uptime: Protects valuable motor assets, reducing unexpected downtime and maintenance costs.

  • Space Efficiency: The S00 form factor allows for higher density installations in limited cabinet space.

  • Easy Installation & Wiring: Secure screw terminals simplify the setup process.

  • Versatile Application: Suitable for a wide range of industrial control and protection applications.

  • Reliable Brand: Part of the trusted Siemens SIRIUS modular system, ensuring quality and longevity.

Features & Function

  • Motor Protection: Provides essential protection for asynchronous motors, preventing damage from thermal overload and short circuits.

  • Adjustable A-Release (Thermal Overload): Features a precise, adjustable setting range of 7 to 10 A, allowing it to be perfectly calibrated to the motor's nominal current (Ie).

  • Fixed N-Release (Short-Circuit): A magnetic short-circuit release fixed at 130 A ensures immediate and safe tripping in the event of a dangerous short circuit.

  • Tripping Class 10: Guarantees tripping within 10 seconds at 7.2 times the set current, suitable for standard starting motors.

  • Size S00: Extremely compact design, minimizing required installation space in control cabinets.

  • Screw Terminals: Robust and easy-to-use screw terminal connection type for reliable wiring.

  • Standard Switching Capacity: Ideal for typical industrial environments and applications.

Download

Datasheet in PDF

Visit 3RV2011-1JA10 for more detail info

For more our products visit turll



Specifications

SKU / Model3RV2011-1JA10
BrandSIEMENS
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
size of the circuit-breakerS00
size of contactor can be combined company-specificS00, S0
product extension auxiliary switchYes
power loss [W] for rated value of the current-
● at AC in hot operating state9.25 W
● at AC in hot operating state per pole3.1 W
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation in networks with grounded star point-
● between main and auxiliary circuit400 V
shock resistance acc. to IEC 60068-2-2725g / 11 ms
mechanical service life (switching cycles)-
● of the main contacts typical100 000
● of auxiliary contacts typical100 000
electrical endurance (switching cycles) typical100 000
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001
reference code acc. to IEC 81346-2Q
installation altitude at height above sea level maximum2 000 m
ambient temperature-
● during operation-20 ... +60 °C
● during storage-50 ... +80 °C
● during transport-50 ... +80 °C
temperature compensation-20 ... +60 °C
relative humidity during operation10 ... 95 %
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release7 ... 10 A
operating voltage-
● rated value20 ... 690 V
● at AC-3 rated value maximum690 V
operating frequency rated value50 ... 60 Hz
operational current rated value10 A
operational current at AC-3 at 400 V rated value10 A
operating power at AC-3-
● at 230 V rated value2.2 kW
operating frequency at AC-3 maximum15 1/h
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
product function-
● ground fault detectionNo
● phase failure detectionYes
trip classCLASS 10
design of the overload releasethermal
breaking capacity operating short-circuit current (Ics) at AC-
● at 240 V rated value100 kA
● at 400 V rated value100 kA
● at 500 V rated value42 kA
● at 690 V rated value4 kA
breaking capacity maximum short-circuit current (Icu)-
● at AC at 240 V rated value100 kA
● at AC at 400 V rated value100 kA
● at AC at 500 V rated value42 kA
● at AC at 690 V rated value6 kA
response value current of instantaneous short-circuit trip unit130 A
full-load current (FLA) for 3-phase AC motor-
● at 480 V rated value10 A
● at 600 V rated value10 A
yielded mechanical performance [hp]-
● for single-phase AC motor-
— at 110/120 V rated value0.5 hp
— at 230 V rated value1.5 hp
● for 3-phase AC motor-
— at 200/208 V rated value2 hp
— at 220/230 V rated value3 hp
— at 460/480 V rated value5 hp
— at 575/600 V rated value10 hp
product function short circuit protectionYes
design of the short-circuit tripmagnetic
design of the fuse link for IT network for short-circuit protection of the main circuit-
● at 400 VgL/gG 50 A
● at 500 VgL/gG 40 A
● at 690 VgL/gG 40 A
mounting positionany
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
required spacing-
● for grounded parts at 400 V-
● for live parts at 400 V-
● for grounded parts at 500 V-
● for live parts at 500 V-
● for grounded parts at 690 V-
● for live parts at 690 V-
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
product component removable terminal for auxiliary and control circuitNo
type of electrical connection-
● for main current circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop and bottom
type of connectable conductor cross-sections-
— solid or stranded2x (0,75 ... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG cables for main contacts2x (18 ... 14), 2x 12
tightening torque-
● for main contacts with screw-type terminals0.8 ... 1.2 N·m
design of screwdriver shaftDiameter 5 to 6 mm
size of the screwdriver tipPozidriv 2
design of the thread of the connection screw-
● for main contactsM3
B10 value-
proportion of dangerous failures-
● with high demand rate acc. to SN 3192050 %
failure rate [FIT]-
● with low demand rate acc. to SN 3192050 FIT
T1 value for proof test interval or service life acc. to IEC 6150810 y
protection class IP on the front acc. to IEC 60529IP20
touch protection on the front acc. to IEC 60529finger-safe, for vertical contact from the front
display version for switching statusHandle
For use in hazardous locationsTest Certificates Declaration of Conformity
last modified:10/7/2021
Weight0.351 kg
Dimensions49.00 × 102.00 × 102.00 mm
