3SU1050-0AB10-0AD0

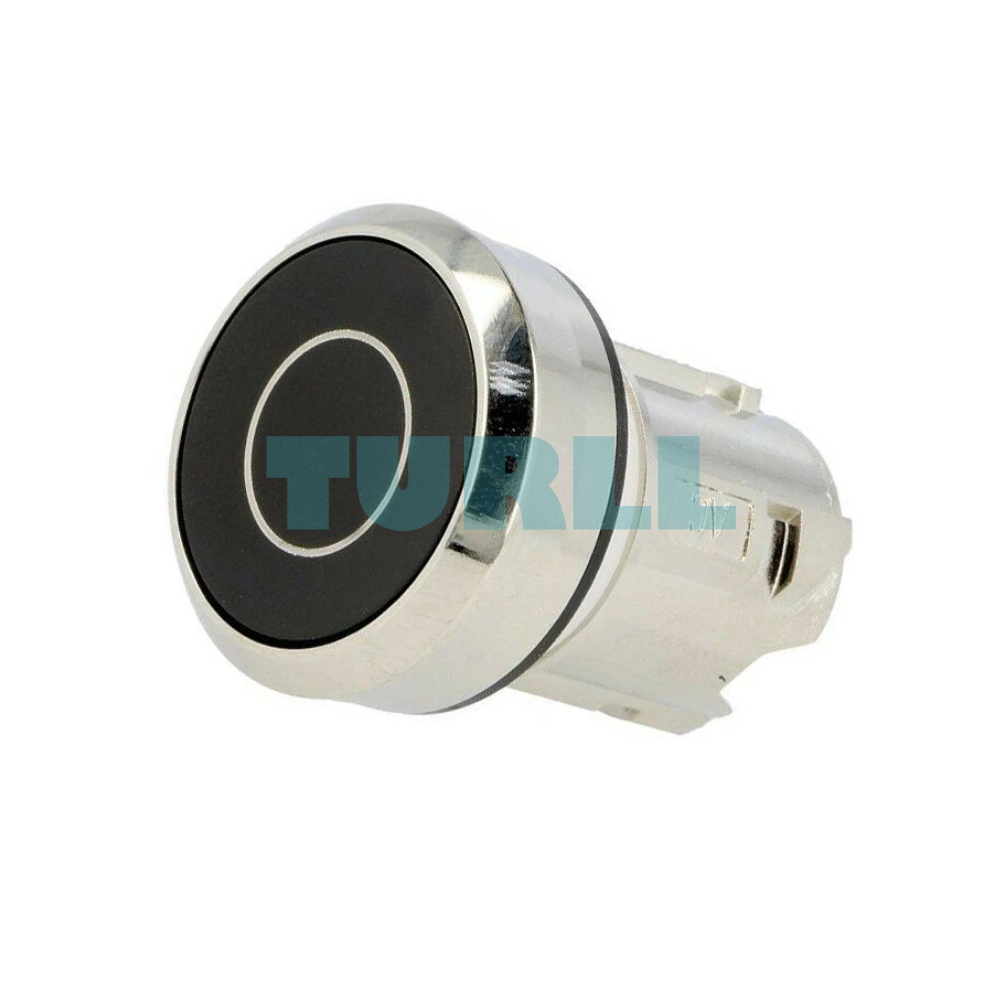

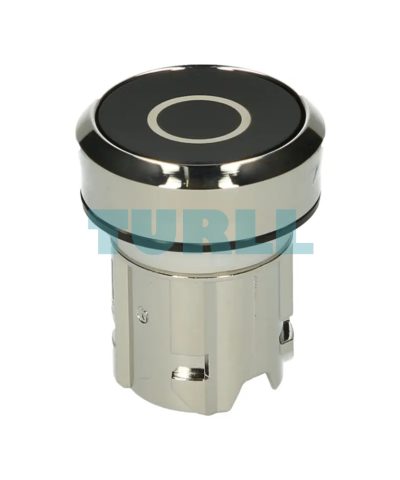

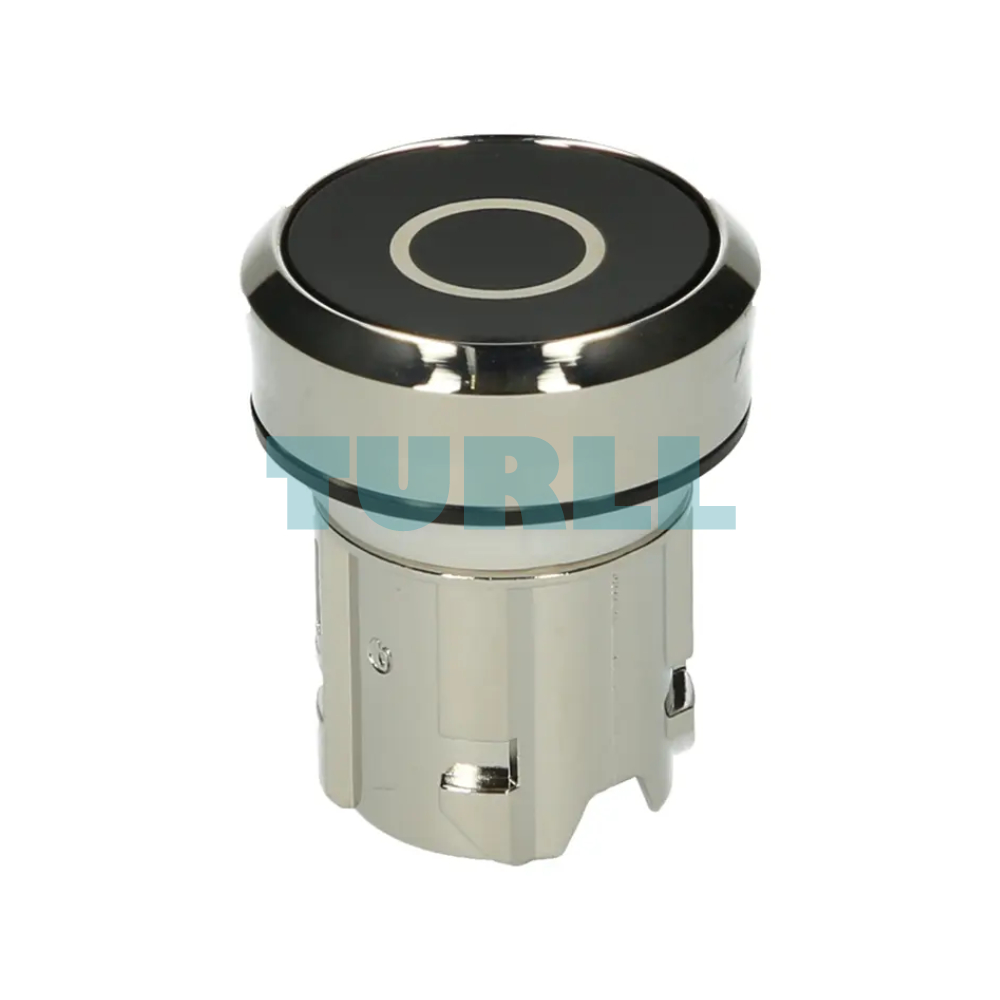

Siemens 3SU1050-0AB10-0AD0 Black Metal Pushbutton,22mm, Flat Momentary Contact Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1050-0AB10-0AD0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |

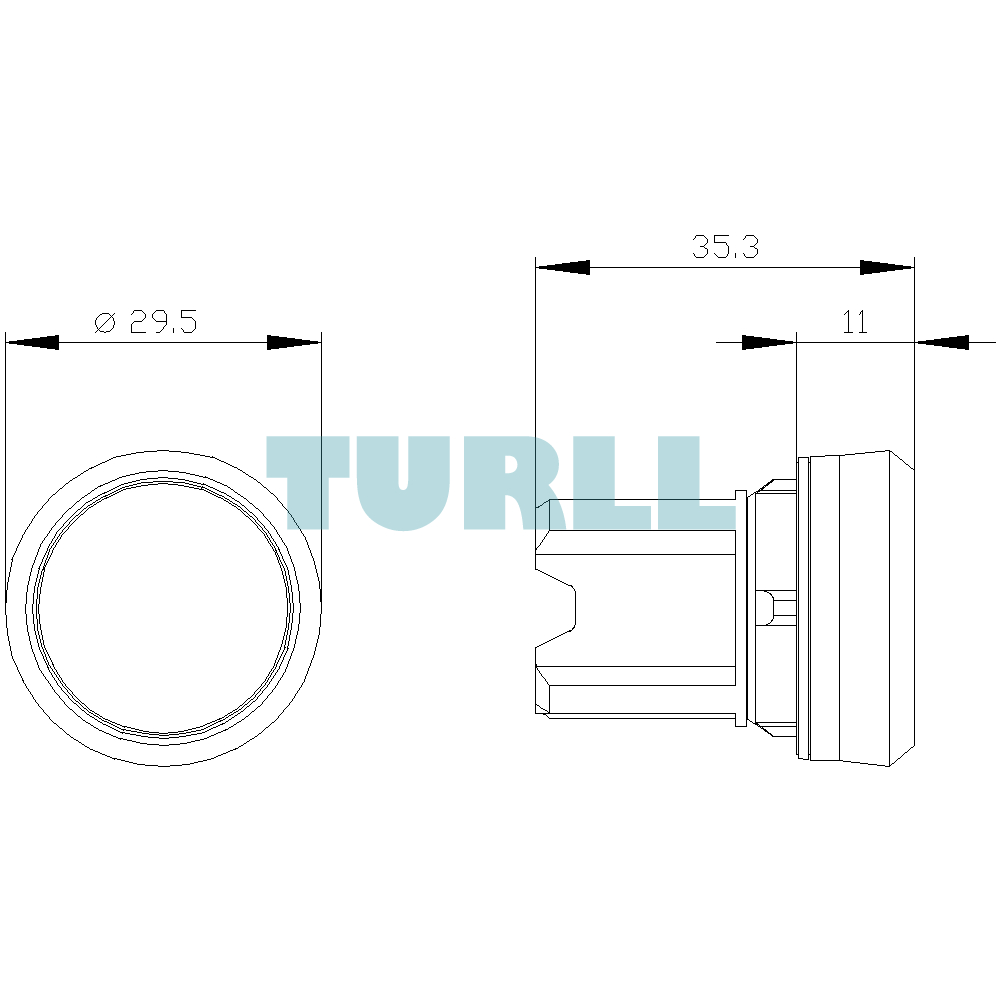

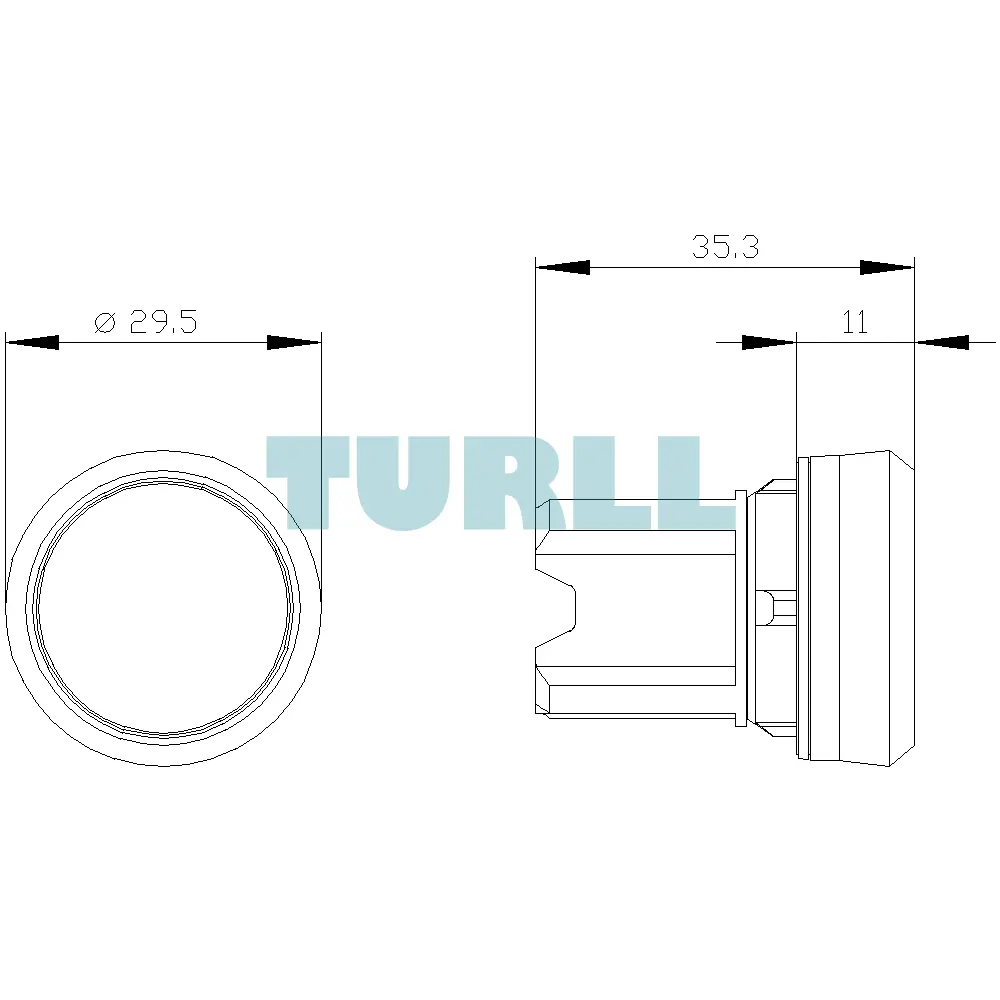

| outer diameter of the actuating element | 29.5 mm |
| marking of the actuating element | "O" |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.039 kg |
| Dimensions for shipping | 100.00 × 150.00 × 30.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1050-0AB10-0AD0 is a high-quality, non-illuminated pushbutton actuator from the renowned SIRIUS ACT control and signaling devices family. Engineered for industrial environments, this device features a robust 22 mm round metal design with a premium, shiny black finish, ensuring both exceptional durability and a sleek aesthetic for control panels. The flat actuator head is clearly marked with the common ‘O’ inscription, typically denoting an ‘Off’ or ‘Stop’ function.
Key Benefits
-
Maximum Durability: The metal construction provides superior resistance to mechanical wear and tear, making it ideal for harsh industrial conditions.
-
Sleek Design: The shiny black finish and flat actuator head offer a modern, professional look that integrates seamlessly into high-end control panels.
-
Easy Installation: Designed for fast, tool-free mounting, reducing installation time and labor costs.
-
Clear Identification: The large, clear ‘O’ inscription ensures unambiguous operation, improving safety and reducing human error.
-
Standard Compatibility: 22 mm mounting diameter ensures compatibility with standard industrial cutout sizes.
Functions/Features
-
Product Type: Pushbutton Actuator (Flat)
-
Operation: Momentary contact type (the switch closes a circuit only while the button is pressed).
-
Mounting Diameter: 22 mm
-
Material: High-quality Metal, Shiny
-
Color: Black
-
Inscription: ‘O’
