Siemens 3SU1050-0AB30-0AA0 Yellow Metal Round Pushbutton, 22mm, Momentary Contact Original Brand New
$5.28

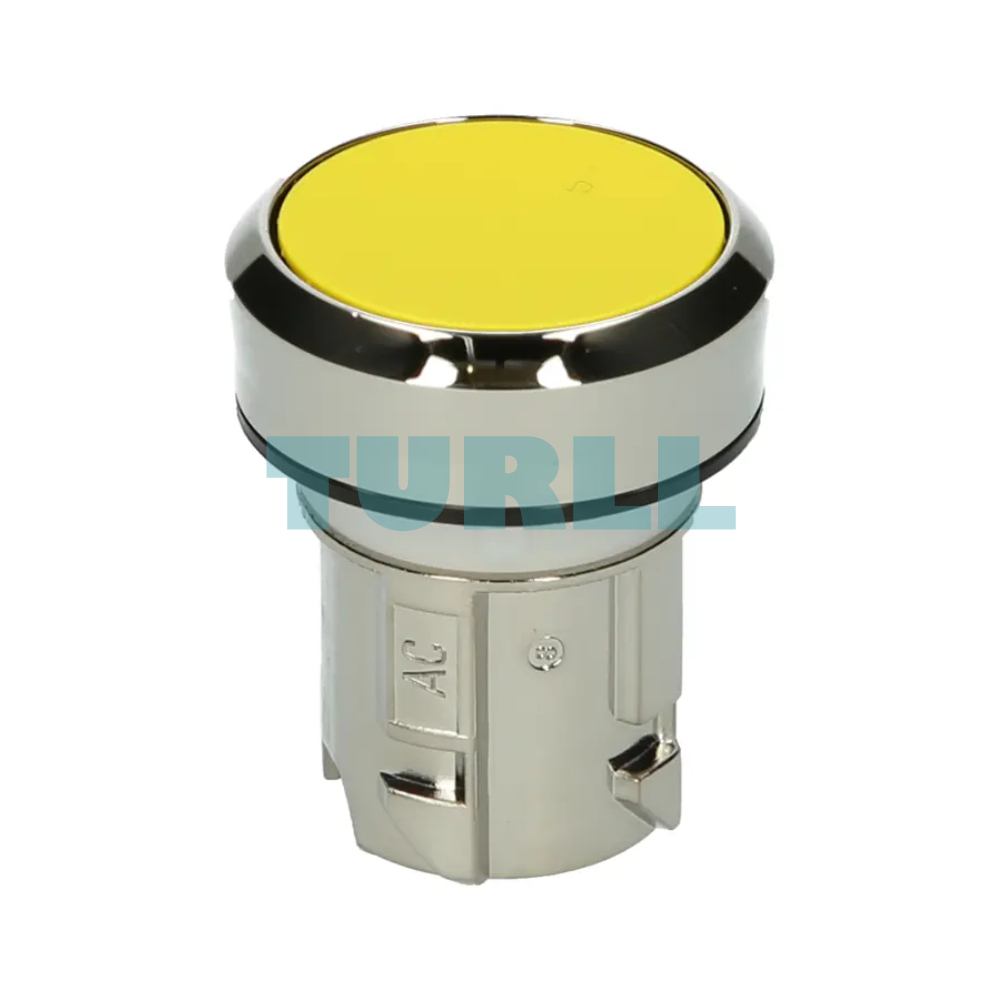

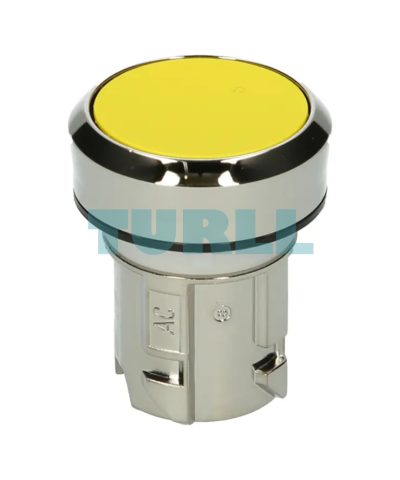

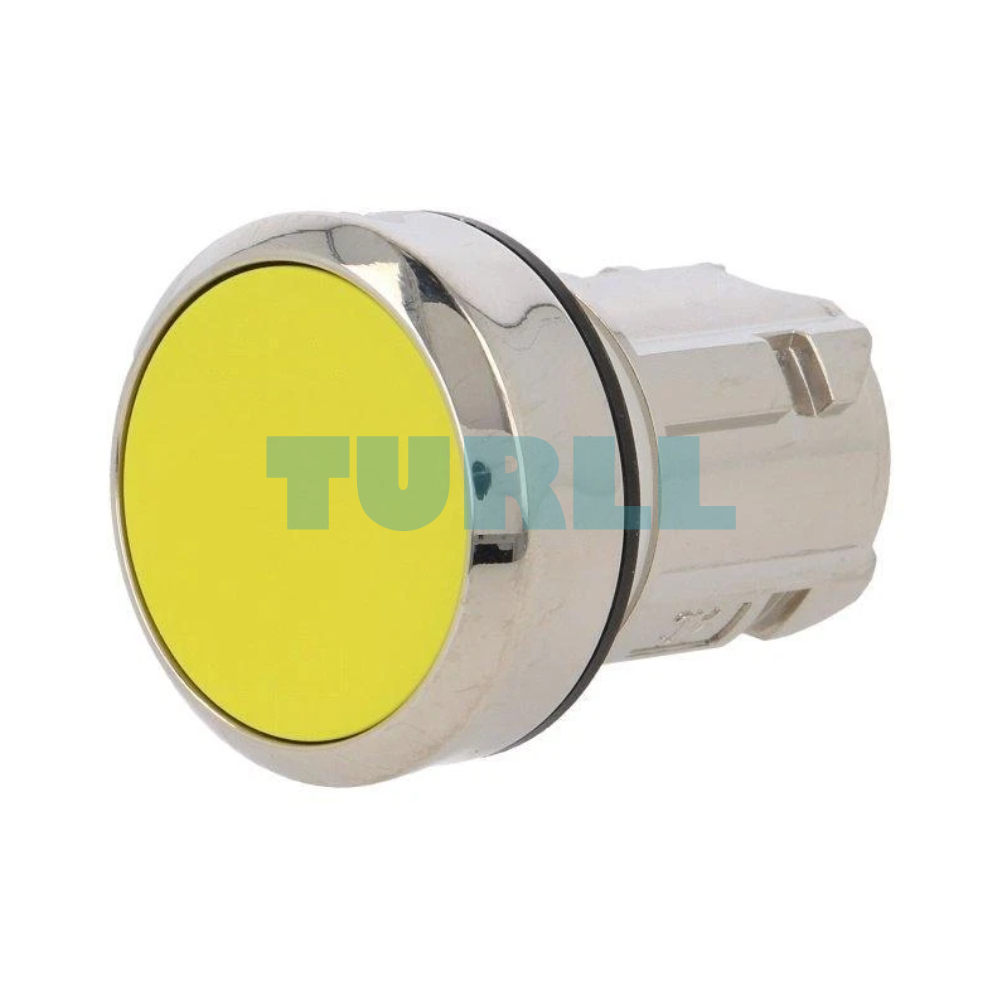

This model is a non-illuminated, flat, momentary contact pushbutton operator from the SIRIUS ACT product line. It features a rugged, shiny metal design and a distinctive yellow color, with a standard 22 mm mounting diameter and high protection ratings up to IP69K for use in harsh industrial environments.
Availability: In stock
Overview
The Siemens SIRIUS ACT 3SU1050-0AB30-0AA0 is a high-quality actuating element for industrial control and signaling. This component is the actuator only (head), designed for mounting on control panels with a standard 22 mm cutout. Its robust construction features a yellow plastic flat button actuator and a brilliant, high-gloss silver metal front ring, ensuring long-term reliability and a professional appearance. As a momentary contact type, it signals only while the button is pressed (spring-return).
Benefit
-
Durable Construction: Made from high-quality metal, resistant to wear and industrial environments.
-
Easy Operation: Flat, round design for smooth and precise momentary actuation.
-
Visual Safety Indicator: Bright yellow color for clear identification in control panels.
-
Standardized Size: 22 mm diameter, compatible with most industrial panels and switchboards.
-
Reliable Performance: Siemens engineering ensures consistent contact performance over extended use.
Function
-
Provides momentary electrical contact for start/stop or signal control applications.
-
Ideal for machine panels, control systems, and industrial automation.
-
Can be integrated into modular panel setups for professional installations.
Technical Specifications
-
Product Number: 3SU1050-0AB30-0AA0
-
Type: Pushbutton, momentary contact
-
Shape: Round, flat
-
Diameter: 22 mm
-
Material: Metal
-
Color: Yellow, shiny
-
Mounting: Panel-mounted
-
Operation: Momentary (push-to-make)
Visit 3SU1050-0AB30-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.035 kg |
|---|---|
| Dimensions | 30.00 × 40.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

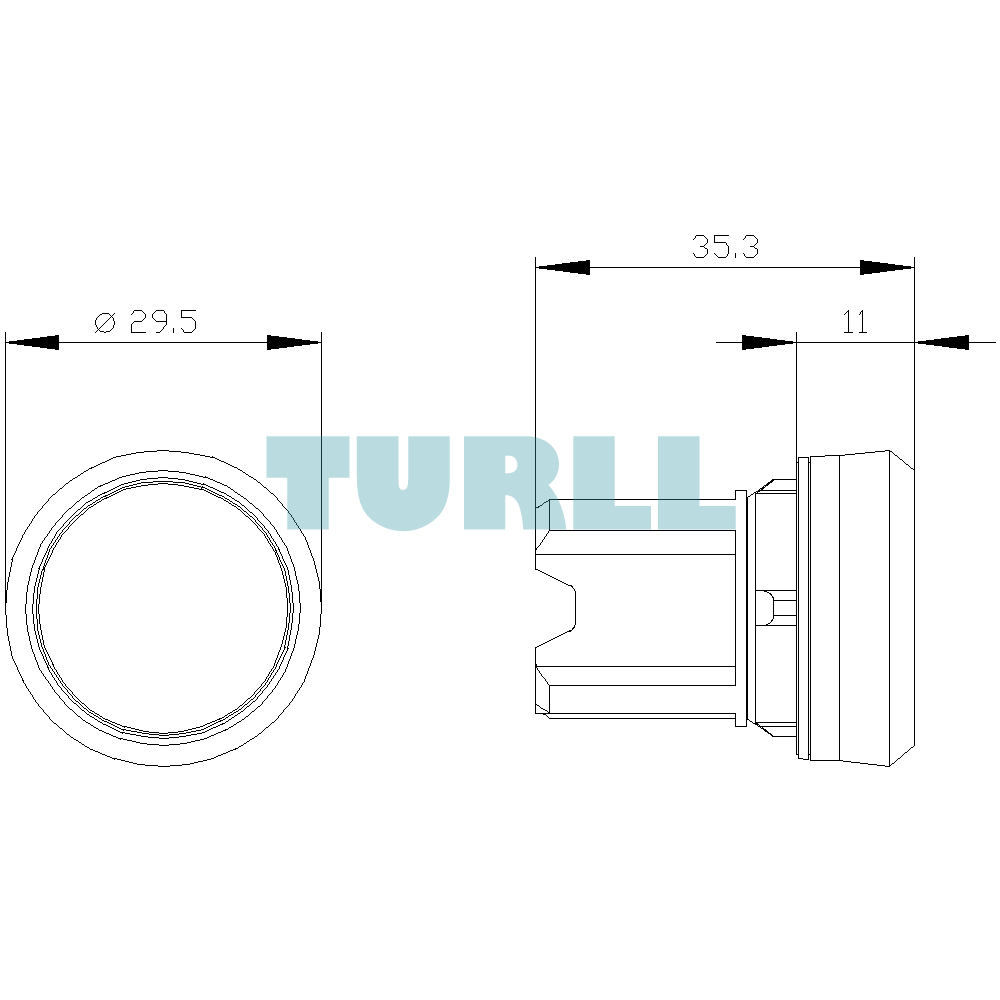

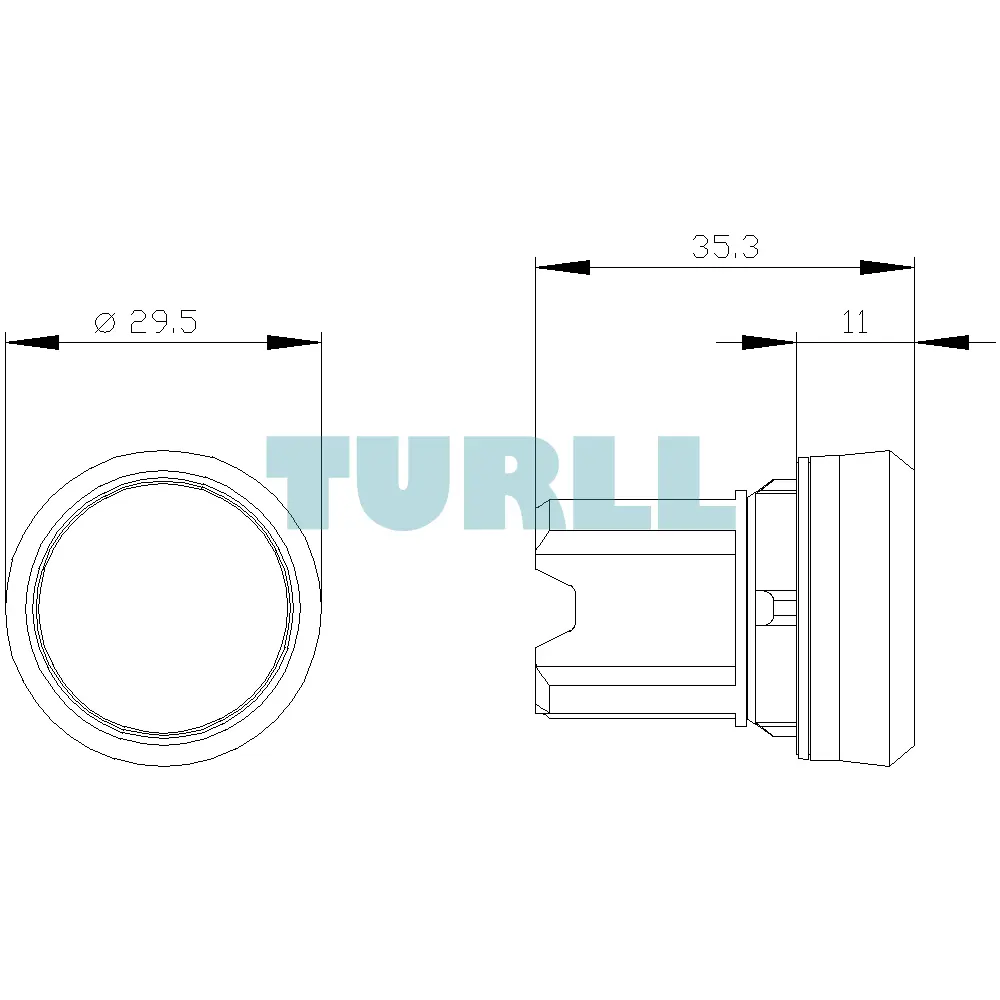

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
