3SU1050-0AB70-0AA0

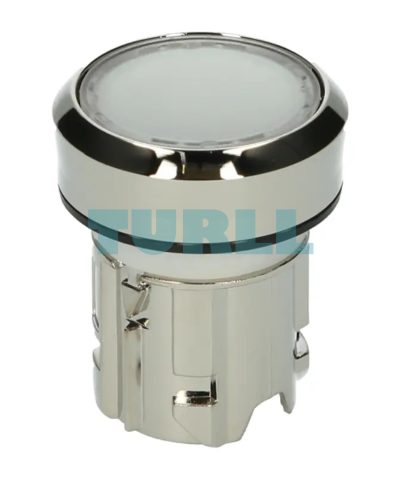

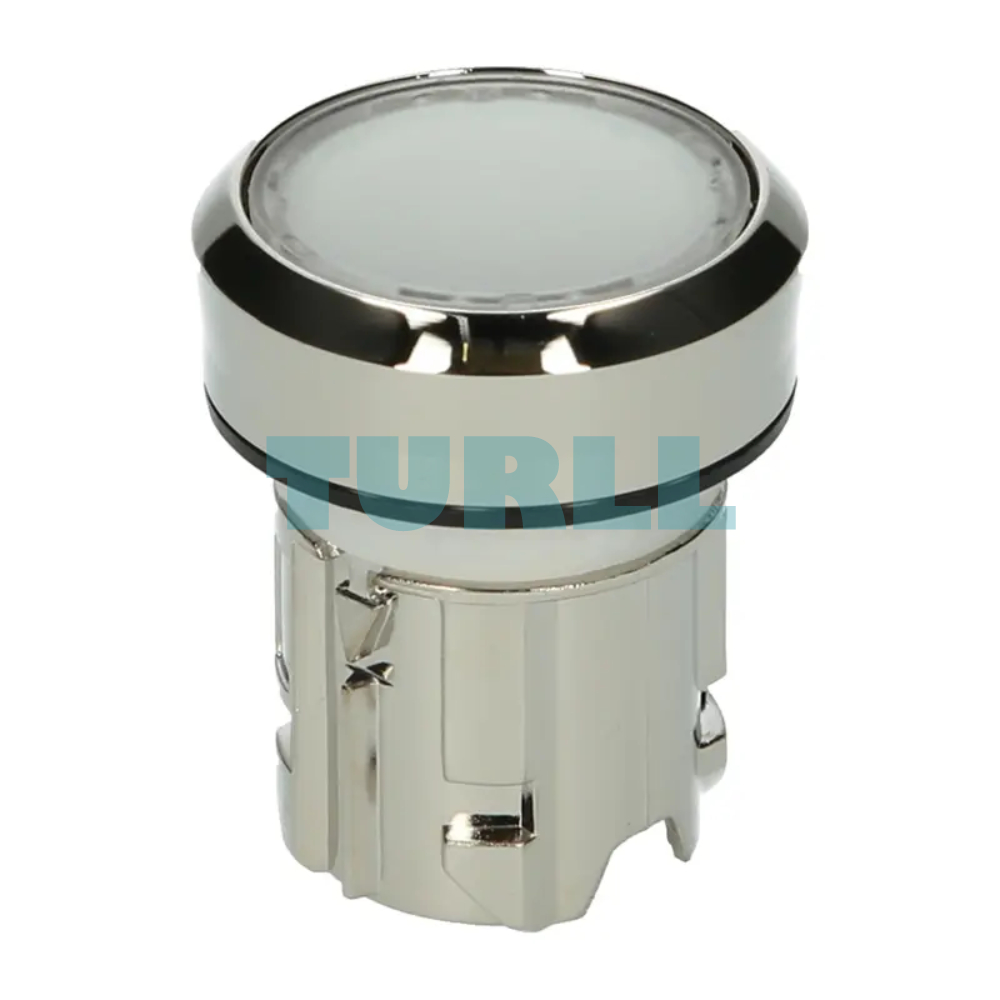

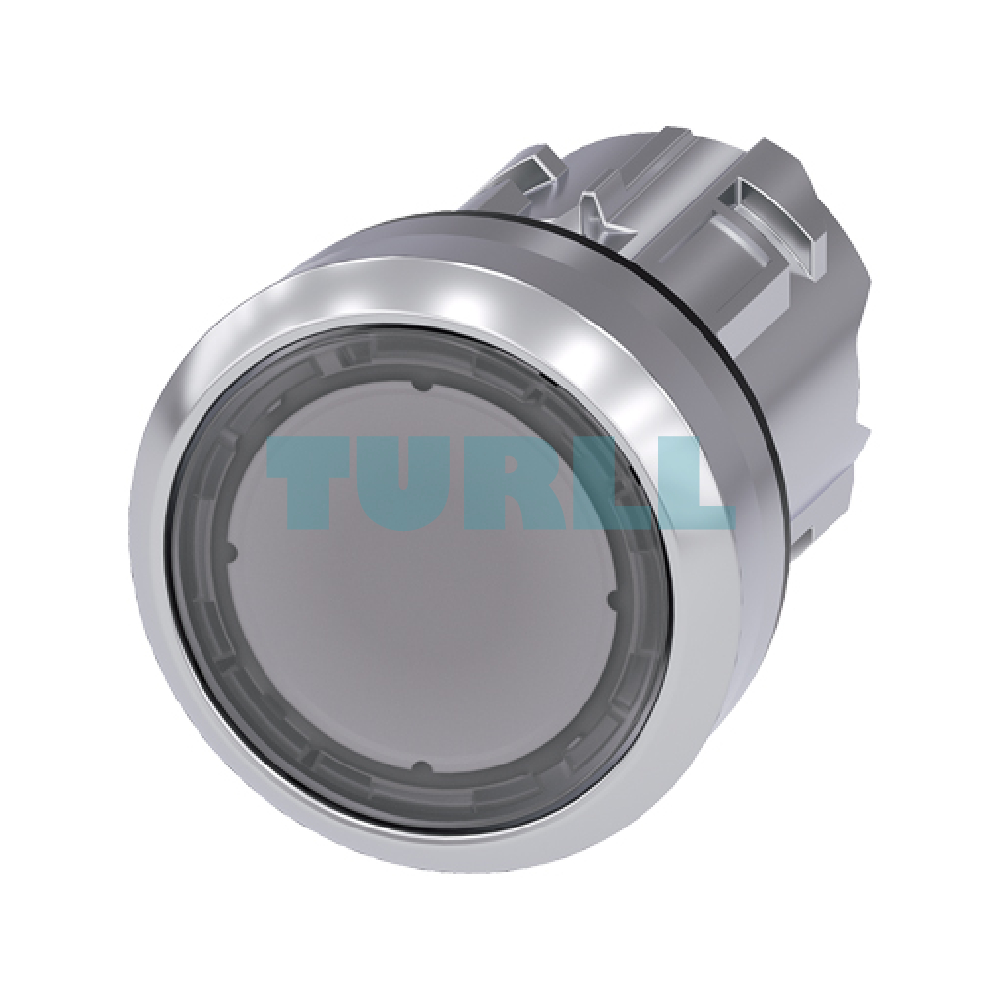

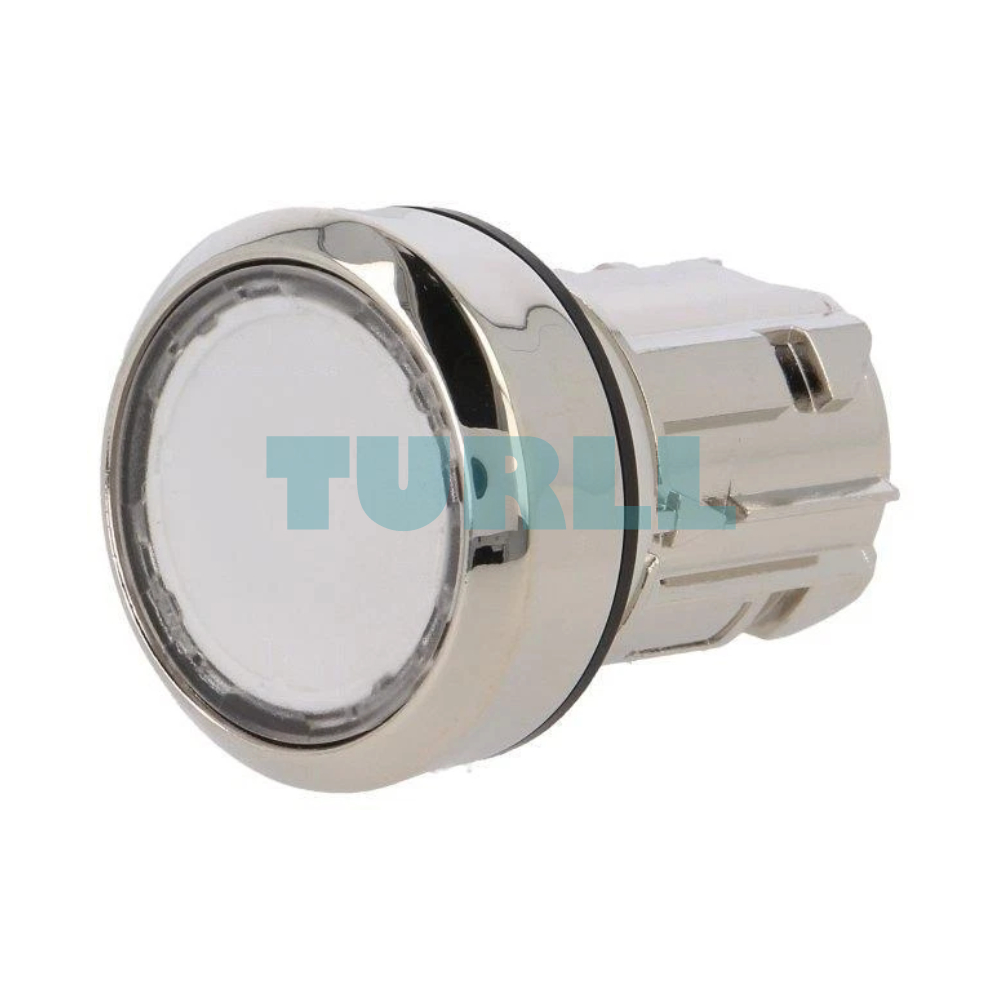

Siemens 3SU1050-0AB70-0AA0 Pushbutton, 22 mm, Round, Metal Clear Flat Momentary Switch Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1050-0AB70-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | clear |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| marking of the actuating element | Customized labeling, text in lower case letters |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |

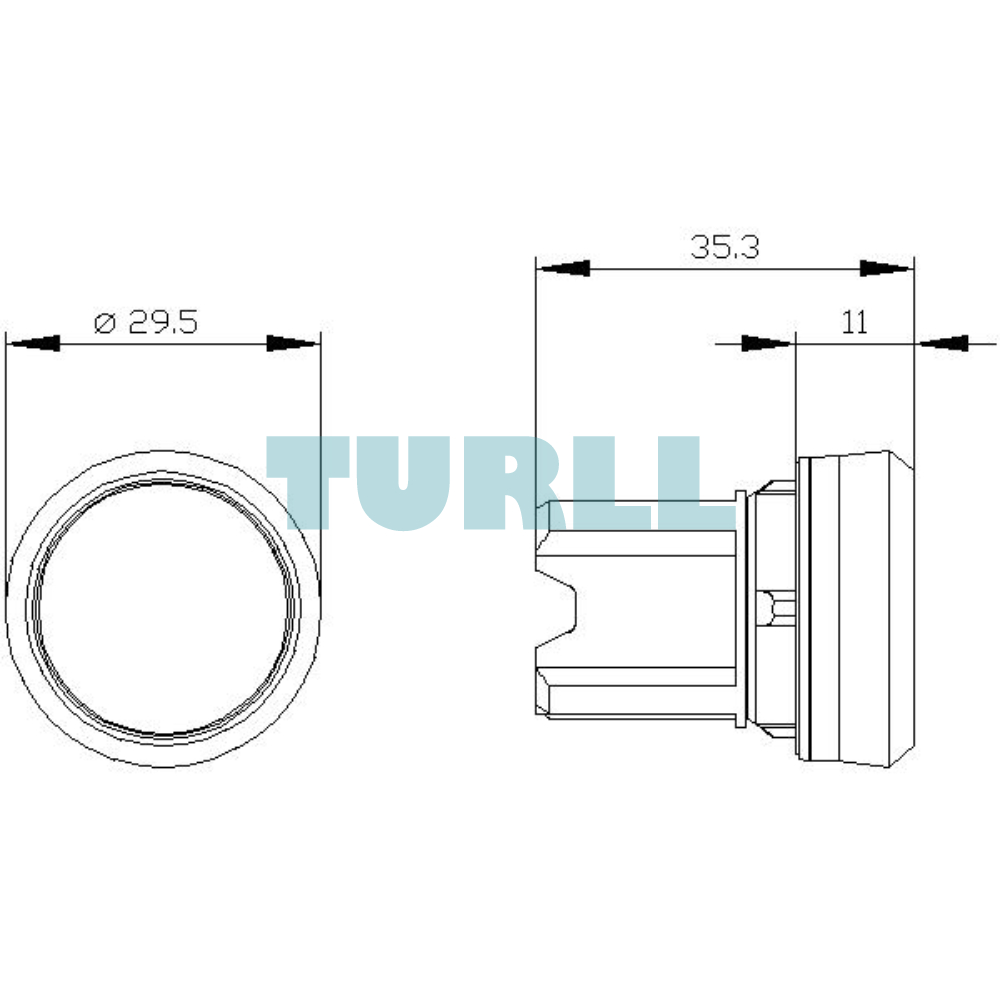

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.036 kg |
| Dimensions for shipping | 30.00 × 50.00 × 30.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1050-0AB70-0AA0 pushbutton is a high-quality, industrial-grade control device designed for reliable switching in a wide range of automation environments. Featuring a 22 mm round metal body, a shiny clear push surface, and a flat momentary contact design, this switch provides precise and quick actuation for demanding control panel applications.
Engineered by Siemens, a global leader in automation technology, this pushbutton ensures durability, long service life, and consistent performance even in harsh industrial conditions.
Benefit
-
High Durability: Premium metal construction ensures resistance to wear, impact, and industrial environments.
-
Precise Operation: Flat momentary design supports smooth and accurate actuation.
-
Enhanced Visibility: Shiny clear button surface allows easy recognition during panel operations.
-
Versatile Application: Ideal for machinery, automation panels, control stations, and industrial equipment.
-
Reliable Siemens Engineering: Built to the highest quality standards for long-term performance.
Function & Application
The Siemens 3SU1050-0AB70-0AA0 serves as a momentary pushbutton used to send temporary electrical signals within a control system. Common applications include:
-
Start/stop functions
-
Reset commands
-
Machine input controls
-
Operator panels
-
Industrial automation systems
-
Control consoles and safety systems
Designed for quick actuation and ergonomic use, it enhances efficiency and safety in any control environment.
Download
Visit 3SU1050-0AB70-0AA0 for more detail info
For more our products visit turll
