3SU1051-0AA40-0AA0

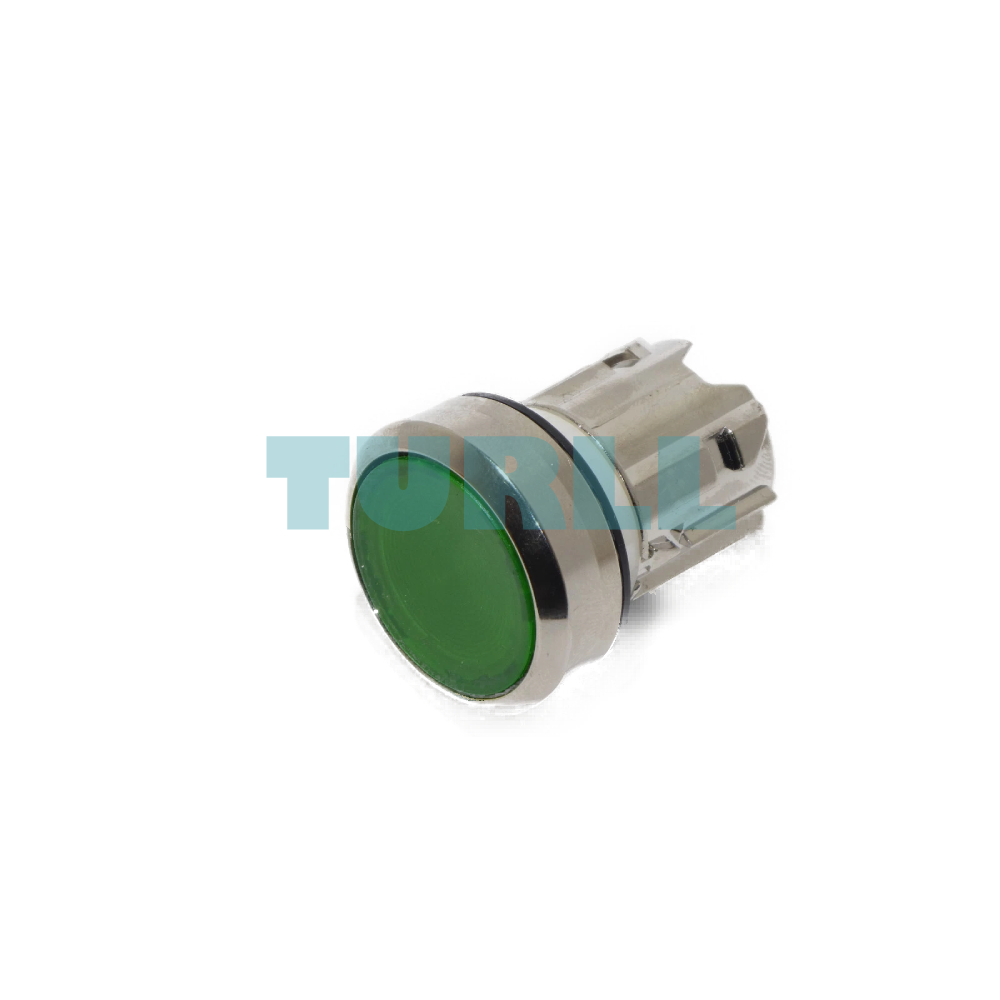

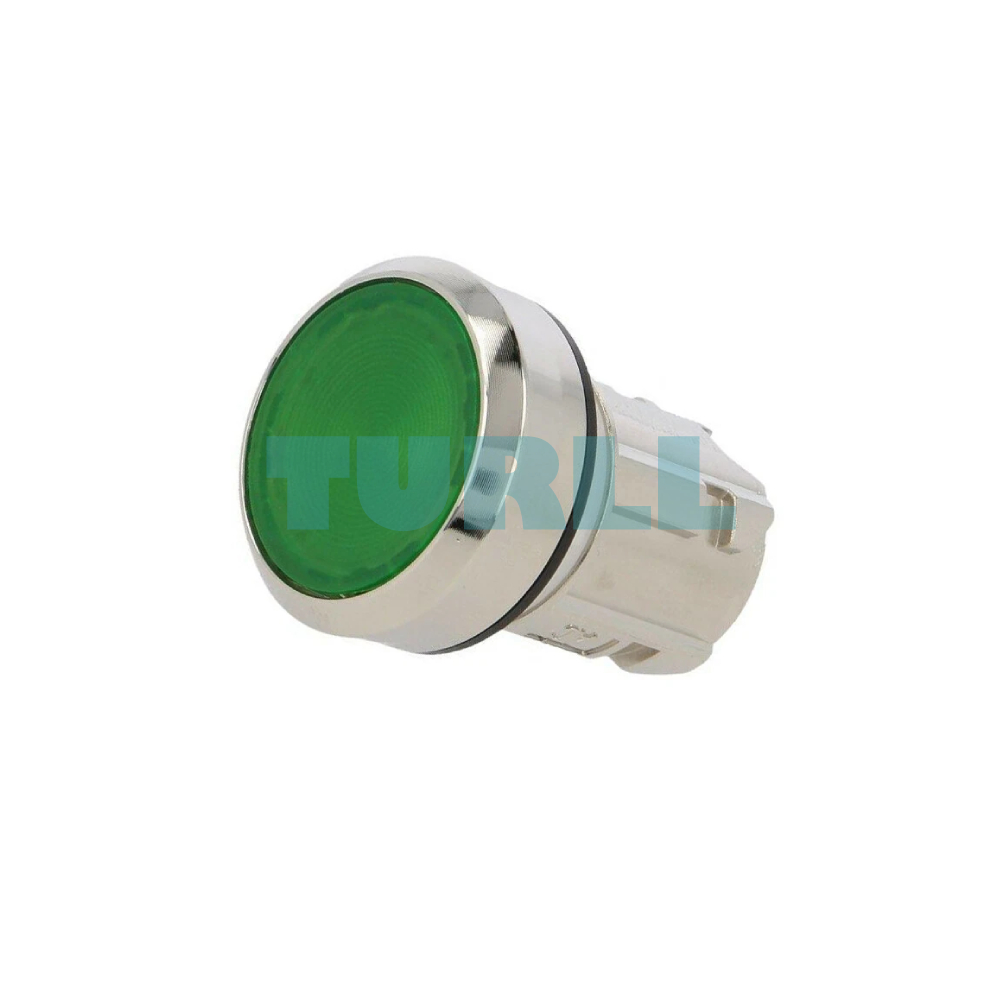

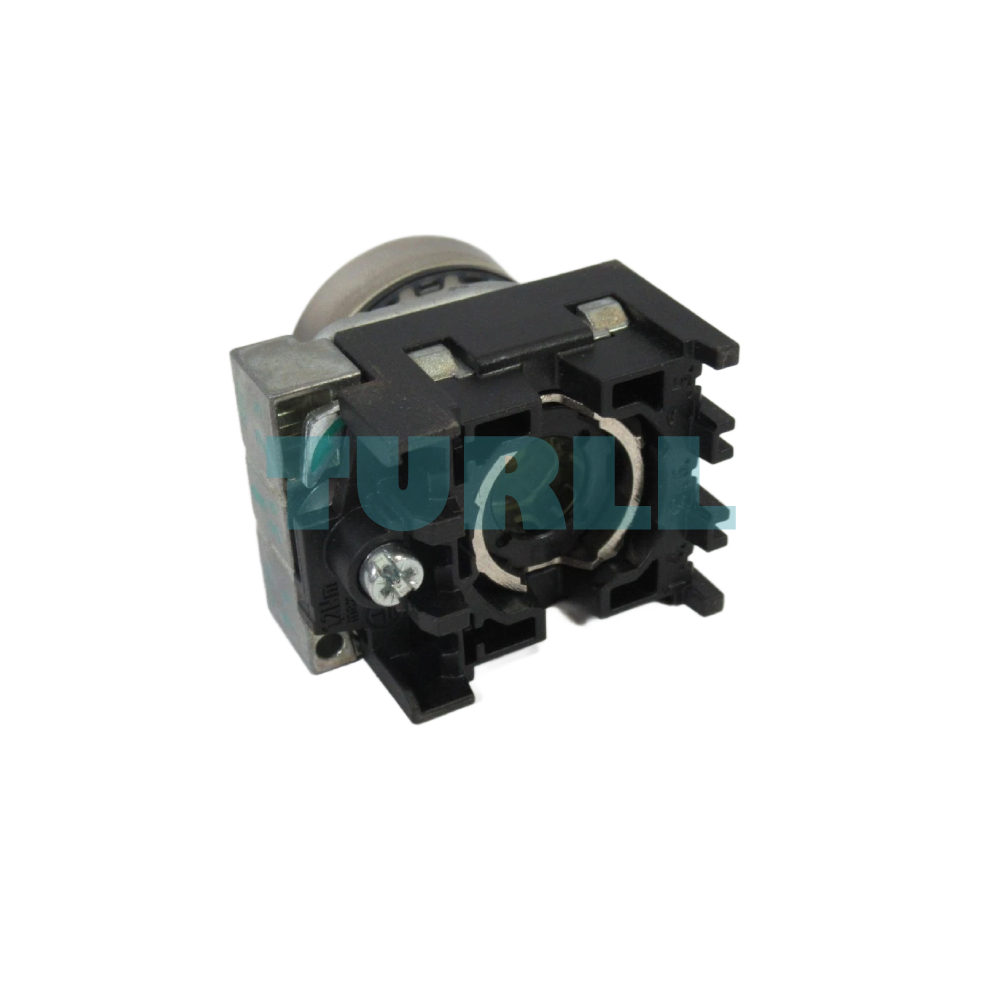

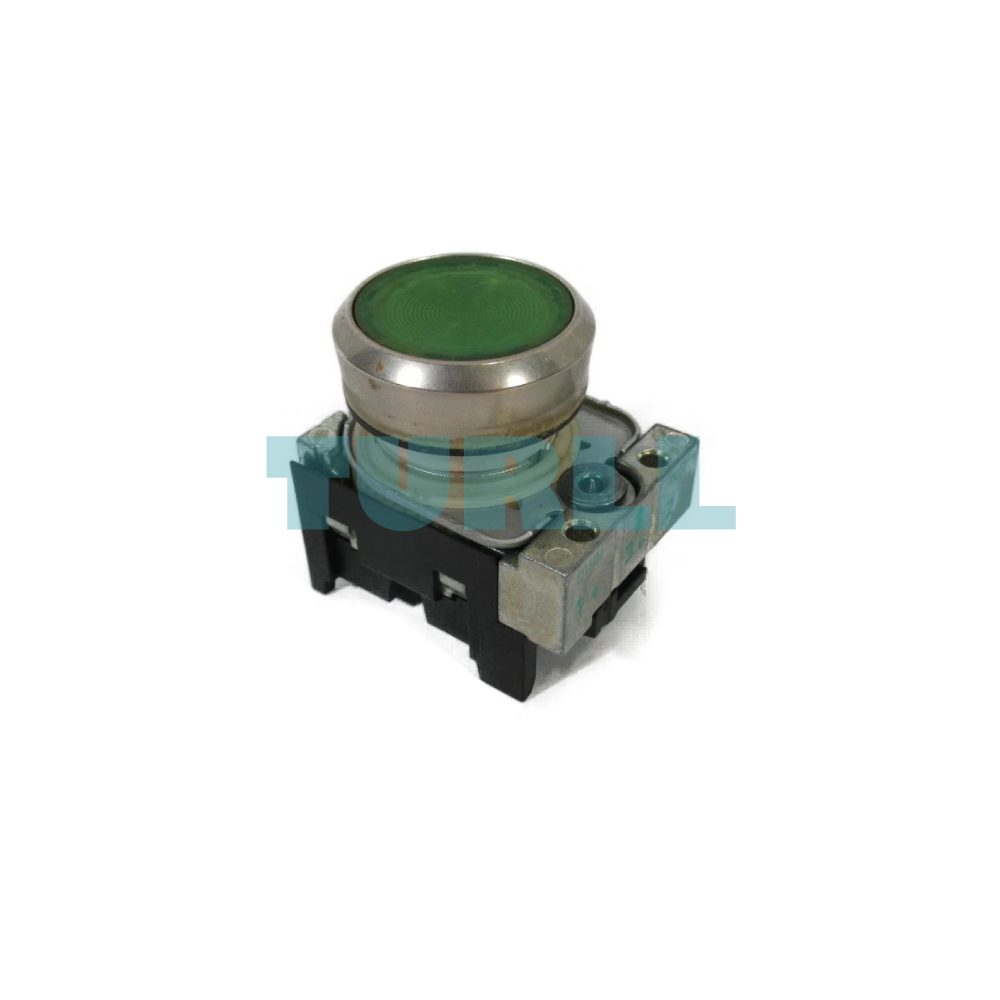

Siemens 3SU1051-0AA40-0AA0 Illuminated Pushbutton, 22 mm, Green, Latching, Metal Flat Actuator Original Brand New
Original price was: $19.53.$7.91Current price is: $7.91.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1051-0AA40-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |

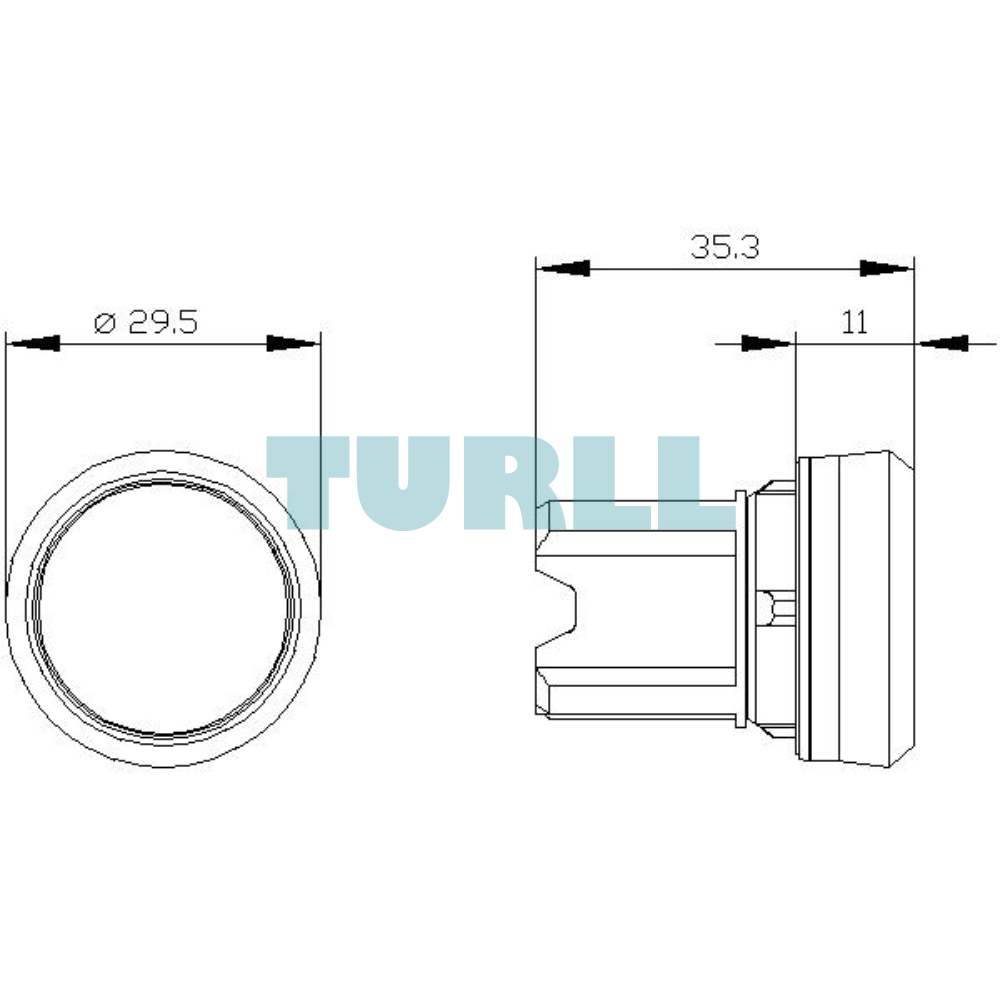

| outer diameter of the actuating element | 29.5 mm |
| marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.035 kg |
| Dimensions for shipping | 100.00 × 150.00 × 1.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1051-0AA40-0AA0 is a premium-quality illuminated pushbutton designed for high-performance industrial control applications. Featuring a 22 mm round metal body with a shiny green flat actuator, this pushbutton delivers durability, visibility, and reliable operation in demanding environments. Built with a latching function and push-to-release mechanism, it ensures precise switching control for machines, panels, and automation systems.
This Siemens pushbutton is part of the renowned SIRIUS ACT series—engineered for long service life, easy installation, and outstanding mechanical robustness.
Benefit
-
Durable Metal Construction: Ensures long-term stability and excellent resistance to mechanical stress.
-
High Visibility Illumination: Clear, bright green light enhances operator awareness.
-
Ergonomic Flat Design: Modern, sleek appearance suitable for advanced control panels.
-
Latching Function: Stays in the ON position until manually released.
-
Enhanced Safety: Push-to-release mechanism prevents accidental resets.
-
Easy Integration: Fits standard 22 mm mounting cutouts across industrial systems.
-
Siemens Reliability: Backed by top-tier engineering and quality assurance.
Features & Functionality
-
Type: Illuminated pushbutton
-
Mounting Diameter: 22 mm
-
Actuator Shape: Round, flat
-
Color: Green
-
Material: Shiny metal front ring
-
Operation Mode: Latching – push to activate, push-to-release to reset
-
Application: Control panels, industrial machines, automation systems, safety interfaces
-
Series: Siemens SIRIUS ACT
This pushbutton is ideal for start/stop commands, machine enabling functions, and user-triggered operational controls.
