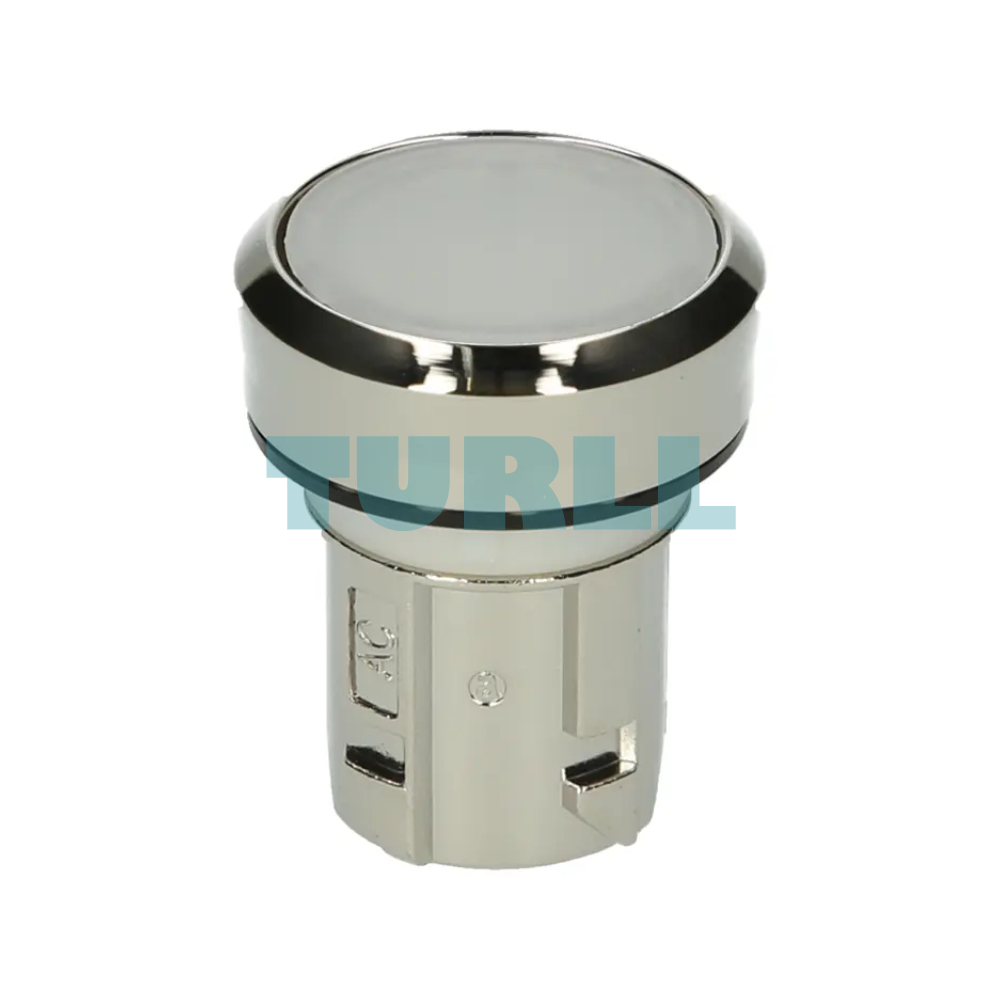

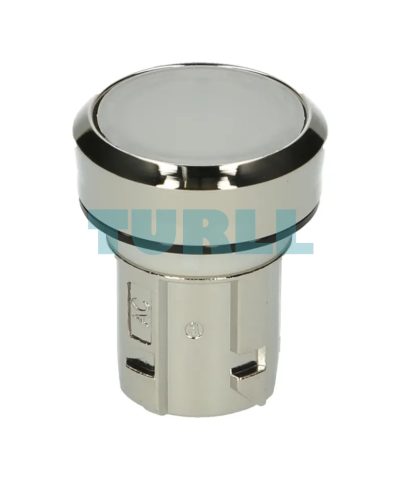

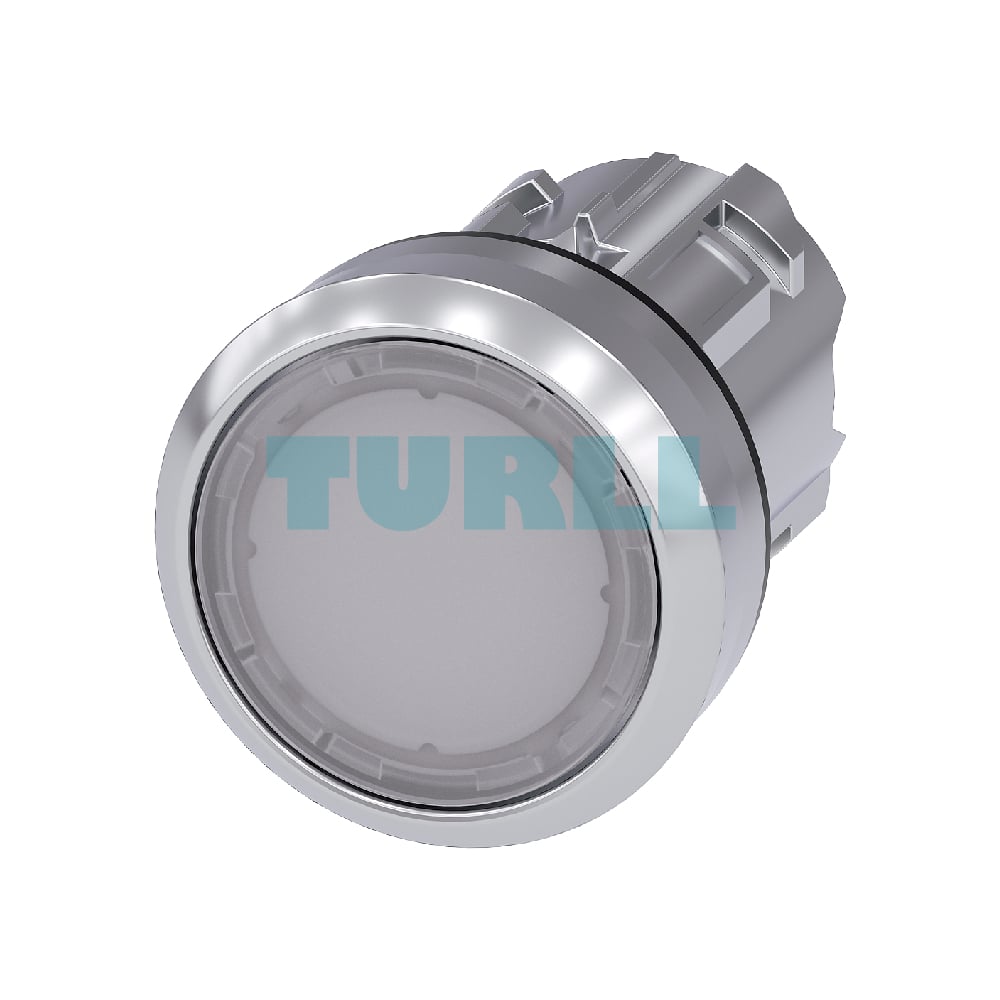

Siemens 3SU1051-0AA60-0AA0 SIRIUS ACT Illuminated Pushbutton, White, 22mm Metal Original Brand New
$10.67
A premium 22mm white illuminated pushbutton from the SIRIUS ACT series. Featuring a sleek, shiny metal design and a flat head, this latching switch utilizes a reliable push-to-release mechanism for precise industrial control.
Availability: In stock
Overview
The Siemens 3SU1051-0AA60-0AA0 is designed for high-performance environments where durability and visual clarity are paramount. As part of the SIRIUS ACT portfolio, this illuminated pushbutton offers a modern, shiny metal aesthetic combined with rugged engineering. Its latching, push-to-release functionality ensures the switch remains in its actuated state until manually released, making it ideal for critical process controls.
Key Benefits & Features
-
Premium Construction: Made with high-quality, shiny metal for superior durability and a professional appearance in control panels.
-
Visual Clarity: The white illuminated pushbutton provides clear status indication, even in low-light industrial settings.
-
Ergonomic Design: The flat, round 22mm actuator is designed for ease of use and seamless integration into standard panels.
-
Secure Latching: The “Push-to-release” mechanism prevents accidental resetting, ensuring consistent circuit state management.
-
Easy Installation: Designed for simple, one-handed mounting with the trusted Siemens SIRIUS ACT modular system.
Technical Function
-
Actuating Type: Latching (stays in place when pressed).
-
Release Mechanism: Push-to-release.
-
Illumination: Integrated LED compatibility for white light signaling.
-
Mounting Diameter: Standard 22mm.
-
Environmental Protection: Built to withstand harsh industrial conditions (typically IP66/IP67/IP69K rated).
Visit 3SU1051-0AA60-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.035 kg |
|---|---|
| Dimensions | 30.00 × 50.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | round |

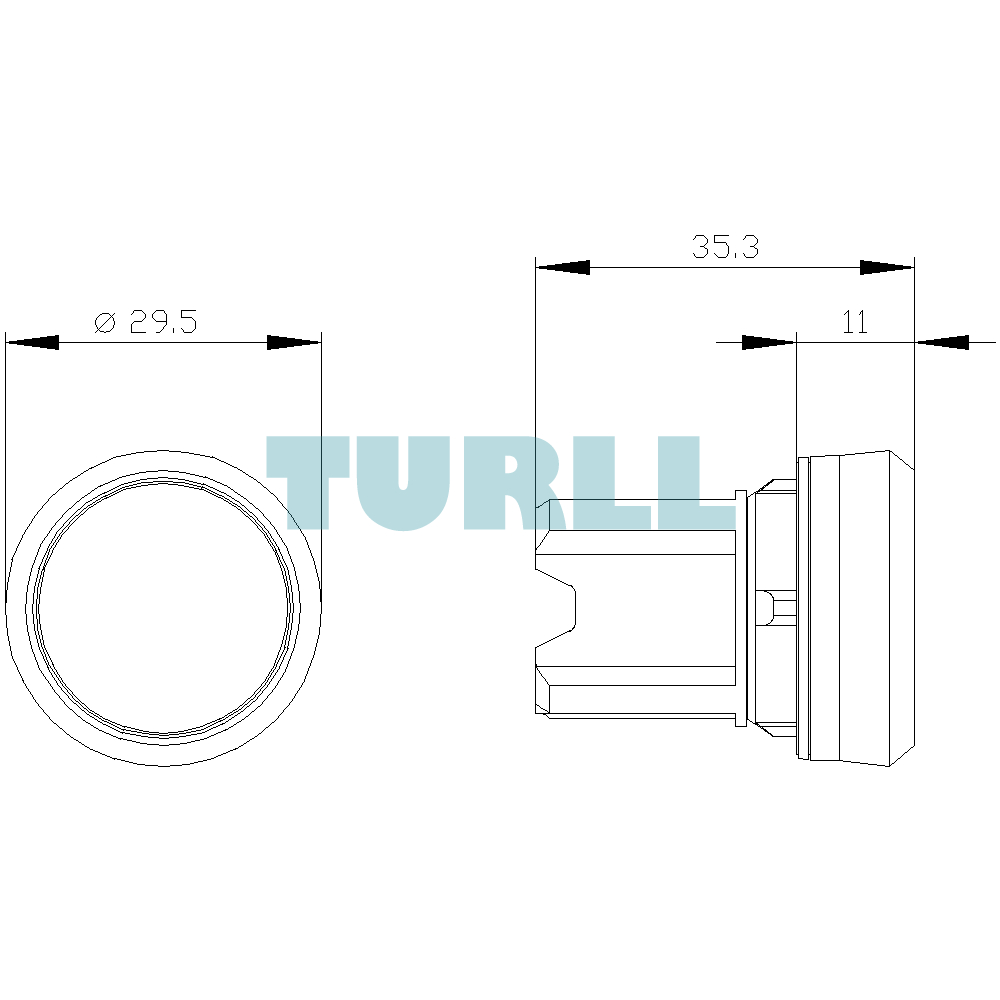

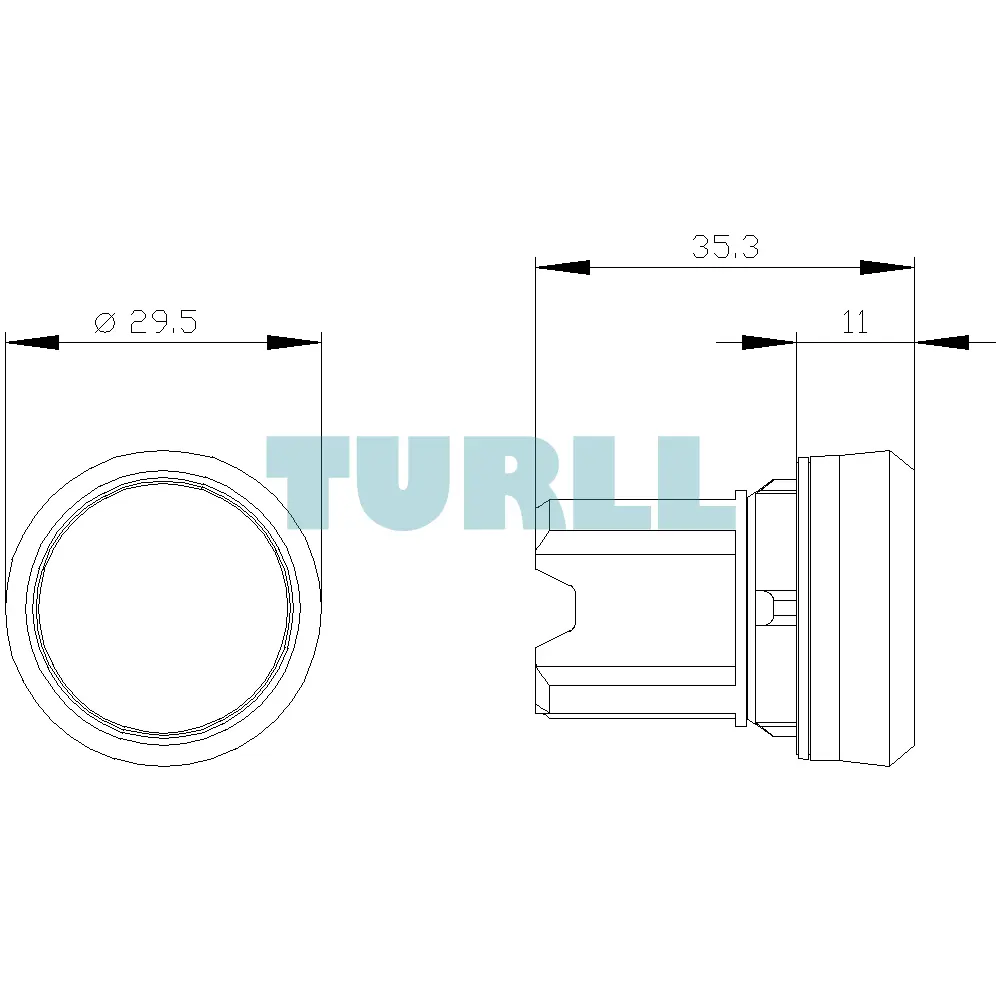

| outer diameter of the actuating element | 29.5 mm |
| marking of the actuating element | Any inscription, text in upper case |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| last modified: | 10/6/2021 |
